Customizable cables UL1007 18AWG UL 1007 18AWG 22AWG Red Black White Blue Yellow Cable 2464 22AWG 24AWG Cable

18AWG Copper Wire

UL1007 Copper Wire

18AWG Electrical Wire Cable

Place of Origin:

China

Brand Name:

linkecable

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Colour:

Customize

Type:

Insulated

Package:

By Roll

Lead Time:

7-15days

Highlight:

18AWG Copper Wire

UL1007 Copper Wire

18AWG Electrical Wire Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Quotation according to specifications

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

1.5mm 2.5mm 6mm Flexible PVC Sheath Copper Cable for House Wiring and Building Wire

Get Best Price

Video

Copper Conductor PVC Insulation Electrical Cable and Building Wire for House Wiring in 1.5mm to 10mm Sizes

Get Best Price

Video

600V Rated 200°C High Temperature FEP Insulated Cable with UL758/UL1581 Standard for Industrial and Household Use

Get Best Price

Video

Flexible Electric Cable Wires 450/750V Single or Multicore with Pure Copper Conductor

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

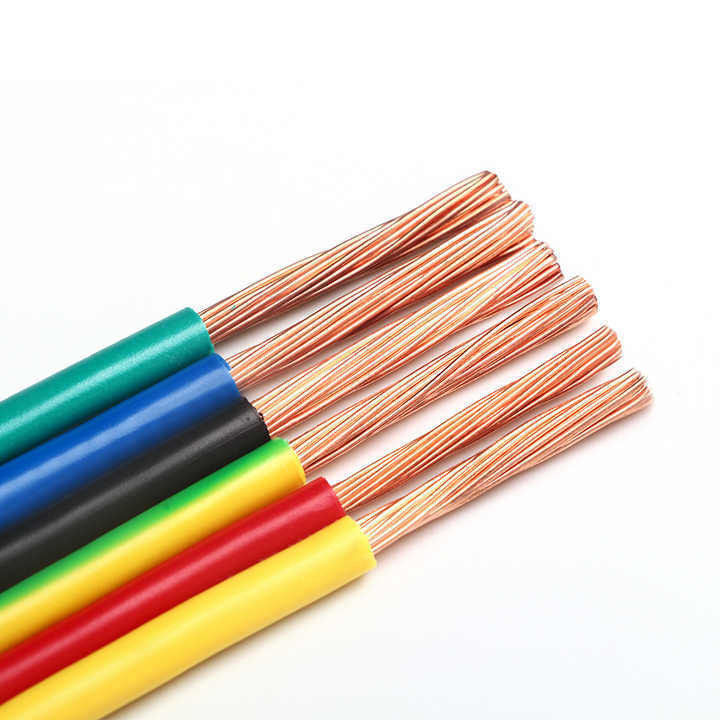

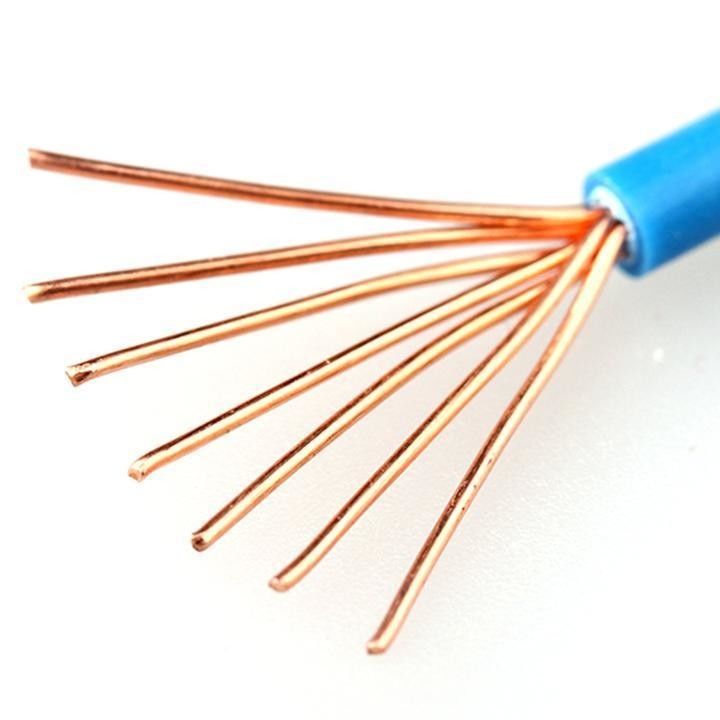

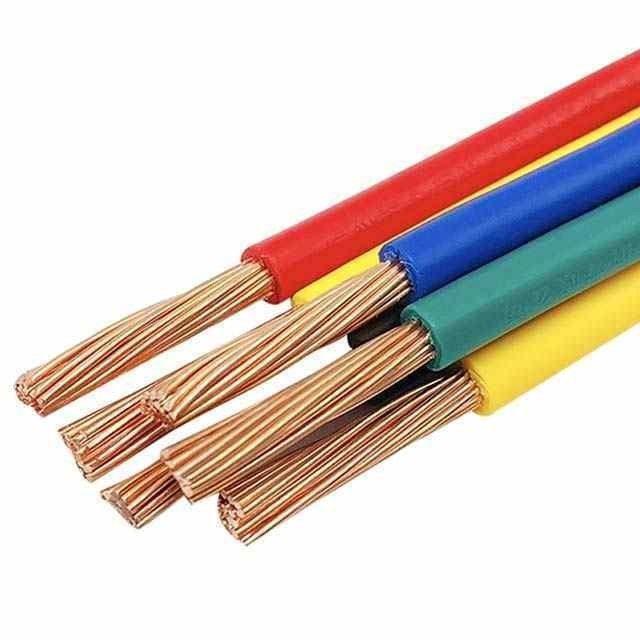

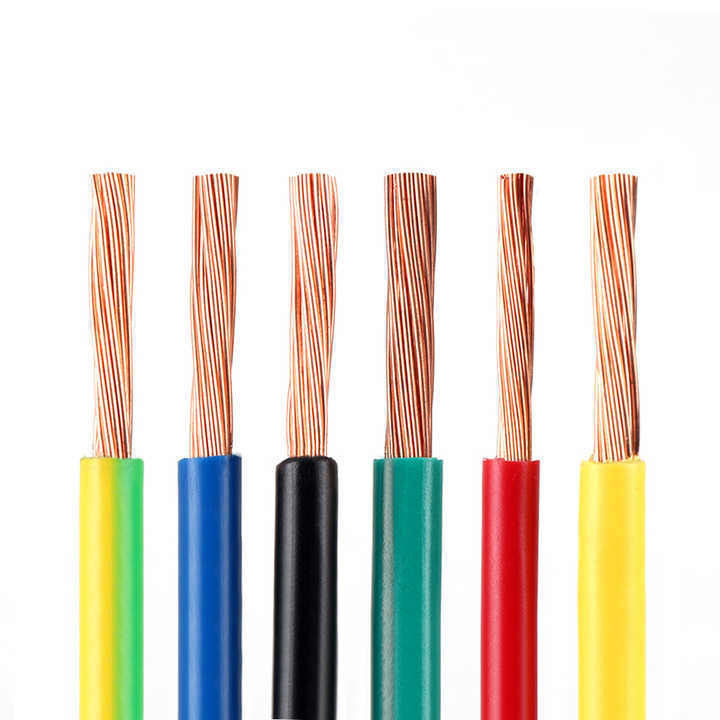

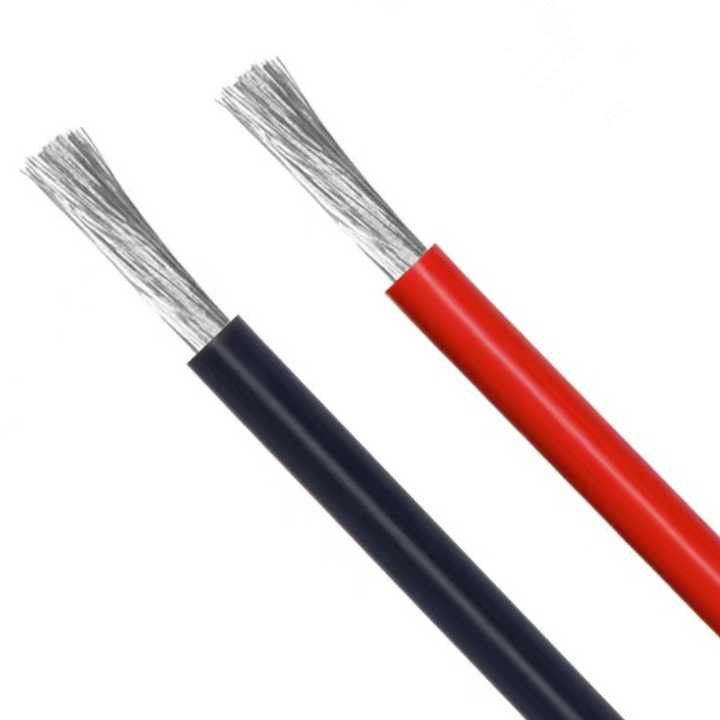

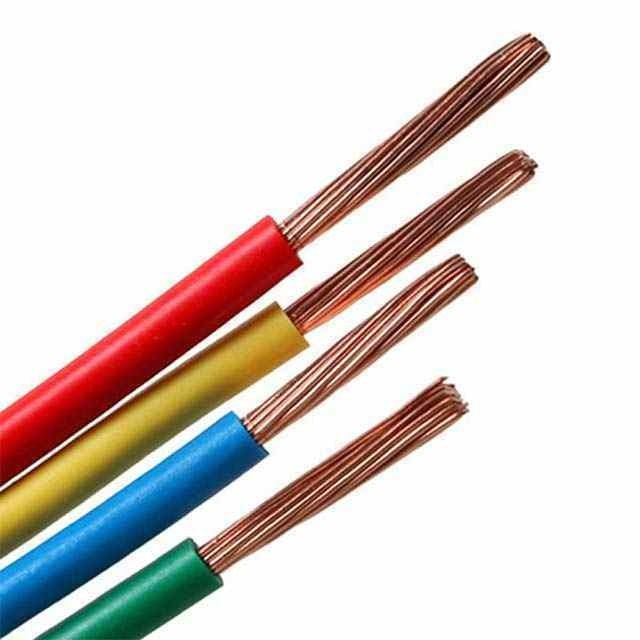

UL1007 18AWG Electrical Wire

High-quality UL1007 18AWG copper wire with PVC insulation, designed for reliable electrical applications in electronic equipment and devices.

Product Specifications

Stranded conductor: 32-16AWG tinned or bare copper
Color-coded PVC insulation for easy identification
Rated temperature: 80℃ (UL), 90℃ (CSA)
Rated voltage: 300V AC
Uniform thickness for easy stripping and cutting
Passes UL VW-1 & CSA FT1 vertical flame tests
UL/CSA approved certification
Complies with UL 758 and CSA-C22.2 standards

Applications

Ideal for general purpose internal wiring of electronic equipment and electrical devices.

Construction Details

Technical Specifications Table

UL Style & CSA Type	Size AWG	Conductor Construction	Stranding Diameter (mm)	Insulation Thickness (mm)	Overall Diameter (mm)	Standard Put-up (Meter/coil)
UL1007 CSA (TR-64)	32	5/0.10	0.24	0.38	1.00	610
UL1007 CSA (TR-64)	30	7/0.10	0.31	0.38	1.10	610
UL1007 CSA (TR-64)	28	7/0.12	0.37	0.38	1.20	610
UL1007 CSA (TR-64)	26	7/0.16	0.49	0.38	1.30	610
UL1007 CSA (TR-64)	24	11/0.16	0.61	0.38	1.45	610
UL1007 CSA (TR-64)	22	17/0.16	0.76	0.38	1.60	610
UL1007 CSA (TR-64)	20	26/0.16	0.94	0.38	1.80	610
UL1007 CSA (TR-64)	18	41/0.16	1.18	0.38	2.00	610
UL1007 CSA (TR-64)	16	26/0.254	1.49	0.38	2.40	610

Standards Compliance

Control cables can be produced according to GB9330-1988 standard or other international standards as required.

Application Scope

Suitable for electrical control equipment wiring, monitoring and control circuits, electrical protection, and measurement in power distribution units with rated voltage up to 450/750V AC.

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We manage your order from beginning to end. Welcome to visit us - we'll provide transportation from Shenzhen.

How can I get a sample to test your quality?

Samples are free for evaluation. New customers are expected to cover courier costs.

What's your Minimum Order Quantity?

Normally 100 meters. Due to cable weight, we recommend ordering suitable quantities to optimize freight costs. Sea transportation is often the most economical option.

Can I get a discount?

Discounts are available based on order quantity. We may also cover freight costs for larger orders. Please contact us for details.

Does your company accept OEM production?

Yes, we offer OEM services including printing your company name and custom quality cards to promote your brand.
