| Product name: |

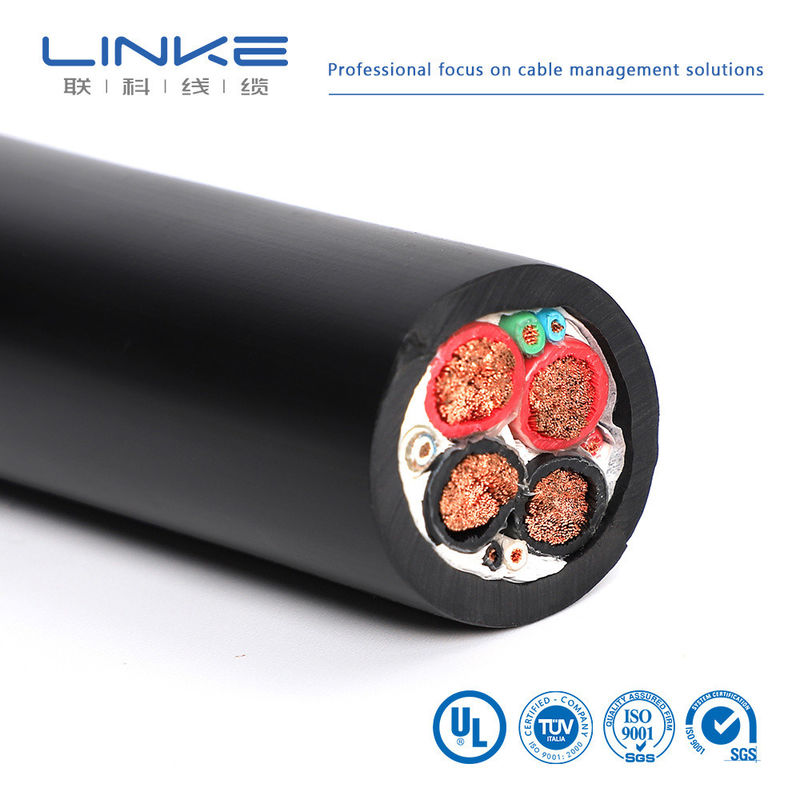

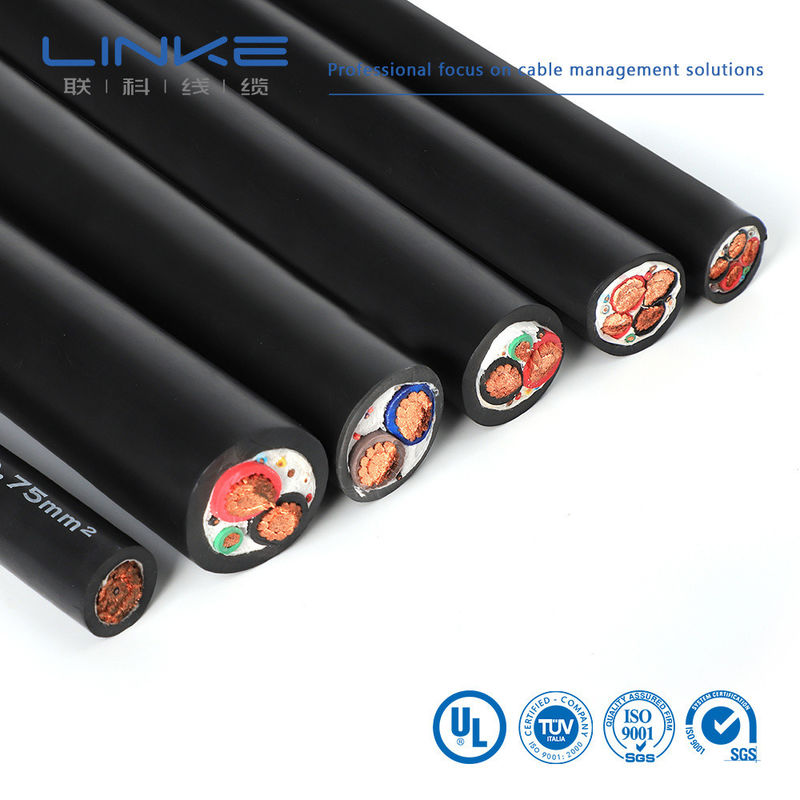

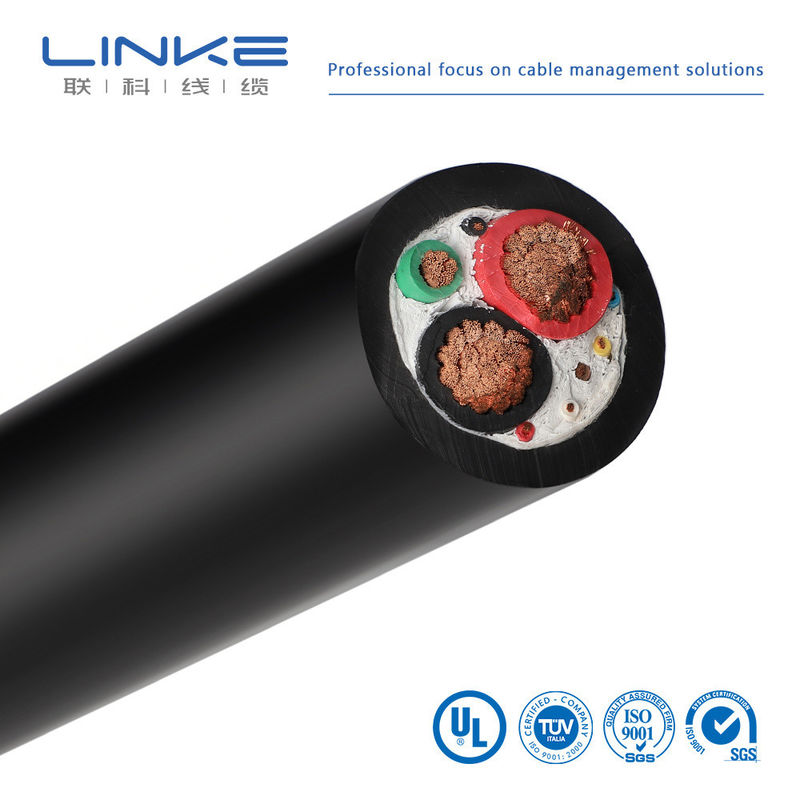

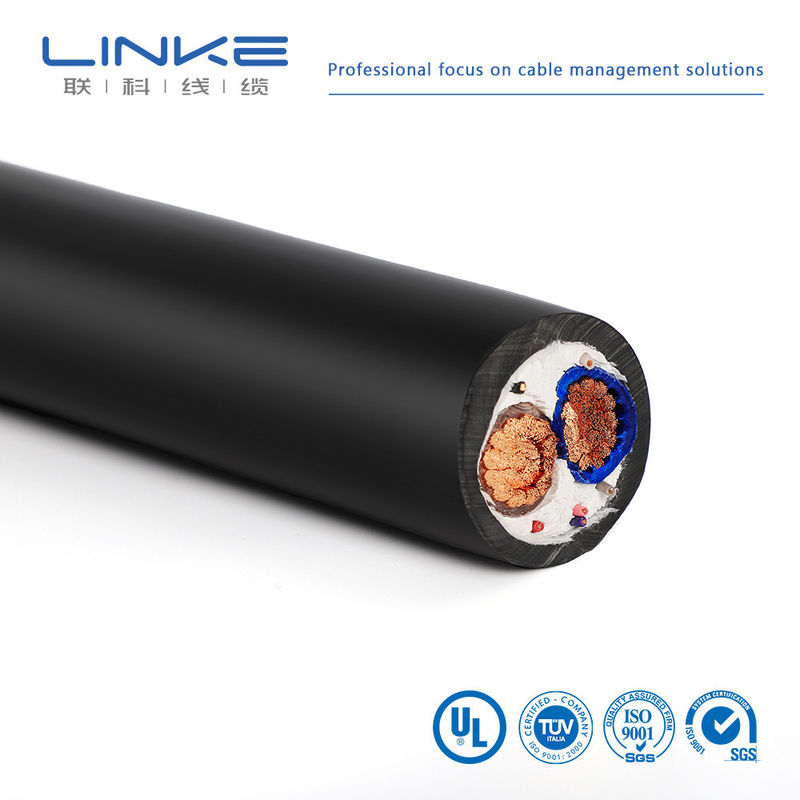

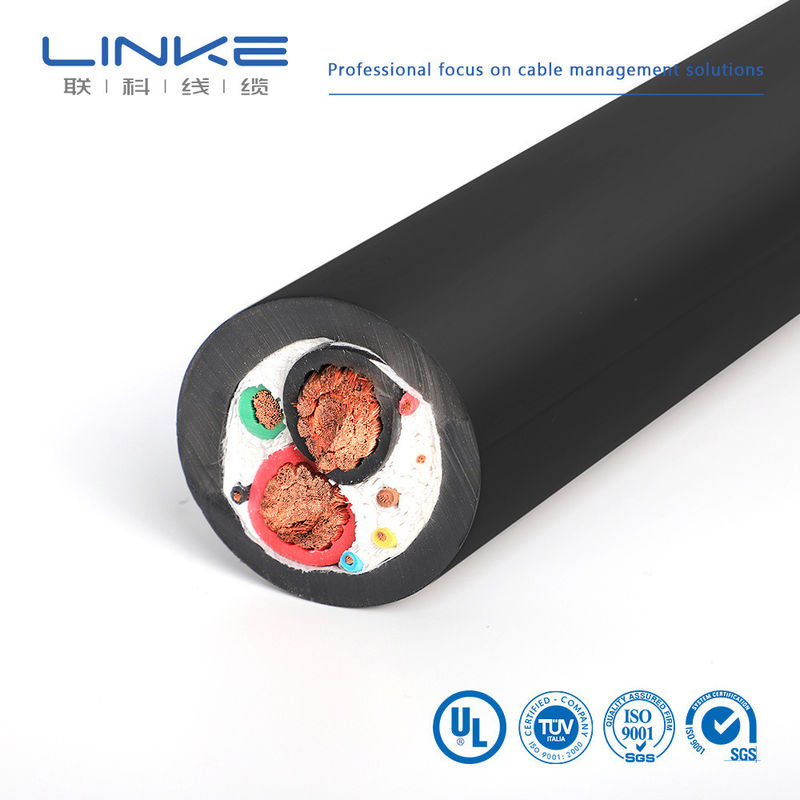

New Energy Electric Vehicle Wire High Voltage Power Battery Solar EV Cable |
| Product Range: |
solar,new energy,energy storage,battery, automotive and etc. |
| Test |
Conduction test, appearance size test, hole position test. |
| cable material |
Wire harness use UL,CE, VDE,SAA,CB etc and pure copper. |
| Cable color,length: |
According to the customers' requirements. |
| Insulation: |
PVC/PE/XLPE/TPE/PTFE..etc |
| Connector and Terminal Type: |
JAE/TE/AMP/JST/ Anders/Ambofu and other Original or Replacement parts,customer-specified. |
| MOQ |
1000 PCS |
| Sample |
Samples are confirmed before mass production. |
| Certificates: |
ISO9001-2015, IATF16949-2016, CE, RoHS, SGS, TUV |
| date of delivery |
Small orders of less than 500 are 5-7 days, and more than 1000 are 7-15 days. |
| Service |
OEM and ODM,We accept customization according to your requirements. |
| reference voltage |
PVC300/600V, silicone wire 300/500V,TPE600V, XLPE400V, national standard line 300V. |
| Temperature range |
PVC:-25~80ºC, Silicone wire: -60~200ºC, TPE wire: -65~250ºC, XLPE wire: -25~125ºC, National standard wire: -30~90ºC, EV wire:125ºC |
| Payment |
TT,PAYPAL,BANK. |
20ºC Conductor-Resistance(Q/km) :≤ 0.8481
Insulation resistance :10MQ*km
Spark test(KV): 6.0
Voltage-Withstand Test : AC 2KV/min
Aging test of Jacket Tensile Strength(min.) :Elongation(min.)
Unaged : 1.05Kg /mm² 100%
Aging(136ºCx168h) : 70% 65%
Bend Radius :5XOD
Flame Rating :FT1,VW-1
Cold bend test:-40ºC
Oil resistance:yes
EV Charging Cable
EV charging line is a kind of on-board high voltage cable, used to connect the charging port and battery, battery internal, battery and engine and other components, as well as battery energy storage equipment and other fields, as the carrier of power transmission. Due to the harsh application environment in the car, the high-voltage cables used for electric vehicles have very high performance requirements. Application characteristics of electric vehicle cable: small wiring space, high current and high pressure, high and low temperature environment, poor heat dissipation, harsh car driving environment, salt fog and electromagnetic field, oil and chemicals, low smoke, halogen-free flame retardant and other environmental protection and safety requirements. The EV charging cable is used to connect the ev charging device and the charging infrastructure, so as to transmit power to the electric vehicles, and is equipped with a certain number of signal lines, control lines, power auxiliary lines, etc., to ensure the accurate control and safe operation of the whole charging process. Charging cables are generally used in charging stations, parking lots, hotels, communities, garages and other areas, and portable charging cables can be placed in the car.
Main product types
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
Quality Certifications
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
Does your company accept OEM production?
Yes, we can print your company name, and we even customize the quality card to promote your company.
