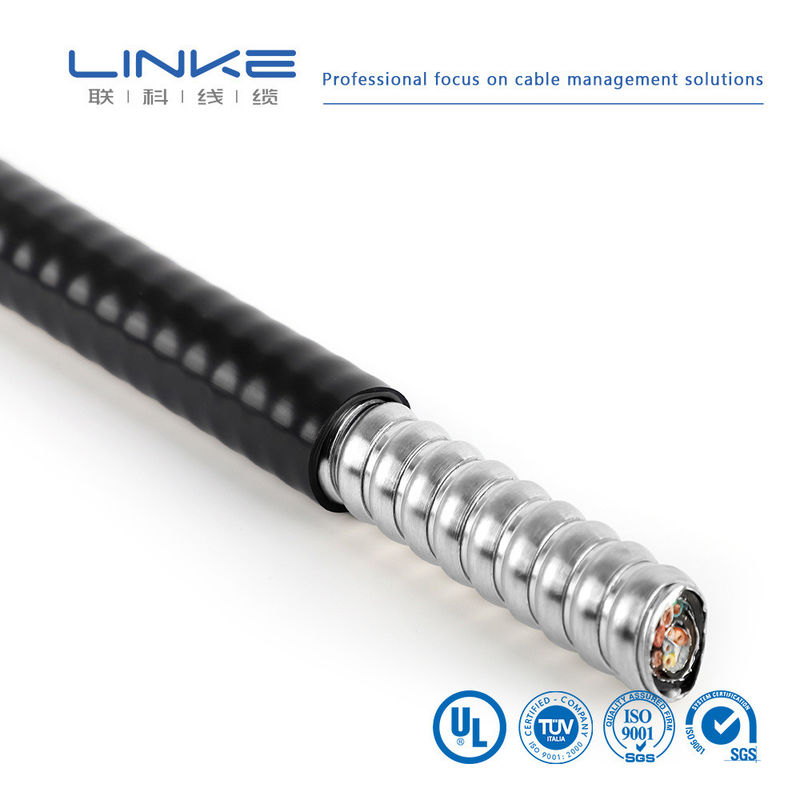

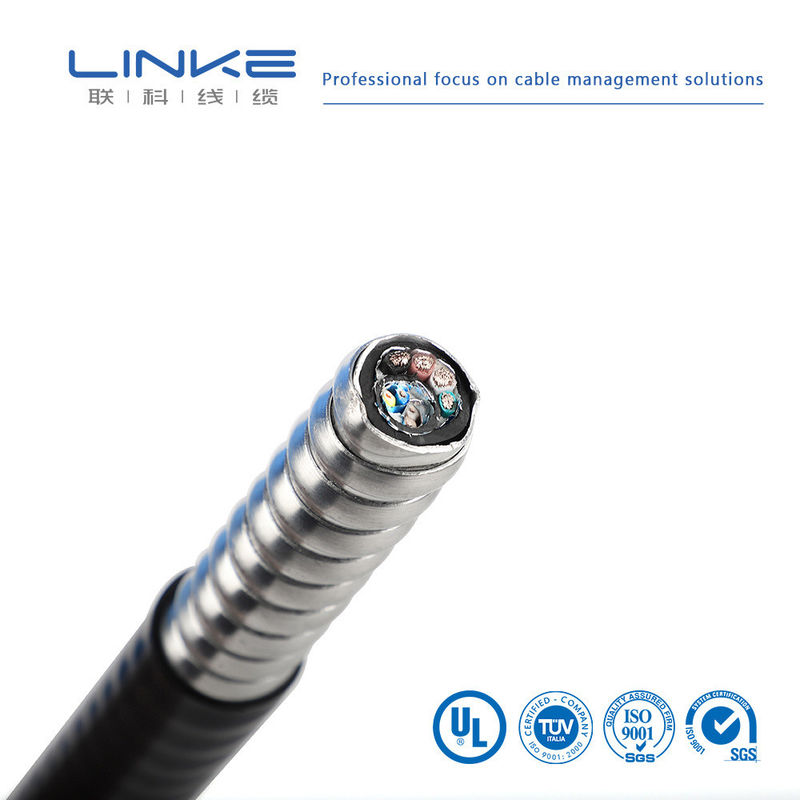

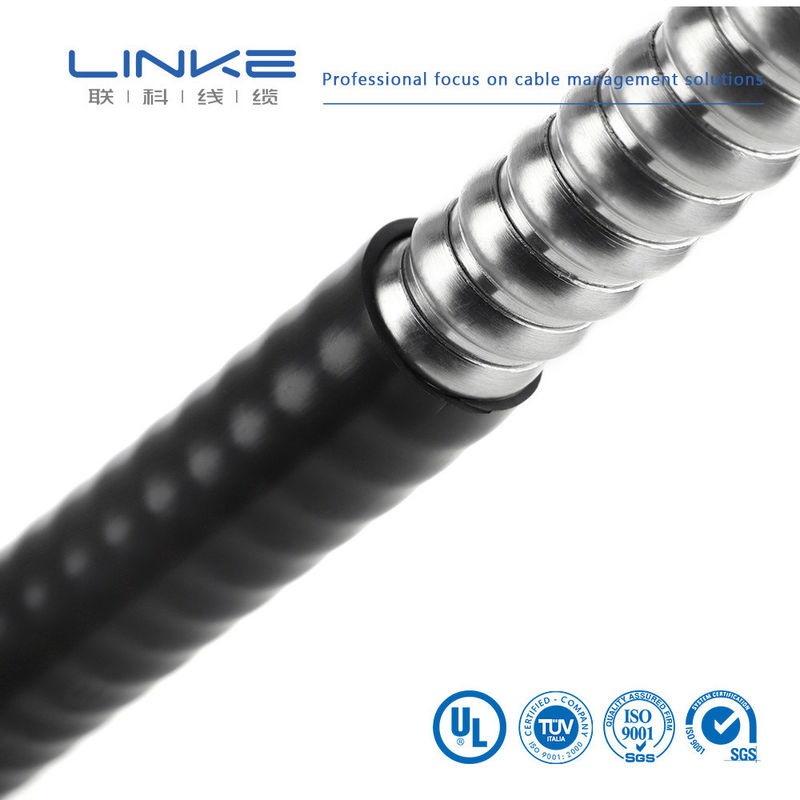

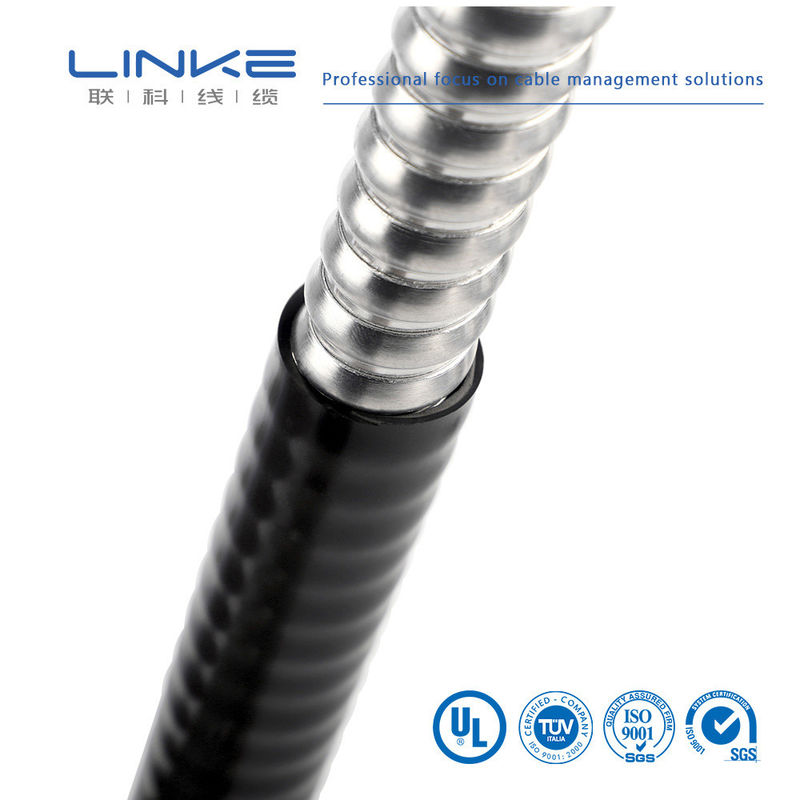

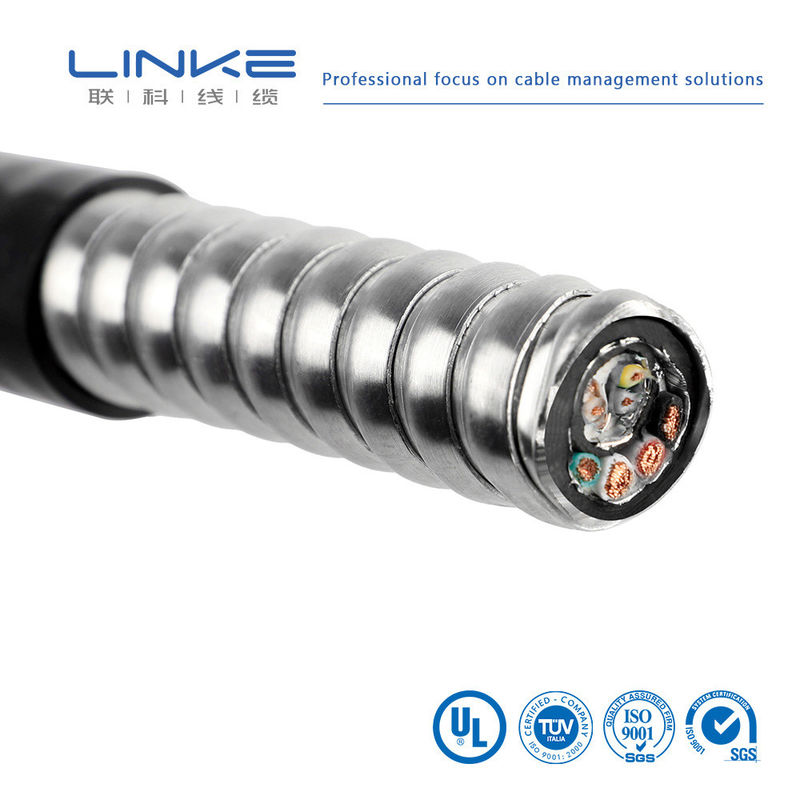

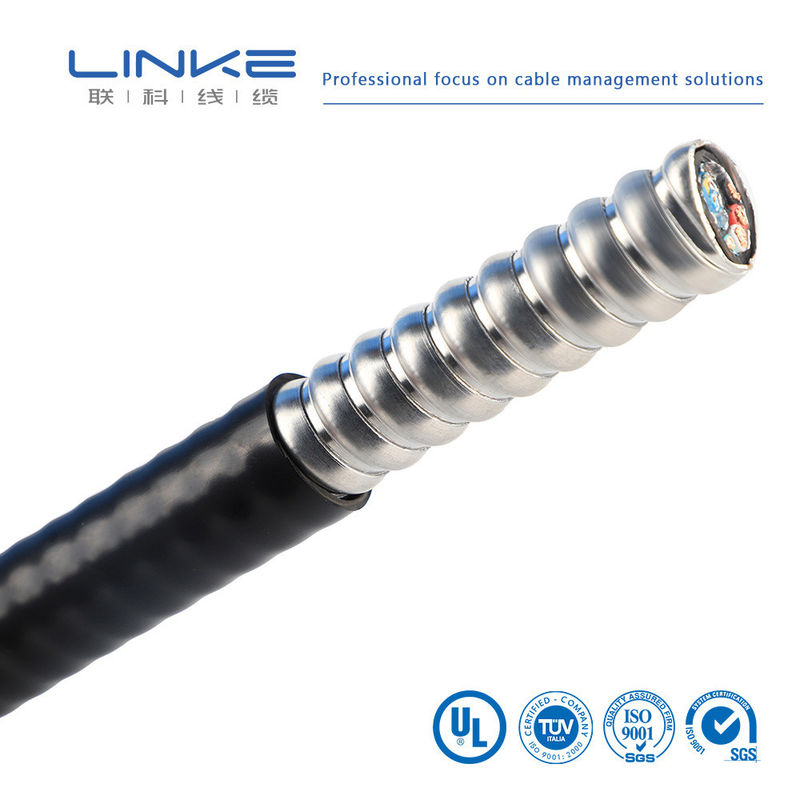

Copper Armoured Electrical Low Voltage Power Cable
PVC insulated industrial underground armored cable designed for demanding applications.
What is Armoured Cable?
Armoured cables, also known as SWA (Steel Wire Armoured) or AWA cables, are robust power cables engineered for industrial use. These include single core power cables and multi-core booklet armoured cables for mains power distribution.
Armoured Cable Specifications
Conductor: Plain stranded copper or aluminium
Insulation: Cross-linked polyethylene (XLPE) provides high temperature resistance and excellent dielectric strength
Bedding: Protective barrier layer between insulation and armour
Armour: Steel or aluminium armour for mechanical protection against external stresses
Sheath: Outer protective layer; black sheaths are carbon-loaded for UV stability
Voltage: Ratings of 600/1000V, 6.35/11kV and 19/33kV
Our comprehensive range includes BASEC-approved armoured cables manufactured to British, European and International standards including BS5467, BS6622, BS6724, BS7835, BS EN 50267, IEC 60502 and BS EN 60332-1-2.
Special Features
- Flame retardant construction
- High performance capabilities
- Multi-strand conductor design
- Precision braiding
- Exceptional durability
- Energy-efficient operation
Armoured Copper Power Cable Details
1kV-10kV XLPE armoured power cables comply with IEC 60502 standard, with options for OEM requirements and other standards including BS, DIN, and ASTM. Voltage capacity extends to 35kV with cross-section areas up to 400 sqmm (copper or aluminium conductor).
Operating Parameters:
Conductor operating temperature: 90°C continuous
Short-circuit temperature: Maximum 250°C
Suitable for underground laying with significant altitude variations, capable of withstanding external mechanical forces and moderate pulling tension.
Installation: Can be installed in duct, tray, or direct burial. Follow Local Electric Code guidelines for proper installation and safety.
Cable Type Specifications
| Type |
Name |
Usage |
| VV, VLV |
PVC insulated PVC sheathed power cable |
Indoor, tunnel, and tube applications. Cannot withstand external mechanical forces. |
| VY, VLY |
PVC insulated PE sheathed power cable |
Indoor, tunnel, tube, and heavily polluted areas. Cannot withstand external mechanical forces. |
| VV22, VLV22 |
PVC insulated steel belt armored PVC sheathed power cable |
Indoor, tunnel, tube, and mining applications. Cannot withstand external mechanical forces. |
| VV23, VLV23 |
PVC insulated steel belt armored PE sheathed power cable |
Indoor, tunnel, tube, mining, and heavily polluted areas. Cannot withstand external mechanical forces. |
| VV32, VLV32 |
PVC insulated fine steel wire armored PVC sheathed power cable |
Indoor, underground, and mining applications. Can withstand external mechanical forces. |
| VV33, VLV33 |
PVC insulated fine steel wire armored PE sheathed power cable |
Indoor and underground applications. Can withstand external mechanical forces. |
| VV42, VLV42 |
PVC insulated thick steel wire armored PE sheathed power cable |
Indoor, underground, and mining applications. Can withstand external mechanical forces. |
| VV43, VLV43 |
PVC insulated fine steel wire armored PVC sheathed power cable |
Indoor, underground, mining, and heavily polluted areas. Can withstand external mechanical forces. |
Technical Specifications
| Extreme temperature range: |
-40°C to 105°C (withstands automotive environment extremes) |
| Armoured Cable range: |
0GA, 2GA, 4GA, 6GA, 8GA, 10GA, 12GA, 14GA, 15GA, 16GA, 18GA, 20GA and ultra classic strands |
| Conductor Type: |
Stranded 99.99% OFC (oxygen free copper), tin plated copper, copper coated aluminium |
| Material: |
Environmentally friendly, high-quality glossy material; tinned, silver or nickel plated copper options |
| Armoured Cable Colour: |
Customized options available |
| Packing: |
Carton packing, pallet packing, wooden/plastic reels |
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer, managing your order from initial production to final delivery. We welcome visits to our facility and provide pickup service in Shenzhen.
How can I get a sample to test your quality?
Samples are provided free of charge. New customers are responsible for courier costs.
What's your Minimum Order Quantity?
Minimum order quantity is typically 100m. Due to the cable's weight, we recommend ordering suitable quantities to optimize freight costs. Sea transportation is the most economical option.
Can I get a discount?
Discounts are available based on order quantity, and we may cover freight costs for larger orders. Please contact us for specific pricing.
Does your company accept OEM production?
Yes, we offer OEM services including printing your company name and custom quality cards to promote your brand.
