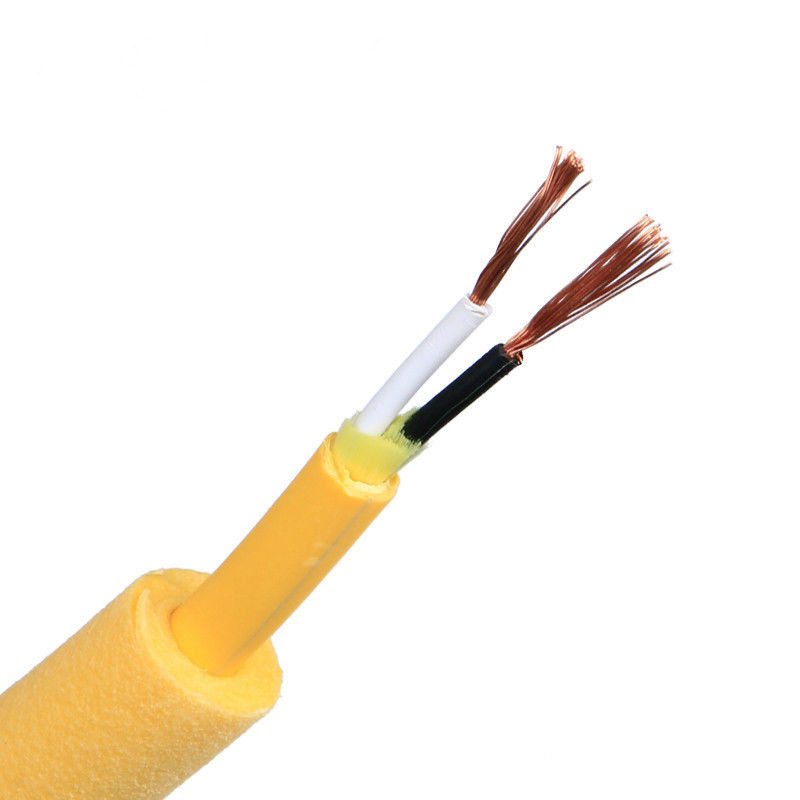

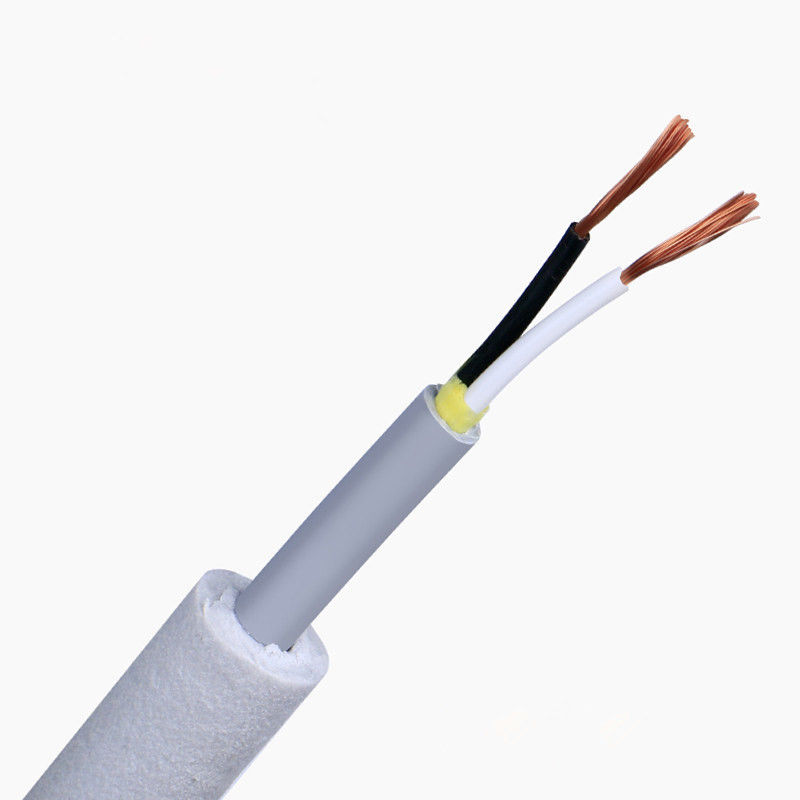

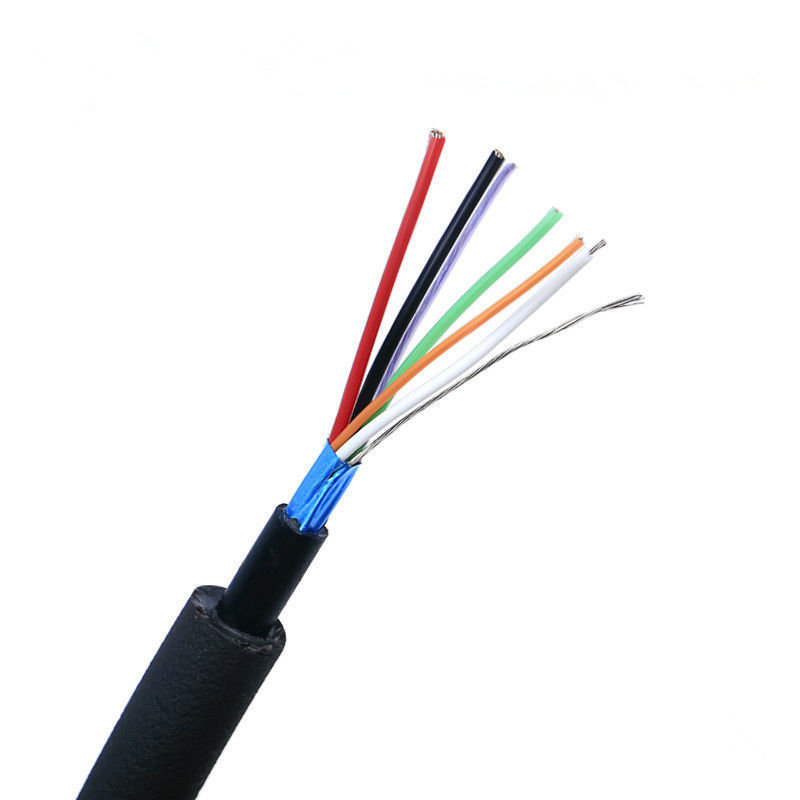

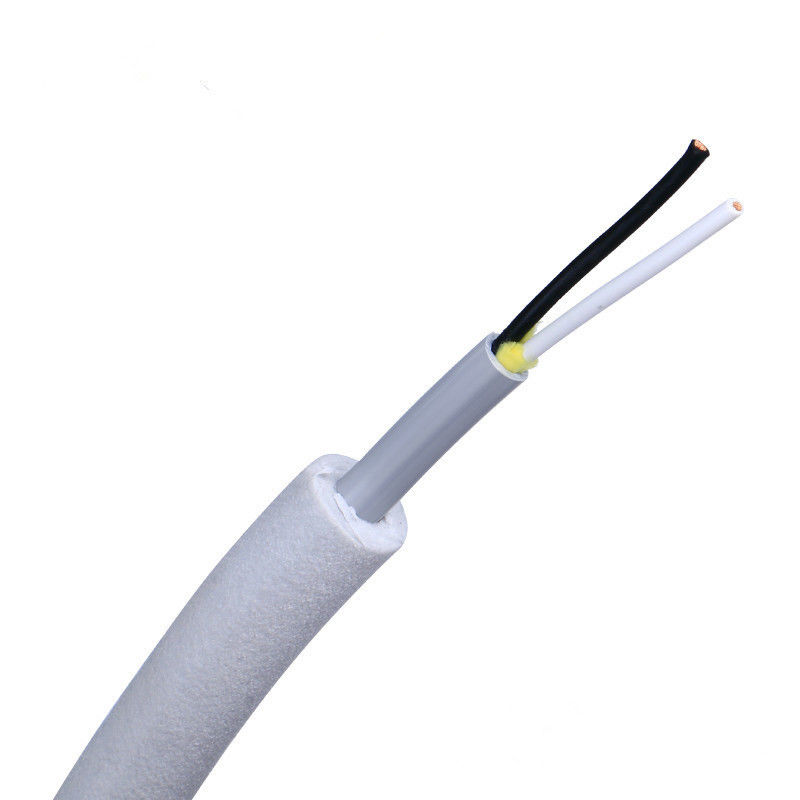

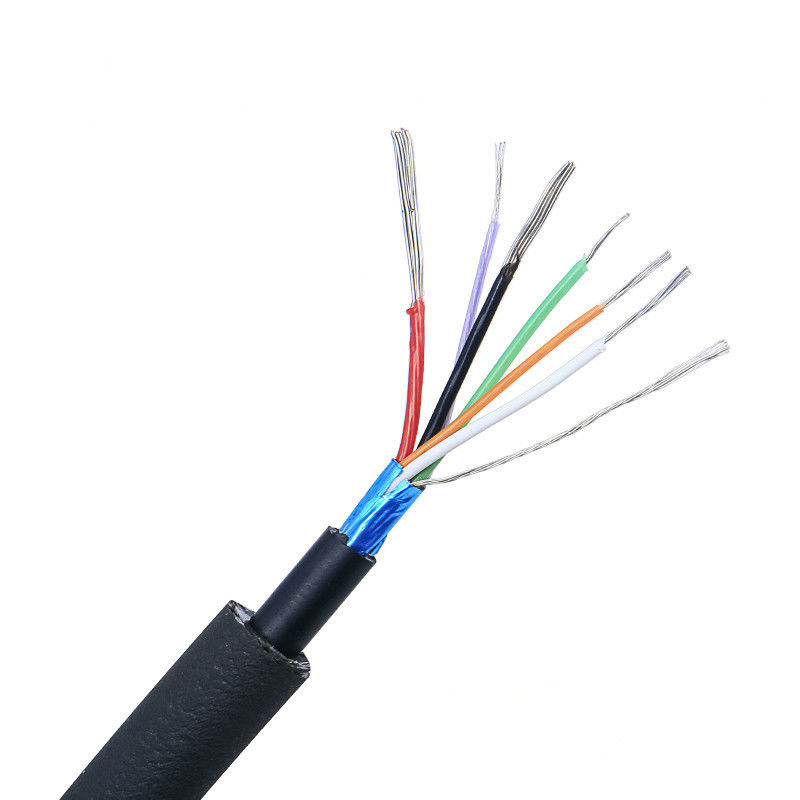

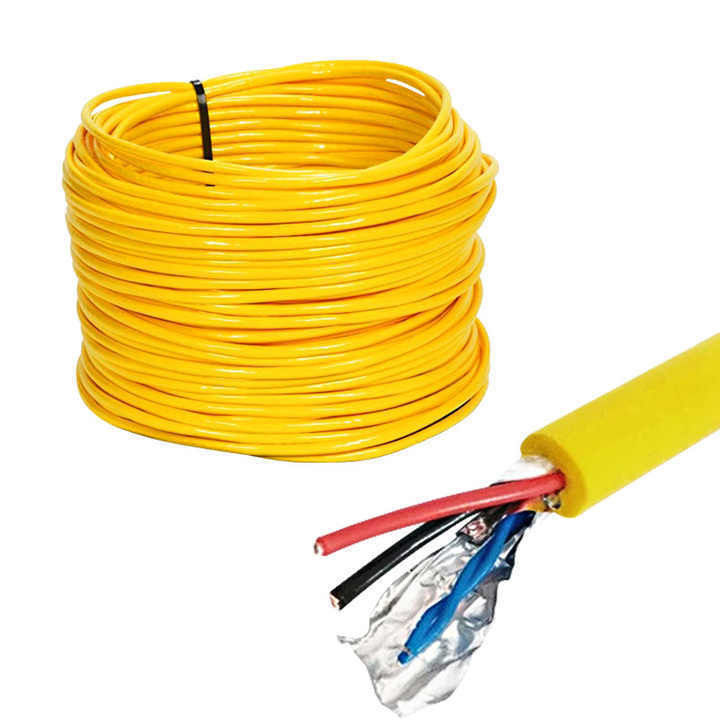

Customized underwater tether cable with waterproof buoyancy for ROVs, drones, and subsea applications
Product Specifications
| Specification |
Details |
| Product Name |
ROV Underwater Drone Tether Robot Cable |
| Type |
ROV tether/robotic cable/underwater umbilical/subsea exploration cable |
| Construction |
Power cable + optical fiber + coaxial + hose + shield + sheath |
| Conductor |
Copper/Tin-plated copper/Silver-plated copper/TCCA |
| Insulation |
PE/PVC/HDPE/TPU |
| Filling |
Kevlar/swellable water-blocking yarn |
| Shield |
Braided Tinned Copper/Aluminum Foil |
| Voltage |
100-1000V |
| Diameter |
Customized based on water/seabed buoyancy requirements |
| Jacket |
Polyurethane foam (PUR) |
| Sheath Color |
Matte/Glossy Yellow or Customized |
| Applications |
Underwater robot/drone/crane/elevator/sewer robot/CCTV pipeline crawler |
Typical Design
Key Features
- Hybrid Cable Design: Superior signal strength with excellent resistance to water pressure and mechanical compression while maintaining high quality connectivity and dynamic strength
- Buoyancy Optimization: Custom density calculations for fresh or salt water, warm or cold water environments
- Comprehensive Water Sealing: Multiple waterproofing options to prevent water entry and longitudinal water transport
- Advanced ROV Cable Engineering:
- Fiber optic, CAT or coaxial cable for high-speed data transmission
- Triple extruded conductor with low to medium voltage and high current capacity
- Thin wall design with lightweight, waterproof materials for compact size, high reliability and long service life
- Aramid braid and rope for superior torsional and tensile strength, minimizing strain and stress
- Screened and armored construction optimized for required performance
Performance Characteristics
Special flexible sheath material (customer-selectable colors) provides exceptional bending life exceeding 6 million cycles without sheath breakage. Cable features excellent flexibility, wear resistance, oil resistance, acid and alkali resistance, tensile strength, waterproof properties, and anti-aging performance. Designed with specific gravity infinitely close to water for optimal floating capability.
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.
| No. |
Test Item |
Test Condition |
Test Requirement |
Test Data |
Result |
| 1 |
Structure Inspection |
1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness |
Comply with wire size table |
Refer to test record |
Pass |
| 2 |
Thermal Shock |
Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample |
No cracks on the sample surface |
No cracks |
Pass |
| 3 |
Heat Deformation |
1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position |
1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50% |
Refer to test record |
Pass |
| 4 |
FT2 |
Apply a standard flame at a height of 125mm once |
1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials |
Refer to test record |
Pass |
| 5 |
Aging |
1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength |
1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging |
Refer to test record |
Pass |
| 6 |
Cold Bend |
Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box |
No cracks on the sample surface |
No cracks |
Pass |
| 7 |
Conductor Resistance |
Measure resistance of one-meter core conductor with DC resistance meter |
At 20℃, resistance of 8AWG ≤ 2.23Ω/km |
Refer to test record |
Pass |
