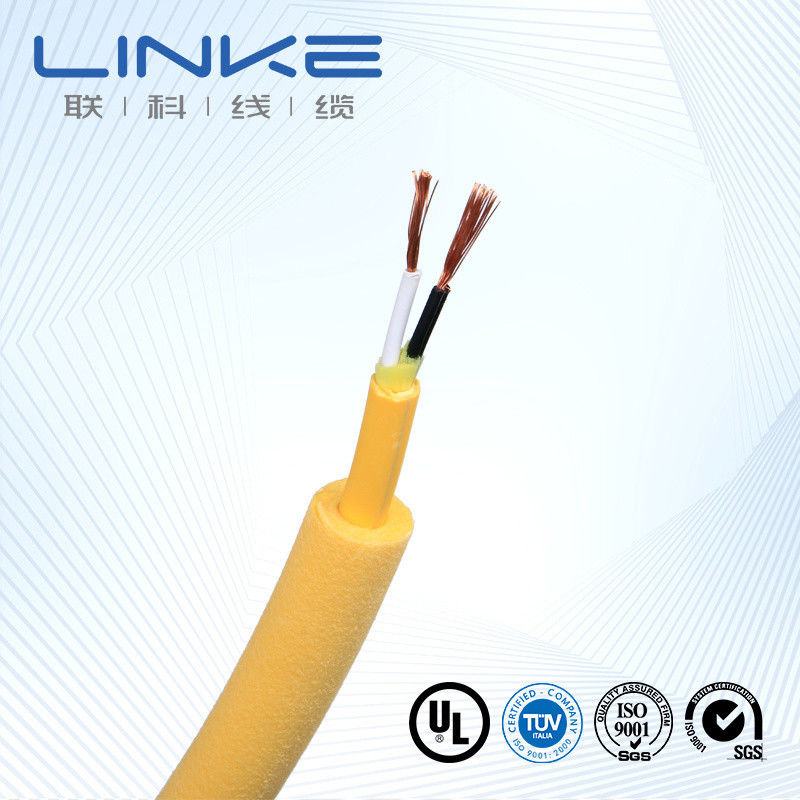

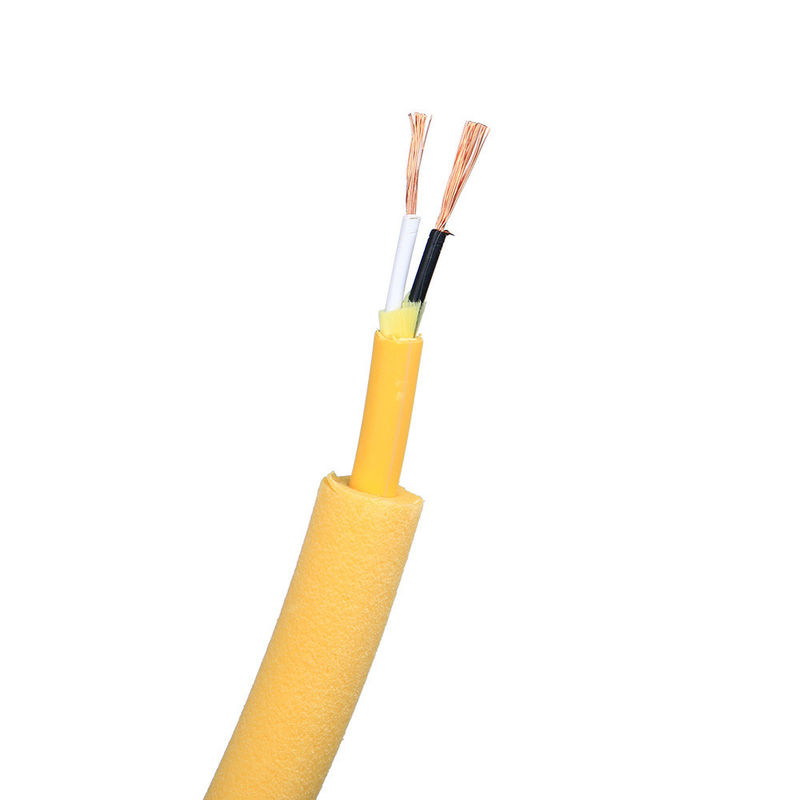

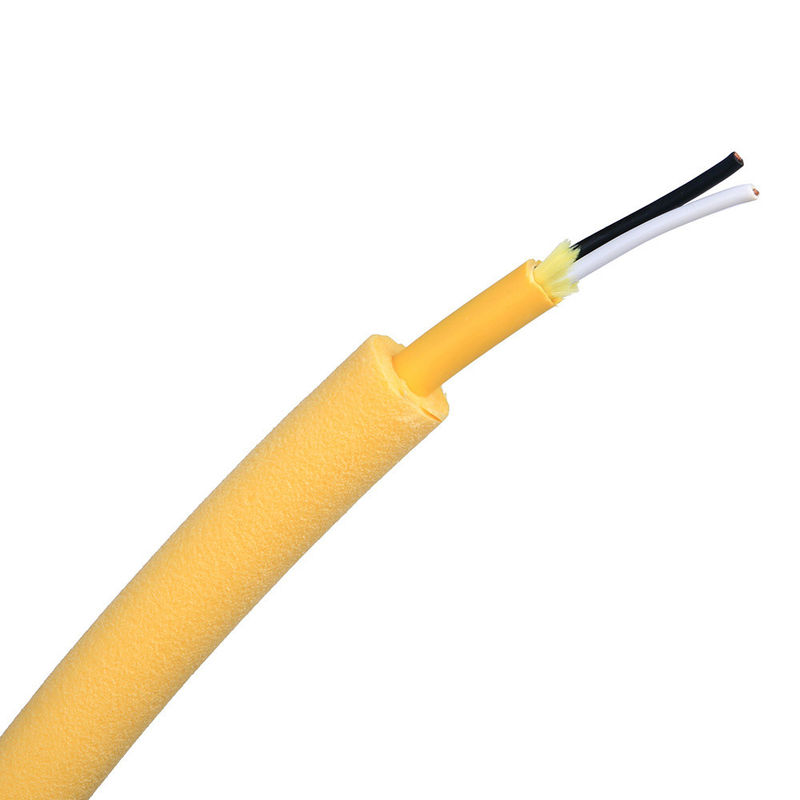

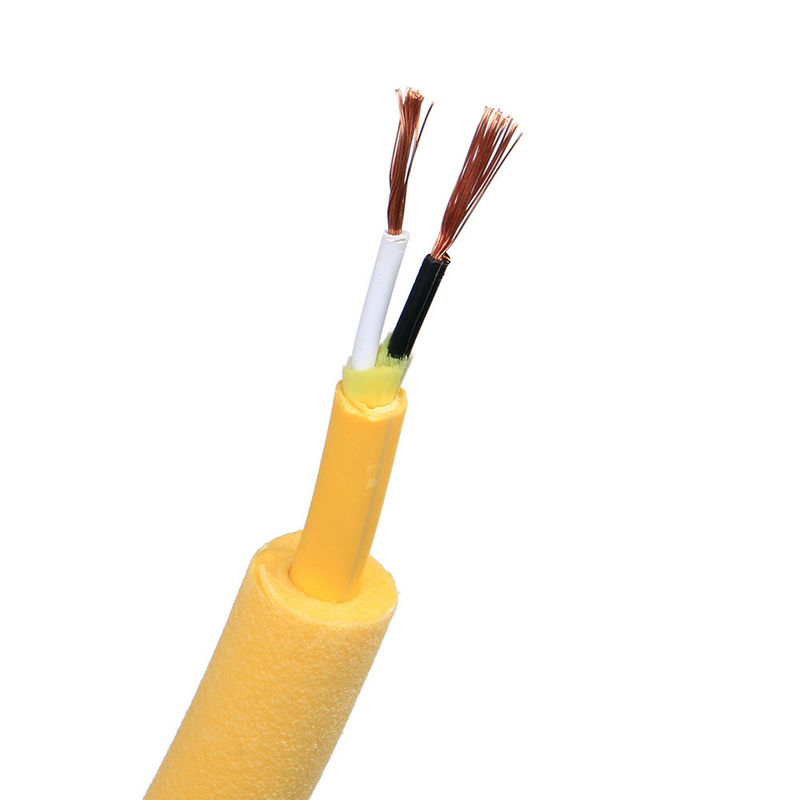

Waterproof Halogen-Free Swimming Pool Floating Cable
This flame-retardant floating cable is engineered for demanding marine and aquatic applications, featuring advanced foam core extrusion technology to achieve precise buoyancy control.
Product Specifications
| Code | Multi-Core |
| Conductor | Copper |
| Nominal Voltage U0/U | 1000V |
| Temperature Range - Flexing | -40°C to +90°C |
| Temperature Range - Fixed | -30°C to +80°C |
| Color Options | Blue, Yellow |
| Minimum Order Quantity | 500 meters |
Key Features
- Precise buoyancy control through foam core extrusion
- Excellent flexibility and mobility
- UV-stable construction
- Superior bendability and abrasion resistance
- Chemical resistance to acids, salt water, oil, and gasoline
- Bending life exceeding 6 million cycles
- Specific gravity designed to float on water surface
Construction Details
| Conductor Material | Pure Copper, Tinned Copper |
| Core Insulation | FPE, PE, or HT PVC 105°C |
| Outside Insulation | FEP, Foam TPE Inner Jacket Press extruded TPE |
| Sheath Color Options | Yellow, Blue, Orange |
| Packaging | Meter marking |
Technical Parameters
| Test Voltage | 1000V, 1 minute |
| Type | Low Voltage |
| Temperature Range | -40°C to +90°C |
Designed for continuous use in deep wells to supply power to submersible pumps. Features excellent resistance to moisture, abrasion, grease, and oil with outstanding mechanical and electrical characteristics.

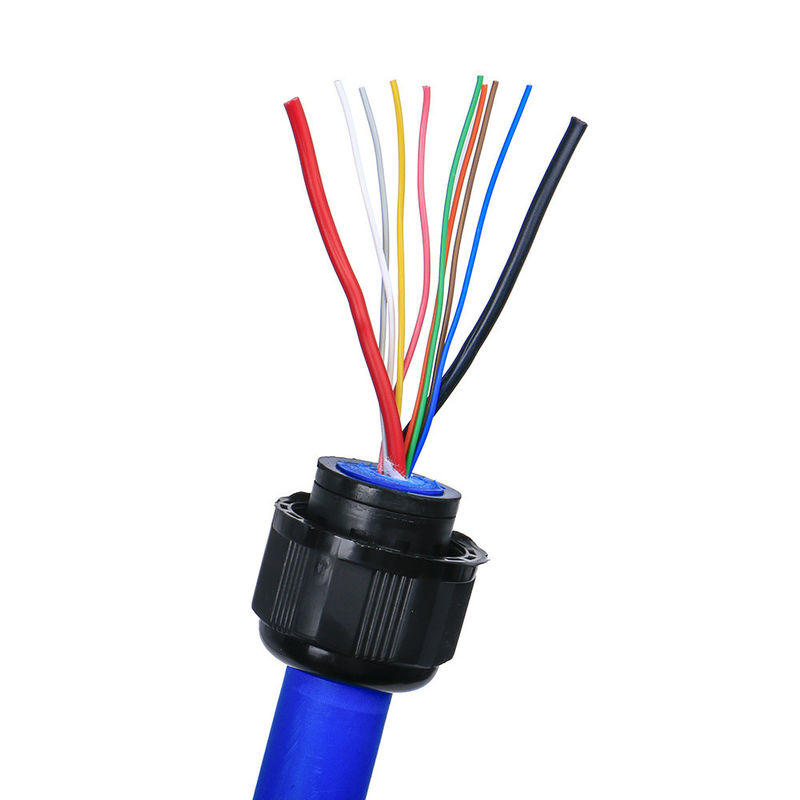

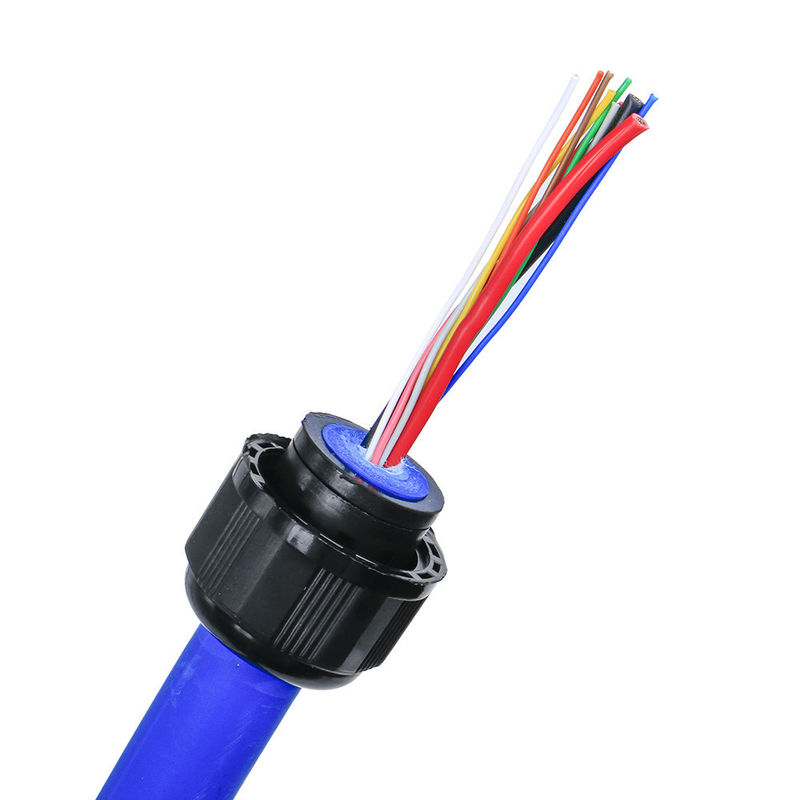

ROV Neutral Buoyancy Tether Cable
- Conductor: Bare copper
- Core Options: 2, 3, 4, 10, 14 cores
- Insulation Material: Polyethylene
- Sheath Material: Polyurethane foam
- Strength Member: Kevlar fiber
- Breaking Strain: 200 kgf
- Rating Depth: 200 meters
- Overall Diameter: 10.4 mm
- Application: ROV & underwater camera systems
Cables for Seismic & Sonar Operations
Marine geophysical survey contractors require specialized equipment for mapping oceans and underlying sediments for various purposes including navigational charts, scientific research, oil and gas prospecting, and offshore data surveys. Our cables for extreme environments are reliable, durable, and guarantee requested performance levels.
ROV/TETHER Cables
Underwater technology, especially at great depths, demands high-performance cables for efficient and accurate control of Remotely Operated Vehicles. These vital connections between vehicle and vessel include neutrally buoyant tethers, Kevlar strength member cables, and hybrid cables.
Underwater Camera and Instrumentation Cables
- Support for ROVs with manipulating arms, on-board tools, lights and cameras
- Compatible with various underwater camera types from miniature observation to high-resolution inspection
- Multiple construction options based on specific job requirements
- Includes video/communication cables, power/signal cables, and lighting/control cables
Company Profile
Linke Cable Technology Co., Ltd is a leading cable manufacturer in China with over 10 years of experience in R&D, production, and marketing. We specialize in providing various cables and custom cable solutions worldwide, including EV charging cables, medical cables, silicone cables, spring cables, braided cables, towlobe cables, UL wires, and automotive cables.
At Linke Cable, we employ an engineer-to-engineer approach to develop superior cables for customers and enhance quality of life through innovative cable solutions.
Certifications
UL1007UL1185UL1672UL10070UL10483UL1015UL1569UL10012UL10269UL2095UL2129UL2468UL2586UL2725UL20233UL20280UL20963UL2103UL2463UL2517UL2587UL2835UL20276UL20549UL21198UL2104UL2464UL2576UL2661UL2919UL20279UL20886UL21664ISO9001ISO13485TS16949CNR Appliance Wiring Material
Floating Cable Applications
Our floating cables utilize advanced foam core extrusion capabilities to achieve precise buoyancy requirements. These flexible, movable, UV-stable cables offer excellent bendability and abrasion resistance, with optional jackets providing resistance to various chemicals including acids, salt water, oil, and gasoline. Ideal for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities, as well as marine applications and submersible environmental pumping systems.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer, controlling your order from initial production to final delivery.
How can I get a sample to test your quality?
Samples are provided free of charge. New clients are expected to pay for courier costs.
What's your Minimum Order Quantity?
Normally 100 meters. Due to cable weight, we recommend ordering suitable quantities to avoid high freight costs. Sea transportation is the optimal option.
Can I get a discount?
Discounts are available based on quantity. Please contact us for specific pricing and freight arrangements.
Does your company accept OEM production?
Yes, we offer OEM services including printing your company name and custom quality cards to promote your brand.
