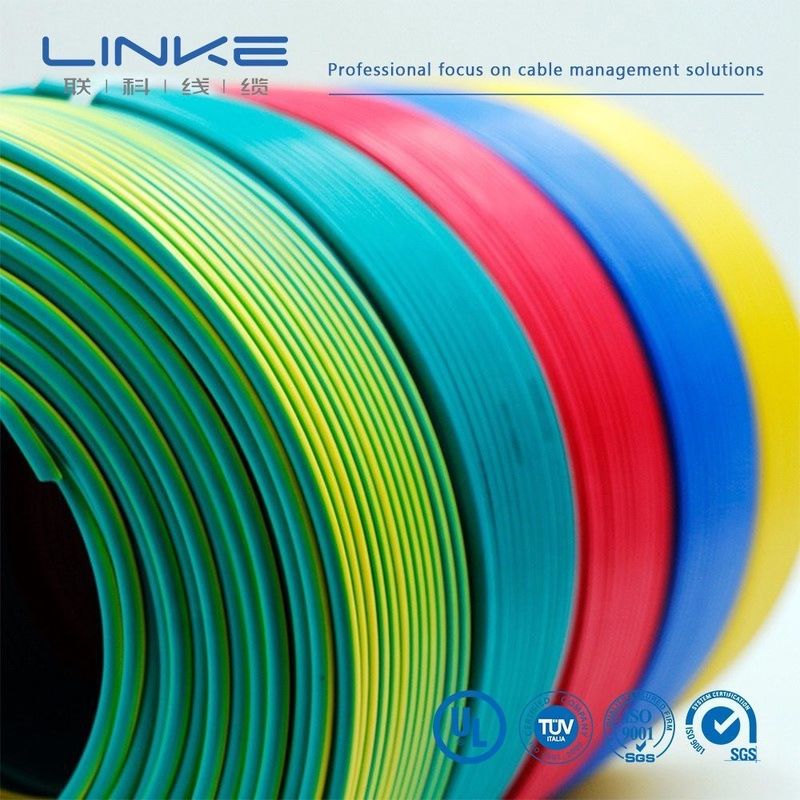

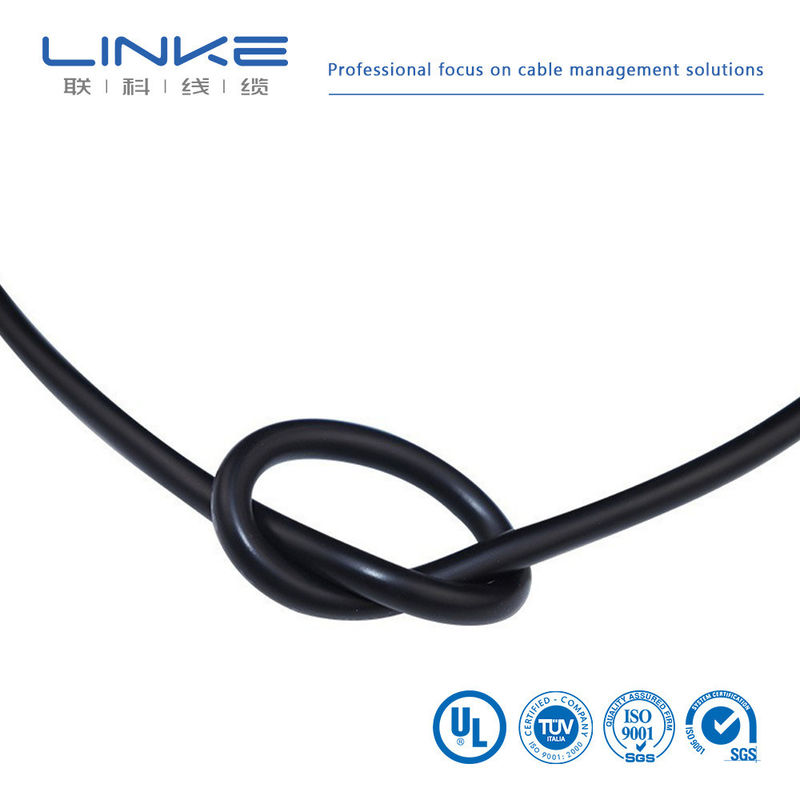

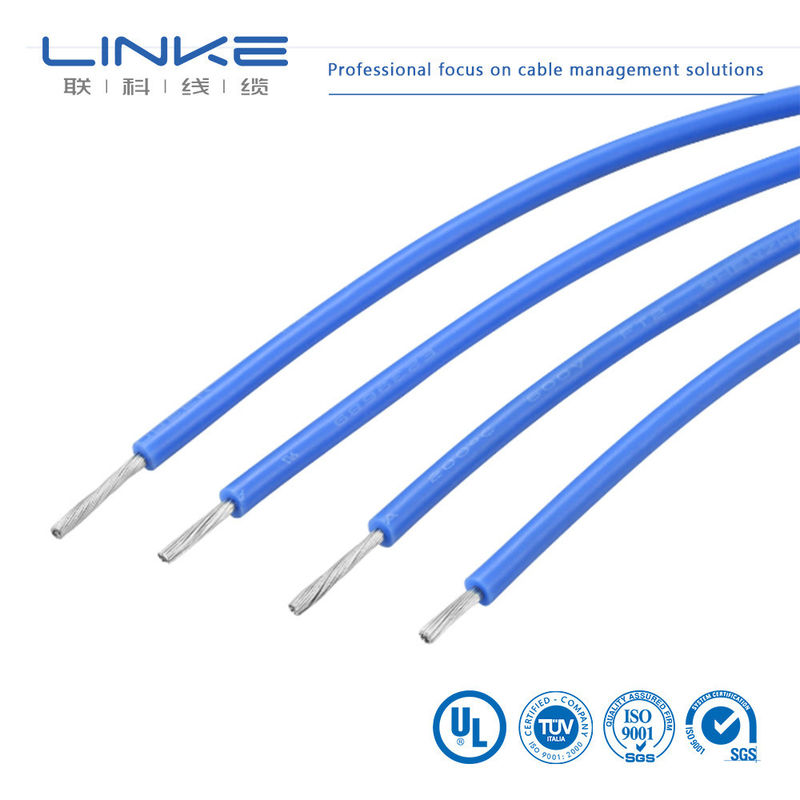

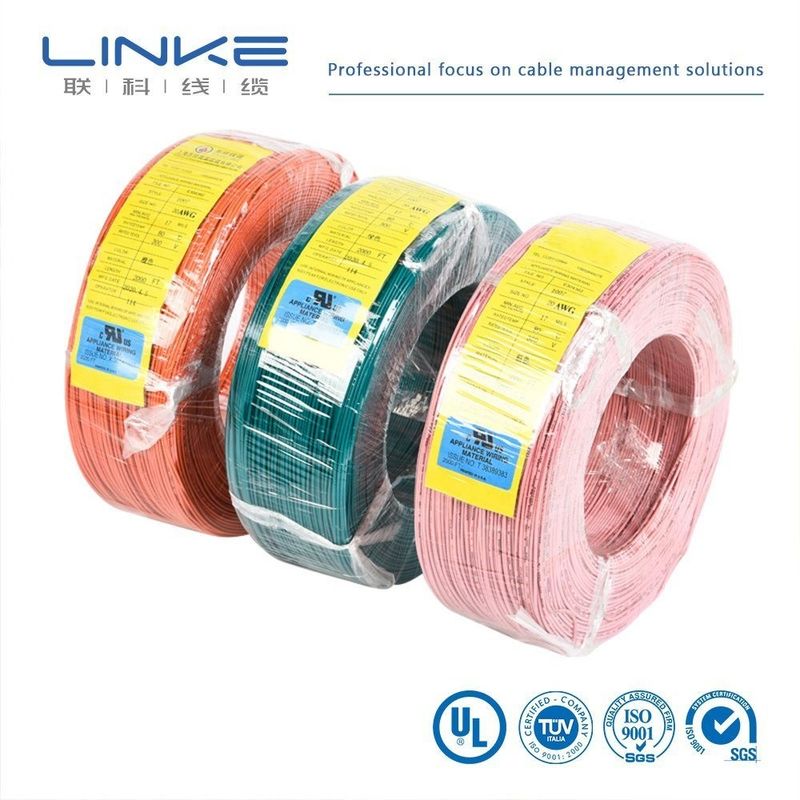

TPE Sheath UL Electrical Cable
High-quality TPE sheath UL electrical cable designed for electrical connections, signal lines, control lines, extension cords, and internal wiring of electrical appliances.
Key Applications
- Home appliances
- Lighting systems
- Heaters
- Motors and generators
- UAVs and robotics
- Industrial power systems
Product Specifications
UL Style Number: 21481
Rated Voltage: 300V
Rated Temperature: 80℃
Standard: UL758/UL1581
Marking: E364879 AWM 21481 AWG VW-1 80℃ 300V C AWM I A 80℃ 300V FT1 Linke Cable
Technical Specifications
| Conductor Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
Core |
Shield |
Shield Rate (%) |
Nominal Thickness (mm) |
Diameter (mm) |
Max. Conductor Resistance (Ω/KM) Bare Copper |
Max. Conductor Resistance (Ω/KM) Tinned Copper |
| 26 |
7/0.16 |
0.48 |
0.38 |
1.30±0.10 |
2 |
Optional |
0.76 |
4.10±0.15 |
140 |
150 |
Note: Wire specifications can be customized

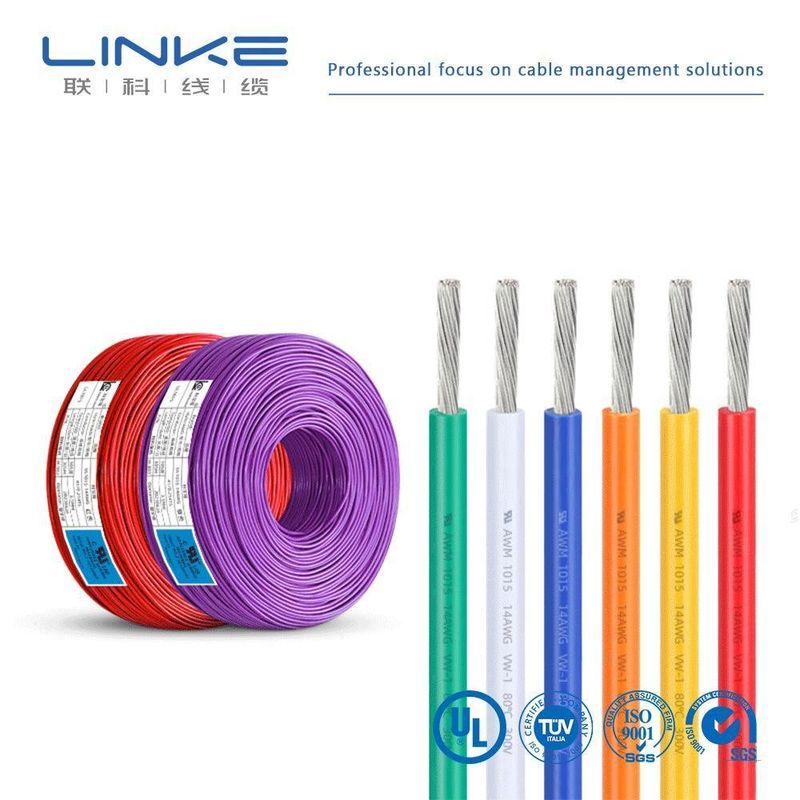

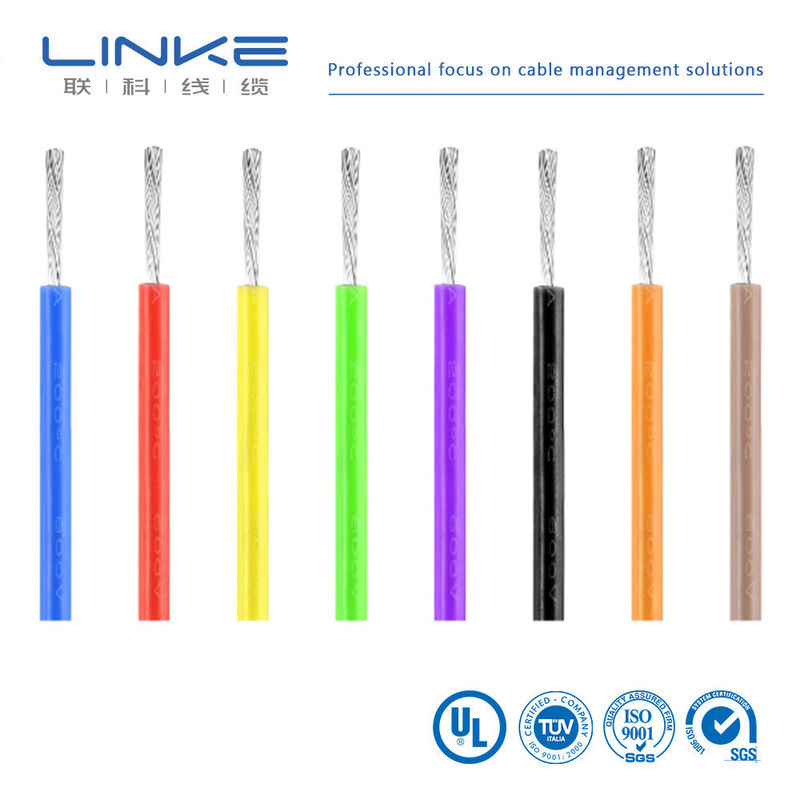

Available Colors
Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Yellow/Green, Transparent
About Linke Cable
Linke Cable Technology Co., Ltd is a leading cable manufacturer in China with over 10 years of experience in R&D, production, and marketing of high-quality cables. We specialize in providing custom cable solutions worldwide.
Our Specializations
- EV charging cables
- Medical cables
- Silicone cables
- Spring cables
- Braided cables
- Towlobe cables
- UL wires
- Automotive cables
Quality Assurance
Our dedicated team includes:
- 6 R&D engineers with 10+ years of cable technology experience
- 10 quality control specialists monitoring every production step
- 50+ experienced production staff
Certifications
UL Certifications
UL1007
UL1185
UL1672
UL10070
UL10483
UL1015
UL1569
UL10012
UL10269
Other Certifications
ISO9001, ISO13485, TS16949
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
5. Does your company accept OEM production?
Yes, we can print your company name and even customize the quality card to promote your company.
