Rectangular Automotive Wire Harness Assembly
IATF16949 Certified Custom Cable Assemblies 83×83×58CM
Product Specifications
| Wire Type |
UL Wire, VDE Cable, Automotive Wires, Drag Chain Cable, Medical Cable, etc. |
| Wire Size |
2AWG-32AWG, 0.01mm²-50mm² |
| Wire Cores |
1 Core to 50 cores available |
| Conductor |
Bare Copper, Tinned Copper, Silver Plated, Gold Plated wire |
| Rate Temperature |
80ºC, 105ºC, 125ºC, 180ºC, 220ºC, 300ºC (176°F-572°F) |
| Certification |
UL, VDE, CE, 3C or Custom Special Cables |
| Connector Type |
TE, Molex, JST, Yeonho, Sumitomo, Yazaki or others |
| Protection Pipe |
PVC tube, Corrugated pipe, Shrink Tube, Braid Tube |
| Protection |
Waterproof, Low Smoke Halogen-Free, Anti-UV Cable, Acid and alkali-resistant cable |
| Plug Molds |
300+ Plug molds available with tooling |
| Industries |
Automobiles, Electronics, Machines, Lighting, New Energy |

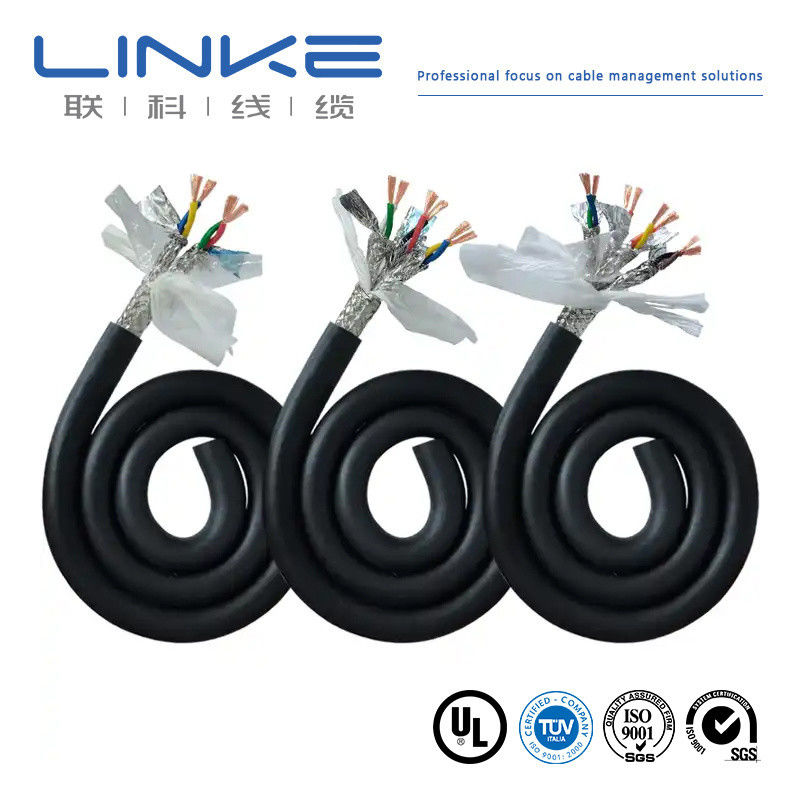

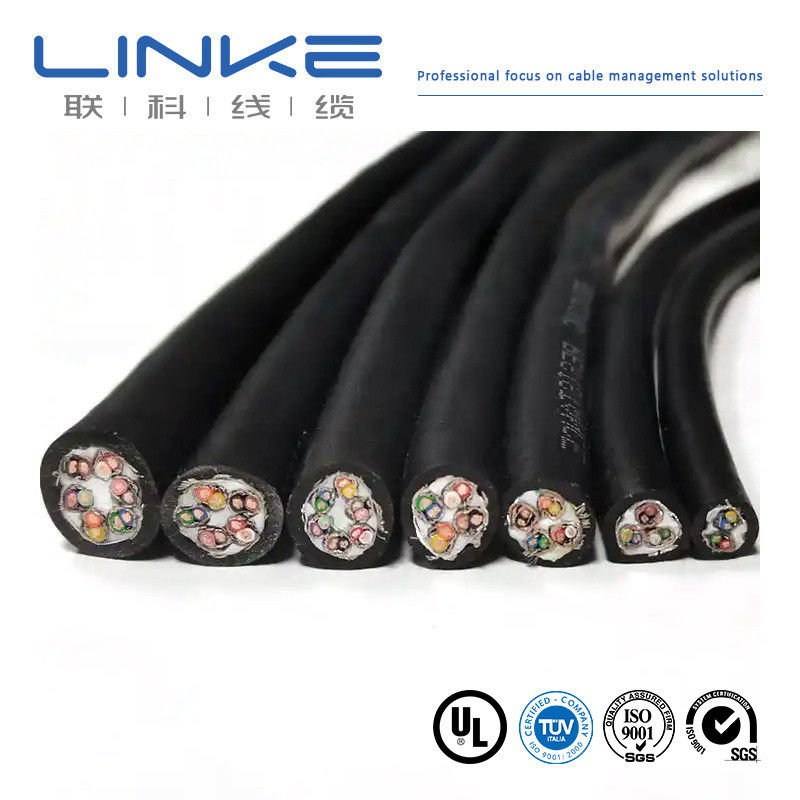

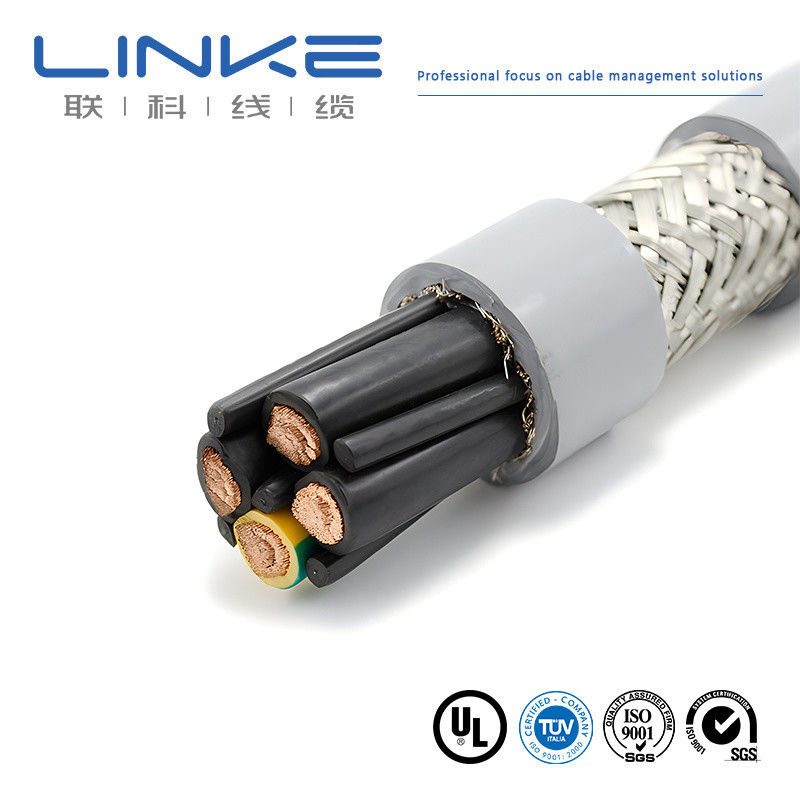

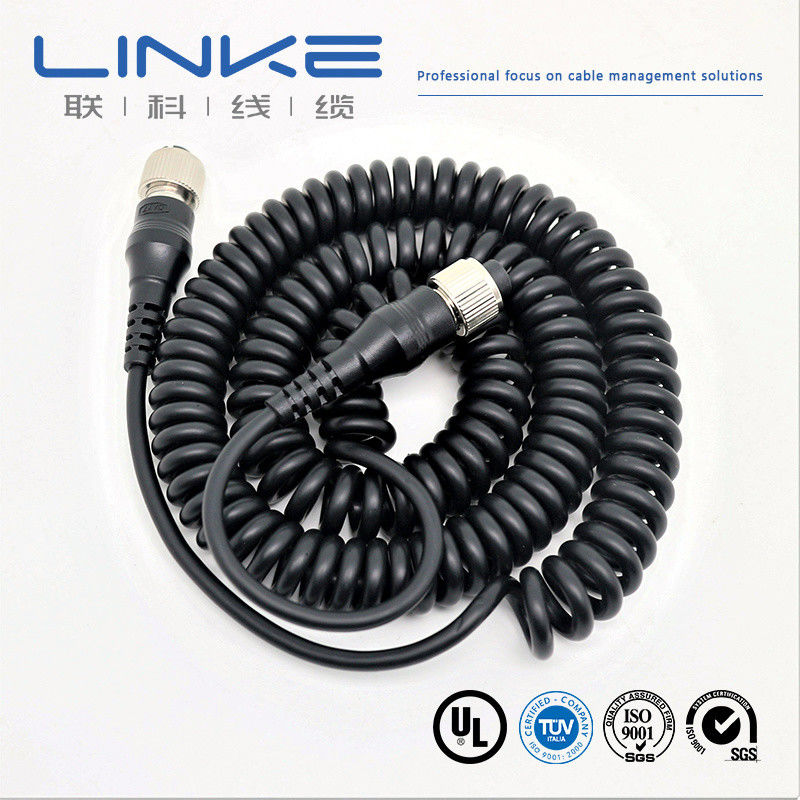

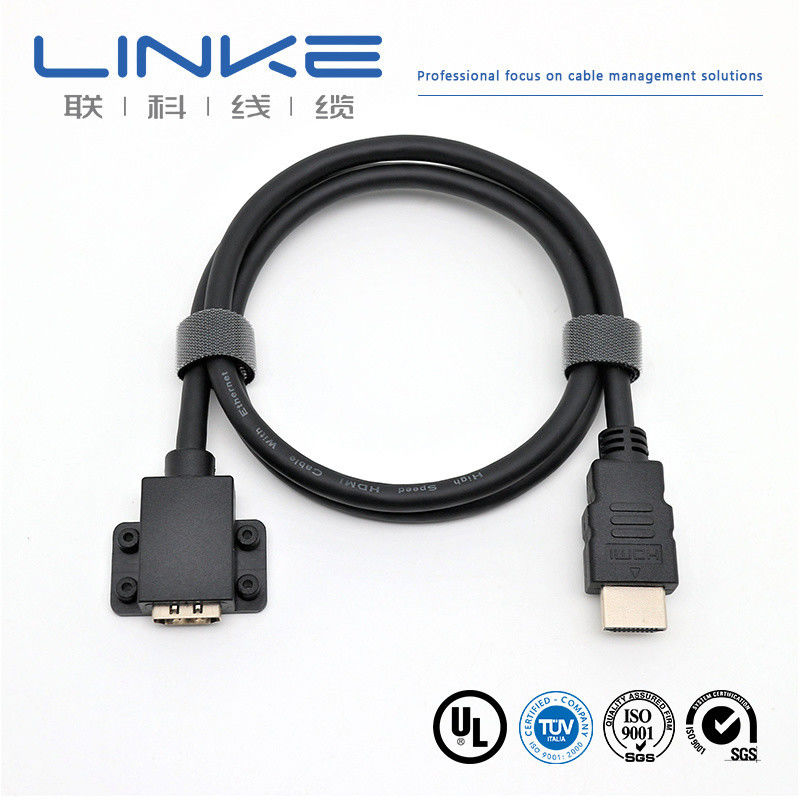

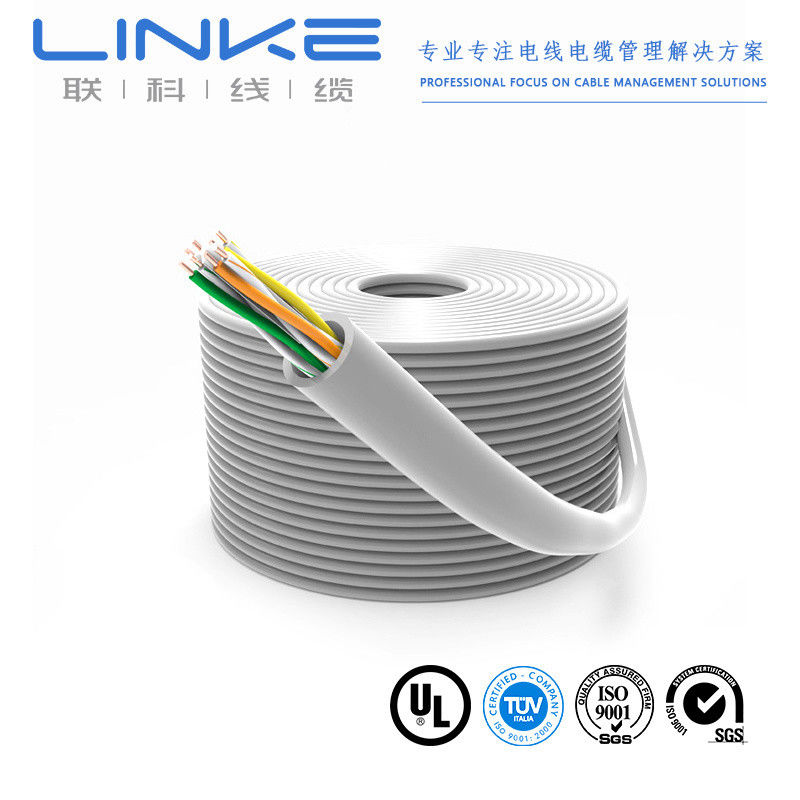

Product Images
Our Specializations
- EV charging cable
- Medical cable
- Silicone cable
- Spring cable
- Braided cable
- Twin cable
- UL wire
- Automotive cable
We use an engineer-to-engineer approach to develop better cables for customers and improve quality of life.
Exhibition
About Our Company
R&D Team: 6 engineers with over 10 years of wire and cable expertise
Quality Control: 10 dedicated staff ensuring 100% product quality from materials to shipping
Production: 50+ experienced manufacturing professionals
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
Certifications & Standards
UL Certifications
Single-conductor, thermoplastic insulation: 1007, 1330, 1333, 1591, 1723, 10064, 10369, 1015, 1331, 1569, 1592, 1901, 10070, 10483, 1185, 1332, 1577, 1672, 10012, 10269
Multiple-conductor, thermoplastic insulation: 2095, 2129, 2468, 2586, 2725, 20233, 20280, 20963, 2103, 2463, 2517, 2587, 2835, 20276, 20549, 21198, 2104, 2464, 2576, 2661, 2919, 20279, 20886, 21664
Single-conductor, thermoset insulation: 3075, 3173, 3320, 3386, 3530, 3689, 30005, 3123, 3212, 3321, 3398, 3577, 3702, 3132, 3266, 3331, 3512, 3644, 3817, 3135, 3271, 3385, 3529, 3674, 3886
Quality Certifications
Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
- Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
- How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
- What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
- Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
- Does your company accept OEM production?
Yes, we can print your company name, and we even customize the quality card to promote your company.
