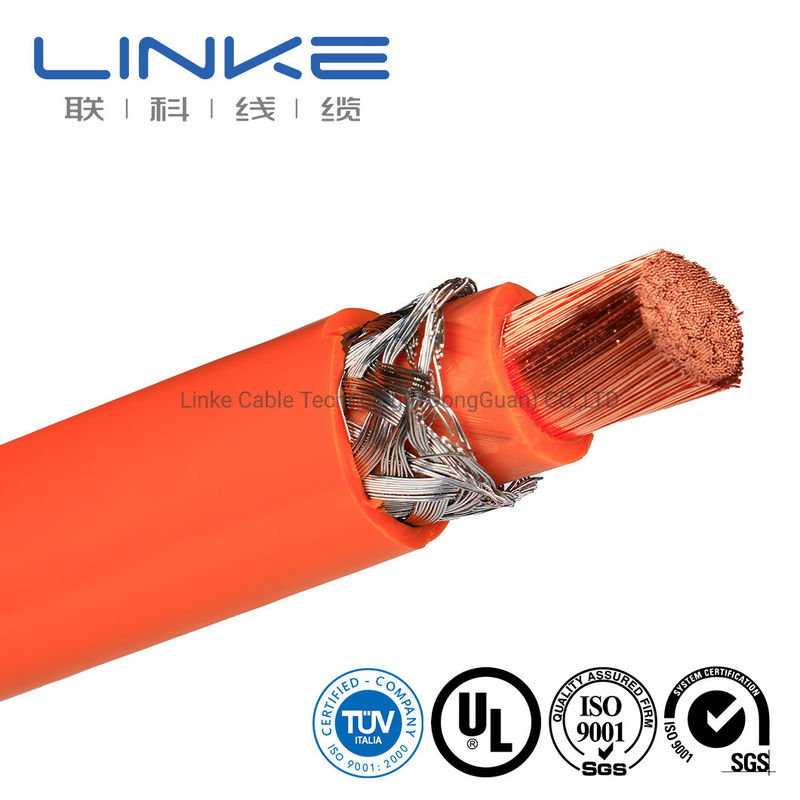

High voltage shielded wire high voltage electric charging pile 25 35 50 square electric vehicle 35KV EV high voltage wire copper conductor cross-linked polyethylene cable

High voltage shielded wire high voltage electric charging pile 25 35 50 square electric vehicle 35KV EV high voltage wire copper conductor cross-linked polyethylene cable

Hexagon Wire Cable Harness

50awg Wire Cable Harness

60CM Wire Cable Harness

Place of Origin:

China

Brand Name:

Linke

Certification:

3C,UL,TPU,UL758,ROHS,REACH,CE,ISO9001-2015,ISO13485,IATF16949

Contact Us
Request A Quote
Product Details
Conductor Material:
Copper/Tinned Copper
Conductor Type:
Twisted Wire
Exterior Material:
Customize:PVC、PE、LSFOH、silicone Rubber
Insulating Materials:
Customize:PVC、PE 、XLPE、EPR、SIR
Specifications:
0.1-450mm²
Rated Voltage:
300-600V
Rated Temperature:
-60± 200℃
Colour:
Customize
Type:
Insulated
Package:
By Roll
Lead Time:
7-15days
Highlight:

Hexagon Wire Cable Harness

,

50awg Wire Cable Harness

,

60CM Wire Cable Harness

Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Negotiable
Packaging Details
According to requirement
Delivery Time
7-15 days
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
50000m/day
Product Description

EV charging station cable
Introduction: EV electric vehicle high-voltage lines are used for battery power output, controller connection, motor connection, charging stations, and onboard chargers.
characteristic:
1. Operating temperature: -40~+125 ℃/150 ℃
2. Rated voltage: 1500V;
3. Halogen free
4. Insulation: Cross linked polyolefin sheath: Cross linked polyolefin/TPU elastomer
5. This wire has good scratch resistance, hydrolysis resistance and other properties

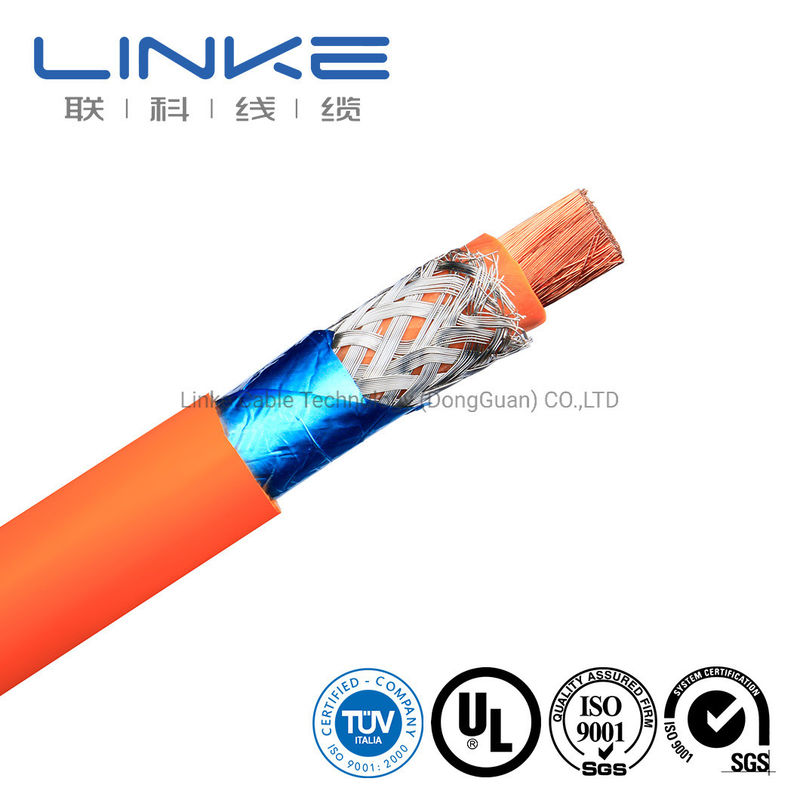

EV, Shielded wires

Synopsis:
EV electric vehicle high voltage cable is used for battery power output, controller connection, motor connection, charging pile, on-board charger.




1. Use temperature:-40~+125℃/150℃

2. Rated voltage:1500V;

3. Halogen free

4. Insulation: cross-linked polyolefin Sheath: cross-linked polyolefin/TPU elastomer

6. The wire has good resistance to scratching and hydrolysis.



Wire Model (mm²) conductor structure Insulation Outer Diameter block (sth. or sb) wrap around Sheath O.D. Maximum conductor resistance
0.50 16/0.20 2.90 woven shielding Al-mylar 5.50 37.10
0.75 24/0.20 3.10 woven shielding Al-mylar 5.70 24.20
1.00 32/0.20 3.70 woven shielding Al-mylar 6.30 18.50
1.50 49/0.20 4.00 woven shielding Al-mylar 6.60 12.70
2.00 64/0.20 4.10 woven shielding Al-mylar 6.80 9.42
2.50 79/0.20 4.30 woven shielding Al-mylar 7.00 7.60
3.00 7/14/0.20 4.90 woven shielding Al-mylar 7.50 6.15
4.00 7/18/0.20 5.20 woven shielding Al-mylar 7.80 4.71
5.00 7/23/0.20 5.40 woven shielding Al-mylar 8.00 3.70
6.00 7/27/0.20 5.60 woven shielding Al-mylar 8.30 3.14
8.00 7/37/0.20 6.50 woven shielding Al-mylar 9.30 2.52
10.00 7/46/0.20 7.00 woven shielding Al-mylar 9.80 1.82
16.00 7/73/0.20 8.20 woven shielding Al-mylar 11.00 1.16
20.00 19/34/0.20 9.00 woven shielding Al-mylar 11.80 1.00
25.00 19/42/0.20 9.80 woven shielding Al-mylar 12.60 0.74
30.00 19/51/0.20 10.50 woven shielding Al-mylar 13.60 0.68
35.00 19/59/0.20 11.50 woven shielding Al-mylar 14.50 0.53
50.00 19/37/0.30 13.50 woven shielding Al-mylar 17.00 0.37
70.00 19/53/0.30 15.50 woven shielding Al-mylar 18.50 0.26
95.00 19/70/0.30 18.00 woven shielding Al-mylar 22.00 0.20



EV, unshielded wire

summary:

EV high-voltage cables are used to connect the charging port to the battery, inside the battery, the battery to the engine and other components, as a carrier of power transmission

characterization:


1.operating temperature:-40~+125℃/150℃

2.rated voltage:1500V;

3.Halogen-free or halogenated (optional)



Wire Model (mm²) conductor structure Finished OD Maximum conductor resistance
0.50 16/0.20 2.90 37.10
0.75 24/0.20 3.10 24.20
1.00 32/0.20 3.70 18.50
1.50 49/0.20 4.00 12.70
2.00 64/0.20 4.10 9.42
2.50 79/0.20 4.30 7.60
3.00 7/14/0.20 4.90 6.15
4.00 7/18/0.20 5.20 4.71
5.00 7/23/0.20 5.40 3.70
6.00 7/27/0.20 5.60 3.14
8.00 7/37/0.20 6.50 2.52
10.00 7/46/0.20 7.00 1.82
16.00 7/73/0.20 8.20 1.16
20.00 19/34/0.20 9.00 1.00
25.00 19/42/0.20 9.80 0.74
30.00 19/51/0.20 10.50 0.68
35.00 19/59/0.20 11.50 0.53
50.00 19/37/0.30 13.50 0.37
70.00 19/53/0.30 15.50 0.26
95.00 19/70/0.30 18.00 0.20




High voltage shielded wire high voltage electric charging pile 25 35 50 square electric vehicle 35KV EV high voltage wire copper conductor cross-linked polyethylene cable 2

Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and  improve the quality of one's life.

Our certification:

Manufacturing Factory Automotive Wire Harness Custom Cable Assembly

Manufacturing Factory Automotive Wire Harness Custom Cable Assembly

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.



4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.



5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
