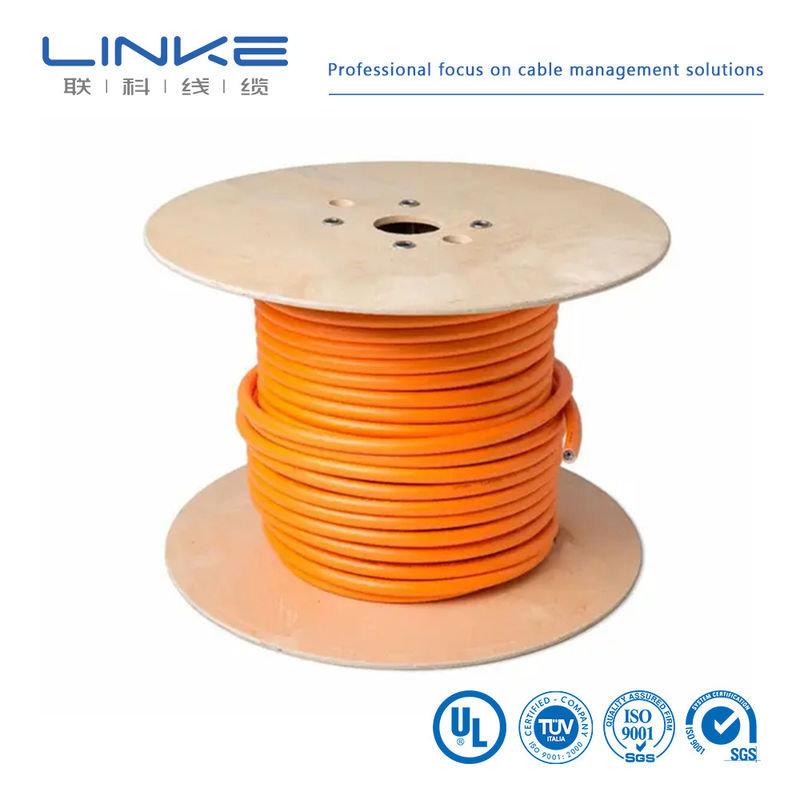

DW26 Power Cable Flexible Silicone Wire EV Shielded Silicone Wire
Product Overview

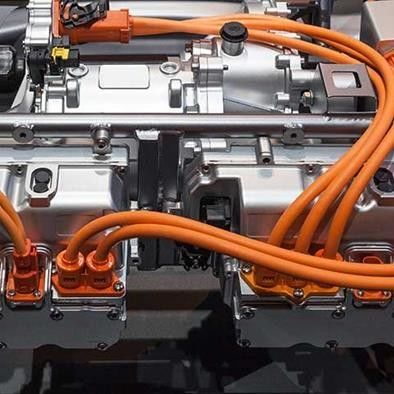

EV charging station cable designed for electric vehicle high-voltage applications including battery power output, controller connections, motor connections, charging stations, and onboard chargers.

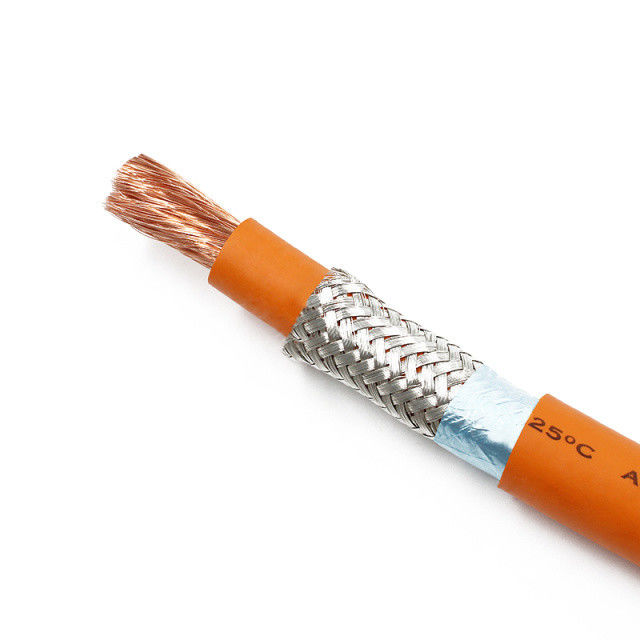

Shielded EV Cable Specifications
- Operating temperature: -40°C to +125°C/150°C
- Rated voltage: 1500V
- Halogen free construction
- Insulation: Cross-linked polyolefin
- Sheath: Cross-linked polyolefin/TPU elastomer
- Excellent resistance to scratching and hydrolysis
Technical Specifications Table
| Wire Model (mm²) |
Conductor Structure |
Insulation Outer Diameter |
Shielding |
Wrap Around |
Sheath O.D. |
Maximum Conductor Resistance |
| 0.50 |
16/0.20 |
2.90 |
woven shielding |
Al-mylar |
5.50 |
37.10 |
| 0.75 |
24/0.20 |
3.10 |
woven shielding |
Al-mylar |
5.70 |
24.20 |
| 1.00 |
32/0.20 |
3.70 |
woven shielding |
Al-mylar |
6.30 |
18.50 |
| 1.50 |
49/0.20 |
4.00 |
woven shielding |
Al-mylar |
6.60 |
12.70 |
| 2.00 |
64/0.20 |
4.10 |
woven shielding |
Al-mylar |
6.80 |
9.42 |
| 2.50 |
79/0.20 |
4.30 |
woven shielding |
Al-mylar |
7.00 |
7.60 |
| 3.00 |
7/14/0.20 |
4.90 |
woven shielding |
Al-mylar |
7.50 |
6.15 |
| 4.00 |
7/18/0.20 |
5.20 |
woven shielding |
Al-mylar |
7.80 |
4.71 |
| 5.00 |
7/23/0.20 |
5.40 |
woven shielding |
Al-mylar |
8.00 |
3.70 |
| 6.00 |
7/27/0.20 |
5.60 |
woven shielding |
Al-mylar |
8.30 |
3.14 |
| 8.00 |
7/37/0.20 |
6.50 |
woven shielding |
Al-mylar |
9.30 |
2.52 |
| 10.00 |
7/46/0.20 |
7.00 |
woven shielding |
Al-mylar |
9.80 |
1.82 |
| 16.00 |
7/73/0.20 |
8.20 |
woven shielding |
Al-mylar |
11.00 |
1.16 |
| 20.00 |
19/34/0.20 |
9.00 |
woven shielding |
Al-mylar |
11.80 |
1.00 |
| 25.00 |
19/42/0.20 |
9.80 |
woven shielding |
Al-mylar |
12.60 |
0.74 |
| 30.00 |
19/51/0.20 |
10.50 |
woven shielding |
Al-mylar |
13.60 |
0.68 |
| 35.00 |
19/59/0.20 |
11.50 |
woven shielding |
Al-mylar |
14.50 |
0.53 |
| 50.00 |
19/37/0.30 |
13.50 |
woven shielding |
Al-mylar |
17.00 |
0.37 |
| 70.00 |
19/53/0.30 |
15.50 |
woven shielding |
Al-mylar |
18.50 |
0.26 |
| 95.00 |
19/70/0.30 |
18.00 |
woven shielding |
Al-mylar |
22.00 |
0.20 |
Unshielded EV Cable
EV high-voltage cables are used to connect the charging port to the battery, inside the battery pack, and from the battery to the engine and other components as power transmission carriers.
- Operating temperature: -40°C to +125°C/150°C
- Rated voltage: 1500V
- Halogen-free or halogenated options available
Manufacturer Profile
Linke Cable Technology Co., Ltd is a leading cable supplier in China with over 10 years of experience in R&D, production, and marketing of wire and cable products. We provide various cables and custom cable solutions worldwide, specializing in EV charging cable, medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, and more.
At Linke Cable, we believe in an engineer-to-engineer approach to develop superior cables for customers and improve quality of life through innovative cable solutions.
Our Certifications
Quality Certifications
Our products meet the following international standards:
- UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
- UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
- UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
- ISO9001 and ISO13485, TS16949
- CNR - Appliance Wiring Material
- Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
- Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
- Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
General Product Parameters
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
|
|
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
Does your company accept OEM production?
Yes, we can print your company name and even customize the quality card to promote your company.
