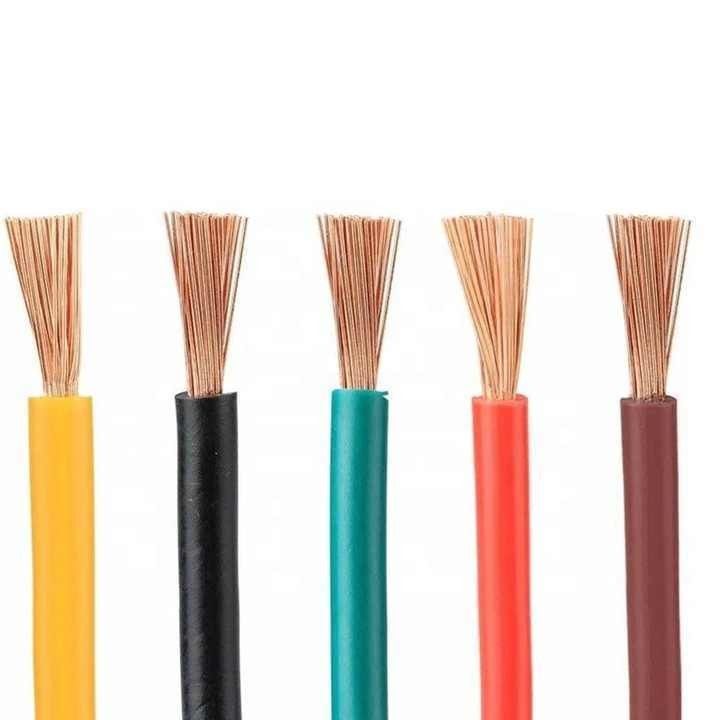

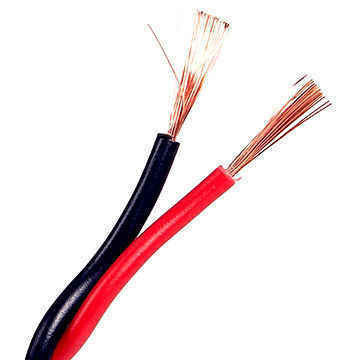

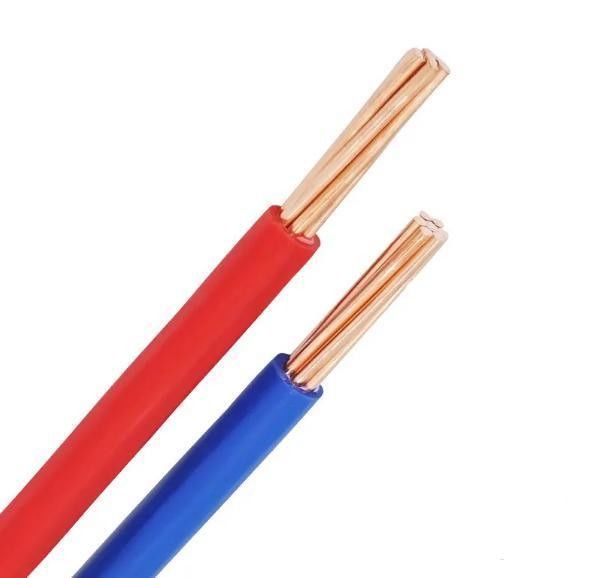

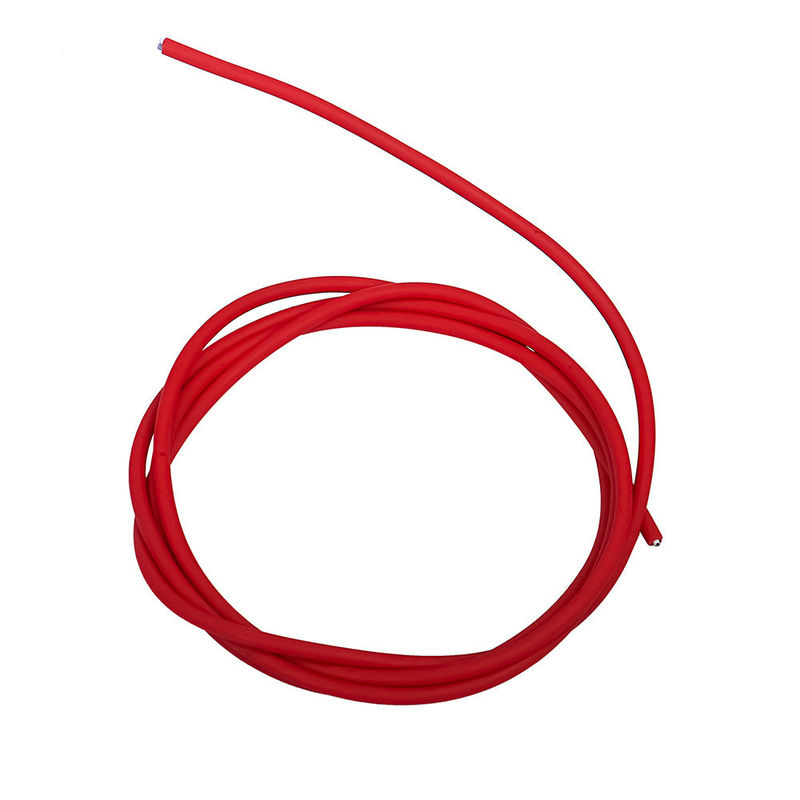

UL10064 Automotive Primary Wire TXL Electric Cable with XLPE Insulation and Tinned Copper Conductor for 300V Applications

Car Battery Automotive Primary Wire

Customized Automotive Primary Wire

Electric Cables Automotive Primary Wire

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Material Shape:

Round Wire

Name:

Txl Cable

Core:

Multiple

Transport Package:

Roll

Voltage:

Low And Medium Voltage Cable

Customization:

Available

Conductor Type:

Twisted Wire

Colour:

Customize

Type:

Insulated

Package:

By Roll

Lead Time:

7-15days

Highlight:

Car Battery Automotive Primary Wire

Customized Automotive Primary Wire

Electric Cables Automotive Primary Wire

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

UL20276 24-28 AWG Tinned Copper Conductor Multicore Braided Shielded PVC Jacketed Computer Cable

Get Best Price

Video

2468 VW-1 80°C 300V 22AWGx2C Flat Ribbon Wire UL2468 2 Core PVC Speaker Cable

Get Best Price

Video

UL1330 600V Rated 200°C High Temperature FEP Insulated Cable with Standard for Industrial and Household Use

Get Best Price

Video

26AWG UL2733 Robot Cable PVC Copper Thinned Electrical Wire Cable for Heating and Underground Applications

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

Style/size 线材规格 AWG	Conductor 导体		Insulation 绝缘			Max.Conductor DCResistance at20℃导体电阻 Ω/KM	包裝 (Packing)
Style/size 线材规格 AWG	Construct to n 结构规格	OD (REF)	Average Thickness 平均厚度 mm	Min. Thickness 最小厚度 mm	OD 外径 mm		米/卷 Mt/coils
32	7/0.08±0.008	0.24	0.06	0.03	0.38±0.05	/	610
30	7/0.1±0.008	0.3	0.08	0.05	0.5±0.05	381	610
28	7/0.12±0.008	0.36	0.12	0.1	0.64±0.08	239	610
26	7/0.16±0.008	0.48	0.1	0.07	0.7±0.08	150	610
24	7/0.2±0.008	0.61	0.13	0.1	0.9±0.08	94.2	610
22	19/0.15±0.008	0.75	0.13	0.1	1.05±0.08	59.4	610
20	19/0.185±0.008	0.93	0.17	0.14	1.35±0.1	36.7	305

Product Specifications

Temperature Rating: -40°C to +125°C
Voltage Rating: 300V
Compliance Standards: UL Subject 758, UL 1581, C22.2
Conductor Options: Solid or Stranded, Tinned or Bare Copper
Wire Gauge: 32-16 AWG
Insulation: XLPE (Cross-Linked Polyethylene)
Flame Test: Passes UL VW-18 FT1 vertical flame test
Uniform insulation thickness for easy stripping and cutting
Application: General purpose internal wiring of appliances

Quality Certifications

ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name, and we even customize the quality card to promote your company.
