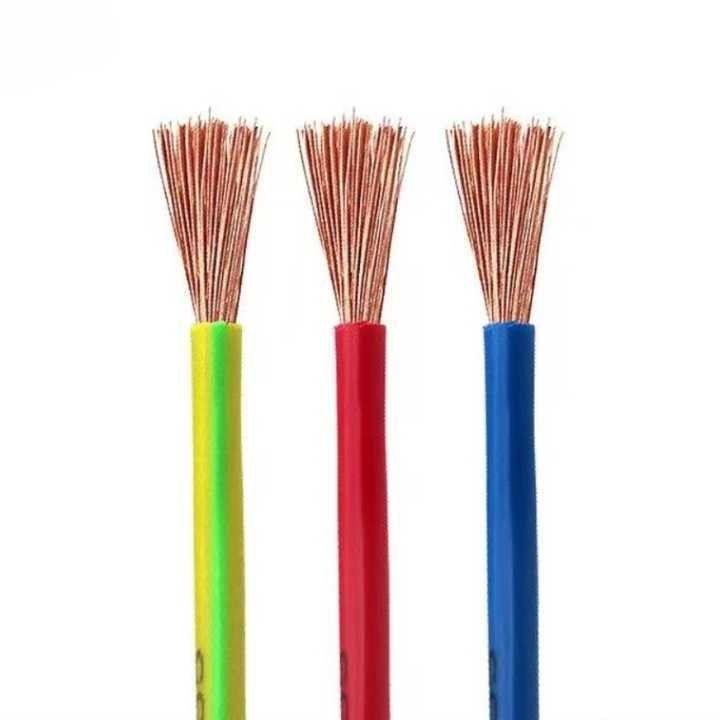

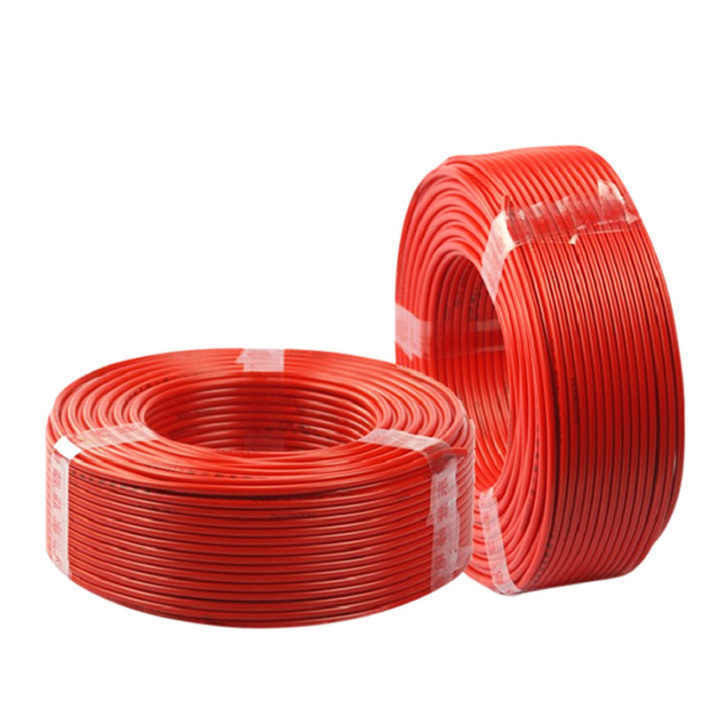

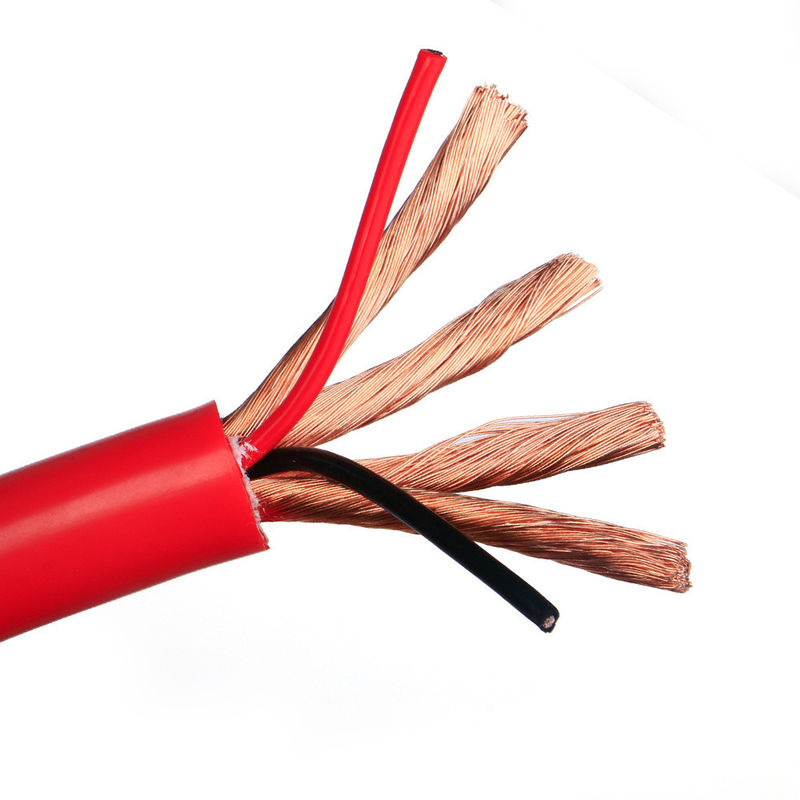

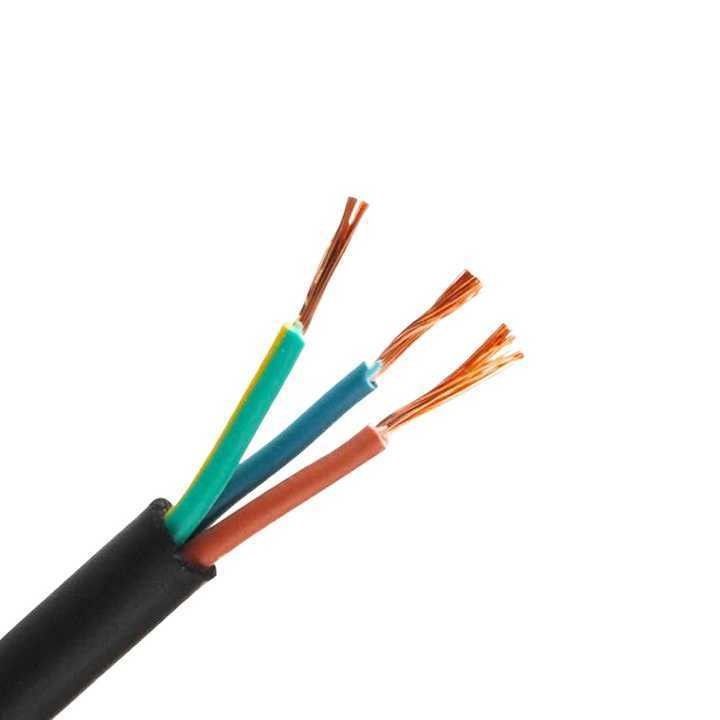

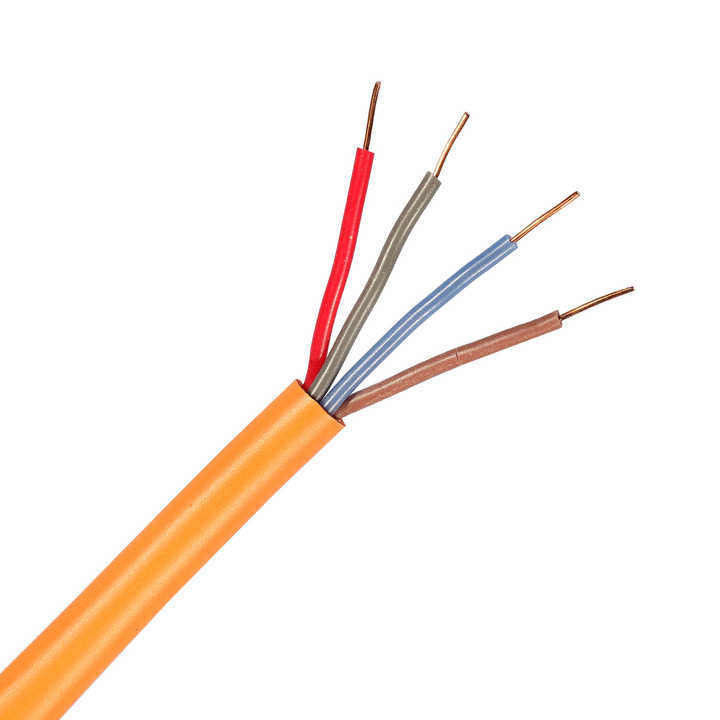

0.75mm2 Multi Core Braided Shield Fire Retardent Control Cable for Industrial Power Transmission

0.75mm2 Control Cable

Braided Shield Control Cable

Multi Core Control Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-610

Insulation Material:

XLPE

Sheath Material:

PVC

Material Shape:

Round Wire

Wire Core Material:

Tinned Wire

Name:

Fire Retardent Cable

Copper:

Tinned Copper

Core:

Multiple

Application:

Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car

Voltage:

Low And Medium Voltage Cable

Current:

300V

Samples:

US$ 300/Piece 1 Piece(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Type:

Insulated

Package:

By Roll

Lead Time:

7-15days

Highlight:

0.75mm2 Control Cable

Braided Shield Control Cable

Multi Core Control Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

300/500V Rated PVC Jacketed RG11 Coaxial Cable with Aluminum Braid Shield for CATV Applications

Get Best Price

Video

High Flexible Drag Chain Cable with 600V Rated Voltage and Tinned Copper Core for Robot Arm Applications

Get Best Price

Video

Multi-mode Fiber PVC Jacket Coaxial Cable with Smooth Copper Tube Conductor and Galvanized Steel Wire Messenger for Stable Internet and Networking

Get Best Price

Video

14AWG Cold-Resistant UL Certified Automotive Wire Gxl PVC Cable for Vehicle Wiring

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

0.75mm2 Multi Core Braided Shield Fire Retardent Control Cable for Industrial Power Transmission

Professional-grade control cable designed for industrial applications requiring reliable signal transmission and environmental protection.

Product Specifications

Fixed installation PVC insulated high-voltage cables for transmission and distribution lines with rated voltage below 35KV.

Specification	Details
Conductor Material	Copper or Aluminum
Cable Construction	Armored and Non-Armored options available
Rated Voltage (High)	8.7/15kV, 26/35kV
Rated Voltage (Low)	0.6/1kV
Sheath Material	PVC or Polyethylene
Number of Cores	Single Core, Three Cores
Specification Range	50-800mm²

Brand	LINKE	Cross Section (mm²)	0.01-500mm²
Wire Gauge (AWG)	[e.g., 24AWG, 28AWG]	Conductor	Tinned Copper /bare copper, based on client's requirements
Insulation material	PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other	Jacket Material	[PVC/PU/Rubber/Braid/etc.]
Certifications	RoHS/REACH/UL/CE/IP68/etc	Custom Length	[e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type	[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.]	Shielding	[Shielded/Unshielded/Braid Shield]
Impedance	[e.g., 75Ω (for coaxial cables)]	Printing/Logo	[Text/Label/Logo, max. 20 characters]
Bend Radius	[e.g., ≥5× cable diameter]	Current Rating	[e.g., 5A]
Voltage Rating	[e.g., 30V AC/DC]	Connector Material	[Gold-plated/Nickel-plated/Brass/etc.]
Connectors	[e.g., USB Type-C, 3.5mm Jack, RJ45]	Jacket	XLPE or PE or PVC RUBBER
Delivery Time	7-14 days after confirming the order	Colors	[Black/White/Red/Custom Pantone/etc.]
temperature	Minus-70℃to 350℃(-70℃ ~ 350℃)	Package	Roll/box/plate/Custom
Supporting Services	\multicolumn {3}{l}{custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

Independent Laboratory • Complete Testing Equipment • Full Quality Control

We test every product by strict standards to ensure superior quality and reliable performance.

No.	Test Item	Test Condition	Test Requirement	Test Data	Result
1	Structure Inspection	1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness	Comply with wire size table	Refer to test record	Pass
2	Thermal Shock	Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample	No cracks on the sample surface	No cracks	Pass
3	Heat Deformation	1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position	1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50%	Refer to test record	Pass
4	FT2	Apply a standard flame at a height of 125mm once	1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials	Refer to test record	Pass
5	Aging	1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength	1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging	Refer to test record	Pass
6	Cold Bend	Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box	No cracks on the sample surface	No cracks	Pass
7	Conductor Resistance	Measure resistance of one-meter core conductor with DC resistance meter	At 20℃, resistance of 8AWG ≤ 2.23Ω/km	Refer to test record	Pass

Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and

provide professional solutions to the Cable&Wire,especially for the

different industry customers.It contains :

Humanoid robot cable,

AI power cable/data cable,

Semiconductor cable/industrial automatic cable,

Sensor cable,

New energy cable,

Medical beauty wire,

UL wire cable,

Linke Cable has diversified product development capabilities and technical capabilities to support diversified

customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We

have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485

(Medical apparatus and instruments),IATF 16949(Auto industry)

Quality Certifications

Our manufacturing processes and products meet the highest international standards with comprehensive certification coverage.

UL Certifications

UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587, UL2835
UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664

International Standards

ISO9001 Quality Management System
ISO13485 Medical Devices Quality Management
TS16949 Automotive Quality Management

CNR Appliance Wiring Material

Extruded PVC Insulated Single, rated 105°C, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer with complete control over production from beginning to end. We welcome factory visits and provide pickup service in Shenzhen.

How can I get a sample to test your quality?

Samples are provided free of charge. New customers are responsible for courier costs.

What's your Minimum Order Quantity?

Minimum order quantity is normally 100m. Due to cable weight, we recommend ordering suitable quantities to optimize freight costs. Sea transportation is the most cost-effective option.

Can I get a discount?

Discounts are available based on order quantity. We may also cover freight costs for larger orders. Please contact us for specific pricing.

Does your company accept OEM production?

Yes, we support OEM production including printing your company name and custom quality cards to promote your brand.
