Solar 4mm Solar PV Cables 6mm2 for Solar Photovoltaic Car Low and Medium Voltage Cable

Solar 4mm Solar PV Cables 6mm2 for Solar Photovoltaic Car Low and Medium Voltage Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C,UL,TPU,UL758,ROHS,REACH,CE,ISO9001-2015,ISO13485,IATF16949

Contact Us
Request A Quote
Product Details
Model NO.:
LK-603
Insulation Material:
XLPE
Sheath Material:
XLPE
Material Shape:
Round Wire
Wire Core Material:
Tinned Wire
Model:
Lk-603
Brand:
Linke
Name:
Solar Cable
Copper:
Tinned Copper
Core:
Multiple
Jacket:
XLPE
Transport Package:
Roll
Trademark:
LINKE
Origin:
China
HS Code:
94054090
Supply Ability:
100000000
Package Size:
10.00cm * 10.00cm * 5.00cm
Package Gross Weight:
0.500kg
Application:
Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car
Voltage:
Low And Medium Voltage Cable
Current:
600V/1000V 1000V/1800V DC
Samples:
US$ 500/Piece 1 Piece(Min.Order) |
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
 :
Initial Payment Full Payment
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Negotiable
Packaging Details
According to requirement
Delivery Time
7-15day
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
50000m/day
Product Description

Solar 4mm Solar PV Cables 6mm2 For Solar Photovoltaic



2,Low viscosity appearance
Solar 4mm Solar PV Cables 6mm2 for Solar Photovoltaic






Application:
1.The connection between solar cell modules and modules.
2.The connection between battery and the inverter
3.The connection between the battery array and the controller or the DC Junction box.
Solar cables, also known as PV cables, connect photovoltaic modules and inverters. The cables are used for 600/1000V AC 1500V DC. Solar systems are usually used in harsh environmental conditions, such as high temperature and ultraviolet radiation. Therefore, solar cables are different from ordinary cables. In comparison, photovoltaic cables have the characteristics of heat resistance, cold resistance, oil resistance, acid, alkali and salt resistance, UV resistance, flame retardancy, and environmental protection.
Rated voltage
1000V AC, or 1500V DC
Conductor material
Tinned copper
Insulation and sheath materials
Irradiation cross-linked polyolefin, halogen-free
Number of conductors
Single core/dual core
cross section
1.5 mm2~95 mm2
High Voltage Test
AC 6.5 kV, or DC 1.5 kV
Operating temperature
-40℃~90℃
Maximum conductor temperature
120℃
Product Parameters
Single core
Core quantity x structure
(mm2)
Conductor structure
(n / mm)
Conductor No./mm
Insur.
Thickness. (mm)
Current Aarring capacity (A)
1X1.5
30/0.25
1.58
4.90
30
1X2.5
50/0.256
2.06
5.45
41
1X4.0
56/0.3
2.58
6.15
55
1X6
84/0.3
3.15
7.15
70
1X10
142/0.3
4.0
9.05
98
1X16
228/0.3
5.7
10.2
132
1X25
361/0.3
6.8
12.0
176
1X35
494/0.3
8.8
13.8
218
1X50
418/0.39
10.0
16.0
280
1X70
589/0.39
11.8
18.4
350
1X95
798/0.39
13.8
21.3
410
Dual Core
No. Of cores x Construction
(mm2)
Conductor Construction
(n / mm)
Insulation thickness
Sheath thickness
Current carrying capacity
2x1.5
30/0.25
0.7
0.8
30
2x2.5
50/0.25
0.7
0.8
41
2x4.0
56/0.3
0.7
0.8
55
2x6.0
84/0.30
0.8
0.9
70
2x10.0
142/0.30
0.9
1.1
98

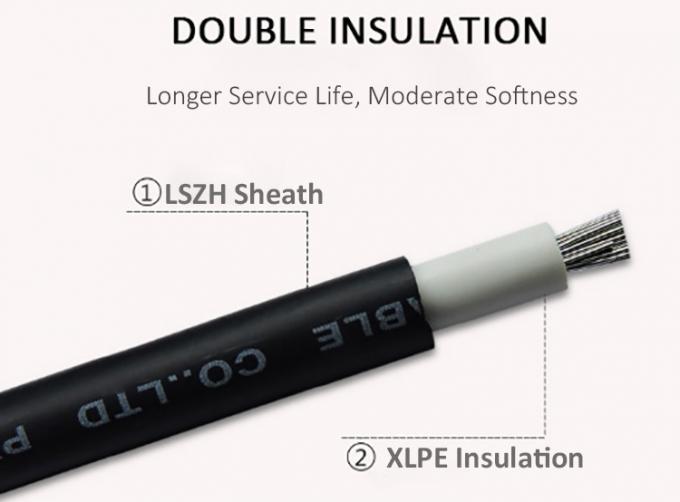

Solar 4mm Solar PV Cables 6mm2 for Solar Photovoltaic Car Low and Medium Voltage Cable 1

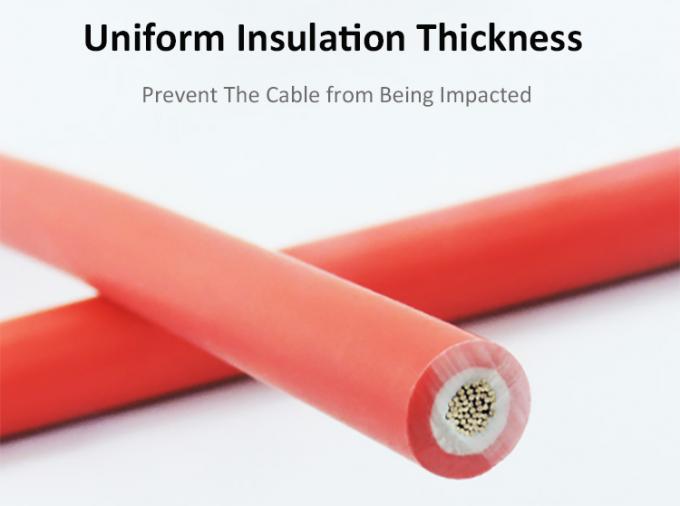

Solar 4mm Solar PV Cables 6mm2 for Solar Photovoltaic Car Low and Medium Voltage Cable 2

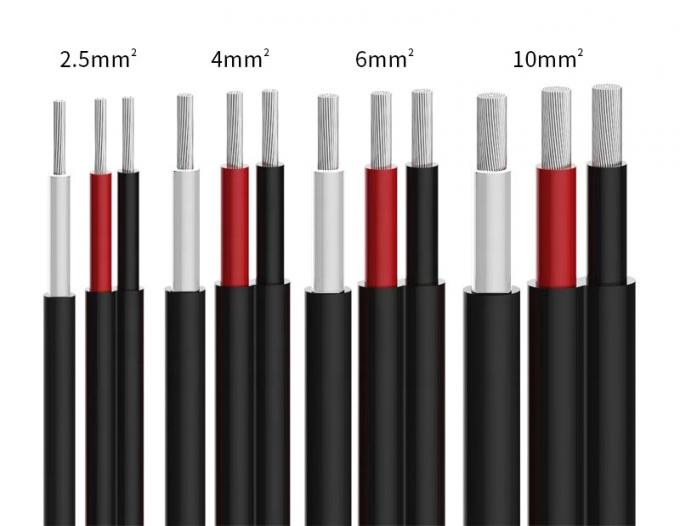

Solar 4mm Solar PV Cables 6mm2 for Solar Photovoltaic Car Low and Medium Voltage Cable 3

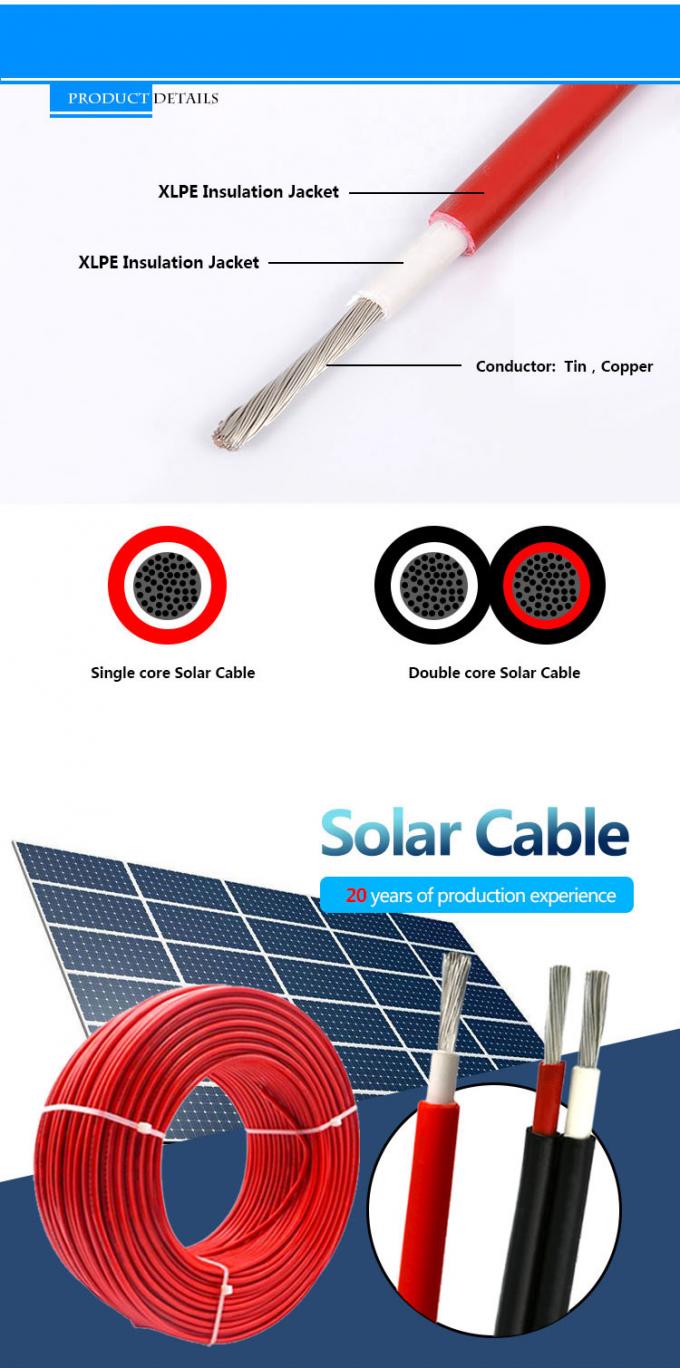

Solar 4mm Solar PV Cables 6mm2 for Solar Photovoltaic Car Low and Medium Voltage Cable 4
Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and  improve the quality of one's life.


Solar 4mm Solar PV Cables 6mm2 for Solar PhotovoltaicSolar 4mm Solar PV Cables 6mm2 for Solar PhotovoltaicSolar 4mm Solar PV Cables 6mm2 for Solar Photovoltaic


Our certification:

Solar 4mm Solar PV Cables 6mm2 for Solar Photovoltaic

Single-conductor, thermoplastic insulation
1007 1330 1333 1591 1723 10064 10369
1015 1331 1569 1592 1901 10070 10483
1185 1332 1577 1672 10012 10269
Multiple-conductor, thermoplastic insulation
2095 2129 2468 2586 2725 20233 20280 20963
2103 2463 2517 2587 2835 20276 20549 21198
2104 2464 2576 2661 2919 20279 20886 21664
Single-conductor, thermoset insulation
3075 3173 3320 3386 3530 3689 30005
3123 3212 3321 3398 3577 3702
3132 3266 3331 3512 3644 3817
3135 3271 3385 3529 3674 3886

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.



4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.



5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
