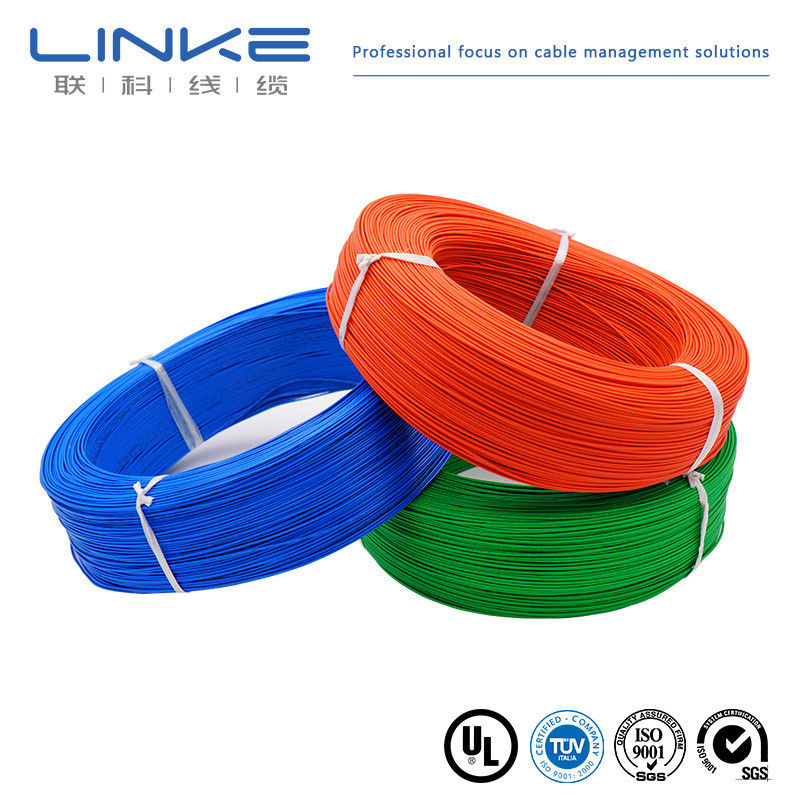

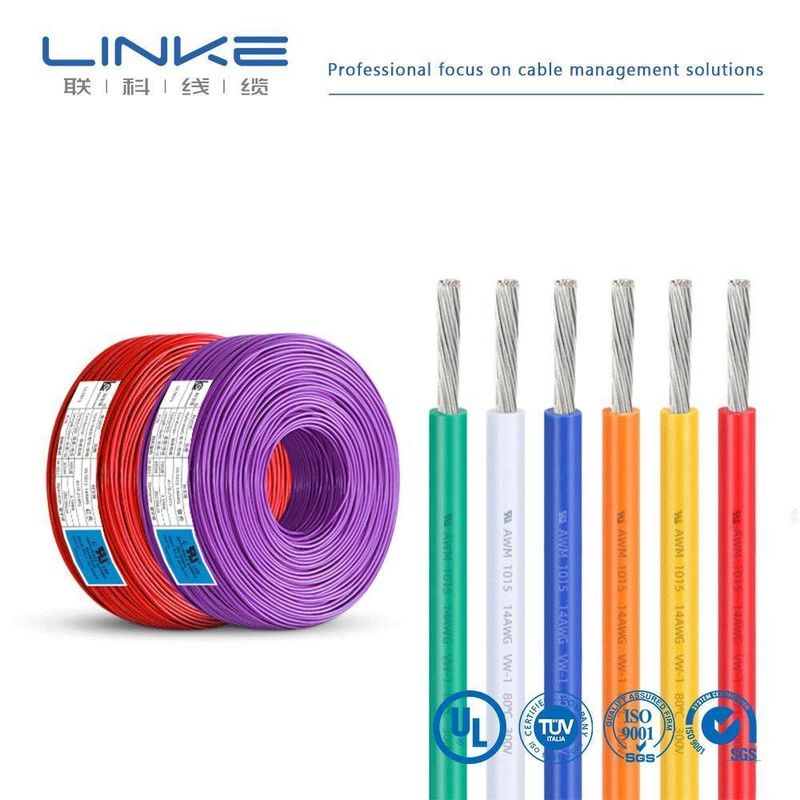

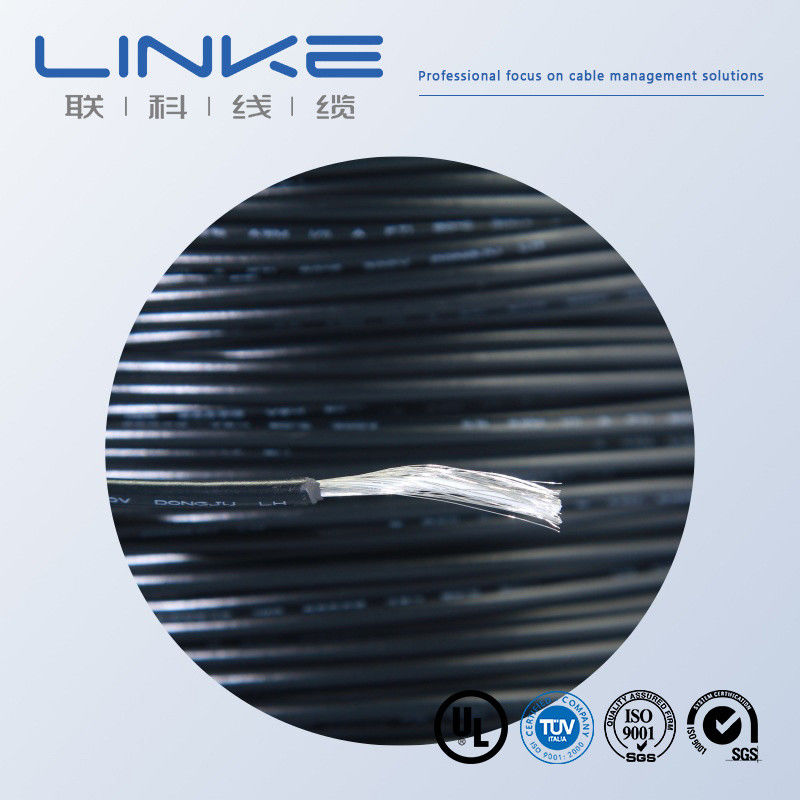

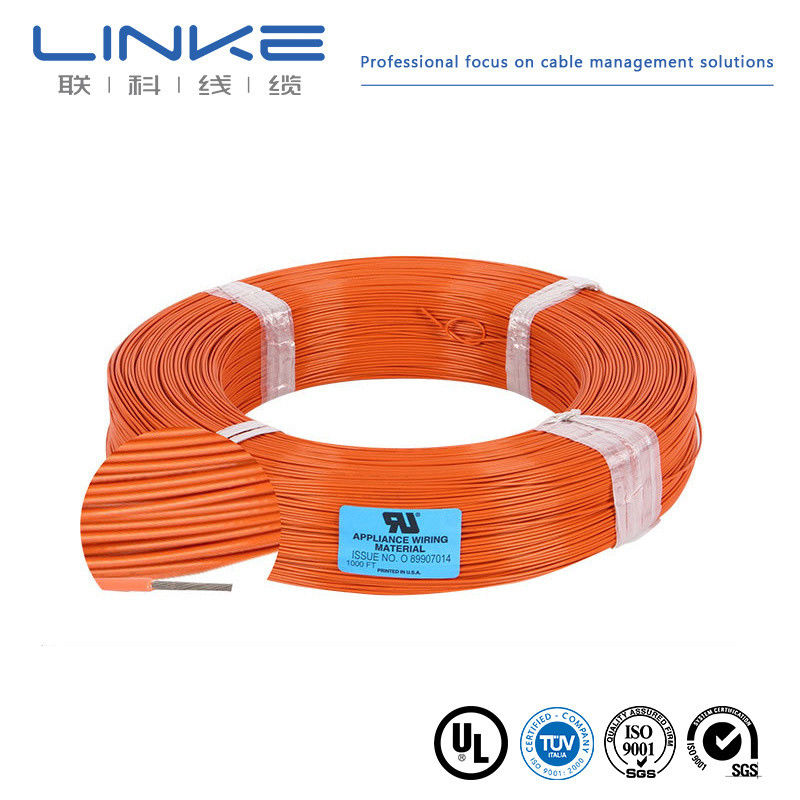

PVC &XLPVC wires and cables
UL Style No. 1007
Specifications
Nominal voltage: 300V
Temperature range: 80ºC
Standard: UL758
Applications:Internal wiring of electronic equipment.
Marking: E364879 AWM1007 24AWG 80ºC 300V VW-1 PVC C WMI A/B 80ºC300V FT1 LINKE CABLE
| Conductor | Insulation | Max. Cond Resistance (Q/KM) |
Unit length (M)(Ft) |
|||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal thickness (mm) |
Diameter (mm) |
||
| 32 | 7/0.080 | 0.24 | 0.38 | 1.00 | 542 | 610/2000 |
| 30 | 7/0.100 | 0.30 | 0.38 | 1.06 | 381 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.38 | 1.14 | 239 | 610/2000 |
| 26 | 7/0.160 | 0.48 | 0.38 | 1.24 | 150 | 610/2000 |
| 24 | 11/0.160 | 0.61 | 0.38 | 1.37 | 94.2 | 610/2000 |
| 22 | 17/0.160 | 0.76 | 0.38 | 1.52 | 59.4 | 610/2000 |
| 20 | 21/0.180 | 0.95 | 0.38 | 1.71 | 36.7 | 610/2000 |
| 18 | 34/0.180 | 1.21 | 0.38 | 1.97 | 23.2 | 610/2000 |
| 16 | 26/0.254 | 1.50 | 0.38 | 2.26 | 14.6 | 305/1000 |

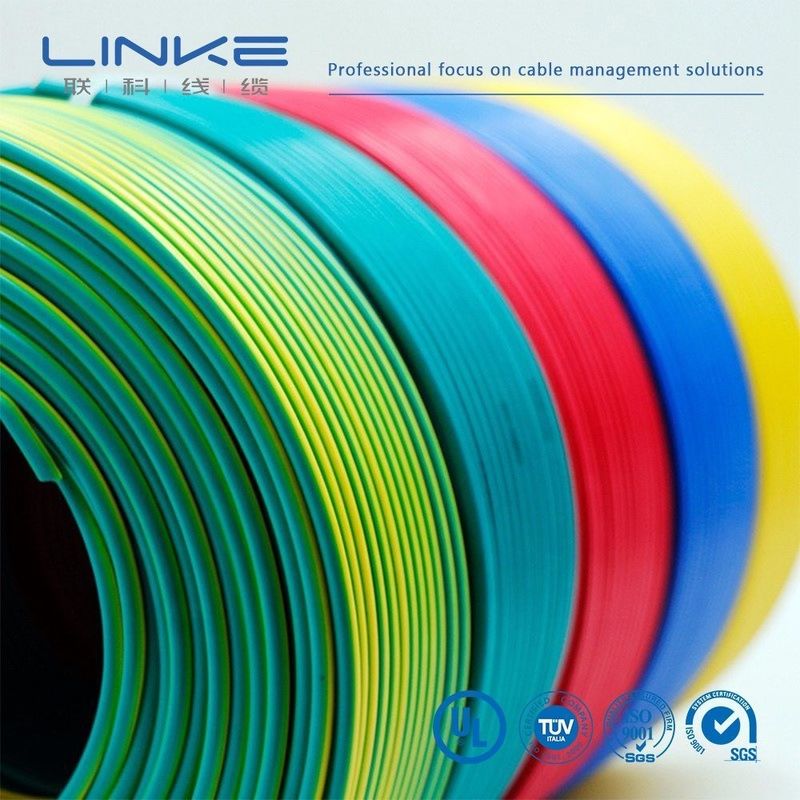

Colours: (White).(Black).(Red).(Brown).(Yellow).(Blue).(Green).(Yellow/Green)
| Brand | LINKE | Cross Section (mm²) | 0.01-500mm² |
| Wire Gauge (AWG) | [e.g., 24AWG, 28AWG] | Conductor | Tinned Copper /bare copper, based on client's requirements |
| Insulation material | PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other | Jacket Material | [PVC/PU/Rubber/Braid/etc.] |
| Certifications | RoHS/REACH/UL/CE/IP68/etc | Custom Length | [e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type | [Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] | Shielding | [Shielded/Unshielded/Braid Shield] |
| Impedance | [e.g., 75Ω (for coaxial cables)] | Printing/Logo | [Text/Label/Logo, max. 20 characters] |
| Bend Radius | [e.g., ≥5× cable diameter] | Current Rating | [e.g., 5A] |
| Voltage Rating | [e.g., 30V AC/DC] | Connector Material | [Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors | [e.g., USB Type-C, 3.5mm Jack, RJ45] | Jacket | XLPE or PE or PVC RUBBER |
| Delivery Time | 7-14 days after confirming the order | Colors | [Black/White/Red/Custom Pantone/etc.] |
| temperature | Minus-70℃to 350℃(-70℃ ~ 350℃) | Package | Roll/box/plate/Custom |

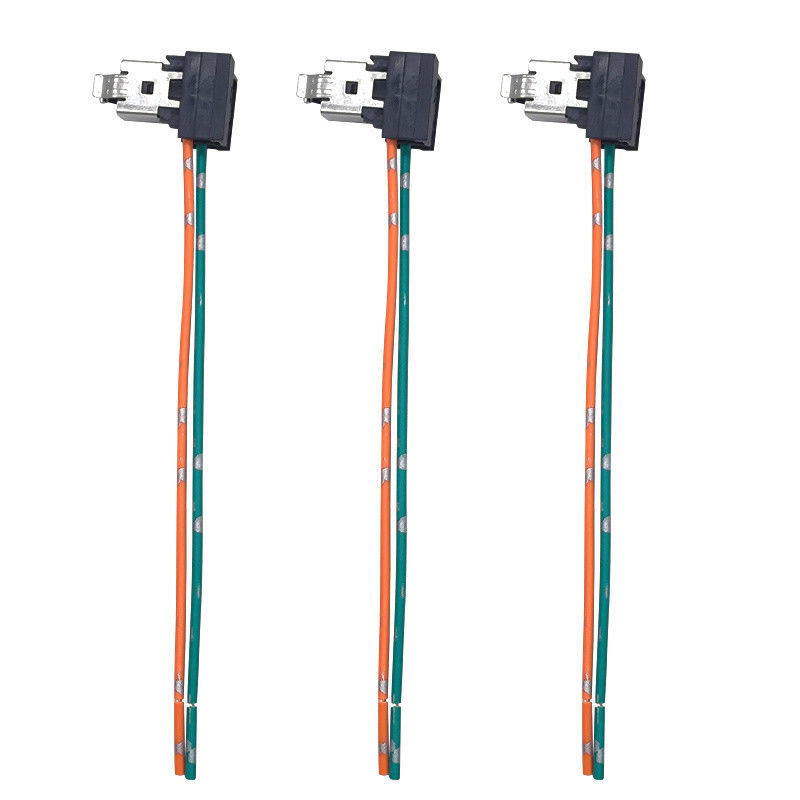

| Supporting Services | custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) | ||
