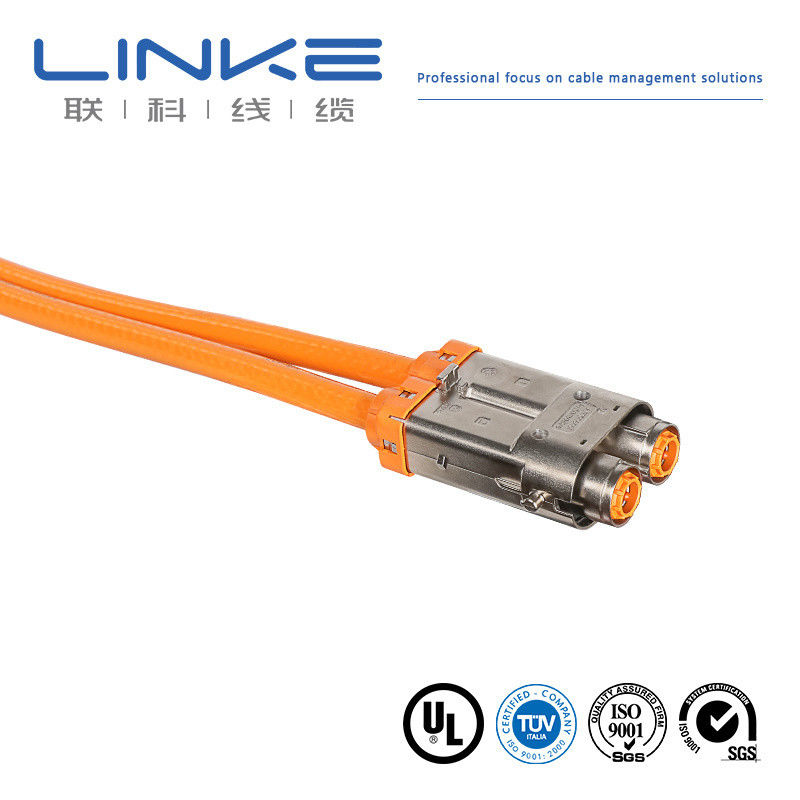

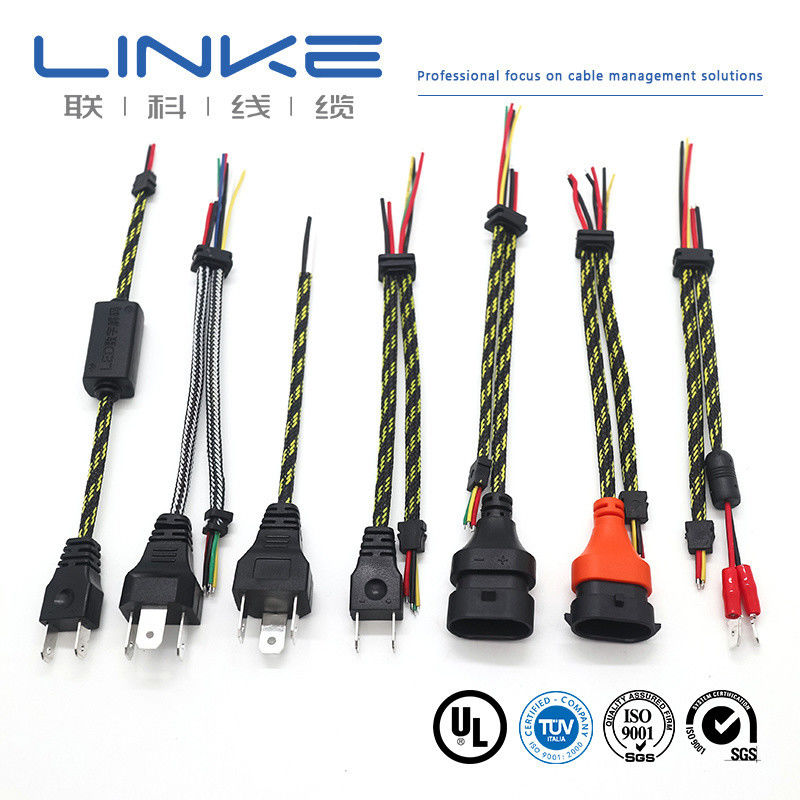

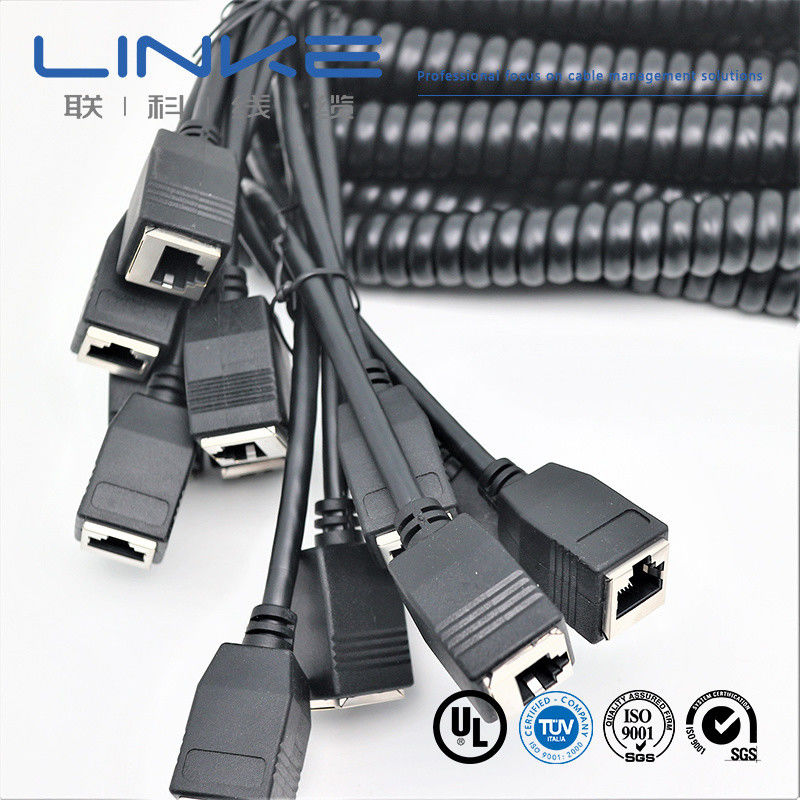

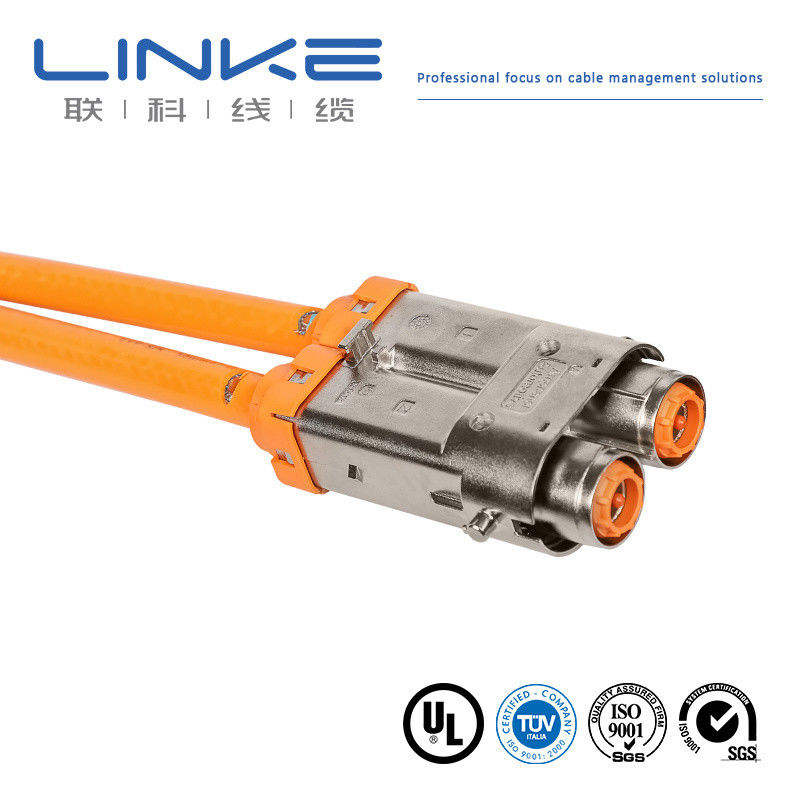

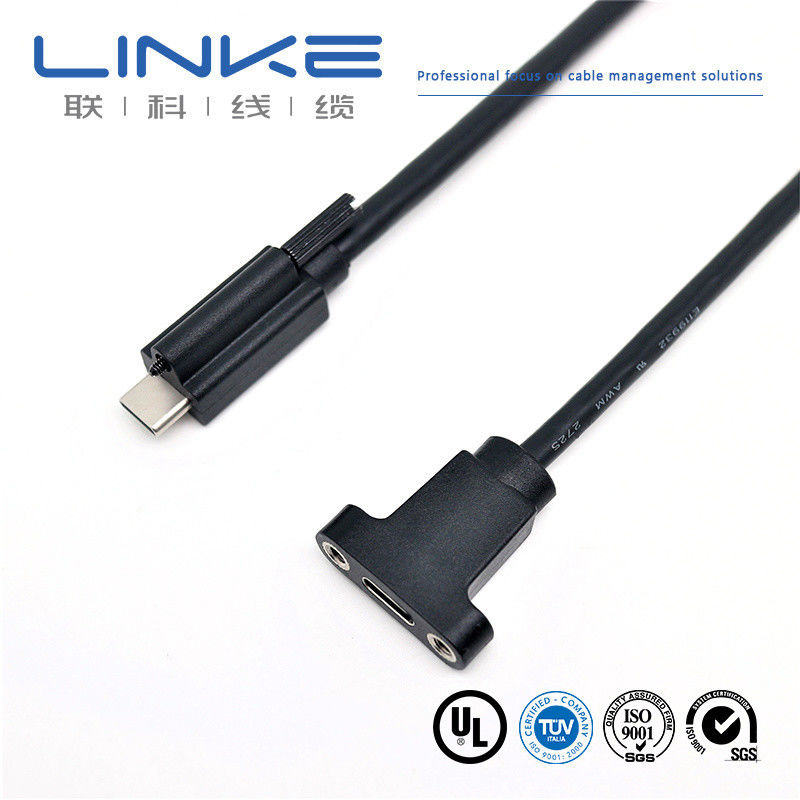

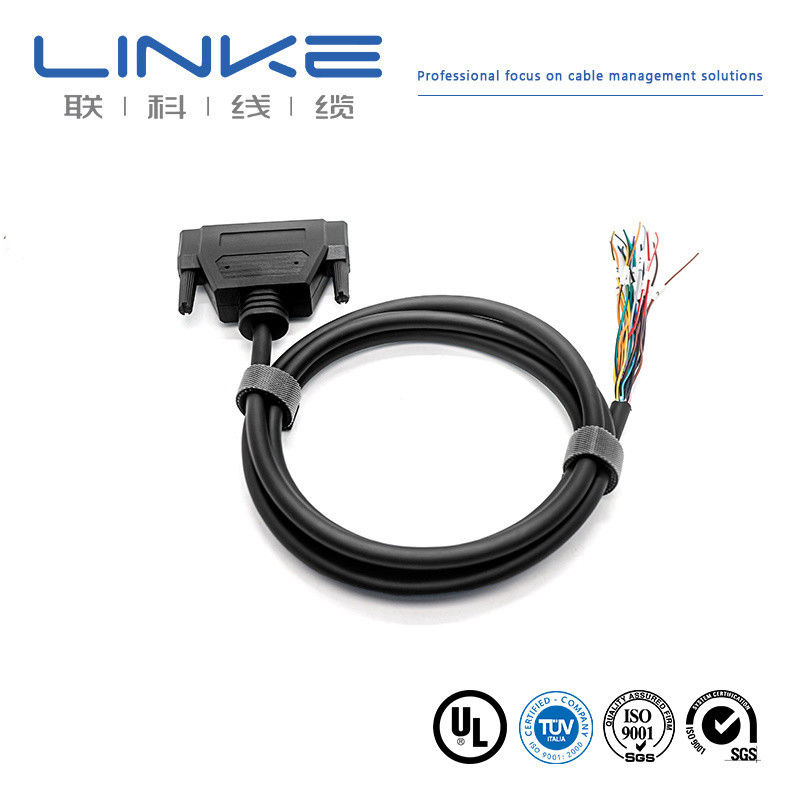

Custom Wire Harness and Automotive Wire Cable with High Temperature Resistance and Corrosion Resistance
Professional custom wire harnesses for computers, instruments, medical equipment, industrial machinery, electrical appliances, automotive applications, security systems, and more.
Our custom wire harnesses are composed of multiple thin wires and feature exceptional temperature resistance, wear resistance, and corrosion resistance properties.
Product Specifications
| Product Item |
Car Cable |
| Country of Origin |
China |
| Production Specification |
According to customer requirements |
| Insulation Material |
PVC |
| Rated Temperature |
100°C |
| Color |
Black |
| Rated Voltage (U0/U) |
60V DC/25V AC |
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
multicolumn {3}{l}{custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
|
|
Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.
|
No.
|
Test Item
|
Test Condition
|
Test Requirement
|
Test Data
|
Result
|
|
1
|
Structure Inspection
|
1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness
|
Comply with wire size table
|
Refer to test record
|
Pass
|
|
2
|
Thermal Shock
|
Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample
|
No cracks on the sample surface
|
No cracks
|
Pass
|
|
3
|
Heat Deformation
|
1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position
|
1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50%
|
Refer to test record
|
Pass
|
|
4
|
FT2
|
Apply a standard flame at a height of 125mm once
|
1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials
|
Refer to test record
|
Pass
|
|
5
|
Aging
|
1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength
|
1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging
|
Refer to test record
|
Pass
|
|
6
|
Cold Bend
|
Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box
|
No cracks on the sample surface
|
No cracks
|
Pass
|
|
7
|
Conductor Resistance
|
Measure resistance of one-meter core conductor with DC resistance meter
|
At 20℃, resistance of 8AWG ≤ 2.23Ω/km
|
Refer to test record
|
Pass
|
Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and
provide professional solutions to the Cable&Wire,especially for the
different industry customers.It contains :
Humanoid robot cable,
AI power cable/data cable,
Semiconductor cable/industrial automatic cable,
Sensor cable,
New energy cable,
Medical beauty wire,
UL wire cable,
Linke Cable has diversified product development capabilities and technical capabilities to support diversified
customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We
have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485
(Medical apparatus and instruments),IATF 16949(Auto industry)
About Our Company
We maintain a strong R&D team with 6 engineering professionals, each possessing over 10 years of specialized experience in wire and cable technology. Our team focuses on developing precise and effective wire and cable solutions tailored to customer requirements. The quality control department includes 10 dedicated staff who rigorously supervise every step from incoming materials to final shipping, ensuring 100% product quality. Our production team consists of more than 50 experienced manufacturing professionals.
Available Wire Types
Single-conductor, Thermoplastic Insulation
1007, 1330, 1333, 1591, 1723, 10064, 10369, 1015, 1331, 1569, 1592, 1901, 10070, 10483, 1185, 1332, 1577, 1672, 10012, 10269
Multiple-conductor, Thermoplastic Insulation
2095, 2129, 2468, 2586, 2725, 20233, 20280, 20963, 2103, 2463, 2517, 2587, 2835, 20276, 20549, 21198, 2104, 2464, 2576, 2661, 2919, 20279, 20886, 21664
Single-conductor, Thermoset Insulation
3075, 3173, 3320, 3386, 3530, 3689, 30005, 3123, 3212, 3321, 3398, 3577, 3702, 3132, 3266, 3331, 3512, 3644, 3817, 3135, 3271, 3385, 3529, 3674, 3886
Certifications & Standards
UL Certifications
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587, UL2835, UL20276, UL20549, UL21198, UL2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
Quality Management Systems
ISO9001, ISO13485, TS16949
CNR Appliance Wiring Material
Extruded PVC Insulated Single, rated 105°C, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We maintain complete control over your order from initial production to final delivery. We welcome visits to our facility and provide pickup service in Shenzhen.
How can I get a sample to test your quality?
Samples are provided free of charge. New customers are responsible for courier costs.
What's your Minimum order quantity?
Our standard minimum order quantity is 100 meters. However, due to the weight of cable products, we recommend ordering appropriate quantities to optimize shipping costs. Sea transportation typically offers the most economical option.
Can I get a discount?
Discounts are available based on order quantity. For larger orders, we can provide pricing discounts and cover freight costs. Please contact us for specific pricing.
Does your company accept OEM production?
Yes, we support OEM production and can print your company name on products. We also offer custom quality cards to help promote your brand.
