PVC Insulated Automotive Wire Cable Avss Cavs Cav Series For Customization

PVC Insulated Automotive Wire Cable Avss Cavs Cav Series For Customization

PVC Insulated Automotive Wire Cable

Customized PVC Insulated Wire Cable

83CM Automotive Wire Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C,UL,TPU,UL758,ROHS,REACH,CE,ISO9001-2015,ISO13485,IATF16949

Contact Us
Request A Quote
Product Details
Model NO.:
AVSS CAVS CAV
Conductor Material:
Copper
Sheath Material:
PVC
Insulation Material:
PVC
Material Shape:
Round Wire
Range Of Application:
Multimedia, DVD Player, Speaker, Microphone
Brand:
Linke
Rated Voltage:
60V DC/25V AC
Conductor:
Copper
Jacket:
PVC
Insulation:
PVC
Transport Package:
Roll
Specification:
83*83*58CM
Trademark:
LINKE
Origin:
Chian
HS Code:
94054090
Supply Ability:
100000000
Package Size:
85.00cm * 85.00cm * 58.00cm
Package Gross Weight:
30.000kg
Lead Time:
10 Days (1 - 1000 Meters) To Be Negotiated ( > 1000 Meters)
Type:
Insulated
Conductor Type:
Stranded
Application:
Overhead, Heating, Underground
Samples:
US$ 100/PCS 1 PCS(Min.Order) |
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

PVC Insulated Automotive Wire Cable

,

Customized PVC Insulated Wire Cable

,

83CM Automotive Wire Cable

Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Negotiable
Packaging Details
According to requirement
Delivery Time
7-15 days
Payment Terms
Advance payment + final payment on delivery
Supply Ability
50000m/day
Product Description
Information Summary:
Automotive wires are the internal connection wires of automobiles, which are divided into two types: high-voltage wires and low-voltage wires. Common automotive wire models include national standard QVR-105, Japanese standard AV, AVS, AVSS, etc., each with its own characteristics and uses...


Automotive wires are a type of connecting wire inside a car, mainly used to transmit current. According to their use, automotive wires can be divided into two types: high-voltage wires and low-voltage wires. High-voltage wires are mainly used for car starting, charging, ignition and other systems, while low-voltage wires are mainly used for car lighting, air conditioning, audio, navigation and other equipment.

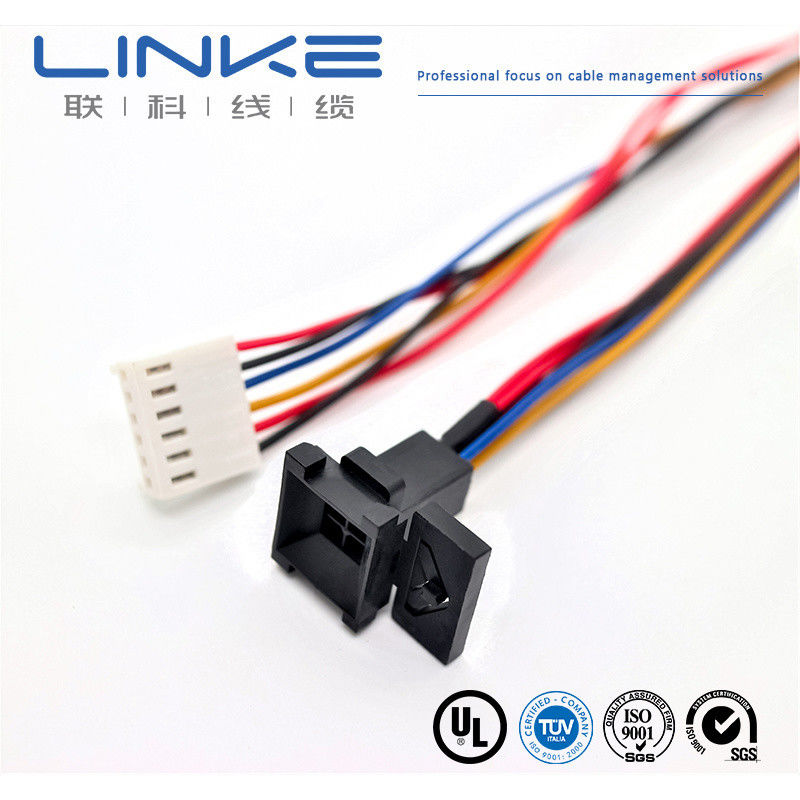

Automotive wiring harness main picture 5

Common automotive cable models and features, such as:

1. National standard QVR-105: Suitable for automotive power supply, starting, ignition and other systems, it is one of the more common automotive wire models. It has the characteristics of high temperature resistance, cold resistance, good flexibility, good insulation, high mechanical strength, good corrosion resistance, etc., and is suitable for different harsh automotive environments.

2. Japanese standard AV: Suitable for the connection of car navigation, car TV, audio and other equipment. It adopts a multi-layer sheath material with good flexibility, long life, high temperature resistance and other characteristics, and has good anti-electromagnetic interference performance.

3. AVS: Suitable for the starting and charging system of the car. It adopts a fine filament high-density braided structure, with good high temperature resistance, cold resistance, good softness, good insulation, etc., and also has good mechanical strength and vibration resistance.

4. AVSS: This is a high-voltage automotive wire, suitable for automotive battery charging, starter power supply, traction motor power supply, etc. It has the characteristics of high temperature resistance, cold resistance, good flexibility and good insulation.

5. AVX/AEX: Suitable for the ignition and charging systems of automobiles. It has the characteristics of high temperature resistance, cold resistance, and good softness.

6. German standard FLRY-B and FLRY-A: They are both low-voltage automotive wires, suitable for automotive electrical equipment and safety alarm devices, etc. They have the characteristics of high temperature resistance and good flexibility.

7. GXL: Usually made of multiple strands of bare copper wire or tinned copper wire, in accordance with ASTM B3 or ASTM B33 standards. High-performance, high-reliability, high-safety automotive wire, widely used in electrical and instrument connections of automobiles, motorcycles and other vehicles.

8. SXL: Suitable for automotive electrical equipment and safety alarm devices. Good flexibility

9. TXL: Made of lightweight materials, it is relatively light, which can reduce the weight of the vehicle and improve the fuel economy of the vehicle. It can resist the vibration and friction generated during the driving of the vehicle, thus ensuring its service life.

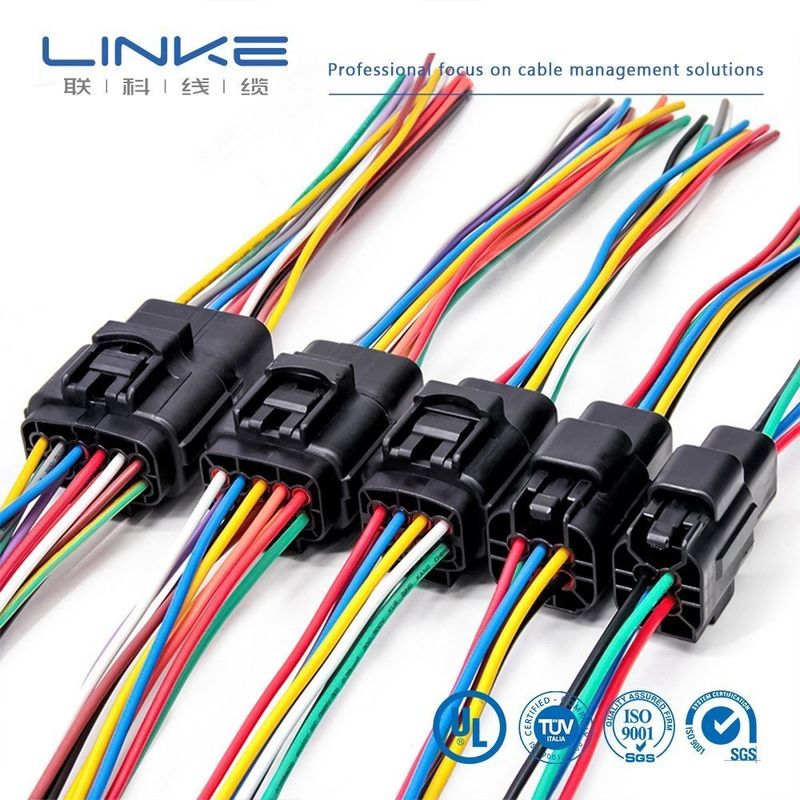

Automotive wiring harness main picture 7

10. American Standard GTE: Its soft, flexible, oil-resistant, weather-resistant, high-temperature-resistant and flame-retardant properties make it an ideal choice for automotive electronic connections. Its thermoplastic rubber insulation material provides good insulation and high-temperature resistance, enabling it to maintain good working performance in high temperature and complex environments.

11. GPT: Suitable for automobile ignition and charging systems. It adopts a fine filament high-density braided structure, has good high temperature resistance, cold resistance, etc., and also has good mechanical strength and vibration resistance.




80ºC PVCINSULATION AUTOMOBILE WIRE



PRODUCTS DESCRIPTION

1. Rated temperature:80℃

2. Rated voltage: : 60V DC &25V AC

3. According to:JASO D611

4. Stranded Tinned copper or bare copper conductor0.3mm²-8mm²



5. Insulation Material:PVC

6. Uniform insulation thickness of cutting

7. Environmental testing pass RoHS

8. Use for car electric equipment internal wiring





■CABLE CONSTRUCTION



AVS 3Q CABLE RoHS Conductor



型號

導體截面

(mm2)

導體結構

導體外徑

(mm)

絶緣厚度

(mm)

电缆外径

(mm)

最大导体电阻 ( Ω /kft)
根數 綫徑/mm
TYPE

conductor

area

Wire core qty

Wire

diameter

Conductor

outer

diameter

Insulation thickness

Wire

0. D

Max Cond.Resistance(Ω/km,20℃)
AVS 0.3 7 0.26 0.80 0.5 1.85 50.20
0.3f 15 0.18 0.80 1.85 48.90
0.5f 20 0.18 1.00 2.05 36.70
0.5 7 0.32 1.00 2.05 32.70
0.75f 30 0.18 1.20 2.20 24.40
0.85 16 0.26 1.20 2.30 22.00
11 0.32 1.20 2.30 10.80
1.25f 50 0.18 1.50 2.55 14.70
1.25 16 0.32 1.50 2.55 14.30
2f 37 0.26 1.90 3.00 9.50
2 26 0.32 1.90 3.00 8.81
3f 58 0.26 2.30 0.6 3.70 6.06
61 0.26 2.30 3.70 5.76
3 41 0.32 2.40 3.70 5.59
5 65 0.32 3.00 0.7 4.50 3.52
5f 7/30 0.18 3.40 4.50 3.56
8 50 0.45 3.70 0.8 5.60 2.32
8f 7/22 0.26 3.70 5.60 2.32
  Note: f denotes a soft structured conductor.

Note: The above structural parameters are for reference only and can be agreed upon by both the supplier and the

demander, subject to the acceptance of the specification.





AV 80℃ PVCINSULATION AUTOMOBILE WIRE



PRODUCTS DESCRIPTION

1. Rated temperature:80℃

2. Rate value:60V DC&25V AC

3. According to:JASO D611

4. Solid or stranded , tinned or bare copper conductor

5. PVC insulation

6. Use for general auto wire and cabel





型號

導體截面

(mm2)

導體結構 導體外徑(mm) 絶緣厚度(mm) 电缆外径 最大导体电阻 ( Ω/kft )
根數 綫徑/mm
TYPE conductor area Wire core qty

Wire

diameter

Conductor outer

diameter

Insulation thickness

Wire

O.D

Max Cond. Resistance (Ω/km,20℃)

AV

HEB

HDEB

2f 37 0.26 1.80 0.60 3.2 9.50
3 58 0.26 2.30 0.70 3.9 6.06
61 0.26 2.40 0.70 3.9 5.76
5f 7/9 0.32 3.10 0.80 4.7 3.71
7/30 0.18 3.40 0.80 4.7 3.56
8f 7/22 0.26 4.20 0.90 5.7 3.32
9f 7/16 0.32 4.20 1.00 6.4 2.09
10f 19/6 0.32 4.20 1.00 6.6 2.05
10 62 0.45 4.10 0.90 6.6 1.87
63 0.450 4.50 1.00 6.6 1.84
7/9 0.450 4.50 1.00 6.6 1.84
15f 19/9 0.32 5.30 1.10 7.5 1.37
20f 19/13 0.32 6.50 1.10 8.6 0.946
30f 19/19 0.32 7.80 1.40 10.8 0.647
40f 19/26 0.32 9.10 1.40 12.3 0.437
50f 19/32 0.32 10.10 1.60 13.5 0.384
60f 19/39 0.32 1.1.10 1.60 14.5 0.315
85f 19/56 0.32 13.10 2.00 17.2 0.220
100f 19/71 0.32 14.90 2.00 19.0 0.173
Note: f denotes a soft structured conductor.

Note: The above structural parameters are for reference only and can be agreed upon by both the supplier and the

demander, subject to the acceptance of the specification.

Certifications

Avss Cavs Cav Series PVC Insulated Wire Automotive Cable





FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum order quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.



4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.



5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
