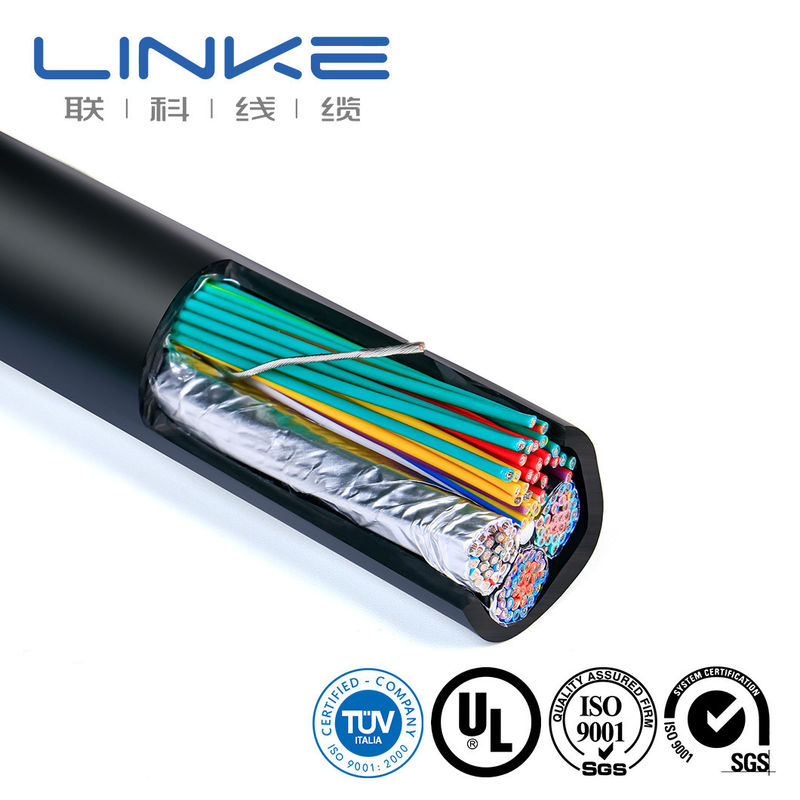

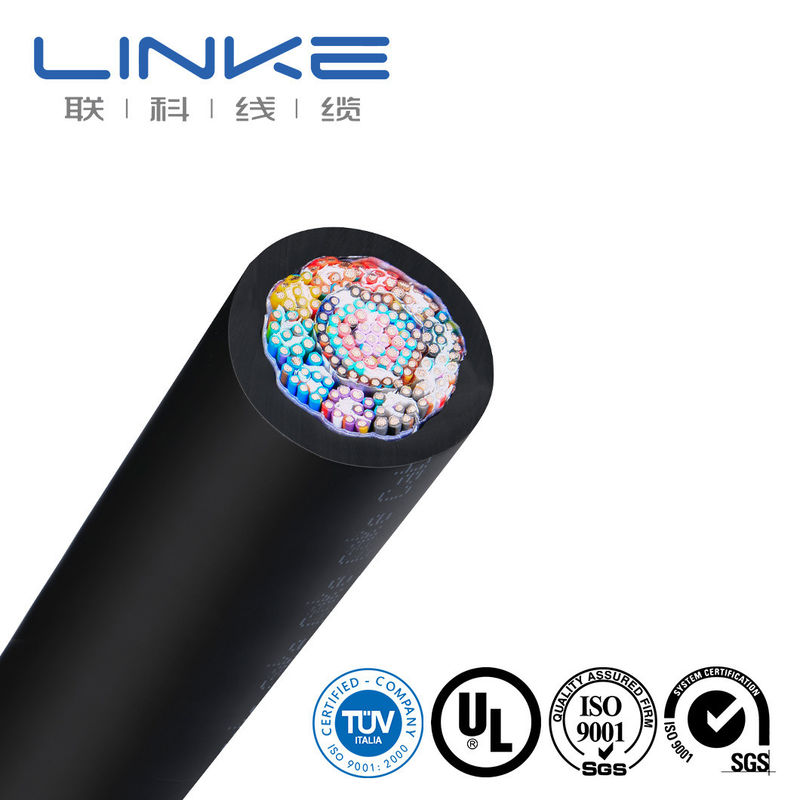

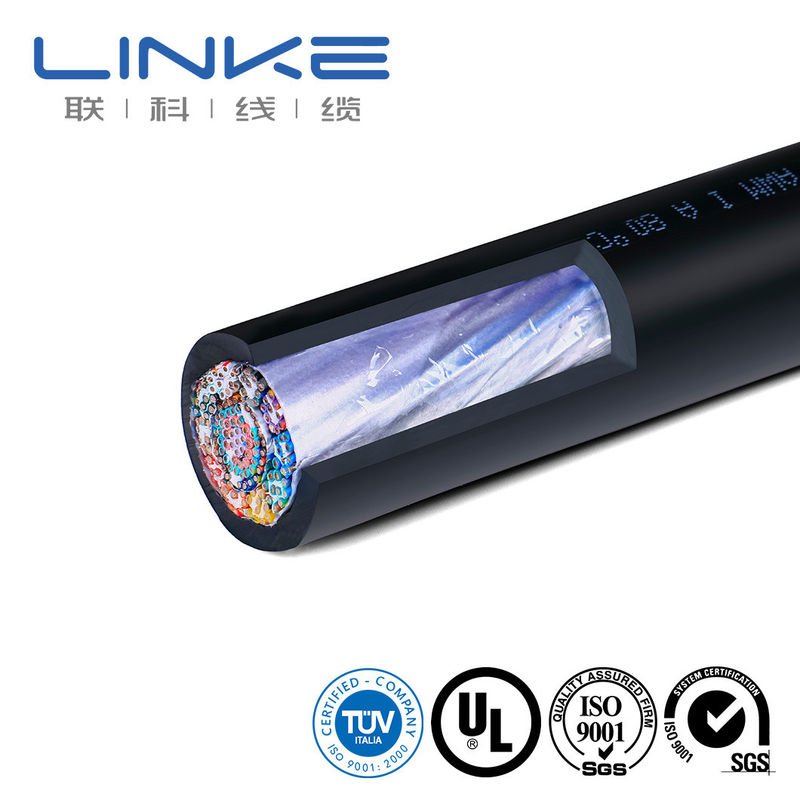

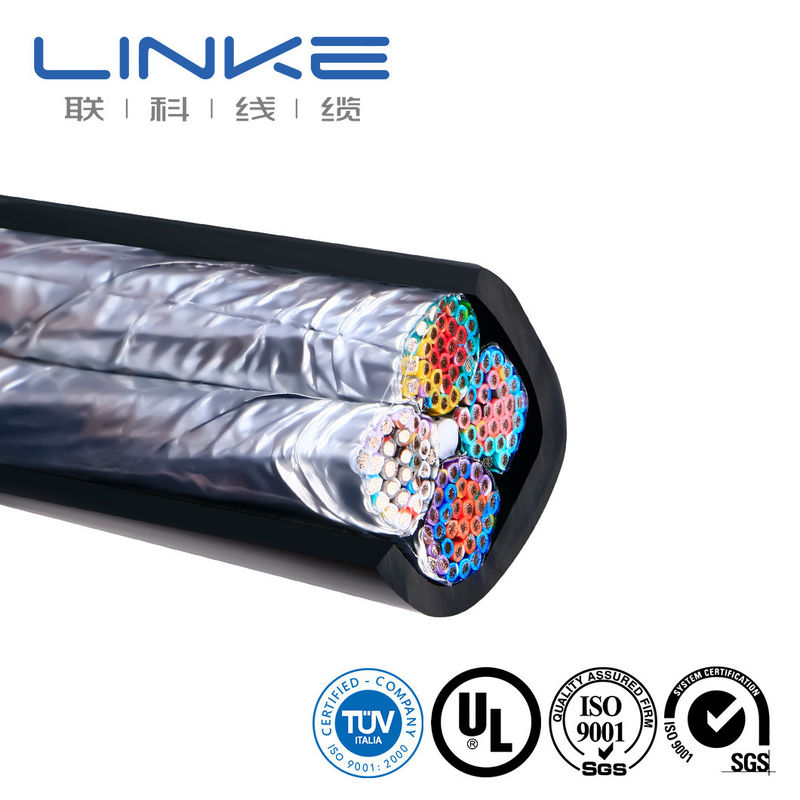

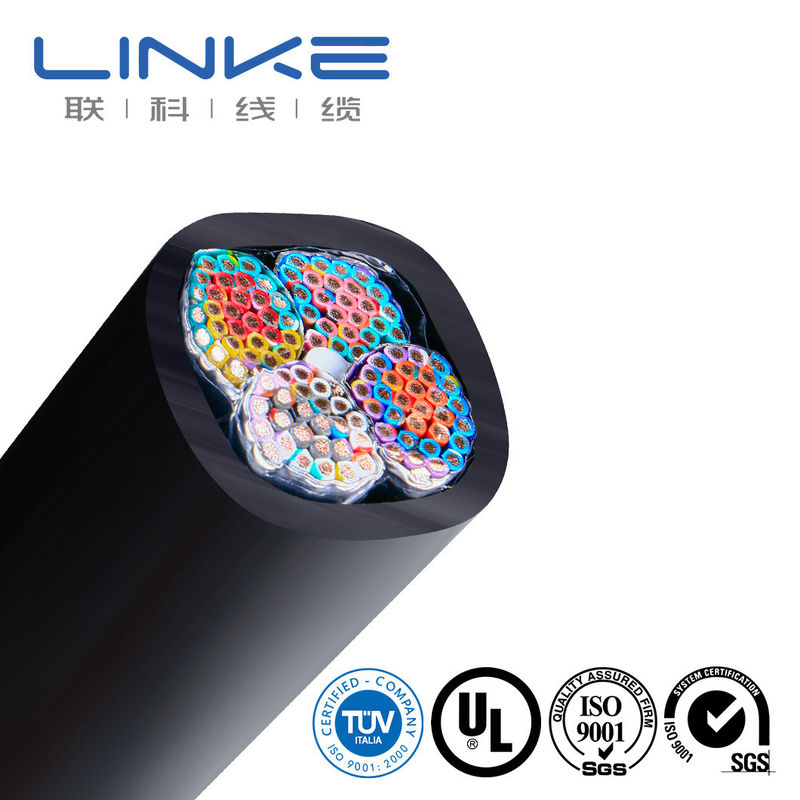

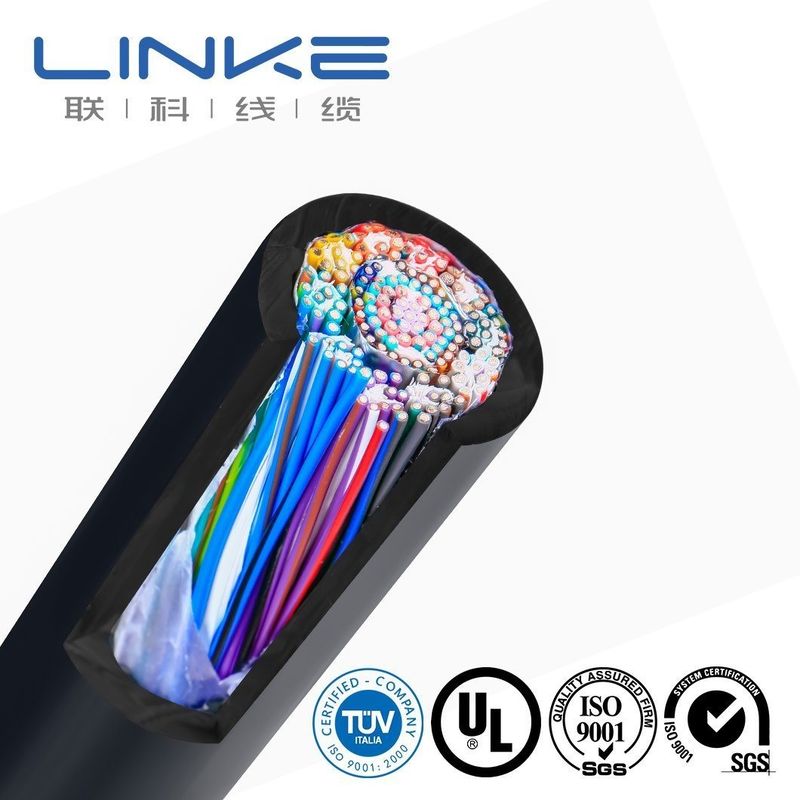

Customized UL2464 High Temperature Silicone Electronic PowerLine Wire Automotive Cable
| Item | Customized UL2464 High Temperature Silicone Wire UL Electronic Cable |
| Conductor | Stranded fine tinned copper wire condutors |
| Insulation | Special halogen-free thermoplastic insulation |
| Outer sheath | Special halogen-free thermoplastic sheath |
| Core Number | Multicores (As client's requirement) |
| Nominal Voltage | Uo/U 300 V |
| Temperature | 80 ºC |
| Color | Optional |
| Application | This product is mainly suitable for internal and external wiring of electronic equipment. High-density and high-conductivity mesh shielding layer can ensure that the cable has strong anti-interference ability. The cable can be used as a measurement,inspection and control wire. And it also can be used in complete sets of equipment,heating, air conditioning systems, refrigeration equipment, office automation equipment and data processing |
| Core A. |
| Conductor: Tinned soft copper wire 19/0.16±0.003mmx7C |
| Insulation: |
| PVC-001(各色) |
| Cable formation-1 : (Core A) |
| Wrap: Foamed PP tape W=6mm, &=0.080mmx1C (fancy wrap) |
| Core B. |
| Conductor: Tinned soft copper wire 19/0.20±0.003mmx11C |
| Insulation: |
| PVC-001(各色) |
| Core C. |
| Conductor: Tinned soft copper wire 19/0.16±0.003mmx18C |
| Insulation: |
| PVC-001(各色) |
| Cable formation-2 : (Core A+B+C) |
| Filling: 10000D flame retardant PP rope x 3C |
| Wrap: Foamed PP tape W=6mm, &=0.080mmx1C (fancy wrap) |
| Core D. |
| Conductor: Tinned soft copper wire 19/0.16±0.003mmx24C |
| Insulation: |
| PVC-001 (various colors) |
| Cable formation-3 : (Core A+B+C+D) |
| Filling: 10000D flame retardant PP rope x2C |
| Wrap: Clear Mylar W=42mm, &=0.025mmx1C |
| Ground: Tinned soft copper wire 19/0.20±0.003mmx1C (ground between mylar and aluminum foil) |
| Wrap: Silver single-sided AL W=45mm, &=0.035mmx1C (AL side inward) |
| Core E. |
| Conductor: Tinned soft copper wire 19/0.20±0.003mmx2C*10 sets |
| Insulation: |
| PVC-001(各色) |
| Core G. |
| Conductor: Tinned soft copper wire 19/0.16±0.003mmx8C*10 sets |
| Insulation: |
| PVC-001(各色) |
| Cable formation - Group 1 : (Core E+G) |
| Filling: 10000D flame retardant PP rope x2C |
| Cable formation - Group 2 : (Core E+G) |
| Filling: 10000D flame retardant PP rope x2C |
| Cable formation - Group 3 : (Core E+G) |
| Filling: 10000D flame retardant PP rope x2C |
| Cable formation - Group 4 : (Core E+G) |
| Filling: 10000D flame retardant PP rope x2C |
| Electrical Performance 20°C. |
| Maximum conductor resistance ohm/km 59.4(22AWG) 36.7(20AWG) |
|
Withstanding voltage AC kv/min 2.00 |
|
Minimum Insulation Resistance M ohm/km 10.00 |
|
Spark test (AC) kv 3.00 |
