Product Description
Customized UL2464 High Temperature Silicone Electronic PowerLine Wire Automotive Cable
Product Specifications
| Item |
Customized UL2464 High Temperature Silicone Wire UL Electronic Cable |
| Conductor |
Stranded fine tinned copper wire conductors |
| Insulation |
Special halogen-free thermoplastic insulation |
| Outer sheath |
Special halogen-free thermoplastic sheath |
| Core Number |
Multicores (As client's requirement) |
| Nominal Voltage |
Uo/U 300 V |
| Temperature |
80 ºC |
| Color |
Optional |
| Application |
This product is mainly suitable for internal and external wiring of electronic equipment. High-density and high-conductivity mesh shielding layer ensures strong anti-interference ability. The cable can be used as measurement, inspection and control wire, as well as in complete sets of equipment, heating, air conditioning systems, refrigeration equipment, office automation equipment and data processing. |

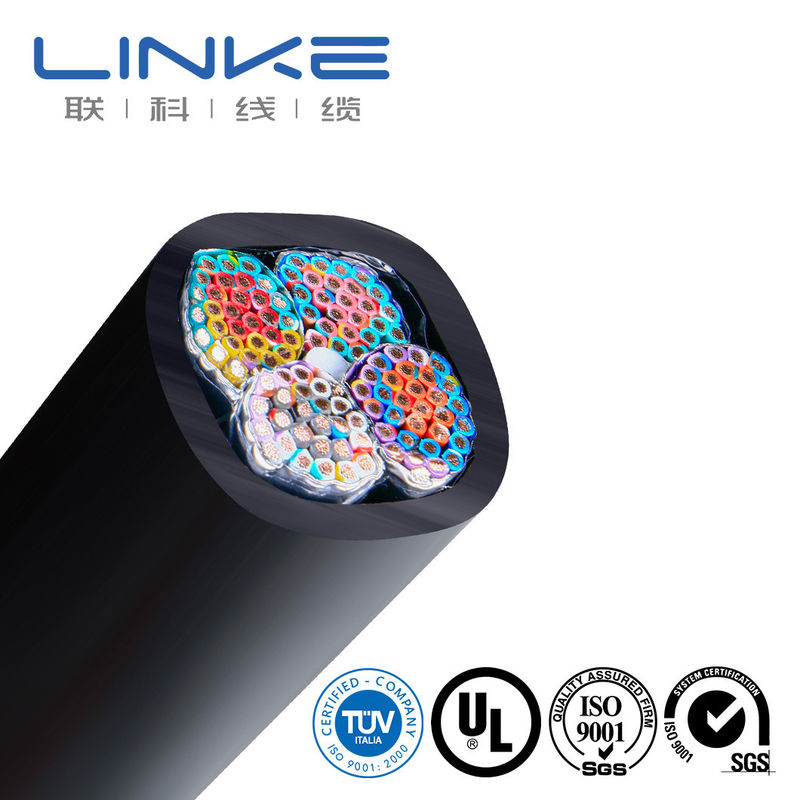

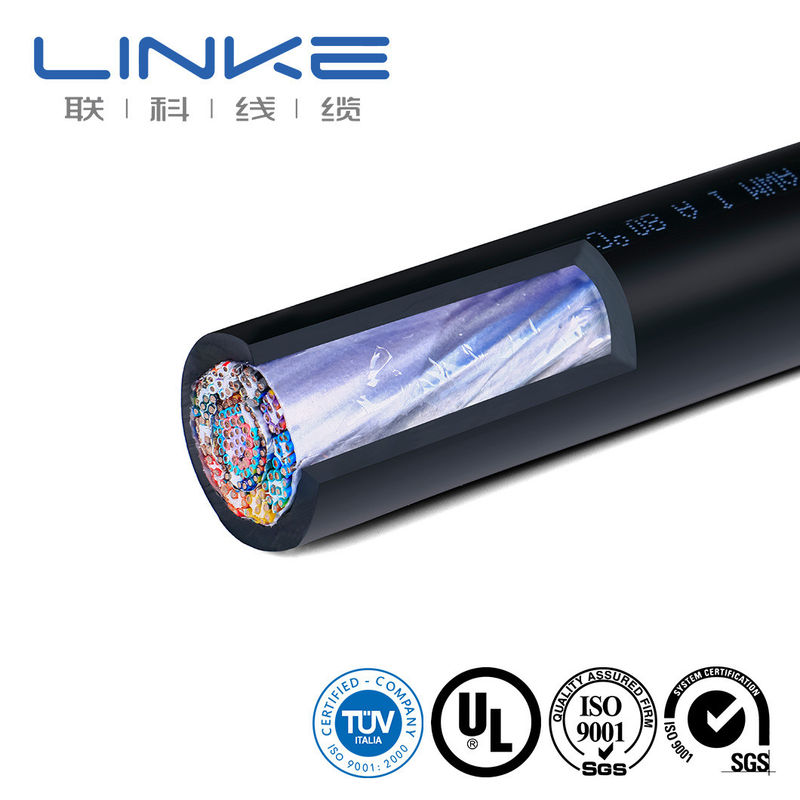

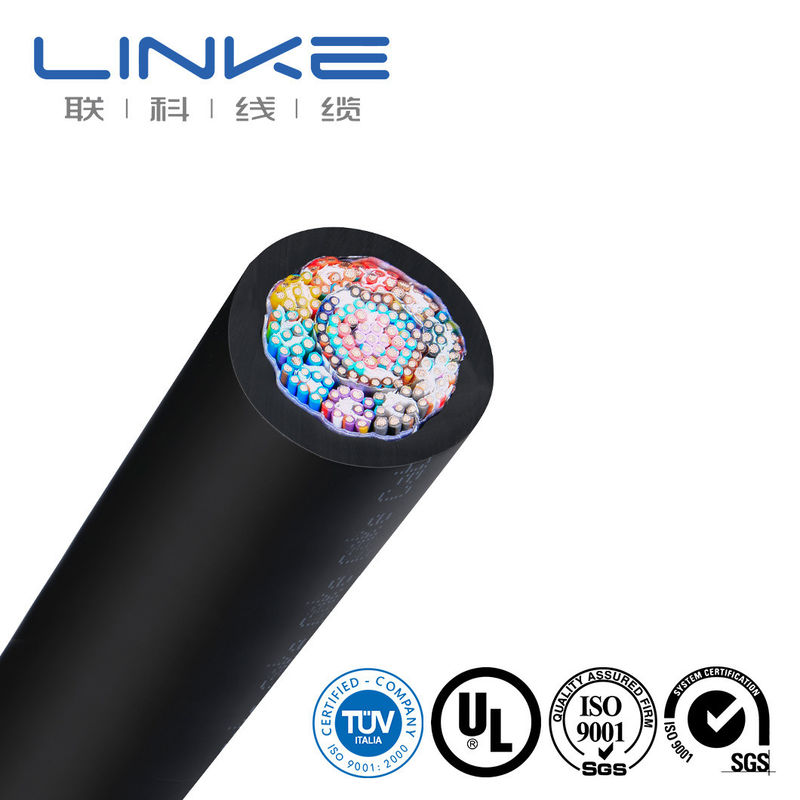

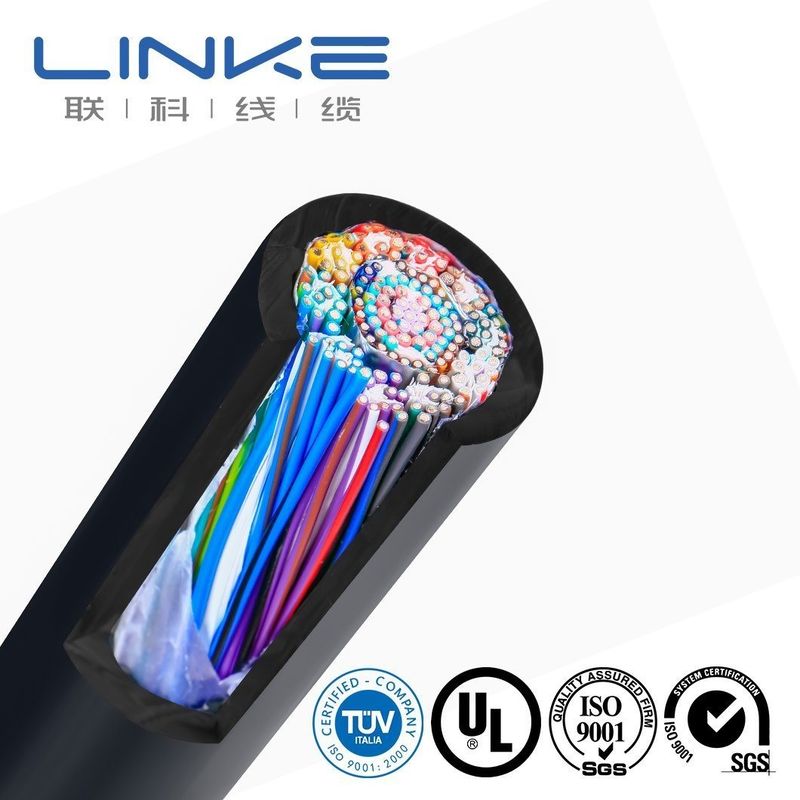

Core Configurations
| Core A |
Conductor: Tinned soft copper wire 19/0.16 ±0.003mmx7C
Insulation: PVC-001 (various colors)
Cable formation-1: (Core A)
Wrap: Foamed PP tape W=6mm, &=0.080mmx1C (fancy wrap) |
| Core B |
Conductor: Tinned soft copper wire 19/0.20±0.003mmx11C
Insulation: PVC-001 (various colors) |
| Core C |
Conductor: Tinned soft copper wire 19/0.16±0.003mmx18C
Insulation: PVC-001 (various colors) |
| Cable formation-2 |
(Core A+B+C)
Filling: 10000D flame retardant PP rope x 3C
Wrap: Foamed PP tape W=6mm, &=0.080mmx1C (fancy wrap) |
| Core D |
Conductor: Tinned soft copper wire 19/0.16±0.003mmx24C
Insulation: PVC-001 (various colors) |

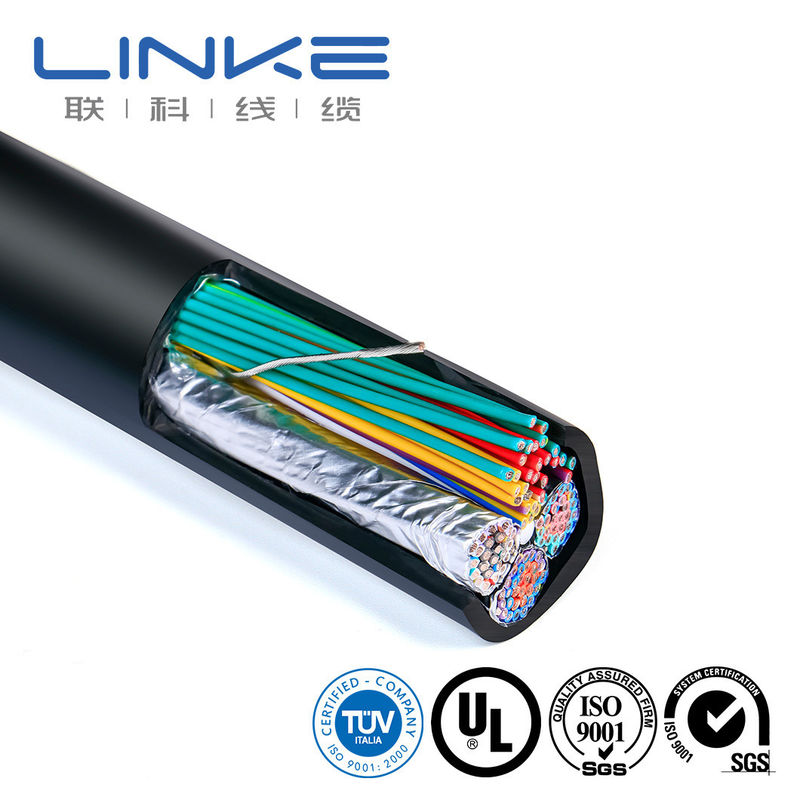

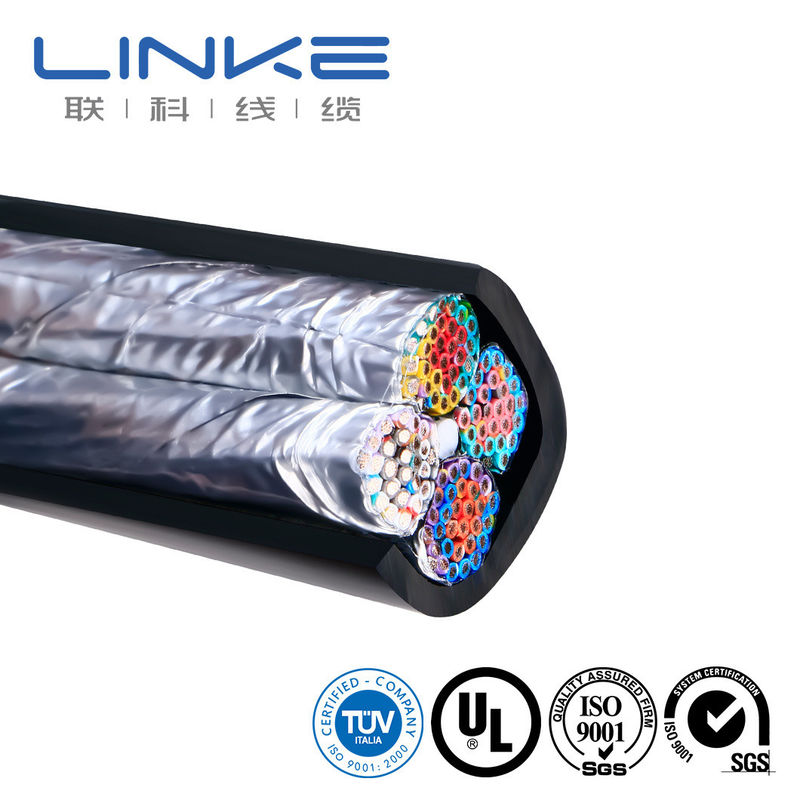

| Cable formation-3 |
(Core A+B+C+D)
Filling: 10000D flame retardant PP rope x2C
Wrap: Clear Mylar W=42mm, &=0.025mmx1C
Ground: Tinned soft copper wire 19/0.20±0.003mmx1C (ground between mylar and aluminum foil)
Wrap: Silver single-sided AL W=45mm, &=0.035mmx1C (AL side inward) |
| Core E |
Conductor: Tinned soft copper wire 19/0.20±0.003mmx2C*10 sets
Insulation: PVC-001 (various colors) |
| Core G |
Conductor: Tinned soft copper wire 19/0.16±0.003mmx8C*10 sets
Insulation: PVC-001 (various colors) |
Electrical Performance 20°C
| Maximum conductor resistance ohm/km |
59.4(22AWG) 36.7(20AWG) |
| Withstanding voltage AC kv/min |
2.00 |
| Minimum Insulation Resistance M ohm/km |
10.00 |
| Spark test (AC) kv |
3.00 |
About Linke Cable Technology Co., Ltd
Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables & custom cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, etc.
At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and improve the quality of one's life.
| Brand |
LINKE |
Cross Section (mm²) |
0.01-500mm² |
| Wire Gauge (AWG) |
[e.g., 24AWG, 28AWG] |
Conductor |
Tinned Copper /bare copper, based on client's requirements |
| Insulation material |
PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other |
Jacket Material |
[PVC/PU/Rubber/Braid/etc.] |
| Certifications |
RoHS/REACH/UL/CE/IP68/etc |
Custom Length |
[e.g., 1m, 3ft, 5m ±5% tolerance] |
| Cable Type |
[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.] |
Shielding |
[Shielded/Unshielded/Braid Shield] |
| Impedance |
[e.g., 75Ω (for coaxial cables)] |
Printing/Logo |
[Text/Label/Logo, max. 20 characters] |
| Bend Radius |
[e.g., ≥5× cable diameter] |
Current Rating |
[e.g., 5A] |
| Voltage Rating |
[e.g., 30V AC/DC] |
Connector Material |
[Gold-plated/Nickel-plated/Brass/etc.] |
| Connectors |
[e.g., USB Type-C, 3.5mm Jack, RJ45] |
Jacket |
XLPE or PE or PVC RUBBER |
| Delivery Time |
7-14 days after confirming the order |
Colors |
[Black/White/Red/Custom Pantone/etc.] |
| temperature |
Minus-70℃to 350℃(-70℃ ~ 350℃) |
Package |
Roll/box/plate/Custom |
| Supporting Services |
multicolumn {3}{l}{custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated) |
|
|
Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.
|
No.
|
Test Item
|
Test Condition
|
Test Requirement
|
Test Data
|
Result
|
|
1
|
Structure Inspection
|
1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness
|
Comply with wire size table
|
Refer to test record
|
Pass
|
|
2
|
Thermal Shock
|
Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample
|
No cracks on the sample surface
|
No cracks
|
Pass
|
|
3
|
Heat Deformation
|
1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position
|
1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50%
|
Refer to test record
|
Pass
|
|
4
|
FT2
|
Apply a standard flame at a height of 125mm once
|
1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials
|
Refer to test record
|
Pass
|
|
5
|
Aging
|
1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength
|
1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging
|
Refer to test record
|
Pass
|
|
6
|
Cold Bend
|
Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box
|
No cracks on the sample surface
|
No cracks
|
Pass
|
|
7
|
Conductor Resistance
|
Measure resistance of one-meter core conductor with DC resistance meter
|
At 20℃, resistance of 8AWG ≤ 2.23Ω/km
|
Refer to test record
|
Pass
|
Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and
provide professional solutions to the Cable&Wire,especially for the
different industry customers.It contains :
Humanoid robot cable,
AI power cable/data cable,
Semiconductor cable/industrial automatic cable,
Sensor cable,
New energy cable,
Medical beauty wire,
UL wire cable,
Linke Cable has diversified product development capabilities and technical capabilities to support diversified
customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We
have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485
(Medical apparatus and instruments),IATF 16949(Auto industry)
