Name: UL2464 Automotive Wire Cable with Tinned Copper Conductor Halogen-Free Insulation and 110 Cores for Semiconductor Control
Brand: Linke Cable Technology (DongGuan) CO.,LTD
SKU: 110 cores
Availability: InStock

Home > Products > Automotive Wire Cable >

UL2464 Automotive Wire Cable with Tinned Copper Conductor Halogen-Free Insulation and 110 Cores for Semiconductor Control

Sr-PVC Tinned Copper Cable

UL2464 Tinned Copper Cable

22awgx110c Automobile Cable

Place of Origin:

China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Model Number:

110 cores

Request A Quote

Product Details

Conductor Type:

Twisted Wire

Customization:

Available | Customized Request

Conductor Material:

Copper/Tinned Copper

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Package:

By Roll

Lead Time:

7-15days

Highlight:

Sr-PVC Tinned Copper Cable

UL2464 Tinned Copper Cable

22awgx110c Automobile Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

1200A AMP Copper Nickel Bus Bar with 0.1mm Copper Foil and IEC 62196-2 Plug Type for Power Battery

Get Best Price

Video

AVS Automotive PVC Insulated Copper Wire Cable 1200A Customized High Temperature Resistance

Get Best Price

Video

300V 110core Tinned Copper Automotive Electrical Cable for Vehicle Internal and External Wiring UL2464

Get Best Price

Video

IATF16949 Certified Automotive Wire Harness with Copper Wire Core for Steering System Cable Assembly -60°C to 200°C

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

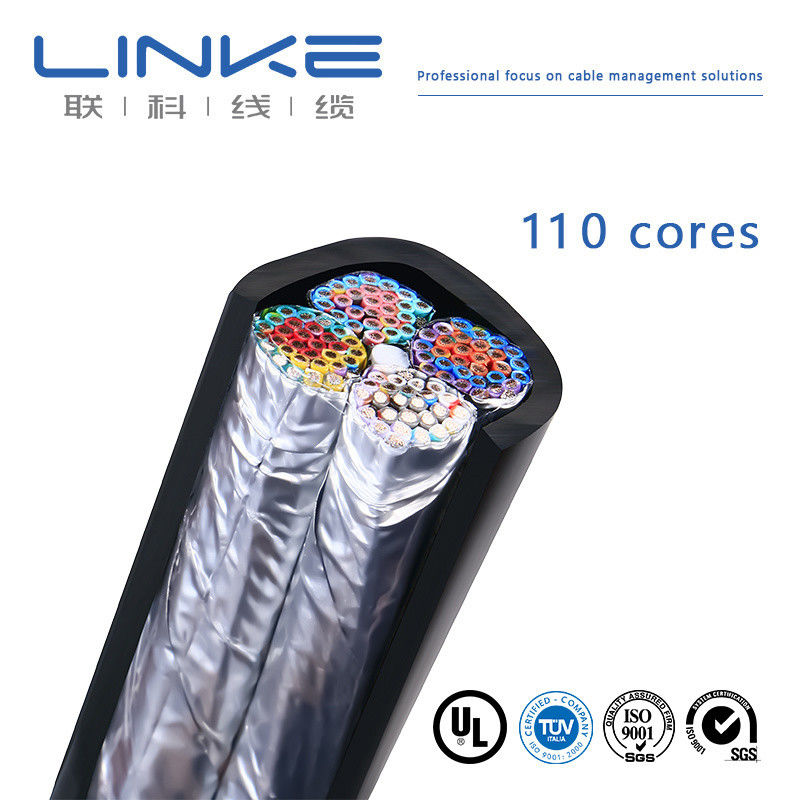

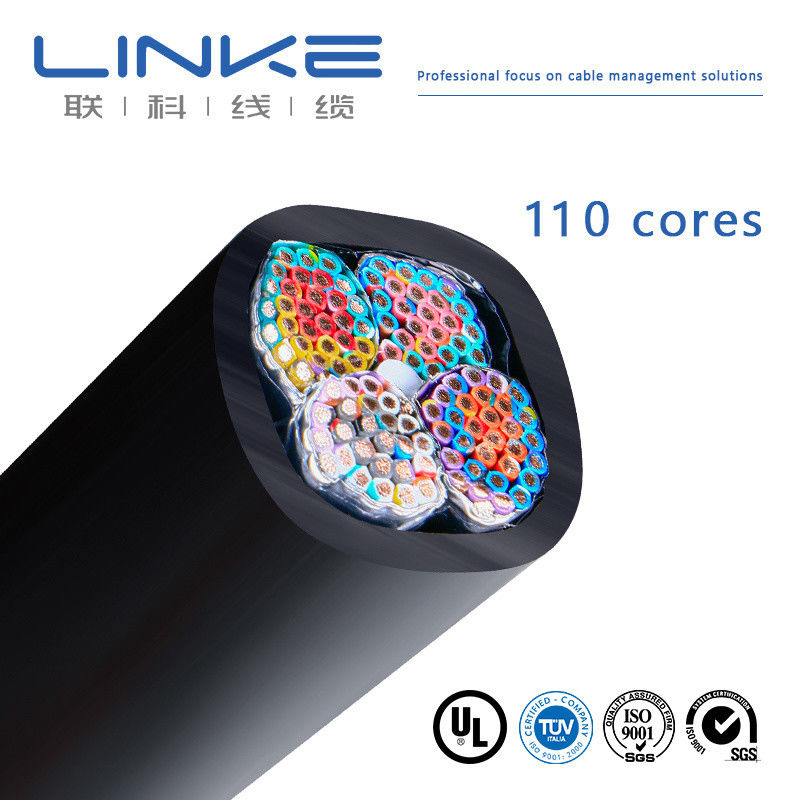

UL2464 22AWG x 110C SR-PVC Tinned Copper Cable

High-performance multi-core cable designed for semiconductor control lines and automotive interior applications with 110 cores.

Product Specifications

Item	Customized UL2464 High Temperature Silicone Wire UL Electronic Cable
Conductor	Stranded fine tinned copper wire conductors
Insulation	Special halogen-free thermoplastic insulation
Outer Sheath	Special halogen-free thermoplastic sheath
Core Number	Multicores (As client's requirement)
Nominal Voltage	Uo/U 300 V
Temperature	80°C
Color	Optional

Applications

This product is mainly suitable for internal and external wiring of electronic equipment. The high-density and high-conductivity mesh shielding layer ensures strong anti-interference capability. Ideal for measurement, inspection, and control wiring applications in complete sets of equipment, heating, air conditioning systems, refrigeration equipment, office automation equipment, and data processing systems.

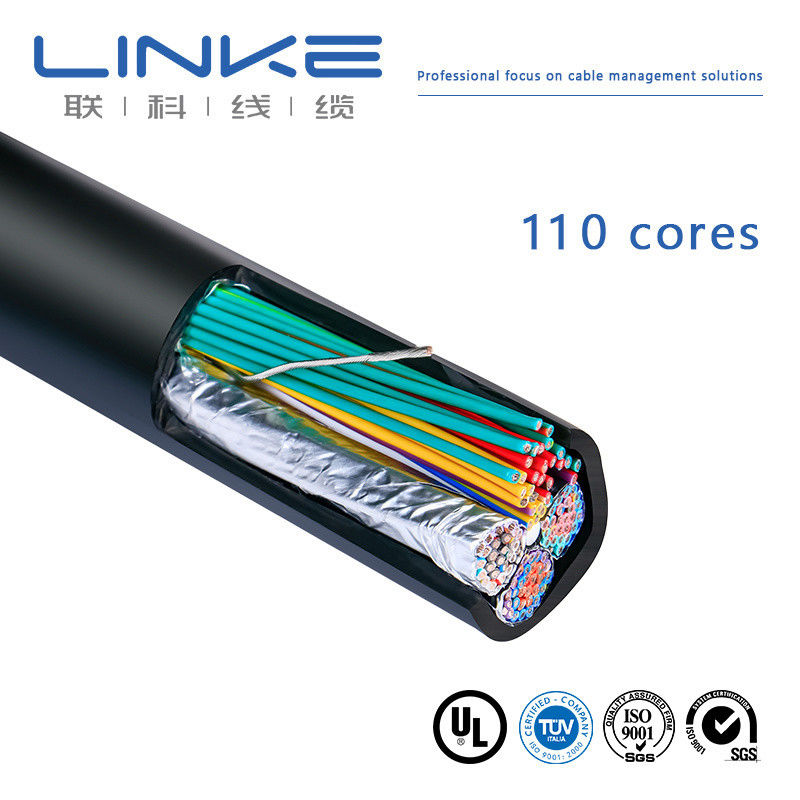

Cable Construction Details

Core A

Conductor: Tinned soft copper wire 19/0.16 ±0.003mm x 7C
Insulation: PVC-001 (various colors)
Cable formation-1: (Core A)
Wrap: Foamed PP tape W=6mm, &=0.080mm x 1C (fancy wrap)

Core B

Conductor: Tinned soft copper wire 19/0.20 ±0.003mm x 11C
Insulation: PVC-001 (various colors)

Core C

Conductor: Tinned soft copper wire 19/0.16 ±0.003mm x 18C
Insulation: PVC-001 (various colors)

Cable formation-2: (Core A+B+C)

Filling: 10000D flame retardant PP rope x 3C
Wrap: Foamed PP tape W=6mm, &=0.080mm x 1C (fancy wrap)

Core D

Conductor: Tinned soft copper wire 19/0.16 ±0.003mm x 24C
Insulation: PVC-001 (various colors)

Cable formation-3: (Core A+B+C+D)

Filling: 10000D flame retardant PP rope x 2C
Wrap: Clear Mylar W=42mm, &=0.025mm x 1C
Ground: Tinned soft copper wire 19/0.20 ±0.003mm x 1C (ground between mylar and aluminum foil)
Wrap: Silver single-sided AL W=45mm, &=0.035mm x 1C (AL side inward)

Core E

Conductor: Tinned soft copper wire 19/0.20 ±0.003mm x 2C x 10 sets
Insulation: PVC-001 (various colors)

Core G

Conductor: Tinned soft copper wire 19/0.16 ±0.003mm x 8C x 10 sets
Insulation: PVC-001 (various colors)

Cable Formation Groups 1-4: (Core E+G)

Filling: 10000D flame retardant PP rope x 2C per group

Electrical Performance at 20°C

Parameter	Value
Maximum conductor resistance ohm/km	59.4 (22AWG) / 36.7 (20AWG)
Withstanding voltage AC kv/min	2.00
Minimum Insulation Resistance M ohm/km	10.00
Spark test (AC) kv	3.00

Industrial Applications

UL2464 cables are commonly used communication cables in various industrial applications. Designed to provide reliable and efficient communication between different devices and systems while minimizing electromagnetic interference. Ensures accurate data transmission without disruptions, which is crucial in industrial settings where communication is essential for operations.

About Linke Cable Technology

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. For over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable. We provide various cables and custom cable solutions worldwide, specializing in EV charging cable, medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, and more. We use an engineer-to-engineer approach to develop better cables for customers and improve quality of life.

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

4. Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

5. Does your company accept OEM production?

Yes, we can print your company name and even customize the quality card to promote your company.

For More Information, Please feel free to contact us!
