300V 110-Core Automotive Electrical Cable
Premium automotive cable designed for vehicle internal and external wiring applications with UL2464 certification.
Product Specifications
UL Style Number: 2464
Rated Voltage: 300V
Rated Temperature: 80℃
Standard: UL758/UL1581
Applications
Internal wiring or external interconnection of electronic equipment in automotive and industrial applications.
Marking Information
E364879 AWM 2464 **AWG VW-1 80℃ 300V C AWM I A 80℃ 300V FT1 Linke Cable
Technical Specifications
| Conductor Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
Core |
Shield Rate (%) |
Nominal Thickness (mm) |
Diameter (mm) |
Bare Copper (Ω/KM) |
Tinned Copper (Ω/KM) |
| 26 | 7/0.16 | 0.48 | 0.23 | 1.00±0.10 | 2 | Optional | 0.76 | 3.50±0.10 | 140 | 150 |
| 26 | 7/0.16 | 0.48 | 0.23 | 1.00±0.10 | 3 | Optional | 0.76 | 3.70±0.15 | 140 | 150 |
| 26 | 7/0.16 | 0.48 | 0.23 | 1.00±0.10 | 4 | Optional | 0.76 | 3.90±0.15 | 140 | 150 |
| 24 | 7/0.20 | 0.60 | 0.23 | 1.10±0.10 | 2 | Optional | 0.76 | 3.70±0.15 | 87.6 | 94.2 |
| 24 | 7/0.20 | 0.60 | 0.23 | 1.10±0.10 | 3 | Optional | 0.76 | 3.90±0.15 | 87.6 | 94.2 |
| 24 | 7/0.20 | 0.60 | 0.23 | 1.10±0.10 | 4 | Optional | 0.76 | 4.20±0.15 | 87.6 | 94.2 |
| 22 | 7/0.254 | 0.78 | 0.23 | 1.30±0.10 | 2 | Optional | 0.76 | 4.10±0.15 | 55.4 | 59.4 |
| 22 | 7/0.254 | 0.78 | 0.23 | 1.30±0.10 | 3 | Optional | 0.76 | 4.30±0.15 | 55.4 | 59.4 |
| 22 | 7/0.254 | 0.78 | 0.23 | 1.30±0.10 | 4 | Optional | 0.76 | 4.70±0.15 | 55.4 | 59.4 |
| 20 | 26/0.16 | 0.94 | 0.23 | 1.50±0.10 | 2 | Optional | 0.76 | 4.50±0.15 | 34.6 | 36.7 |
| 20 | 26/0.16 | 0.94 | 0.23 | 1.50±0.10 | 3 | Optional | 0.76 | 4.80±0.15 | 34.6 | 36.7 |
| 20 | 26/0.16 | 0.94 | 0.23 | 1.50±0.10 | 4 | Optional | 0.76 | 5.10±0.15 | 34.6 | 36.7 |
| 18 | 41/0.16 | 1.18 | 0.23 | 1.80±0.10 | 2 | Optional | 0.76 | 5.10±0.15 | 21.8 | 23.2 |
| 18 | 41/0.16 | 1.18 | 0.23 | 1.80±0.10 | 3 | Optional | 0.76 | 5.40±0.15 | 21.8 | 23.2 |
| 18 | 41/0.16 | 1.18 | 0.23 | 1.80±0.10 | 4 | Optional | 0.76 | 5.90±0.15 | 21.8 | 23.2 |
| 16 | 26/0.254 | 1.49 | 0.23 | 2.10±0.10 | 2 | Optional | 0.76 | 5.70±0.15 | 13.7 | 14.6 |
| 16 | 26/0.254 | 1.49 | 0.23 | 2.10±0.10 | 3 | Optional | 0.76 | 6.00±0.15 | 13.7 | 14.6 |
| 16 | 26/0.254 | 1.49 | 0.23 | 2.10±0.10 | 4 | Optional | 0.76 | 6.60±0.15 | 13.7 | 14.6 |
Core Configuration & Color Coding
Core A (30 Conductors)
Conductor: Tinned soft copper wire 19/0.16±0.003mm
Insulation: PVC-001 (various colors)
A1. Red
A2. Red with black
A3. Red with brown
A4. Red with orange
A5. Red with yellow
A6. Red with green
A7. Red with blue
A8. Red with purple
A9. Red with gray
A10. Red with white
A11. Yellow
A12. Yellow with black
A13. Yellow with brown
A14. Yellow with red
A15. Yellow with orange
A16. Yellow with green
A17. Yellow with blue
A18. Yellow with purple
A19. Yellow with gray
A20. Yellow with white
A21. Green
A22. Green with black
A23. Green with brown
A24. Green with red
A25. Green with orange
A26. Green with yellow
A27. Green with blue
A28. Green with purple
A29. Green with gray
A30. Green with white
Cable Formation: Clear Mylar wrap, ground wire, silver single-sided aluminum foil
Core B (30 Conductors)
Conductor: Tinned soft copper wire 19/0.16±0.003mm
Insulation: PVC-001 (various colors)
B1. Orange
B2. Orange with black
B3. Orange with brown
B4. Orange with red
B5. Orange with yellow
B6. Orange with green
B7. Orange with blue
B8. Orange with purple
B9. Orange with gray
B10. Orange with white
B11. Blue
B12. Blue with black
B13. Blue with brown
B14. Blue with red
B15. Blue with orange
B16. Blue with yellow
B17. Blue with green
B18. Blue with purple
B19. Blue with gray
B20. Blue with white
B21. Purple
B22. Purple with black
B23. Purple with brown
B24. Purple with red
B25. Purple with orange
B26. Purple with yellow
B27. Purple with green
B28. Purple with blue
B29. Purple with gray
B30. Purple with white
Cable Formation: Clear Mylar wrap, ground wire, silver single-sided aluminum foil
Core C (25 Conductors)
Conductor: Tinned soft copper wire 19/0.16±0.003mm
Insulation: PVC-001 (various colors)
C1. Gray
C2. Gray with black
C3. Gray with brown
C4. Gray with red
C5. Gray with orange
C6. Gray with yellow
C7. Gray with green
C8. Gray with blue
C9. Gray with purple
C10. Gray with white
C11. White
C12. White with black
C13. White with brown
C14. White with red
C15. White with orange
C16. White with yellow
C17. White with green
C18. White with blue
C19. White with purple
C20. White with gray
C21. Light purple
C22. Light purple with black
C23. Light purple with brown
C24. Light purple with red
C25. Light purple with orange
Cable Formation: Clear Mylar wrap, ground wire, silver single-sided aluminum foil
Core D (25 Conductors)
Conductor: Tinned soft copper wire 19/0.16±0.003mm
Insulation: PVC-001 (various colors)
D1. Pink
D2. Pink with black
D3. Pink with brown
D4. Pink with red
D5. Pink with orange
D6. Pink with yellow
D7. Pink with green
D8. Pink with blue
D9. Pink with purple
D10. Pink with gray
D11. Pink with white
D12. Light blue with black
D13. Light blue with brown
D14. Light blue with red
D15. Light blue with orange
D16. Light blue with yellow
D17. Light blue with green
D18. Light blue with purple
D19. Light blue with gray
D20. Light blue with white
D21. Light green with black
D22. Light green with brown
D23. Light green with red
D24. Light green with orange
D25. Light green with yellow
Cable Formation: Clear Mylar wrap, ground wire, silver single-sided aluminum foil
Total Cable Formation (Core A+B+C+D)
Filling: Filling strip with PVC-001 white φ=2.90mm (center filling)
Wrap: Transparent Mylar W=60mm, &=0.025mm

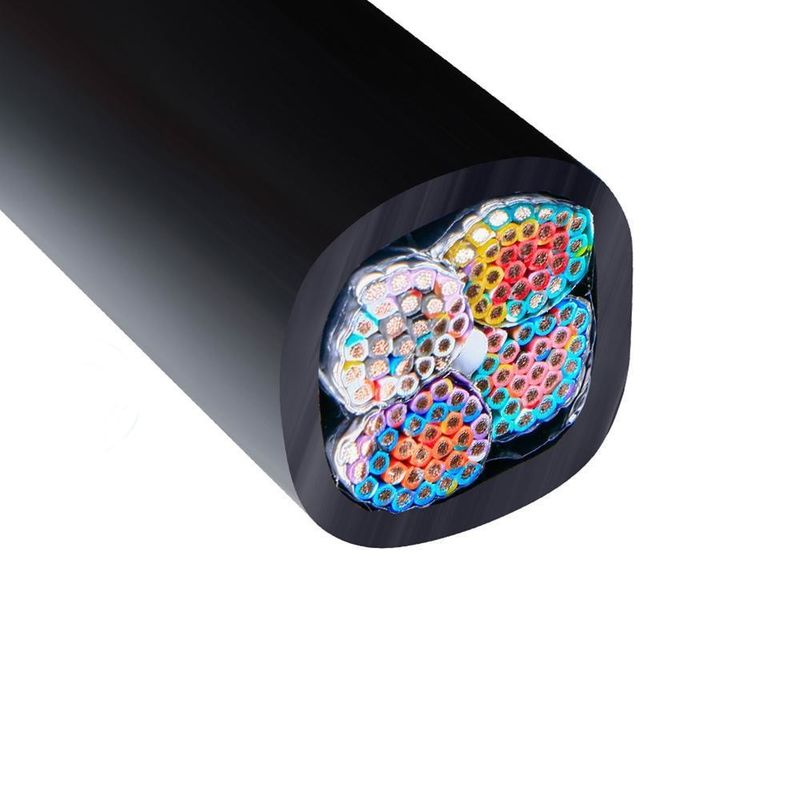

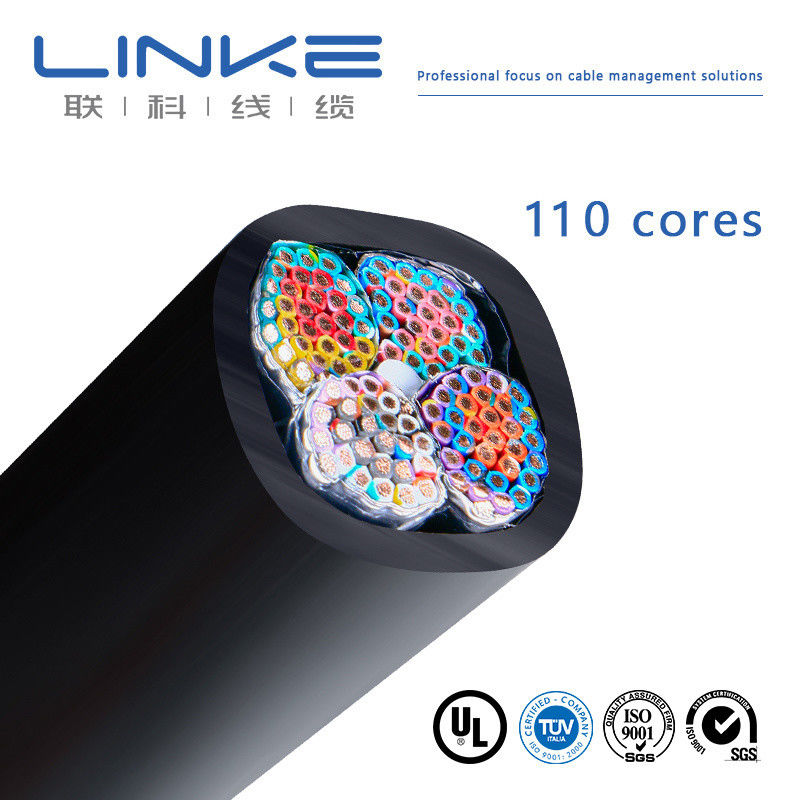

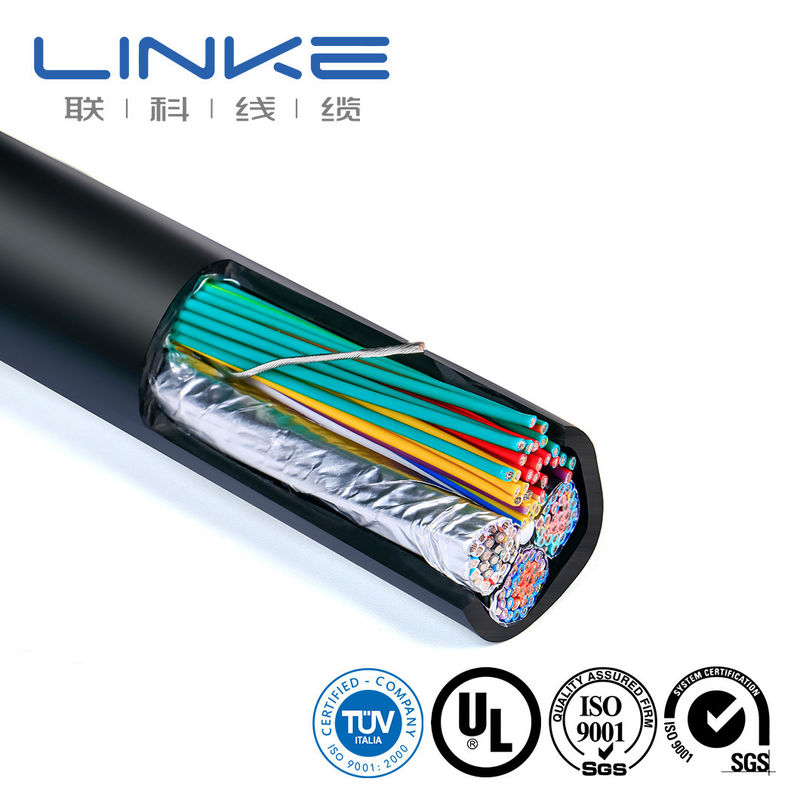

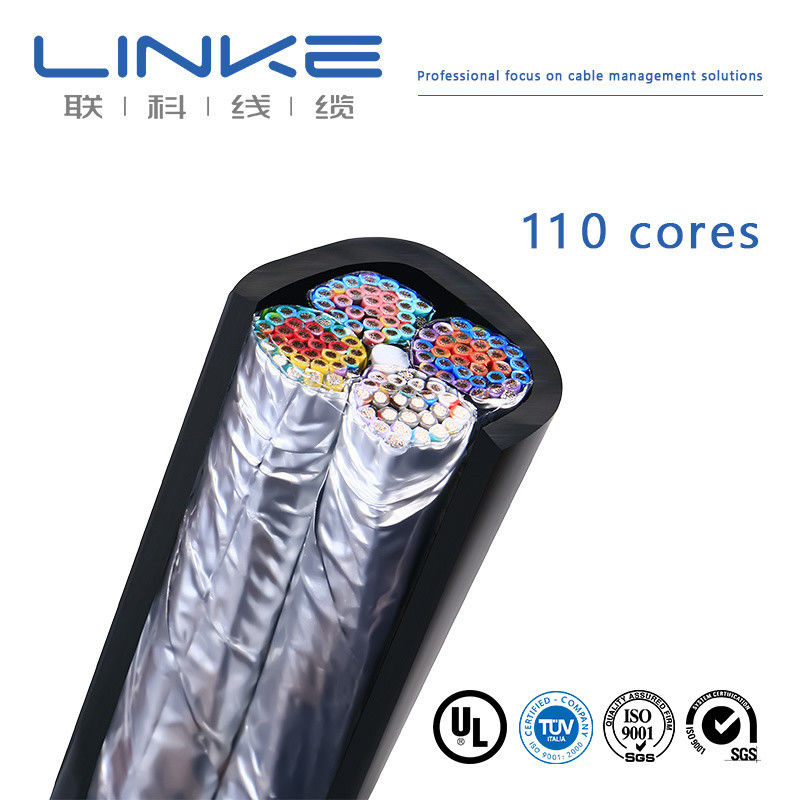

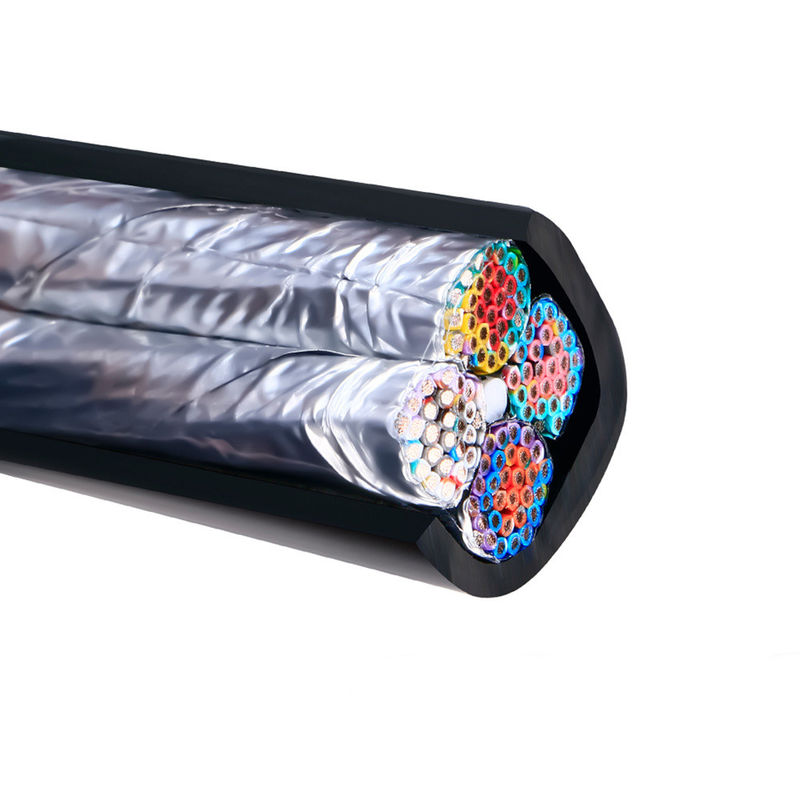

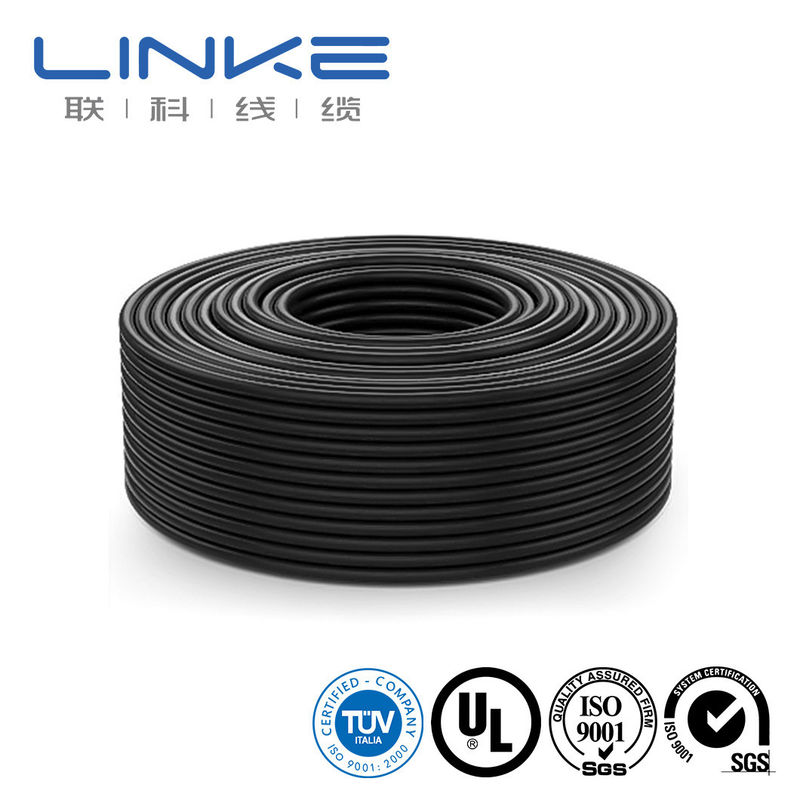

Product Images
Certifications & Standards
Our products meet the highest industry standards with comprehensive certifications:
Product Authorizations: UL 758, RoHS, REACH, CE
Quality Management Systems: ISO 9001-2015 (all products), ISO 13485 (Medical device), IATF 16949 (Automotive)
UL XLPE Insulation Standards: UL3674, UL3321, UL3320, UL3266, UL3173, UL3271, UL3385, UL3386, UL10369, UL3331, UL3398, UL3886, UL3817
Silicone Insulation Standards: UL3135, UL3132, UL3123, UL3530, UL3512, UL3577, UL3212, UL3529, UL3702, UL3075, UL30005, UL3689
FEP Insulation Standards: UL1332, UL1330, UL1331, UL1333, UL1577, UL1592, UL1723, UL1901, UL1591, UL10064
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We control your order from beginning to end. Welcome to visit us - we'll provide transportation from Shenzhen.
How can I get a sample to test your quality?
Samples are free for evaluation. New clients are expected to pay for courier costs.
What's your Minimum Order Quantity?
Normally 100 meters. However, due to the cable's weight, we recommend ordering suitable quantities to optimize freight costs. Sea transportation is the most economical option.
Can I get a discount?
Discounts are available based on quantity. We can offer competitive pricing and freight arrangements. Please contact us for specific quotes.
Does your company accept OEM production?
Yes, we offer OEM services including printing your company name and custom quality cards to promote your brand.
