Elevator Cable Flexible Control Cable and Power Cable
Premium PVC insulated elevator cables designed for industrial lift applications, offering reliable performance and durability.
Product Specifications
Product Standard: GB5023.6-1997 (idt IEC227-6:1985)
Cable Specifications
| Type |
Voltage Rating |
Conductor Size |
Core Count |
| 227 IEC 71f (TVVB) |
300/500V |
0.75~1.0mm² |
(3~24) core |
| 227 IEC 71f (TVVB) |
450/750V |
1.5~2.5mm² |
(3~12) core |
Technical Parameters
Operating Temperature: -15°C to 40°C (Maximum conductor temperature: 70°C)
Conductor Type: Class 5
Conductor Material: Anaerobic soft copper wires
Insulation Material: High quality lead-free PVC soft insulation
Core Identification: Black insulation with white numbering + yellow/green ground

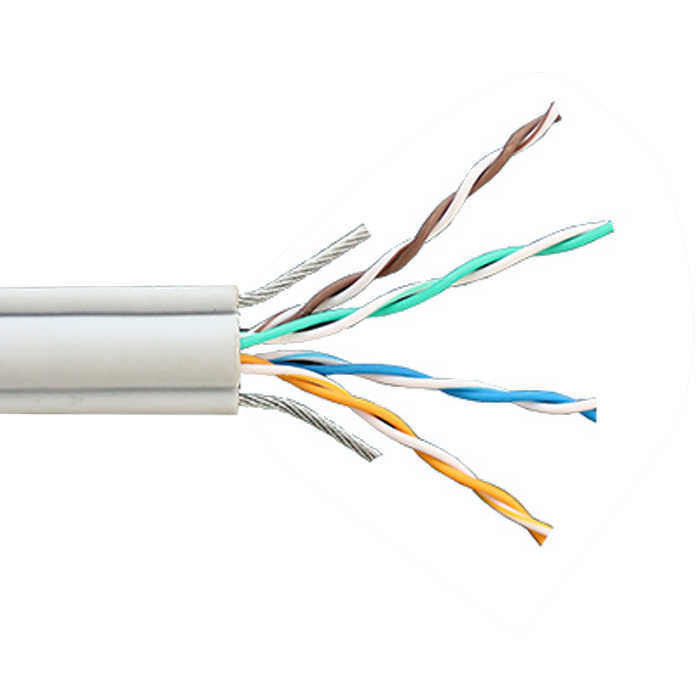

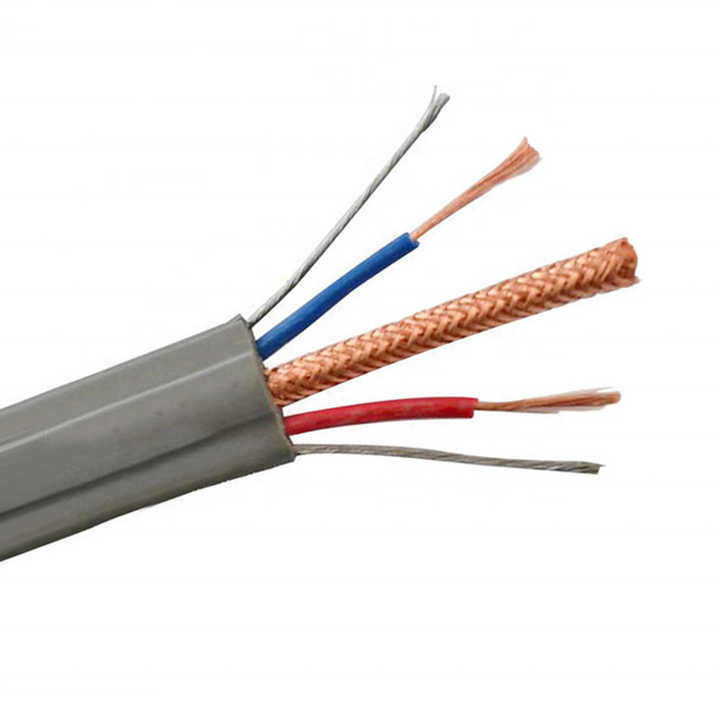

Product Images
Certifications and Standards
Our cables meet the following certifications and standards:
- UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
- UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
- UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
- ISO9001, ISO13485, TS16949
- CNR - Appliance Wiring Material
Additional Certifications:
- Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
- Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
- Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We manage your order from beginning to end. Welcome to visit us - we provide pickup service in Shenzhen.
2. How can I get a sample to test your quality?
Samples are free for evaluation. New clients are expected to pay for courier costs.
3. What's your Minimum Order Quantity?
Normally 100 meters. Due to the cable's weight, we recommend ordering suitable quantities to optimize freight costs. Sea transportation is the most economical option.
4. Can I get a discount?
Discounts depend on order quantity. We can offer competitive pricing and freight arrangements. Please contact us for details.
5. Does your company accept OEM production?
Yes, we can print your company name and even customize quality cards to promote your brand.
