Customized 1200A Flexible Busbar with 0.1mm Copper Foil for Substation Engineering

Engineering Copper Bus Bar

Substation Engineering Copper Bus Bar

Customized Copper Bus Bar

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-B03

AMP:

1200A

Color:

Customized

Customized:

Customized

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Name:

Copper Bus Bar

Copper Foil:

0.1mm

Life:

5 Years

Transport Package:

Roll

Specification:

50*50*45CM

Trademark:

LINKE

Origin:

China

HS Code:

94054090

Supply Ability:

100000000

Package Size:

50.00cm * 50.00cm * 45.00cm

Package Gross Weight:

80.000kg

After-sales Service:

1year

Warranty:

1year

Certification:

RoHS, TUV, CE, ISO

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Core:

Multiple

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Package:

By Roll

Lead Time:

7-15days

Highlight:

Engineering Copper Bus Bar

Substation Engineering Copper Bus Bar

Customized Copper Bus Bar

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Quote to specification

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

Tinned Copper Conductor Elevator Cable with PVC Insulation and Customizable Jacket for Power and Control Applications

Get Best Price

Video

Round Wire Elevator Cable with Tinned Copper Conductor and PVC Insulation for Various Elevators

Get Best Price

Video

Insulated Customized Flexible Bus Bar Flat Copper Busbar for Battery with 1200A Capacity

Get Best Price

Video

1200A AMP Insulated Copper Bus Bar with Customizable Insulation and High Conductivity for Vacuum Electrical Appliances

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

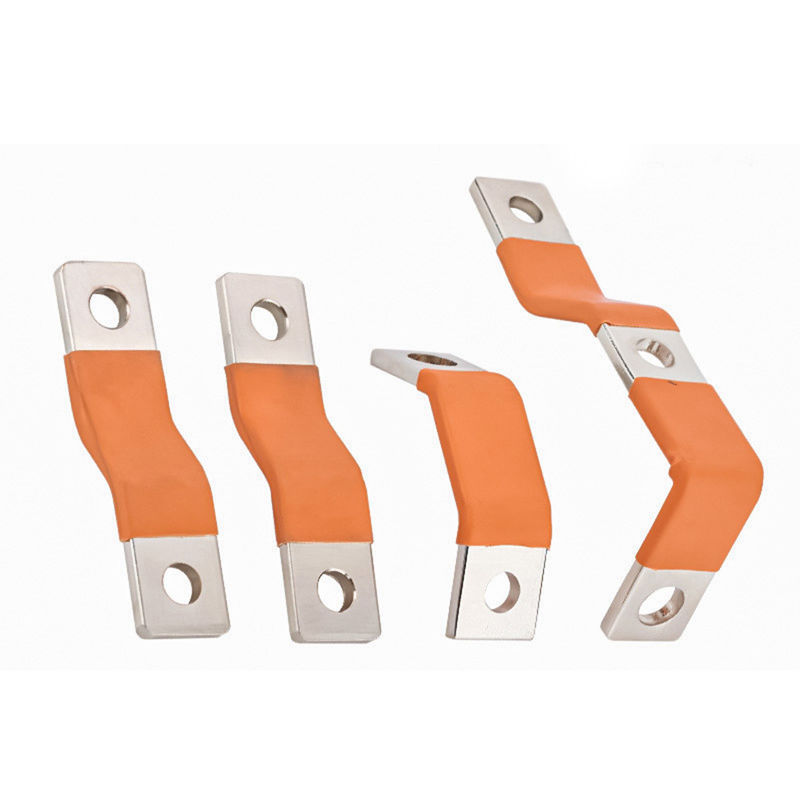

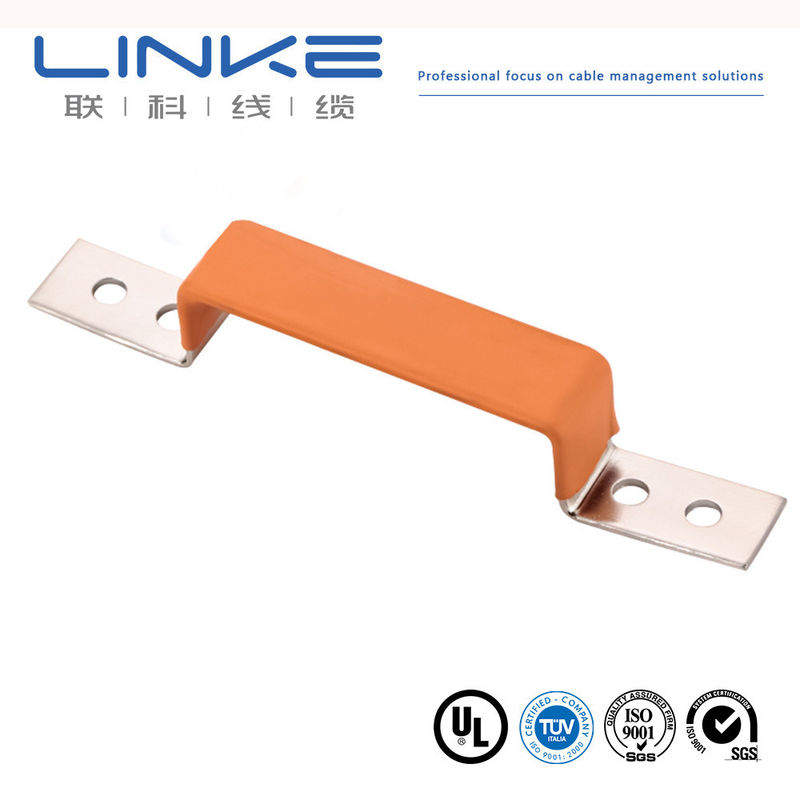

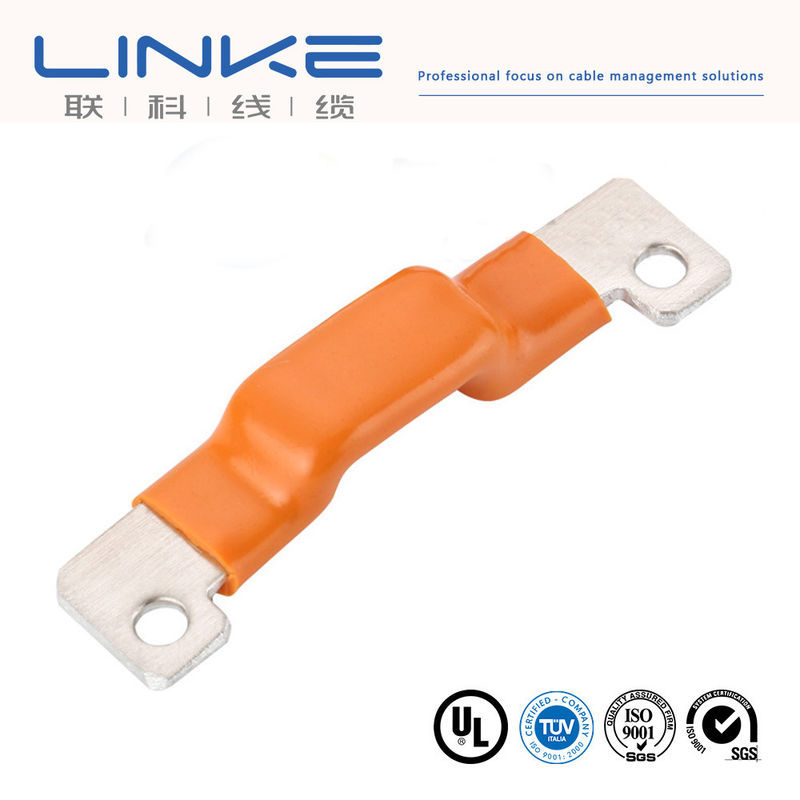

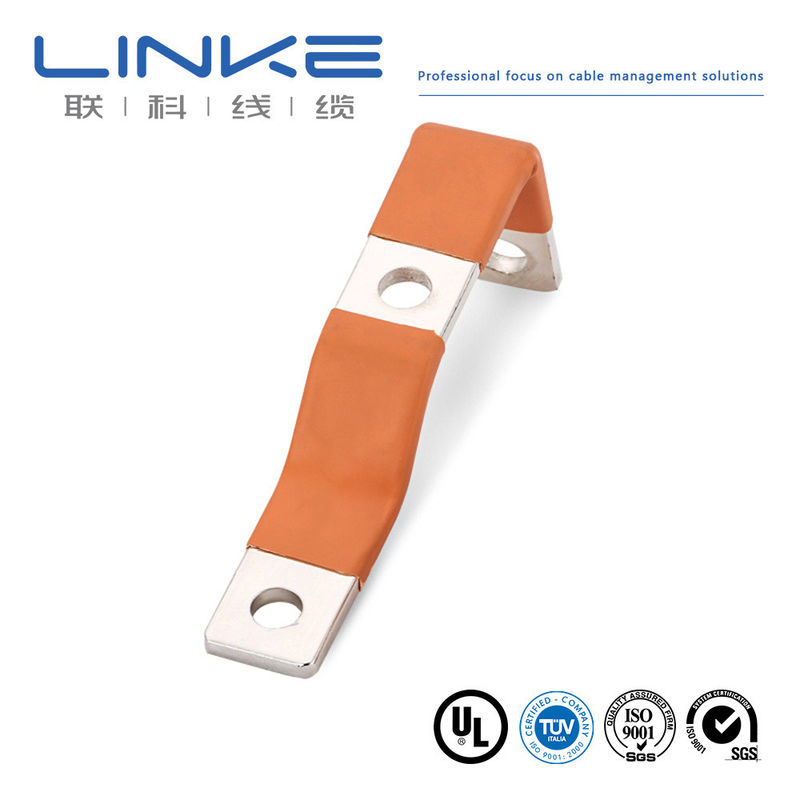

Customized Copper Bus Bar for Substation Engineering

Product Overview

Our flexible copper bus bars are engineered for substation applications, featuring laminated copper foil construction that maximizes current carrying capacity and flexibility.

Key Specifications

Conductor: Flexible bare annealed copper wire
Insulation: Copper with optional PVC dipping coating
Color Options: Black, Orange, Red, Yellow, Blue jacket
Insulation Types: Single & double insulated options
Size Standards: SQ MM (European) and AWG (North American) - fully customizable
Temperature Range: Customizable to application requirements

Construction Features

Flexible busbars are manufactured through brazing copper foil parts together, ensuring 99.9% copper content for excellent conductivity with minimal impurities. The laminated design provides increased current carrying surface area.

Copper Foil Thickness: 0.05mm to 0.3mm thick. Contact surfaces can be tinned or silvered according to user requirements.

Material Standard	GB: T2 Copper (Min. 99.9%) DIN: E-Cu58 (2.0065) EN: Cu-ETP (CW004A) ISO: Cu-ETP UNS: C11000 JIS: C1100 BS: C101 Other materials customizable
Resistance	0.00001Ω
Conductivity	57%
Copper Foil Single Layer Thickness	0.1/0.2/0.3/0.5/1.0mm (dependent on bus bar structure - we advise suitable thickness)
Insulation Material	PVC Dipping Coating - excellent performance, suitable for special shaped bus bars, maintains integrity after multiple bends
Insulation Performance	PE and PVC options available - PVC dipping outperforms PE heat shrink tubes
Flame Retardant/Fire Resistance	UL94-V-0 standard or customized to your requirements
Leakage Testing	PVC Dipping Sleeves: 3500VDC/30s (1.5mm thickness) - leakage 0.025 MA 5000VAC/30-60s (1.8-2.0mm thickness) - leakage 0.065 MA Custom solutions available for specific working voltages
Surface Plating	Nickel, tin, or silver plating available Plating Thickness: 3um to 12um standard or customized
Salt Spray Testing	Neutral environment: Nickel withstands 240 hours, silver and tin provide lower resistance
Bending Testing	15 radian angle bend tested 10,000 times without breakage or fracture
Temperature Rise Testing	Testing available based on busbar cross-sectional area - test reports provided before delivery upon request
Operating Temperature	-45 to +150°C
Copper Foil Tensile Strength	≥500N

Production Timeline

Quote Time: 1-3 working days after receiving your inquiry
Sample/Trial Order Delivery: 5-15 working days (depending on bus bar structure and manufacturing process)

Quality & Environmental Standards

Quality Management: IATF 16949 (Auto Industry Standard)
Eco-friendly Certificates: ROHS, REACH compliant

Certifications

UL Certifications: UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)

Additional UL Standards: UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587, UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664

Quality Systems: ISO9001, ISO13485, TS16949

CNR Certifications: Appliance Wiring Material, Extruded PVC Insulated Single (rated 105ºC, 1000V, Class I, Group A,B,or AB, FT1/FT2), Extruded PVC Non-integral Jacketed Cable (rated 105°C, 1000V), Extruded TPU Non-integral Jacketed Cable (rated 80°C, 300V)

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer with full control over production from beginning to end. We welcome factory visits and provide pickup service in Shenzhen.

How can I get a sample to test your quality?

Samples are provided free of charge. New clients are responsible for courier costs.

What's your Minimum Order Quantity?

Normally 100 meters. Due to cable weight, we recommend ordering suitable quantities to optimize freight costs. Sea transportation is the most cost-effective option.

Can I get a discount?

Discounts are available based on order quantity. We can also arrange freight arrangements. Please contact us for specific pricing.

Does your company accept OEM production?

Yes, we offer OEM services including company name printing and customized quality cards to promote your brand.

For More Information

Please feel free to contact us for technical specifications, pricing, or custom requirements.
