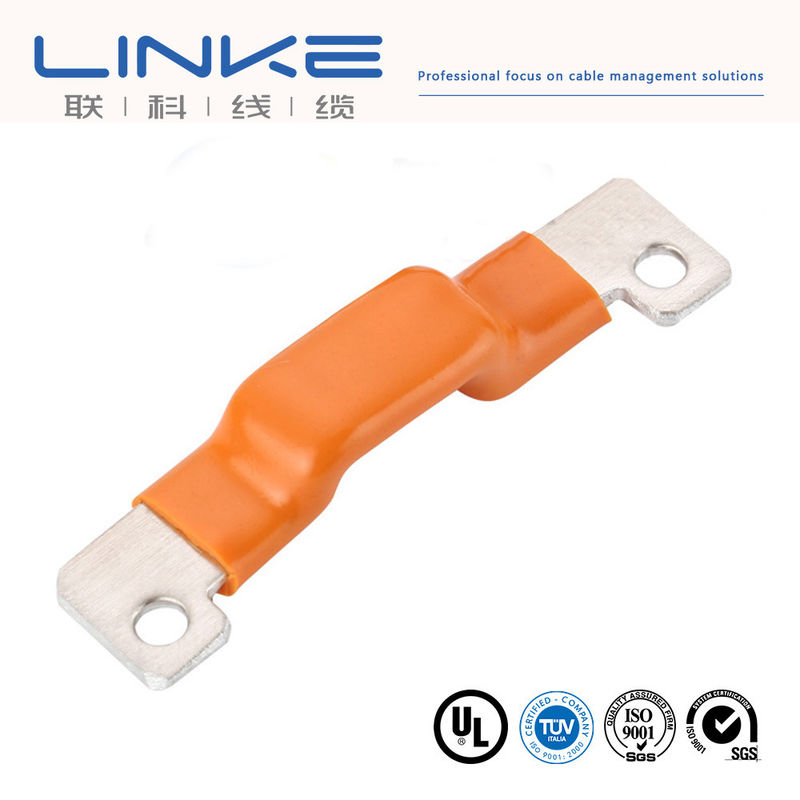

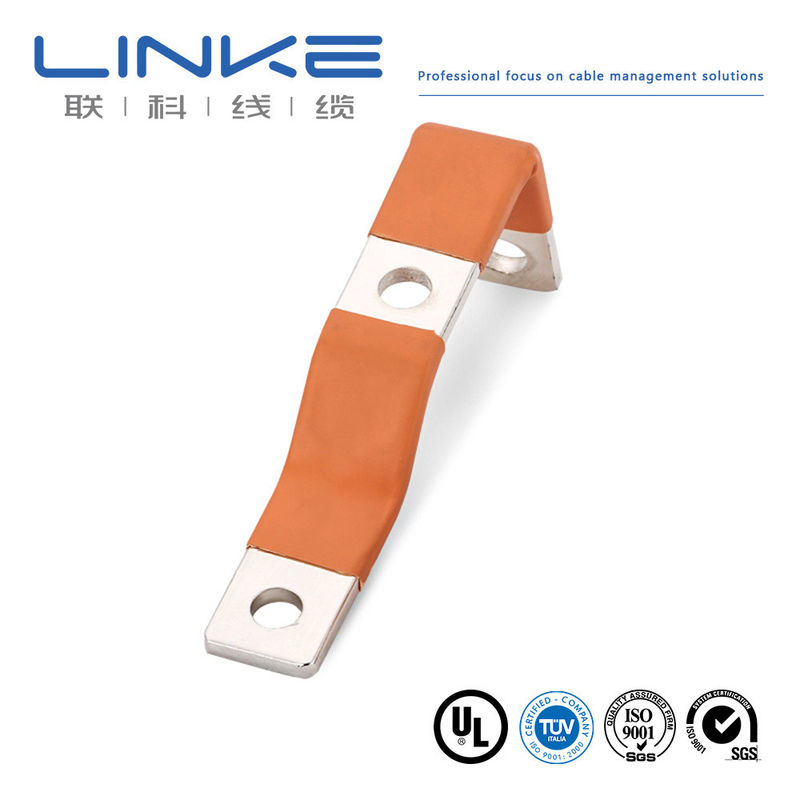

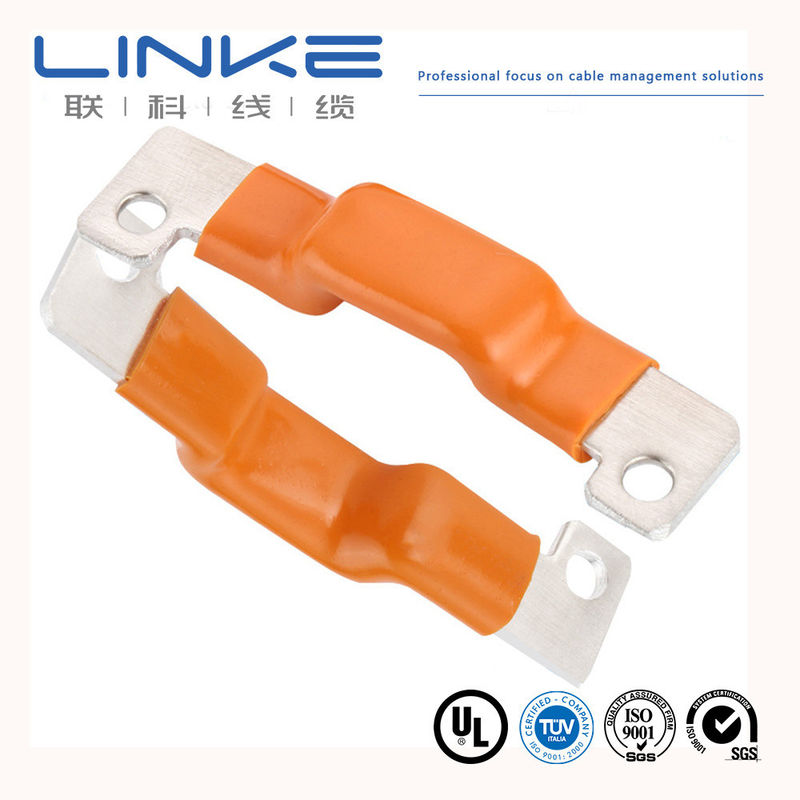

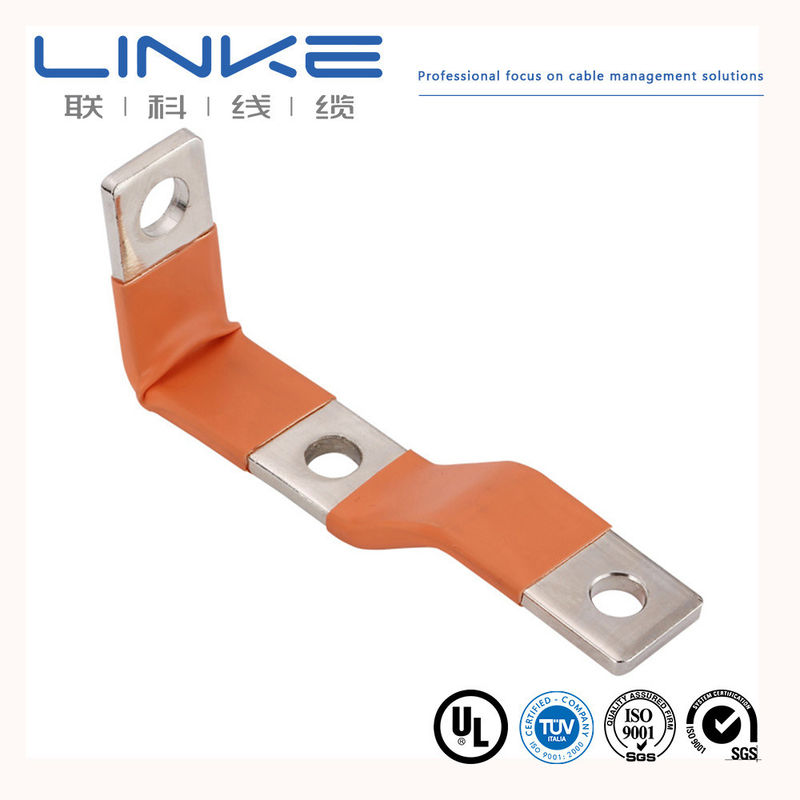

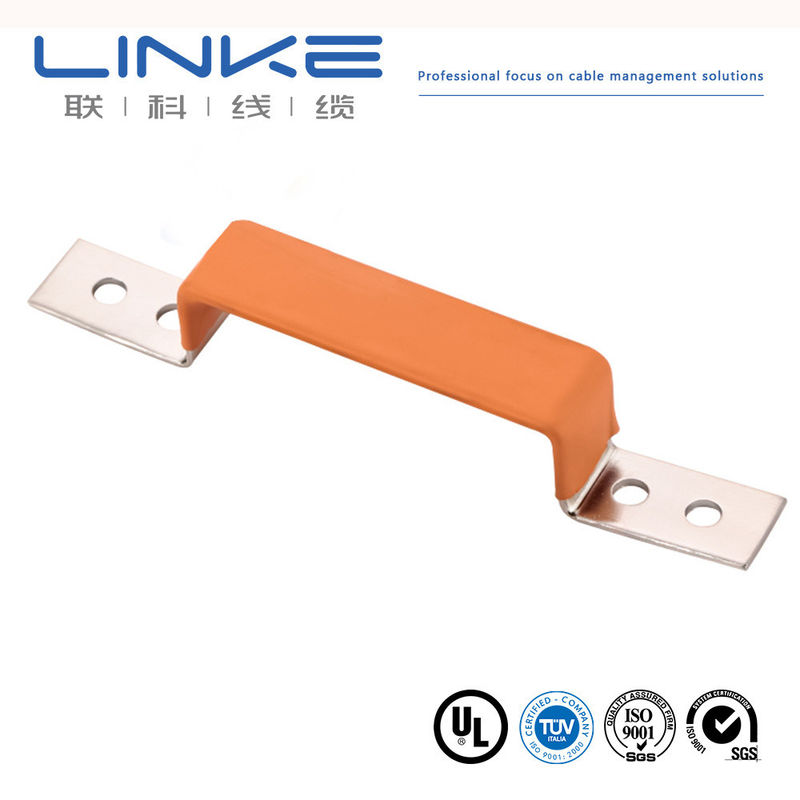

Insulated Copper Bus Bar for Vacuum Electrical Appliances
Flexible busbar is manufactured by brazing copper foil parts together, featuring 99.9% copper content for excellent conductivity with minimal impurities. Laminated copper busbars provide increased current carrying surface area.
Copper foil thickness ranges from 0.05mm to 0.3mm. Contact surfaces can be tinned or silvered according to user requirements. Current capacity is calculated based on 1 square knitting belt with effective load current of 4A. Copper conductors with different sectional areas have varying parameters. Larger areas can be multi-layered or configured as sets.
Product Specifications
| Material Standard |
GB: T2 Copper with Min. 99.9%
DIN: E-Cu58 (Number: 2.0065)
EN: Cu-ETP (Number: CW004A)
ISO: Cu-ETP
UNS: C11000
JIS: C1100
BS: C101
Other materials available upon request |
| Resistance |
0.00001Ω |
| Conductivity |
57% |
| Copper Foil Single Layer Thickness |
0.1/0.2/0.3/0.5/1.0mm (depending on bus bar structure)
We provide suitable thickness recommendations |
| Insulation Material |
PVC Dipping Coating offers excellent performance. Special shaped bus bars can be coated directly, maintaining integrity through multiple bends without breaking. |
| Insulation Performance |
PE and PVC provide good performance, with PVC dipping outperforming PE heat shrink tubes |
| Flame Retardant/Fire Resistance |
UL94-V-0 or customized to your requirements |
| Leakage Testing |
PVC Dipping Sleeves:
- 3500VDC for 30s at 1.5mm thickness: Leakage 0.025 MA
- 5000VAC for 30-60s at 1.8-2.0mm thickness: Leakage 0.065 MA
We advise optimal solutions based on your working voltage |
| Surface Plating |
Nickel, tin, or silver plating available
Plating thickness: 3um to 12um standard
Custom thickness available upon request |
| Salt Spray Testing |
Neutral environment: Nickel withstands 240 hours, silver performs lower, tin lowest |
| Bending Testing |
10000 bends at 15 radian angle without breakage or fracture |
| Temperature Rise Testing |
Dependent on flexible busbar cross-sectional area
Temperature rising test reports available upon request before delivery |
| Operating Temperature |
-45°C to +150°C |
| Copper Foil Tensile Strength |
≥500N |
| Quote Time |
Quotation provided within 1-3 working days after receiving your inquiry |
| Sample/Trial Order Delivery Time |
5-15 working days depending on bus bar structure and manufacturing process |
| Quality Management Standard |
Auto Industry IATF 16949 compliant |
| Eco-friendly Certificate |
ROHS, REACH compliant |
Product Variations
Copper Insulation Option
- Conductor: Flexible bare annealed copper wire
- Insulation: Copper
- Jacket colors: Black, Orange, Red, Yellow, Blue (single & double insulated)
- SQ MM sizes (European style): Customizable
- AWG sizes (North American style): Customizable
- Wide temperature range: Customizable
Silicone Insulation Option
- Conductor: Flexible bare annealed copper wire
- Insulation: Silicone
- Jacket colors: Black, Orange, Red, Yellow, Blue (single & double insulated)
- SQ MM sizes: 4 sq mm to 240 sq mm
- AWG sizes: 0AWG-10AWG
- Temperature range: -60°C to 200°C
Company Profile
Linke Cable Technology Co., Ltd is a leading wire and cable manufacturer in China. For over 10 years, we have specialized in R&D, production, and marketing of high-quality cables and custom cable solutions worldwide. Our expertise includes EV charging cables, medical cables, silicone cables, spring cables, braided cables, towlobe cables, UL wires, automotive cables, and more.
At Linke Cable, we employ an engineer-to-engineer approach to develop superior cables for our customers, enhancing product quality and improving lives through innovative solutions.
Our Certifications
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587, UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material, Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2.
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer, controlling your order from beginning to end. We welcome visits and provide pickup service in Shenzhen.
How can I get a sample to test your quality?
Samples are free for evaluation. New clients are responsible for courier costs.
What's your Minimum Order Quantity?
Normally 100m. Due to cable weight, we recommend ordering suitable quantities to optimize freight costs. Sea transportation is often the most economical option.
Can I get a discount?
Discounts depend on order quantity. We may offer discounts and cover freight costs for substantial orders. Please contact us for details.
Does your company accept OEM production?
Yes, we can print your company name and customize quality cards to promote your brand.
