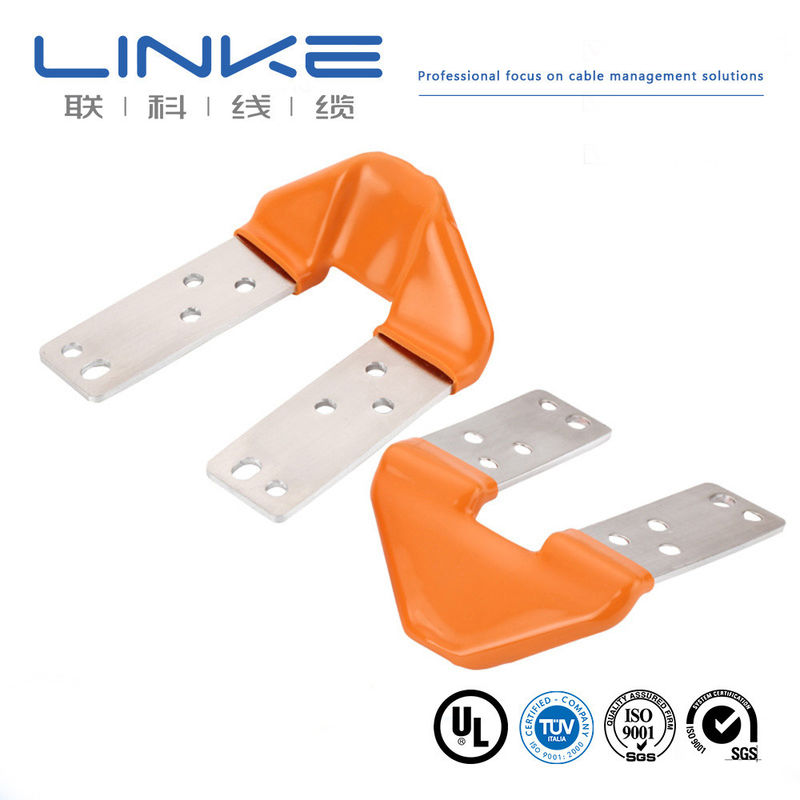

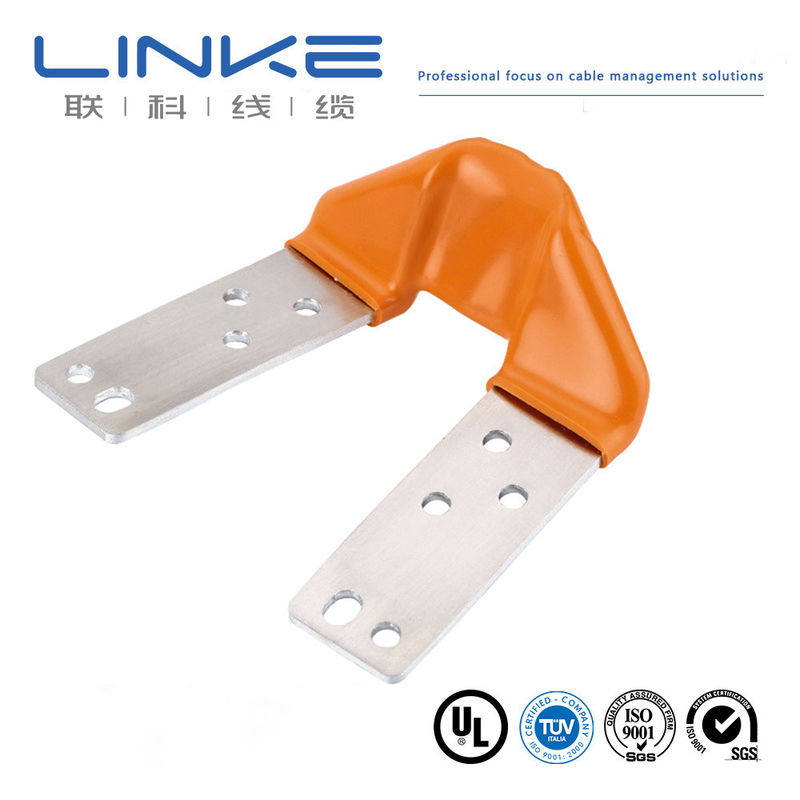

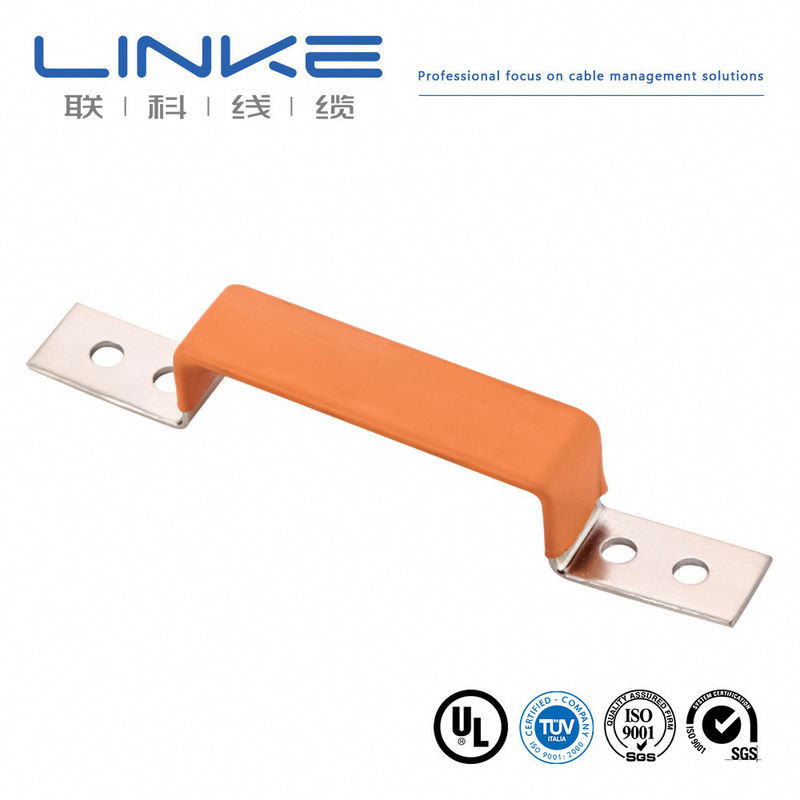

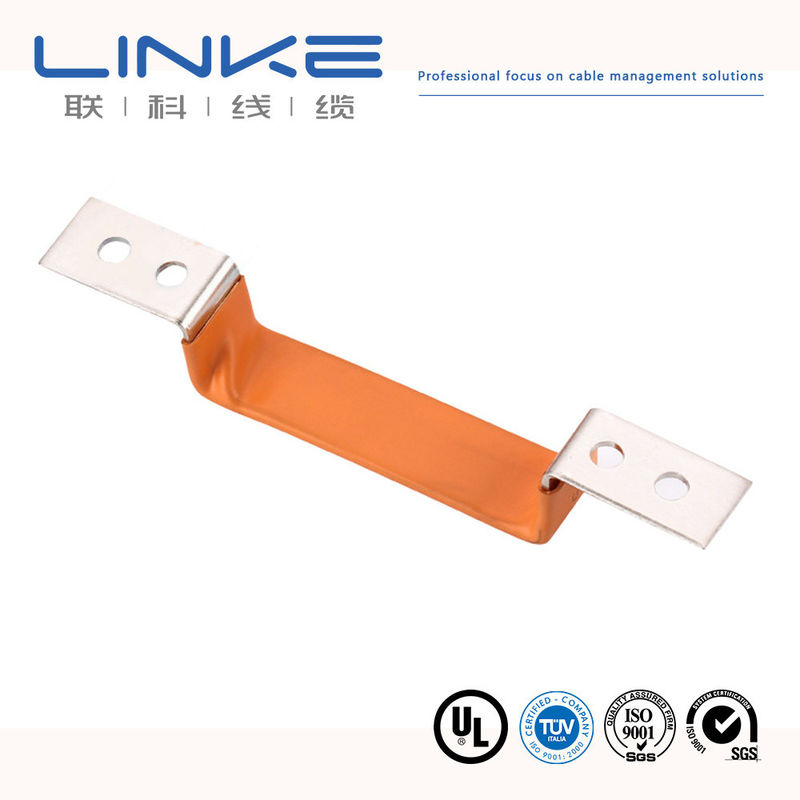

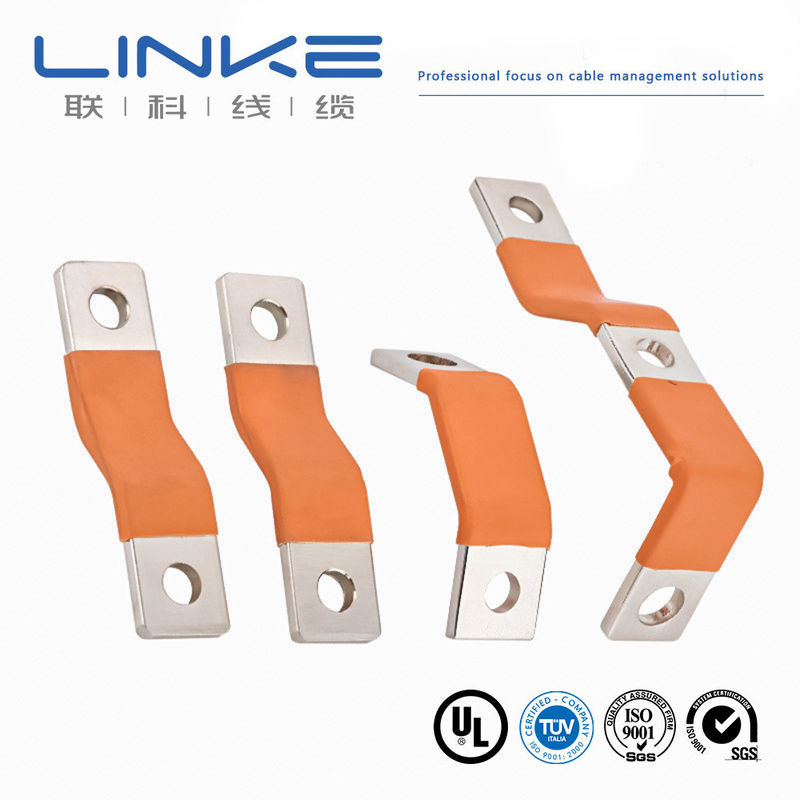

Insulated Custom Flexible Bus Bar - Flat Copper Busbar for Battery Applications
Flexible busbars are manufactured by brazing copper foil parts together, utilizing 99.9% pure copper content. This construction provides excellent conductivity with minimal impurities, while laminated copper busbars offer increased current carrying surface area.
Copper Foil Specifications
Thickness range: 0.05mm to 0.3mm. Contact surfaces can be tinned or silvered according to user requirements. Current capacity is calculated based on 1 square knitting belt with effective load current of 4A. Copper conductors with different sectional areas feature varying parameters. Larger areas can be multi-layered or configured as sets.
Material Standards
| Standard | Specification |
|---|
| GB | T2 Copper with Min. 99.9% |
| DIN | E-Cu58 (Number: 2.0065) |
| EN | Cu-ETP (Number: CW004A) |
| ISO | Cu-ETP |
| UNS | C11000 |
| JIS | C1100 |
| BS | C101 |
| Other | Custom materials available upon request |
Technical Specifications
- Resistance: 0.00001Ω
- Conductivity: 57%
- Copper Foil Single Layer Thickness: 0.1/0.2/0.3/0.5/1.0mm (suitable thickness advised based on bus bar structure)
- Insulation Material: PVC Dipping Coating with excellent performance, suitable for special shaped bus bars, resistant to breakage during repeated bending
- Insulation Performance: PE and PVC both perform well, with PVC dipping superior to PE heat shrink tubes
- Flame Retardant/Fire Resistance: UL94-V-0 or customized to your requirements
- Surface Plating: Nickel, tin, or silver plated options available
- Plating Thickness: Normally 3um to 12um or customized
- Salt Spray Testing: Nickel withstands 240 hours in neutral environment (silver and tin have lower resistance)
- Bending Testing: Withstands 10,000 bends at 15 radian angle without breakage or fracture
- Operating Temperature: -45°C to +150°C
- Copper Foil Tensile Strength: ≥500N
Leakage Testing Performance
PVC Dipping Sleeves testing results:
- 3500VDC for 30s at 1.5mm thickness: Leakage 0.025 MA
- 5000 VAC for 30s to 60s at 1.8mm to 2.0mm thickness: Leakage 0.065 MA
We provide customized solutions based on your specific working voltage requirements.
Temperature Rise Testing
Testing varies based on flexible busbar cross-sectional area. We provide complete temperature rising test reports before delivery upon request.
Ordering Information
- Quote Time: 1-3 working days after receiving your inquiry
- Sample/Trial Order Delivery: 5-15 working days depending on bus bar structure and manufacturing process
Quality & Environmental Certifications
- Quality Management: Auto Industry IATF 16949
- Eco-friendly: ROHS, REACH compliant
Conductor Options
Conductor: Flexible Bare annealed copper wire
Insulation: Copper
Jacket Colors: Black, Orange, Red, Yellow, Blue (single & double insulated)
SQ MM sizes (European style): Customizable
AWG sizes (North American style): Customizable
Temperature Range: Customizable
Silicone Insulated Option
Conductor: Flexible Bare annealed copper wire
Insulation: Silicone
Jacket Colors: Black, Orange, Red, Yellow, Blue (single & double insulated)
SQ MM sizes: 4 sq mm to 240 sq mm
AWG sizes: 0AWG-10AWG
Temperature Range: -60°C to 200°C
