Customizable Extra Soft Duplex Silicone Medical Cable for Medical Equipment

Vinyl Chloride Hook Up Wire

PVC Sheath Hook Up Wire

Tinned Copper Hook Up Wire

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Customizable Extra Soft Duplex Silicone Medical Cable for Medical Equipment

Product Details

Model NO.:

LK-C31

Conductor Material:

Copper

Sheath Material:

Customizable

Material Shape:

Round Wire

Range Of Application:

Cold-Resistant

Name:

Hook Up Wire

Core:

Multiple

Specification:

Tinned Copper

Supply Ability:

100000meter/Day

Type:

Insulated

Conductor Type:

Twisted Wire

Application:

Construction

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Package:

By Roll

Lead Time:

7-15days

Highlight:

Vinyl Chloride Hook Up Wire

PVC Sheath Hook Up Wire

Tinned Copper Hook Up Wire

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

Tinned Copper Wire Conductor Medical Cable For EEG/EMG Connector 2/3 Pin Applications

Get Best Price

Video

Round Parallel Flat Coiled Medical Cable Customized For High Voltage Wiring Harness Medical equipment connection cable

Get Best Price

Video

Round Medical Cable Wire Harness For Low Medium Voltage Electronic Equipment OEM Diagnostic Medical Device Harness wi

Get Best Price

Multi Cores Spring Cable For LED ODM And Automobile Package Gross Weight 30.000kg

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

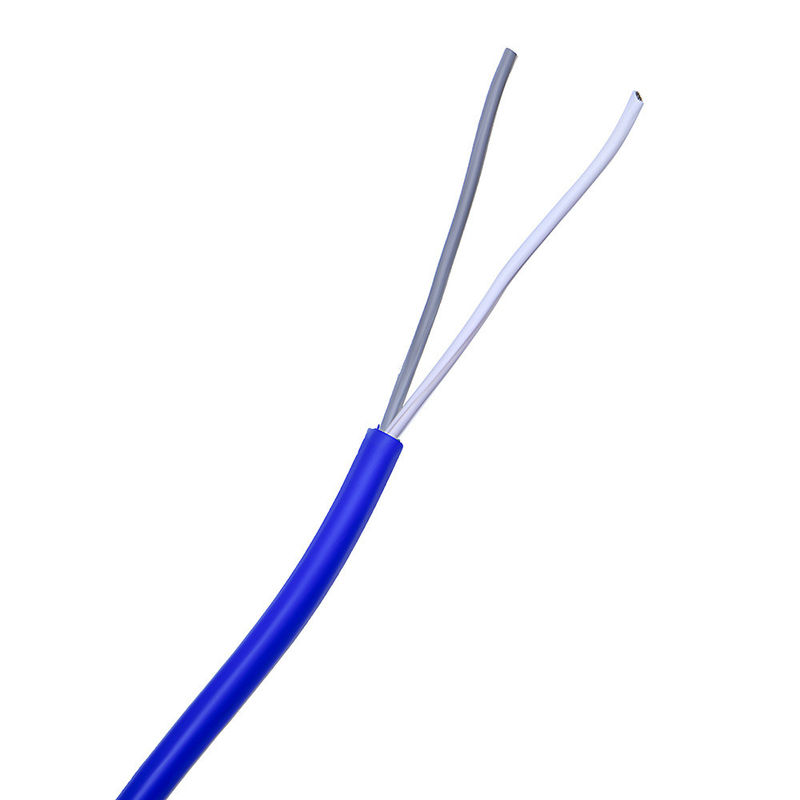

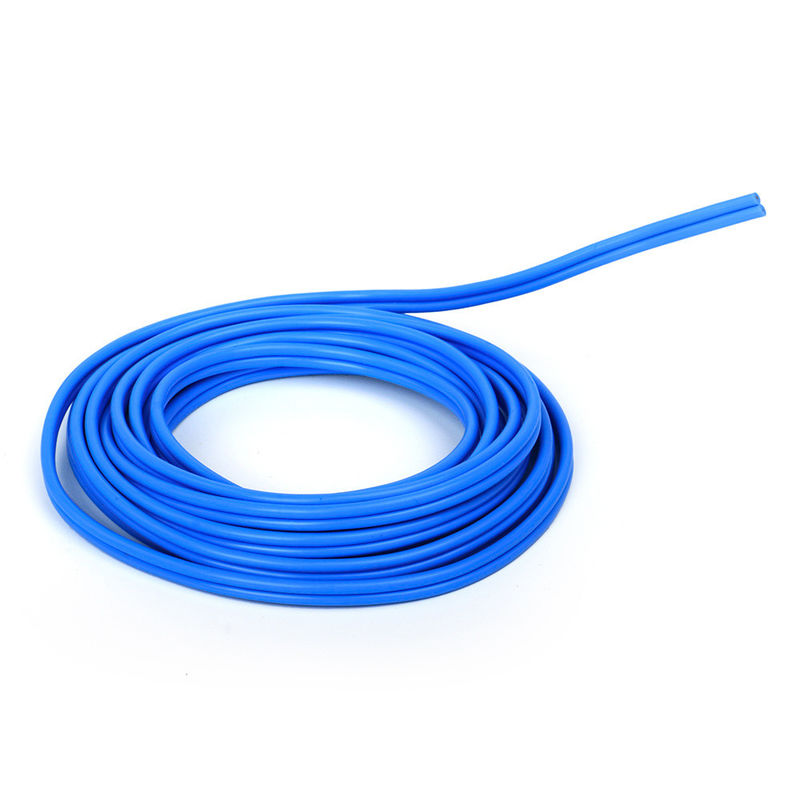

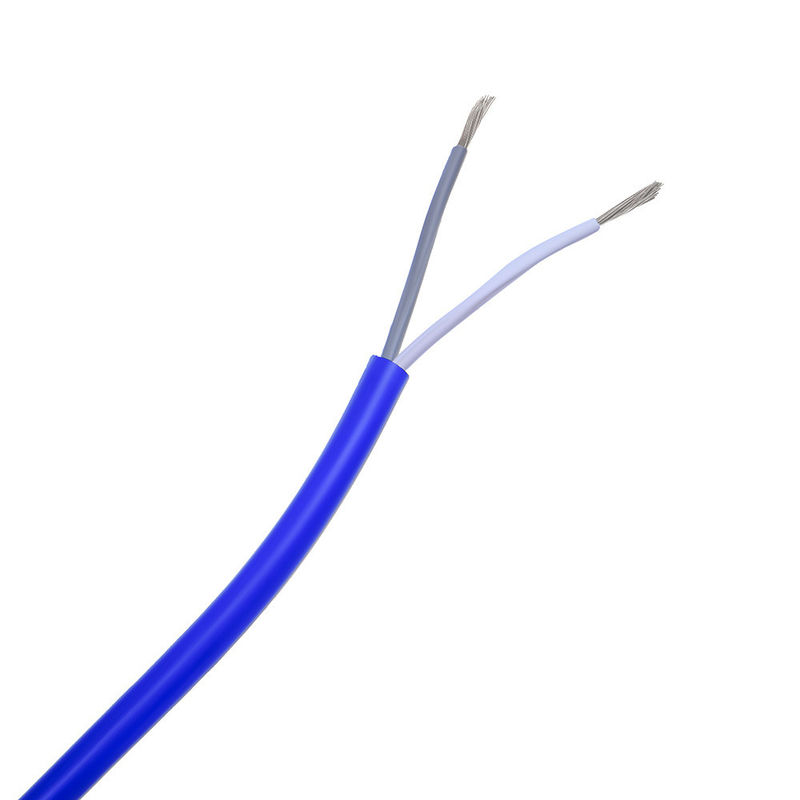

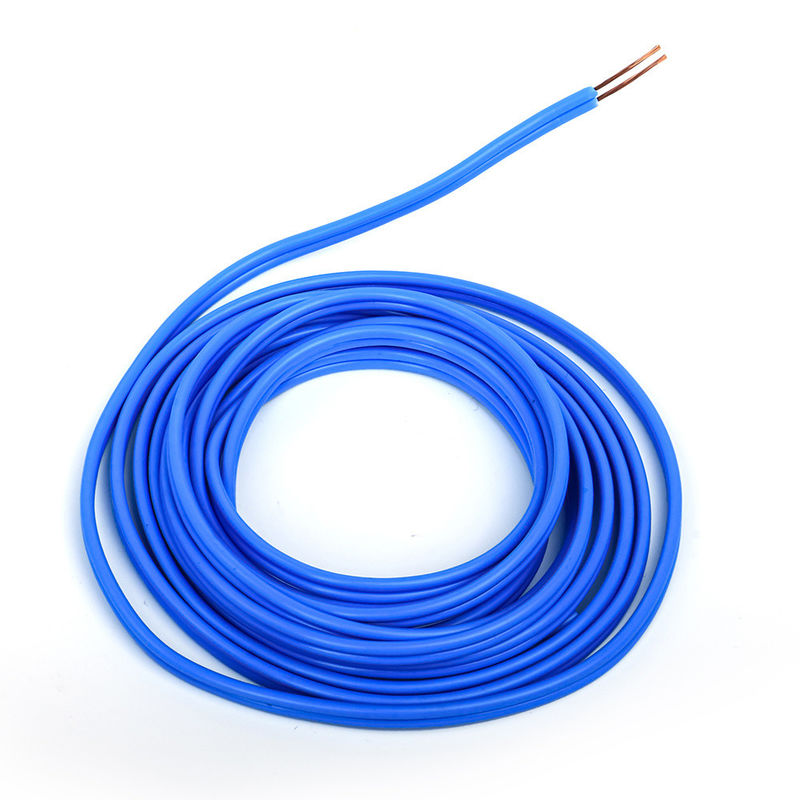

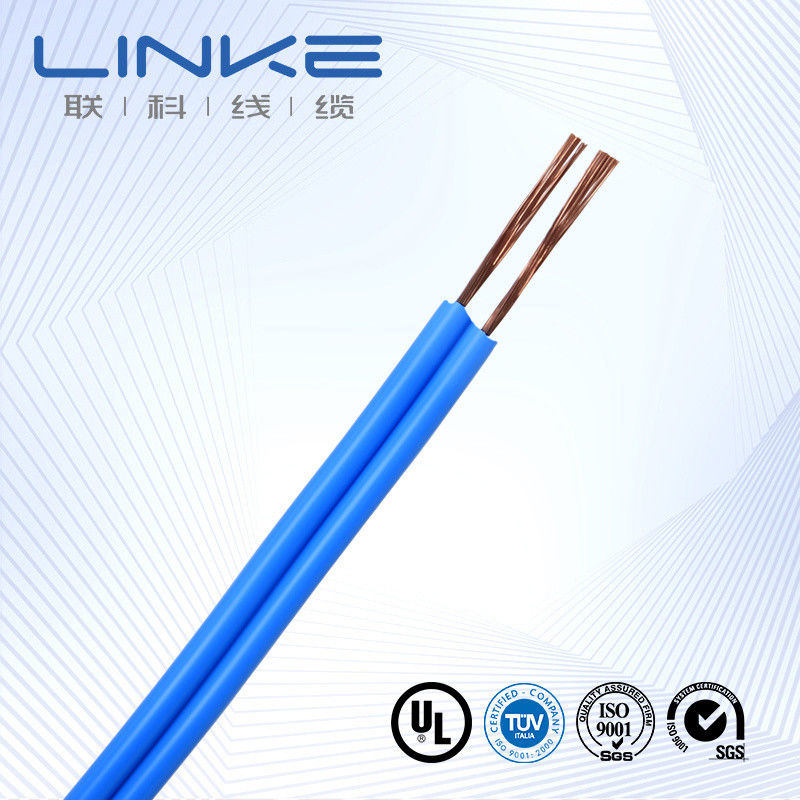

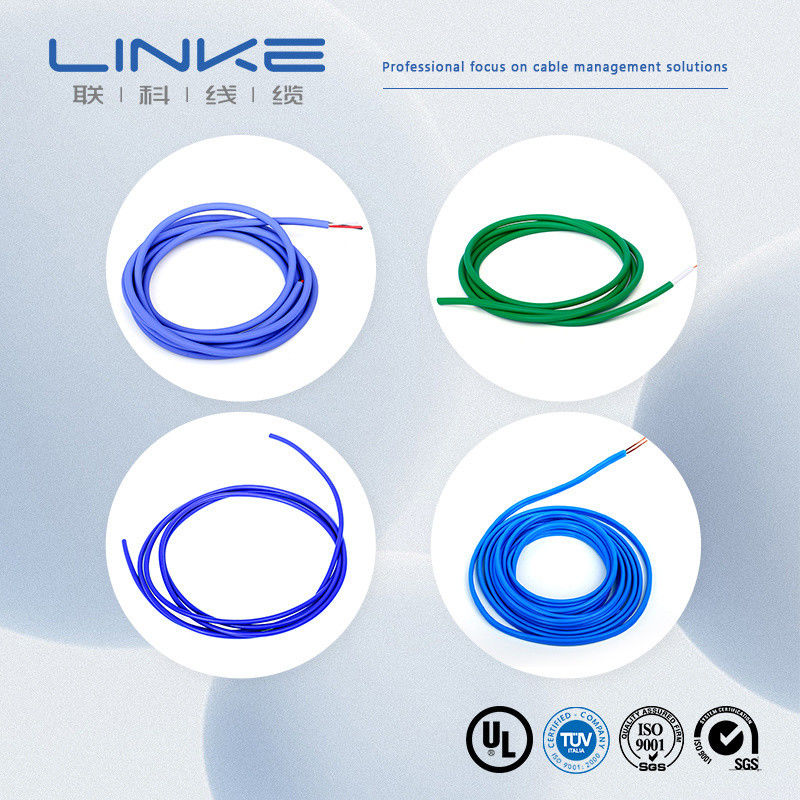

Customizable Medical Duplex Silicone Wire

Extra soft medical wire designed for medical equipment applications, offering superior flexibility and durability.

Product Advantages

Customizable in small batches with short development cycles
Multiple biocompatible materials available: PVC, TPE, TPU, FEP, and silicone
Wide color selection options
Gas-electric hybrid cable capability
Soft yet durable construction resistant to high-temperature steam and chemical disinfectants

Quality Management System

Our ISO13485:2019 certified quality management system, verified by TUV certification in February 2020, forms the foundation of our global client partnerships.

Engineering Technology

Our experienced product development team and complete laboratory provide OEM customers with key competitive advantages:

Close collaboration with OEM technical personnel for optimal material selection and design
Comprehensive capabilities from prototyping to full-scale production
User-focused designs with efficient manufacturing processes

Experimental Equipment

Our fully equipped laboratories include:

Electrical performance testing
Mechanical and environmental testing
Sterility and microbiological testing
Residual substance analysis

Production Capability

Equipped with high-precision processing equipment including:

PTFE, silicone, and TPU extrusion machines
Weaving, winding, and cabling machines

Our production meets stringent requirements for medical device power supply, signal transmission, and high cleanliness standards.

Product Specifications

Conductor	Finished Product
AWG	NO of Cord	Insulation Thick (mm)	Outside Thick (mm)	Packing (m/r)
30	7/0.1	0.41	1.10	610
28	7/0.127	0.41	1.20	610
26	7/0.16	0.41	1.30	610
24	11/0.16	0.41	1.40	610
22	17/0.16	0.41	1.60	610
20	21/0.178	0.41	1.80	610
18	34/0.178	0.41	2.10	610
16	26/0.254	0.41	2.40	610

Conductor: Flexible Bare annealed copper wire

Insulation: PVC

Color Options: Black, Orange, Red, Yellow, Blue jacket; single & double insulated

SQ MM sizes (European style): 10 sq mm to 240 sq mm

AWG sizes (North American style): 6 Awg to 50awg

Temperature Range: -60°C to 200°C

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a professional manufacturer controlling all aspects of production. We welcome visits and provide pickup service in Shenzhen.

2. How can I get a sample to test your quality?

Samples are free for new clients who cover the courier costs.

3. What's your Minimum Order Quantity?

Normally 100m. Due to weight considerations, we recommend sea transportation for optimal freight efficiency.

4. Can I get a discount?

Discounts are available based on quantity and may include freight considerations.

5. Does your company accept OEM production?

Yes, we offer custom printing of company names and quality cards to promote your brand.
