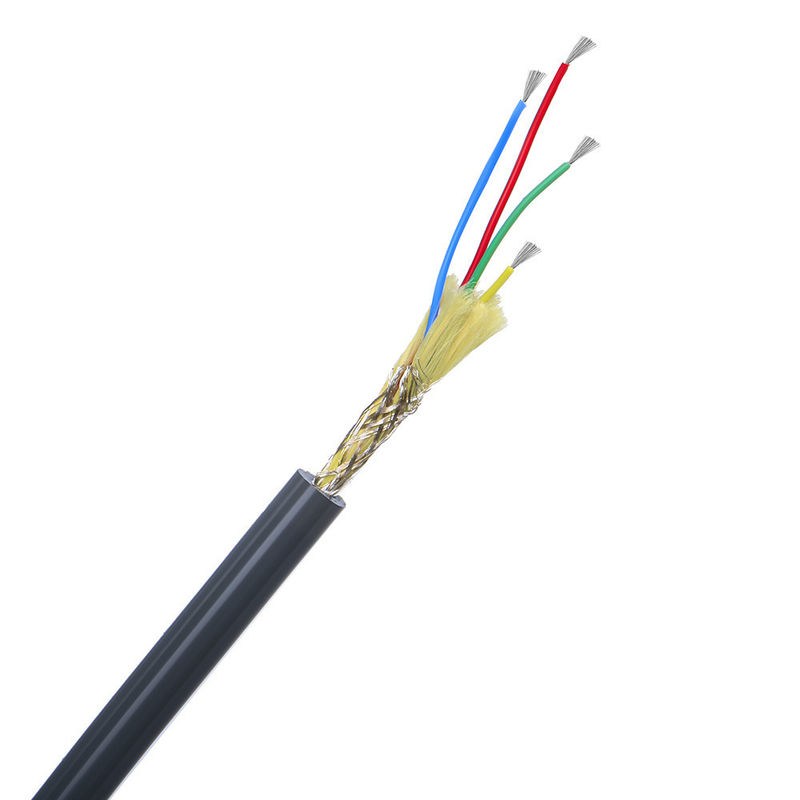

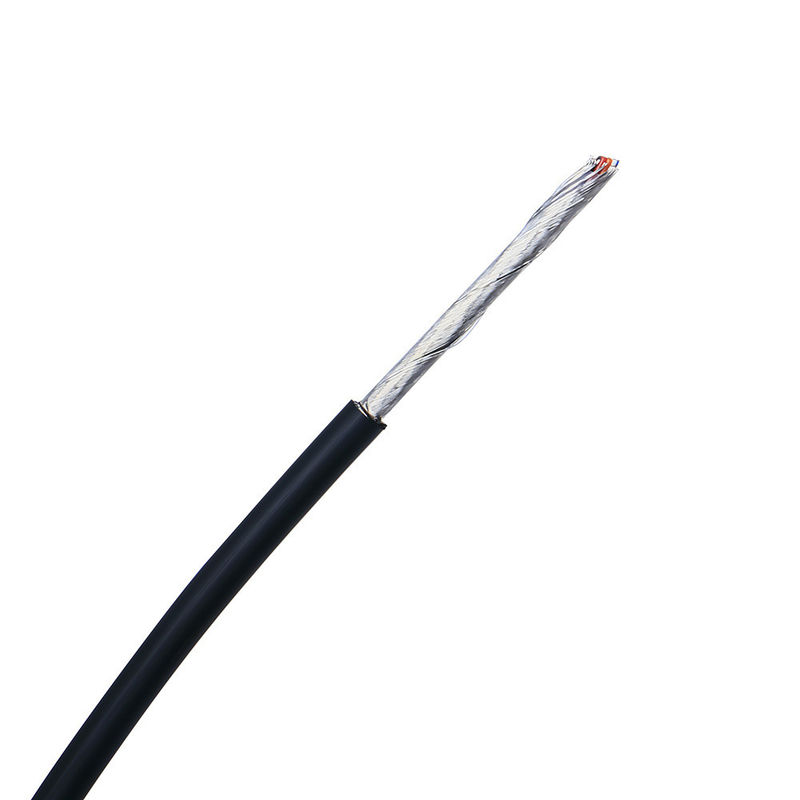

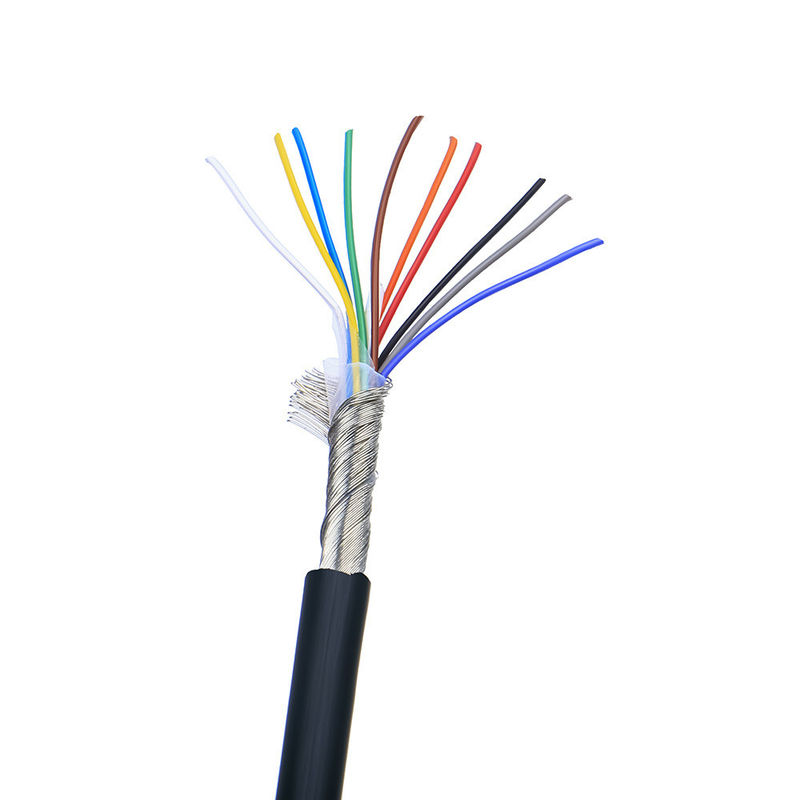

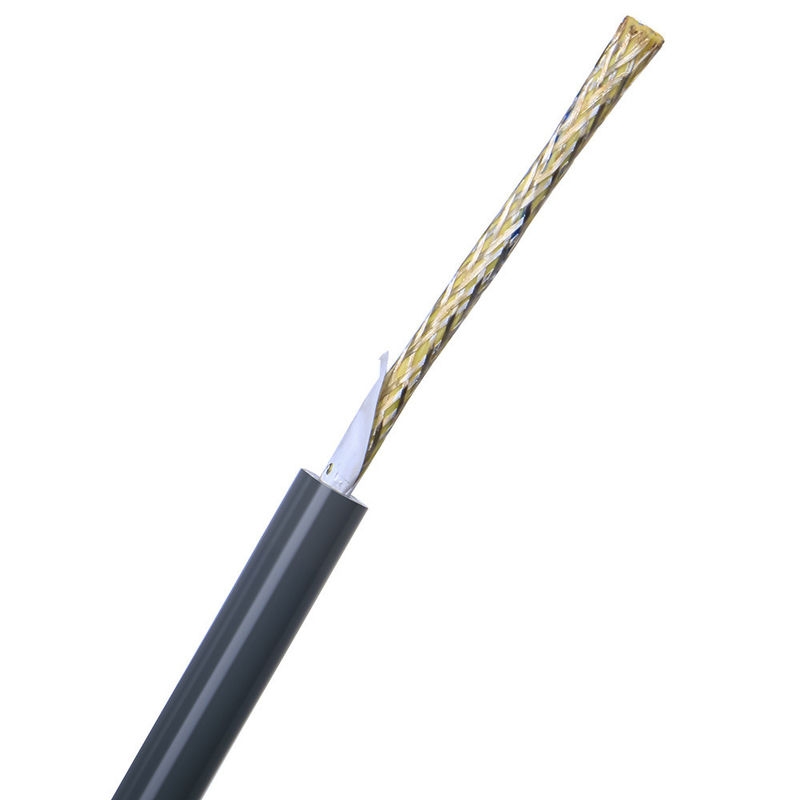

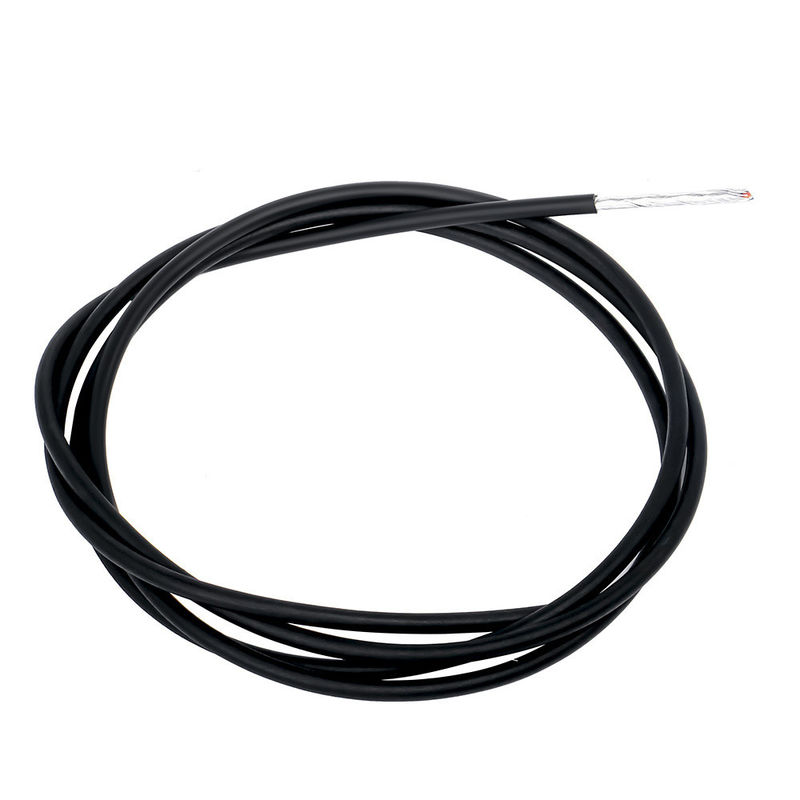

Unshielded Twisted Pair Shielded ADP Cat UTP/FTP/SFTP LAN Cable with PVC Insulation

Unshielded Twisted Pair LAN cable with PVC insulation

Shielded ADP Cat UTP FTP SFTP cable

Automotive LAN cable with PVC insulation

Certification:

ISO9001, CE, CCC, RoHS, VDE, Is013458

Request A Quote

Unshielded Twisted Pair Shielded ADP Cat UTP/FTP/SFTP LAN Cable with PVC Insulation

Product Details

Model NO.:

ADP Cat5e Cat6 Cat6a Cat7 Cat8 Lan Cable

Sheath Material:

PE PVC LSZH HDPE

Insulation Material:

PVC

Material Shape:

Round Wire

Range Of Application:

LAN Cable

Connector:

RJ45 8p8c Gold-Plated

Shield:

Al Foil+Braiding/Unshielded Twisted Pair

Color:

Customized

Name:

LAN Cable

Transport Package:

Roll

Specification:

ADP Cat5e Cat6 Cat6a Cat7 Cat8 Lan Cable 4P UTP/FT

Trademark:

SMT

Origin:

China

HS Code:

8544492900

Supply Ability:

500000meter/Day

Package Size:

40.00cm * 40.00cm * 40.00cm

Package Gross Weight:

28.000kg

Type:

Insulated

Conductor Type:

Stranded

Conductor Material:

Bare Copper,CCA,CCS,Hcca,Ccag

Samples:

US$ 10/Piece 1 Piece(Min.Order) |

Customization:

Available | Customized Request

Shipping Cost :

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Highlight:

Unshielded Twisted Pair LAN cable with PVC insulation

Shielded ADP Cat UTP FTP SFTP cable

Automotive LAN cable with PVC insulation

Payment & Shipping Terms

Insulated Customized Flexible Bus Bar Flat Copper Busbar for Battery with 1200A Capacity

Get Best Price

Video

1200A AMP Insulated Copper Bus Bar with Customizable Insulation and High Conductivity for Vacuum Electrical Appliances

Get Best Price

Video

Customized Shielded Data Cable CAT6 FTP with Flame Retardant LSZH Sheath for High-Speed Data Transmission

Get Best Price

Video

Customizable PVC Insulation Control Cable with Tinned Copper for Industrial Applications

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

ADP cat5e cat6 cat6a cat7 cat8 lan cable 4P UTP/FTP/SFTP lan cable

item	lan cable
Place of Origin	China
	Guangdong
Brand Name	SMT,OEM
Number of Conductors	8
Product name	cat5e cat6 cat6a cat7 cat8 Lan Cable
Shield	Al Foil+braiding/Unshielded Twisted Pair
Conductor	Bare Copper,CCA,CCS,HCCA,CCAG
Number of Conductor	8
Jacket Material	PE PVC LSZH HDPE
Connector	RJ45 8P8C Gold-plated
Keyword	Network Lan Cables
Color	Customized
Payment	T/T

Product Description

Typical Cable Specifications For CAT5E UTP/FTP

Frequency (MHZ)	Return loss(dB)	Attenuation (dB/100m)	NEXT (dB)	ACR (dB)	PSNEXT (dB)	ELEFXT (dB/100m)	PSELEXT (dB/100m)	Delay (ns/100m)
0.772	19.4	1.8	67	65	64	66	63	575.0
1.0	20.0	2.0	65.3	63.0	62.3	63.8	60.8	570.0
4.0	21.0	4.1	56.3	52.0	53.3	51.7	48.7	552.0
8.0	24.5	5.8	51.8	46.0	48.8	45.7	42.7	546.7
10.0	25.0	6.5	50.3	44.0	47.3	43.8	40.8	546.4
16.0	25.0	8.2	47.3	39.0	44.3	39.7	36.7	543.0
20.0	25.0	9.3	45.8	37.0	42.8	37.7	34.7	542.0
25.0	24.3	10.4	44.3	34.0	41.3	35.8	32.8	541.2
31.25	23.6	11.7	42.9	31.0	39.9	33.9	30.9	540.4
62.5	21.5	17	38.4	21.0	35.4	27.8	24.8	438.6
100.0	20.1	22	36.3	13.0	32.3	23.8	20.8	537.6

Typical Cable Specifications For CAT6 UTP/FTP

Frequency (MHZ)	Return loss(dB)	Attenuation (dB/100m)	NEXT (dB)	ACR (dB)	PSNEXT (dB)	ELEFXT (dB/100m)	PSELEXT (dB/100m)	Delay (ns/100m)
0.772	19.4	1.8	76.0	74.0	74.0	70.0	67.0	575.0
1.0	20.0	2.0	74.3	72.0	72.3	67.8	64.8	570.0
4.0	23.0	3.8	65.5	61.0	63.3	55.8	52.8	552.0
8.0	24.5	5.3	60.8	55.0	58.8	49.7	46.7	546.7
10.0	25.0	6.0	59.3	53.0	57.3	47.8	44.8	545.4
16.0	25.0	7.6	56.2	49.0	54.2	43.7	40.7	543.0
20.0	25.0	8.5	54.8	46.0	52.8	41.8	38.8	542.0
25.0	24.3	9.5	53.3	44.0	51.3	39.8	36.8	541.2
31.25	23.6	10.7	51.9	41.0	49.9	37.9	34.9	540.4
62.5	21.5	15.4	47.4	32.0	45.4	31.9	28.9	538.6
100.0	20.1	19.8	44.3	24.5	42.3	27.8	24.8	537.6
200.0	18.0	29.0	39.8	10.8	37.8	21.8	18.8	536.5
250.0	17.3	32.8	38.3	5.5	36.3	19.8	16.8	536.3

Typical Cable Specifications For CAT5E SFTP

Frequency(MHZ)	Attenuation(dB/100meter at 20ºC), Max	Next(dB),Min	Power Sum(dB),Min
1MHz	-----	65*	62*
4.0	4.1*	56*	53*
8.0	5.8*	51*	48*
10.0	6.5*	50*	47*
16.0	8.2*	47*	44*
20.0	9.3*	45*	42*
25.0	10.4*	44*	41*
31.25	11.7*	42*	39*
62.5	17.0*	38*	35*
100.0	22.0*	35*	32*
125.0	25.0*	34*	31*

Typical Cable Specifications For CAT6 SFTP

Frequency(MHZ)	Attenuation(dB/100meter at20ºC),Max	Next(dB),Min	Power Sum(dB),Min
0.772	-----	67*	64*
1.0	-----	65*	62*
4.0	6.4*	56*	53*
8.0	8.9*	51*	48*
10.0	9.9*	50*	47*
16.0	12.3*	47*	44*
20.0	13.8*	45*	42*
25.0	16.0*	44*	41*
31.25	17.1*	42*	39*
62.5	25.6*	38*	35*
100.0	100MHz	33*	32*
125.0	37.4*	34*	31*

Typical Cable Specifications For CAT7 SFTP

Frequency(MHZ)	Attenuation(dB/100meter at20ºC),Max	Next(dB),Min	Power Sum(dB),Min
1	2.0*	80.0*	77.0*
4	3.7*	80.0*	77.0*
10	5.9*	80.0*	77.0*
16	7.4*	80.0*	77.0*
20	8.3*	80.0*	77.0*
31.25	10.4*	80.0*	77.0*
62.5	14.9*	75.5*	72.5*
100	19.0*	72.4*	69.4*
155	24.0*	69.5*	66.5*
200	27.5*	67.9*	64.9*
300	34.2*	65.2*	62.2*
600	50.10*	60.7*	57.7*

Company Profile:

we are a leading cable supplier in China, who specialized in measuring & control devices cable, medical equipment cable, automotive & rail transit cable, wind & solar energy cable, alarm & security cable, conveyor and elevators cable, conveyors & cranes cable, communications & coaxial cable's R&D and production.

In the past over 10 years, we've been focusing on technical researching, production and marketing of wire and cable. And provide the best cables and various cable custom solutions for customers from world wide. You always can get a suitable cable or cable custom service for your product or application from Linke Cable.
ADP Cat UTP/FTP/SFTP LAN Cable

Our certification:

We past UL1569,2095,2103,2104,2129,2463,2576,2586,2587,2661,2919,10012,10070,10269,10483,20886 and 21664.
ISO9001 and ISO13485

CNR- Appliance Wiring Material,Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.
ADP Cat UTP/FTP/SFTP LAN Cable

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
