AVS Automotive PVC Insulated Copper Wire and Cable Customized 1200A

AVS Automotive PVC Insulated Copper Wire and Cable Customized 1200A

PVC Insulated Copper Wire

1200A PVC Insulated Copper Wire

Copper Wire and Cable 1200A

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C,UL,TPU,UL758,ROHS,REACH,CE,ISO9001-2015,ISO13485,IATF16949

Contact Us
Request A Quote
Product Details
Model NO.:
AV AVS
AMP:
1200A
Color:
Customized
Customized:
Customized
Material:
Silicone
Conductor:
Tinned Copper
Insulation:
Silicone
Jacket:
Silicone
Voltage:
500V
Property:
High Temperature Resistance
Transport Package:
Box Packaging
Specification:
60*60*50CM
Trademark:
LINKE
Origin:
China
HS Code:
94054090
Supply Ability:
100000000
Package Size:
83.00cm * 83.00cm * 58.00cm
Package Gross Weight:
28.000kg
Lead Time:
10 Days (1 - 1000 Meters) To Be Negotiated ( > 1000 Meters)
After-sales Service:
1year
Warranty:
1year
Certification:
RoHS, TUV, CE, ISO
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

PVC Insulated Copper Wire

,

1200A PVC Insulated Copper Wire

,

Copper Wire and Cable 1200A

Payment & Shipping Terms
Minimum Order Quantity
3000m
Price
Negotiable
Packaging Details
According to requirement
Delivery Time
7-15 days
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
50000m/day
Product Description

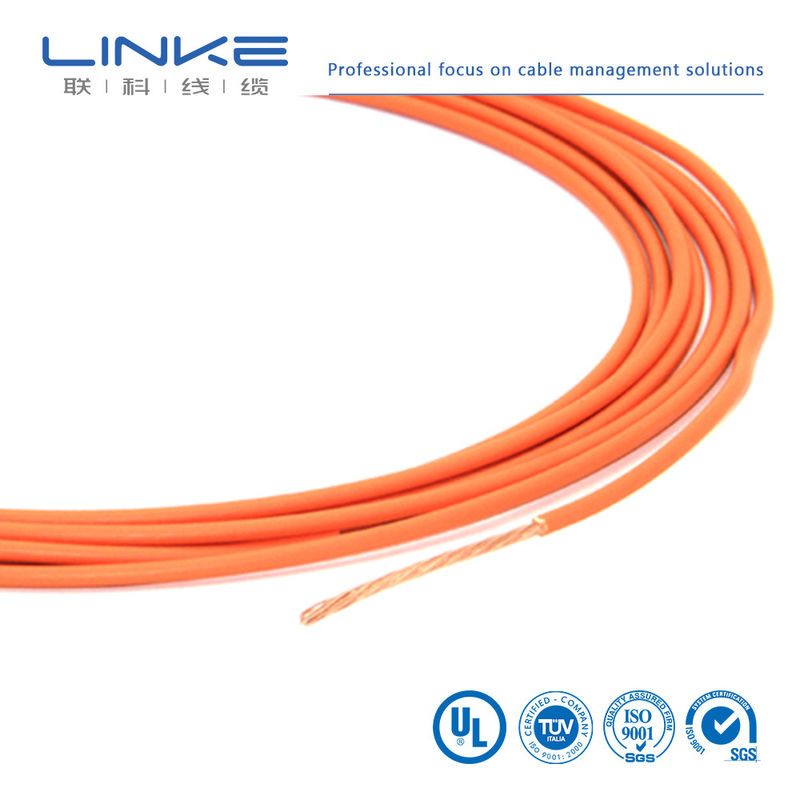

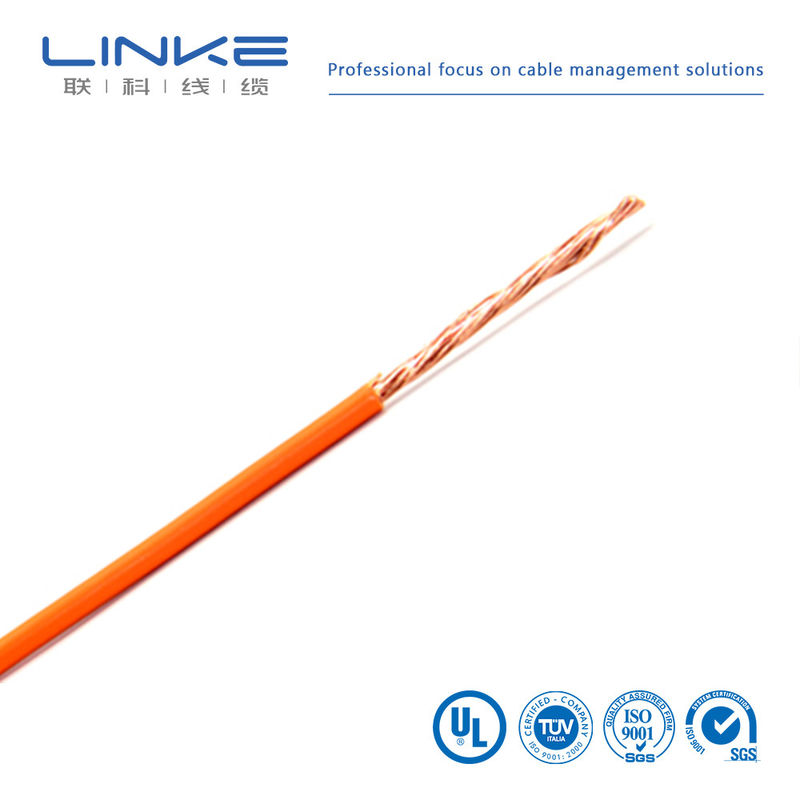

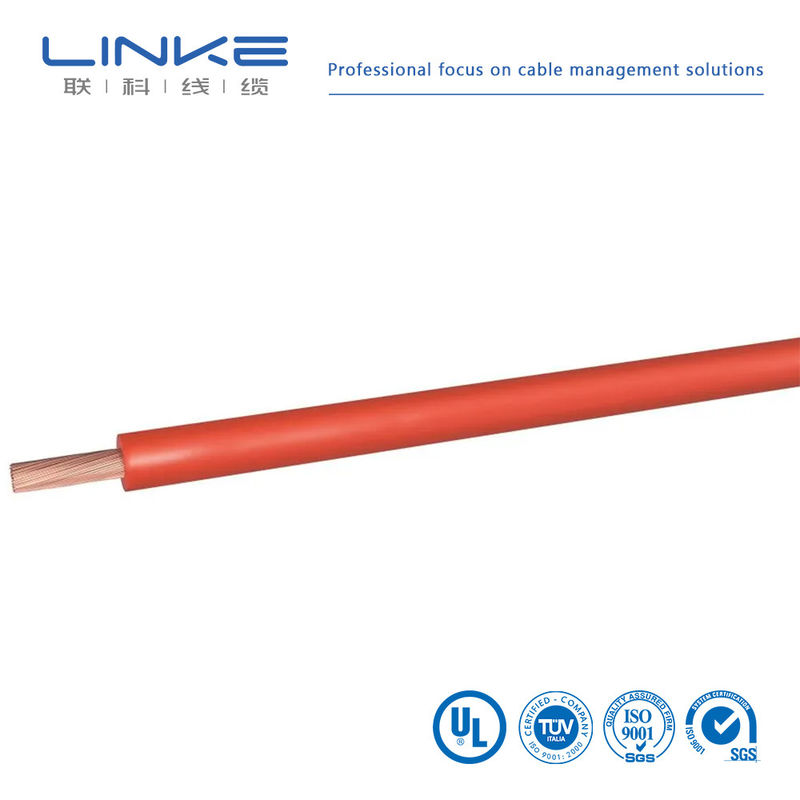

Customized AVS Automotive PVC Insulated Copper Wire and Cable

AV Automotive PVC Insulated Copper Wire And Cable

Detailed Photos

Details

Brand LINKE Cable
Conductor copper
Core Single Core
Color Black, Blue, Brown, customized, Dark Blue, Gray, Green, Orange, Purple, Red, white, Yellow
Temperature (°C) - flexing –40°C to +85°C
Nominal voltage U0/U 60V
MOQ 300M/Roll

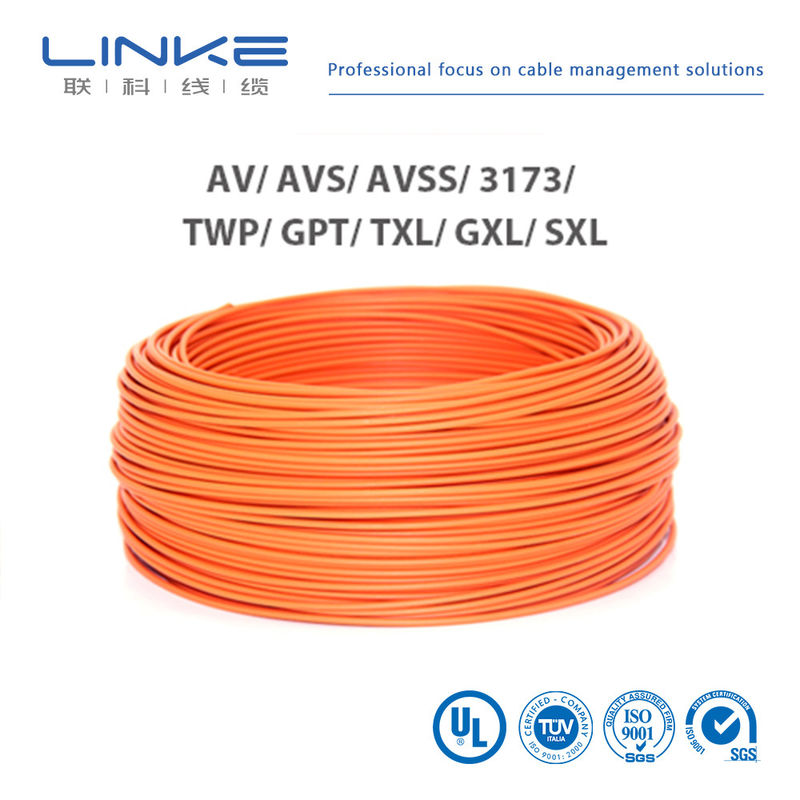

AV AVS Automotive Wire

Application:

AV type Automotive PVC insulated single-Core cable is used for low voltage circuits in automobiles, vehicles and motorcycles.

•Wires used in low voltage circuits in automobiles (vechicles and motorcycles).
•General purpose wires for automobiles ; they are used In low voltage circuits such as starting, charging, lighting, signal and instrument panel circuits. Standard : JASO D 611 85°C



Product Description:
•Stranded Copper conductor 0.3 – 5.0 SQMM

Product Information
Conductor Cu-ETP1 according to JIS C3102Cu-ETP1 according to JIS C3102
Core Single core
Temp –40 °C to +85 °C
Insulation PVC
Test voltage 60V
Standard Compliance JIS C 3406
Sheath colour Red, Black, White, etc.
Packaging Meter marking
Product Description

AV/AVF

PVC automotive cable

Temperature Rating:

–40 °C to +85 °C(3000 hours)

Construction / Materials

1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to D 609-90, bare. Conductor construction according to JIS C 3102/JIS C3406.

2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JIS C3406.

Nominal cross-section No. of strands Dia. Single Wire Max. Dia. Conductor Max. Elec. Resistance at 20 °C Wall Thickness O.D. Min O.D. Max
mm2   mm Mm mΩ/m mm mm mm
0.5 7 0.32 1.0 32.7 0.6 2.2 2.4
0.85 11 0.32 1.2 20.8 0.6 2.4 2.6
1.25 16 0.32 1.5 14.3 0.6 2.7 2.9
2 26 0.32 1.9 8.81 0.6 3.1 3.4
3 41 0.32 2.4 5.59 0.7 3.8 4.1
5 65 0.32 3.0 3.52 0.8 4.6 4.9
8 50 0.45 3.7 2.32 0.9 5.5 5.8
10 63 0.45 4.5 1.84 1.0 6.5 6.9
15 84 0.45 4.8 1.38 1.1 7.0 7.4
0.5f 20 0.18 1.0 36.7 0.6 2.2 2.4
0.75f 30 0.18 1.2 24.4 0.6 2.4 2.6
1.25f 50 0.18 1.5 14.7 0.6 2.7 2.9
2f 37 0.26 1.8 9.5 0.6 3.0 3.4
3f 61 0.26 2.4 5.76 0.7 3.8 4.1

AVS / AVSF

PVC automotive cable

Temperature Rating:

–40 °C to +85 °C(3000 hours)

Construction / Materials

1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to D 609-90, bare. Conductor construction according to JASO D 611-94.

2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JASO D 611-94.

Nominal cross-section No. of strands Dia. Single Wire Max. Dia. Conductor Max. Elec. Resistance at 20 °C Wall Thickness O.D. Min O.D. Max
mm2   mm Mm mΩ/m mm mm mm
0.3 7 0.26 0.8 50.2 0.6 1.8 1.9
0.5 7 0.32 1.0 32.7 0.5 2.0 2.1
0.85 11 0.32 1.2 20.8 0.5 2.2 2.3
1.25 16 0.32 1.5 14.3 0.5 2.5 2.6
2 26 0.32 1.9 8.81 0.5 2.9 3.1
3 41 0.32 2.4 5.59 0.6 3.6 308
5 65 0.32 3.0 3.52 0.7 4.4 4.6
0.3f 15 0.18 0.8 48.9 0.5 1.8 1.9
0.5f 20 0.18 1.0 36.7 0.5 2.0 2.1
0.75f 30 0.18 1.2 24.4 0.5 2.2 2.3
1.25f 50 0.18 1.5 14.7 0.5 2.5 2.6
2f 37 0.26 1.8 9.5 0.5 2.9 3.1

AVSS / AVSSF

PVC automotive cable with thin wall insulation

Temperature Rating:

–40 °C to +85 °C(3000 hours)

Construction / Materials

1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to JIS C 3102, bare. Conductor construction according to JASO D 611-94.

2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JASO D 611-94.

Nominal cross-section No. of strands Dia. Single Wire Max. Dia. Conductor Max. Elec. Resistance at 20 °C Wall Thickness O.D. Min O.D. Max
mm2   mm Mm mΩ/m mm mm mm
0.3 7 0.26 0.8 50.2 0.3 1.4 1.5
0.5 7 0.32 1.0 32.7 0.3 1.6 1.7
0.85 19 0.24 1.2 21.7 0.3 1.8 1.9
1.25 19 0.29 1.5 14.9 0.3 2.1 2.2
2 37 0.26 1.8 9.5 0.4 2.6 2.7
0.3f 19 0.16 0.8 48.9 0.3 1.4 1.5
0.5f 19 0.19 1.0 34.6 0.3 1.6 1.7
0.75f 19 0.23 1.2 23.6 0.3 1.8 1.9
1.25f 37 0.21 1.5 14.6 0.3 2.1 2.2
