Tinned Copper Silicone Rubber Cable UL3858 High Voltage Power Cable Soft silicone wire

Tinned Copper Silicone Rubber Cable UL3858 High Voltage Power Cable Soft silicone wire

Tinned Copper Silicone Rubber Cable

3000V High Voltage Power Cable

UL3858 Silicone Rubber Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C,UL,TPU,UL758,ROHS,REACH,CE,ISO9001-2015,ISO13485,IATF16949

Contact Us
Request A Quote
Product Details
Model NO.:
UL3858
Conductor Material:
Copper
Sheath Material:
Silicone Rubber
Material Shape:
Round Wire
Range Of Application:
Internal Wiring Of Vehicle
Rated Voltage:
3000V
Copper:
Tinned Copper
Core:
Multiple
Lead Time:
7-15days
Type:
Insulated
Conductor Type:
Twisted Wire
Application:
Overhead, Heating, Underground
Customization:
Available
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Conductor Material:
Copper/Tinned Copper
Exterior Material:
Customize:PVC、PE、LSFOH、silicone Rubber
Insulating Materials:
Customize:PVC、PE 、XLPE、EPR、SIR
Specifications:
0.1-450mm²
Rated Voltage:
300-600V
Rated Temperature:
-60± 200℃
Package:
By Roll
Highlight:

Tinned Copper Silicone Rubber Cable

,

3000V High Voltage Power Cable

,

UL3858 Silicone Rubber Cable

Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Negotiable
Packaging Details
According to requirement
Delivery Time
7-15 days
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
50000m/day
Product Description

High Temperature Resistant Silicone Rubber UL3858 Tinned Copper High Voltage Power Cable





Detailed Photos







SILICONE RUBBER WIRE

EV CABLE Special silicone rubber cable for Thunderbolt vehicles uL3858/AwM sTYLE 3858



 PRODUCT DESCRIPTION

*  Stranded Tinned Copper

*  Silicone Rubber Sheath

*  Rated temperature 150°C

*  3000V/AC Rated voltage 3000V/AC

*  Flexible/High temperature resistant/Cold-resistant

*  Available UL Verify



AWM 3858 wire is designed for high voltage applications such as electric vehicles, electric buses,where high abrasion resistance, high voltage resistance and flexibility are key features. Suitable forhigh power and high temperature applications: electric vehicle high voltage box, electronic controldrive MCU, charging socket PLUG, battery management system BMS and other environments.

Temperature resistance:150°℃

Voltage endurance:3000V/AC,

Coating material: Silicone Rubber Sheath



No isolation or shielding

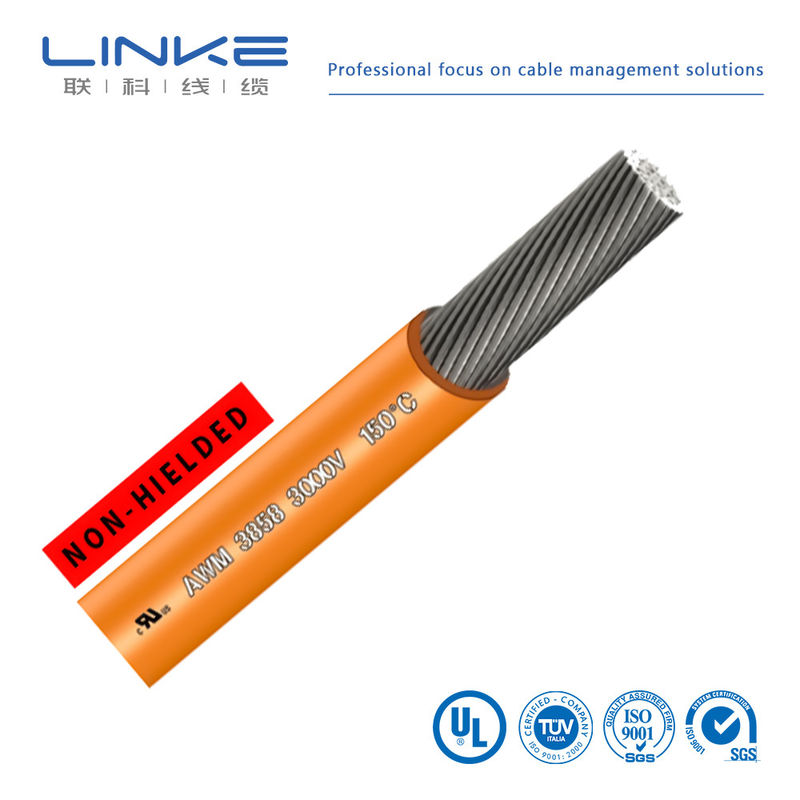

AWM 3858 Silicone rubber heat-resistant wire 150°C(NON-SHIELDED TYPE)3000V/AC



Tinned Copper Silicone Rubber Cable UL3858 High Voltage Power Cable Soft silicone wire 0

Size

mm²(AWG)

Sheath Thickness

Braided shielded

Yes/Non

Overall Diameter Amp/Current
4mm²(12AWG) Aver.0.75mm Non Approx.4.1mm 28 A
5.5mm²(10AWG) Aver.0.75mm Non Approx.4.6mm 35 A
6mm²(10AWG) Aver.0.75mm Non Approx.4.8mm 40 A
8mm²(8AWG) Aver.1.40mm Non Approx.6.5mm 55 A
14mm²(6AWG) Aver.1.40mm Non Approx.7.7mm 93 A
22mm²(4AWG) Aver.1.40mm Non Approx.9.8mm 119 A
38mm²(2AWG) Aver.1.75mm Non Approx.12.7mm 166 A
50mm²(1/0AWG) Aver.1.75mm Non Approx.14.2mm 255 A
60mm²(2/0AWG) Aver.1.75mm Non Approx.15.1mm 303 A
80mm²(3/0AWG) Aver.1.75mm Non Approx.17.0mm 356A
100mm²(4/0AWG) Aver.1.75mm Non Approx.18.7mm 401 A
125mm²(4/0AWG) Aver.1.75mm Non Approx.19.3mm 448 A

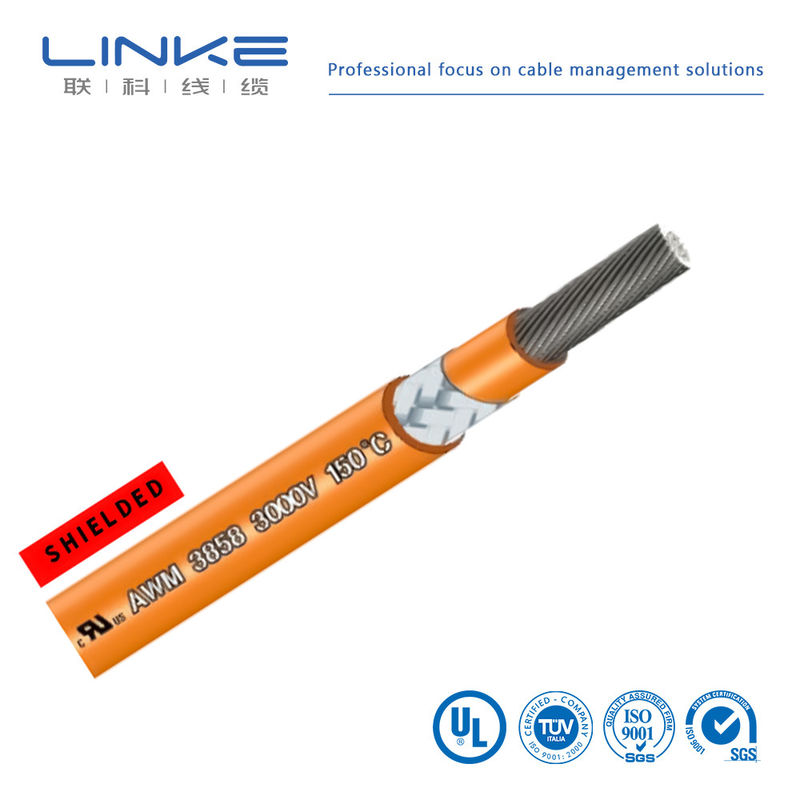

 SHIELDED

AWM 3858 3000V 150'C



AWM 3858 wire is designed for high voltage applications such as electric vehicles, electric buseswhere high abrasion resistance, high voltage resistance and flexibility are key features. Suitable forhigh power and high temperature applications: electric vehicle high voltage box, electronic controldrive MCU, charging socket PLUG, battery management system BMS and other environments.

Temperature resistance:150°℃

Voltage endurance:3000V/AC,

Coating material: Silicone Rubber Sheath



Isolation and shielding

AWM 3858 Silicone rubber heat-resistant wire150°C(SHIELDED TYPE)3000V/AC

Tinned Copper Silicone Rubber Cable UL3858 High Voltage Power Cable Soft silicone wire 1



Size

mm²(AWG)

Sheath Thickness

Braided shielded

Yes/Non

Overall Diameter Amp/Current
4mm²(12AWG) Aver.0.75mm Yes Approx.6.1mm 28 A
5.5mm²(10AWG) Aver.0.75mm Yes Approx.6.6mm 35 A
6mm²(10AWG) Aver.0.75mm Yes Approx.6.8mm 40 A
8mm²(8AWG) Aver.1.40mm Yes Approx.9.8mm 55 A
14mm²(6AWG) Aver.1.40mm Yes Approx.11.0mm 93 A
22mm²(4AWG) Aver.1.40mm Yes Approx.13.1mm 119 A
38mm²(2AWG) Aver.1.75mm Yes Approx.16.7mm 166 A
50mm²(1/0AWG) Aver.1.75mm Yes Approx.18.2mm 255 A
60mm²(2/0AWG) Aver.1.75mm Yes Approx.19.1mm 303 A
80mm²(3/0AWG) Aver.1.75mm Yes Approx.21.0mm 356A
100mm²(4/0AWG) Aver.1.75mm Yes Approx.22.7mm 401 A
125mm²(4/0AWG) Aver.1.75mm Yes Approx.23.3mm 448 A
