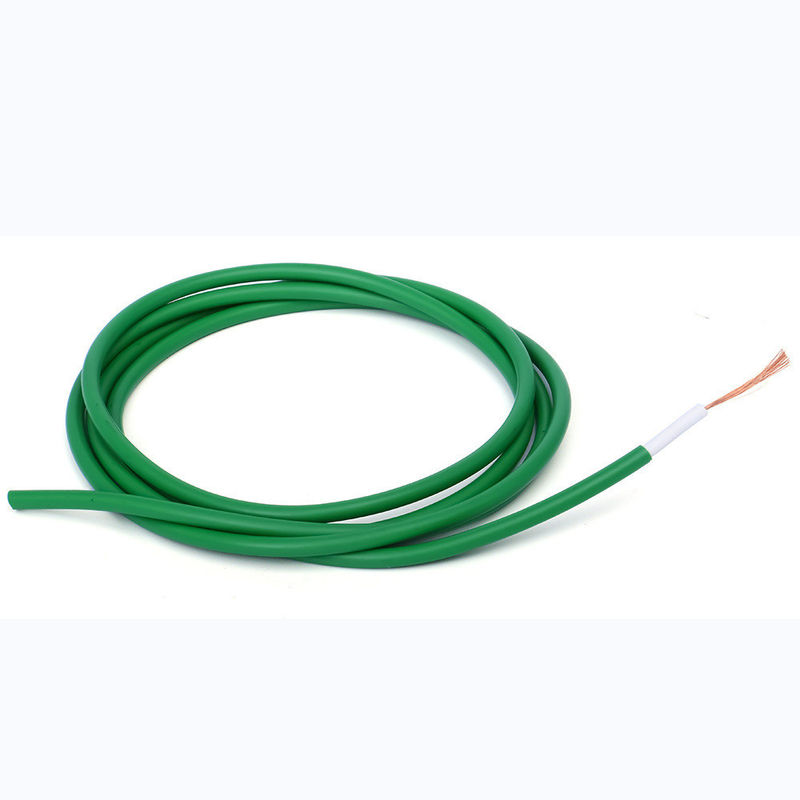

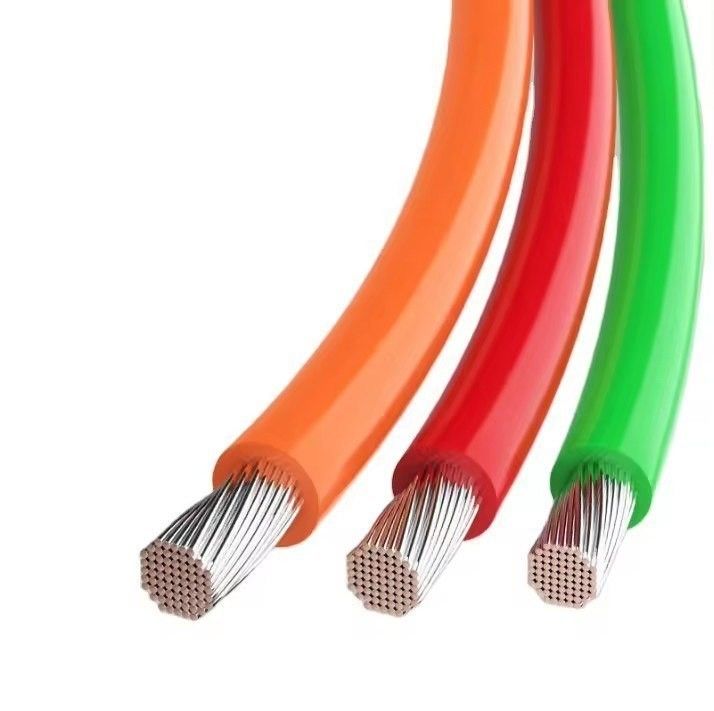

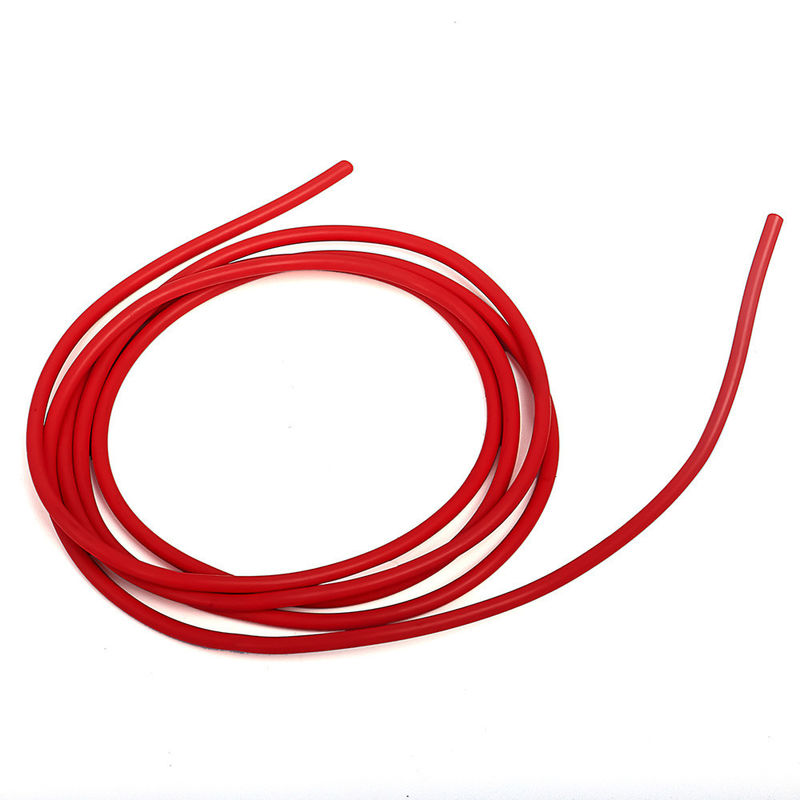

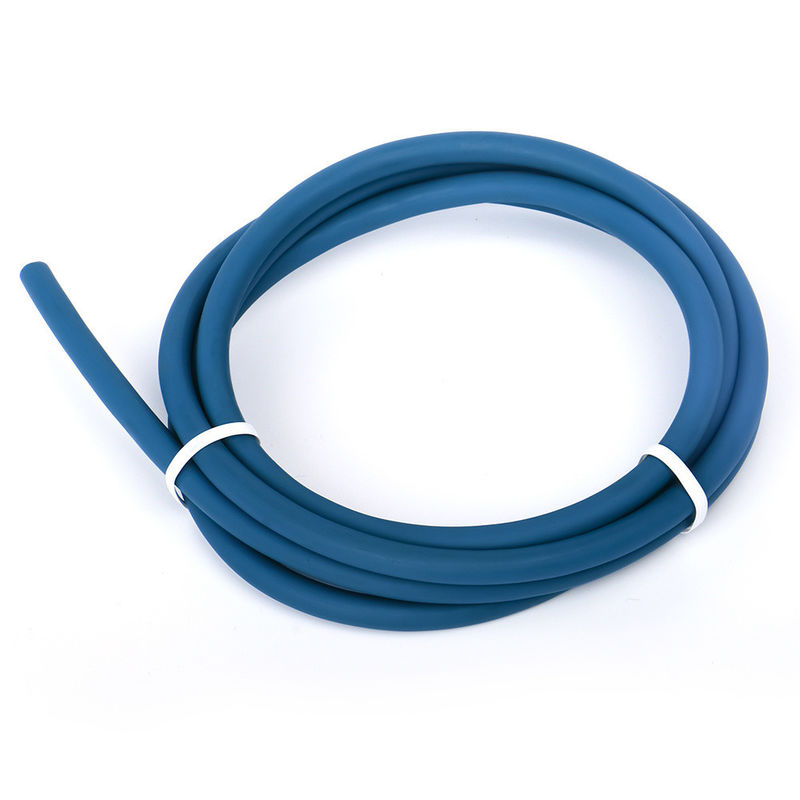

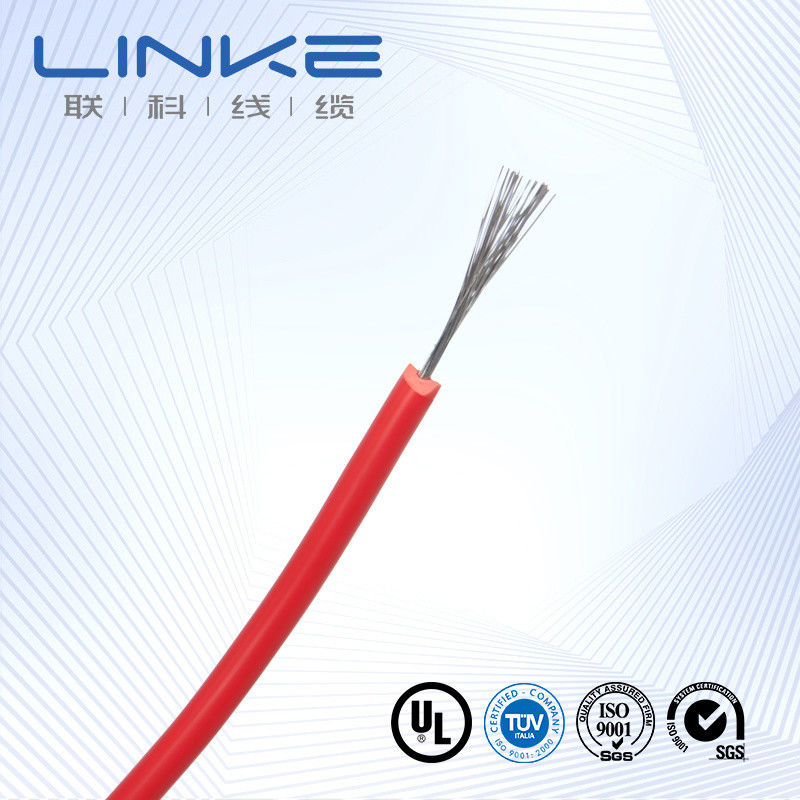

Specialty Factory UL3858 High Voltage New Energy Wire Silicone Rubber Cable
Product Description:
UL Style Number:3858
技术参数 Specifications
额定电压/Rated voltage: 3000V
额定温度/Rated Temperature: 150℃
标准/Standard: UL758/UL1581
应用Applications
全封闭的电器内部连接线
Internal wiring of appliances where totally enclosed.
印字Marking:E364879
AWM 3858 **mm2 150℃ 3000V C AWM I A 150℃ 3000V FT2 Linke Cable
注:线材规格可以定制Note: Wire specifications can be customized
| 导体Conductor |
绝缘Insulation |
最大导体电阻 Max.
Conductor Resistance(Ω/KM)
|
|
线规
Size(mm2)
|
线数/线径
Construction(No./mm)
|
直径
Diameter(mm)
|
绝缘厚度
Nominal thickness(mm)
|
完成外径
Diameter(mm)
|
裸铜
Bare copper
|
镀锡铜
Tinned copper
|
| 4 |
128/0.20 |
2.62 |
0.75 |
4.20±0.15 |
4.95 |
5.09 |
| 6 |
196/0.20 |
3.50 |
0.75 |
5.00±0.15 |
3.3 |
3.39 |
| 10 |
322/0.20 |
4.50 |
1.40 |
7.30±0.20 |
1.91 |
1.95 |
| 16 |
513/0.20 |
5.70 |
1.40 |
8.50±0.25 |
1.21 |
1.24 |
| 25 |
798/0.20 |
7.10 |
1.60 |
10.30±0.30 |
0.78 |
0.795 |
| 35 |
1121/0.20 |
8.50 |
1.52 |
11.60±0.30 |
0.554 |
0.565 |
| 50 |
1596/0.20 |
10.10 |
1.75 |
13.60±0.50 |
0.386 |
0.393 |
| 70 |
2242/0.20 |
12.10 |
1.75 |
15.60±0.50 |
0.272 |
0.277 |
| 95 |
3034/0.20 |
14.10 |
1.75 |
17.60±0.60 |
0.206 |
0.21 |
| 120 |
3848/0.20 |
15.90 |
1.75 |
19.40±0.70 |
0.161 |
0.164 |
颜色 Colours:黑色(Black),棕色(Brown),红色(Red),橙色(Orange),黄色(Yellow),绿色(Green),蓝色(Blue),紫色(Purple),灰色(Gray),白色(White),黄/绿(Yellow/Green),透明(Transparent)
