Tinned Copper Silicone Wire Cable with High Flexibility 500V Voltage and High Temperature Resistance

Tinned Copper Silicone Wire Cable

50CM Silicone Wire Cable

500V Voltage Silicone Rubber Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-S19

AMP:

1200A

Color:

Customized

Material:

Silicone

Conductor:

Tinned Copper

Voltage:

500V

Property:

High Temperature Resistance

Transport Package:

Box Packaging

Certification:

RoHS, TUV, CE, ISO

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Core:

Multiple

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Type:

Insulated

Lead Time:

7-15days

Highlight:

Tinned Copper Silicone Wire Cable

50CM Silicone Wire Cable

500V Voltage Silicone Rubber Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

1-30AWG Tinned Copper XLPE Insulation UL1015 Control Cable for Industrial Applications

Get Best Price

Video

FEP Insulated UL1333 Cable with Oil Resistance and Wide Temperature Range for Temperature Sensors

Get Best Price

Video

Flexible Electric Cable with Pure Copper Conductor 450/750V PVC Insulation UL Electrical Wire

Get Best Price

Video

Oil Resistant PVC Outer Jacket Shielded Wire Data Cable with High-speed Transmission for Electronic Equipment

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

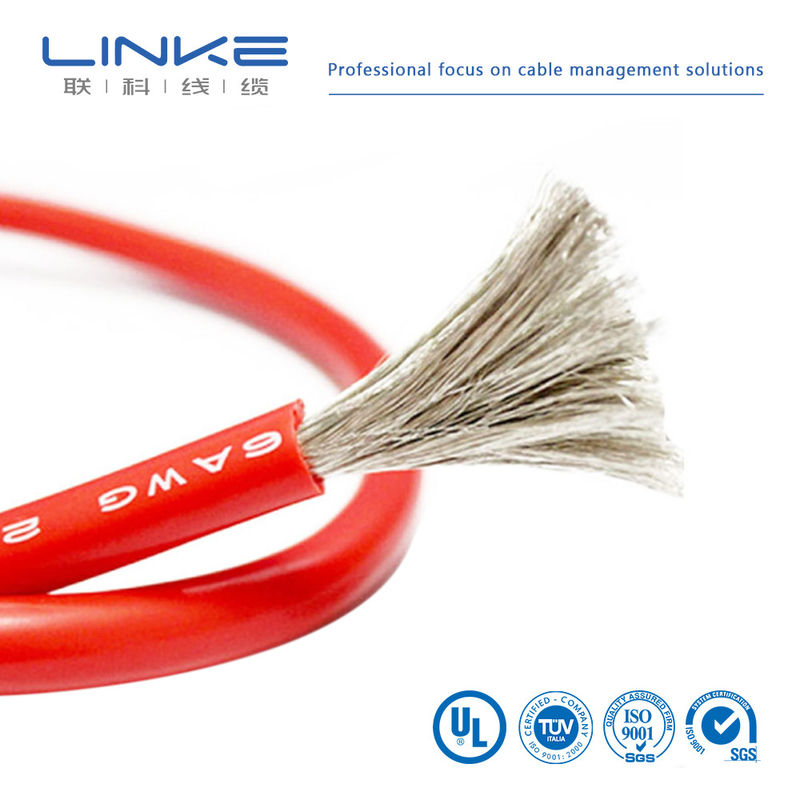

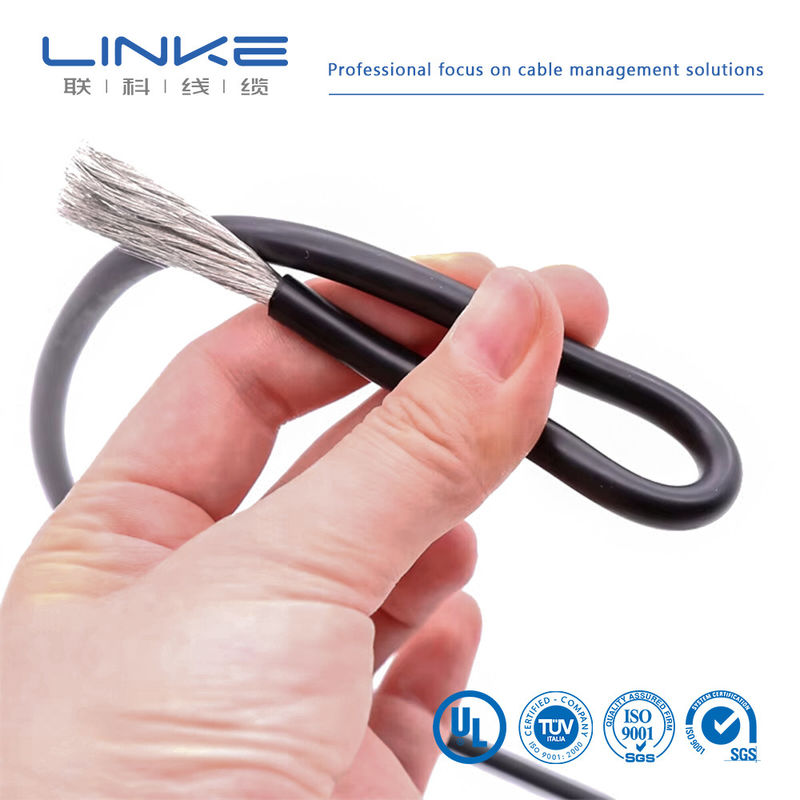

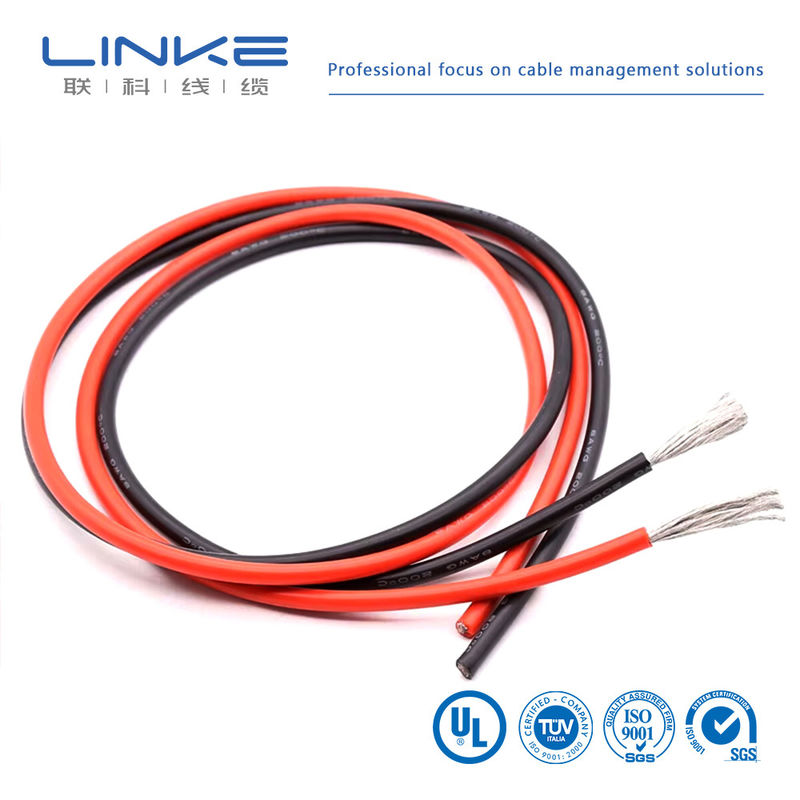

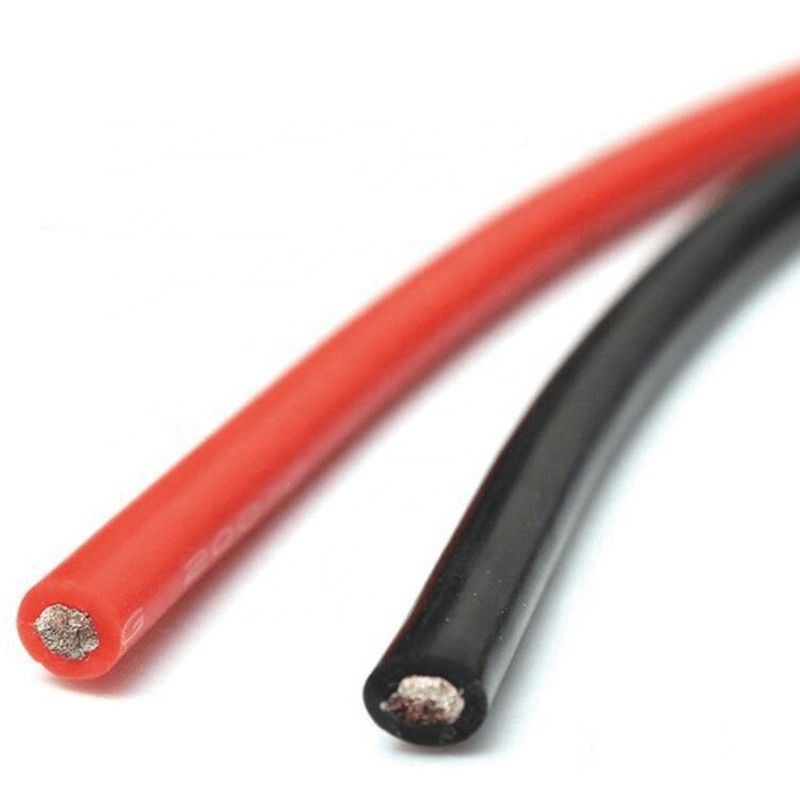

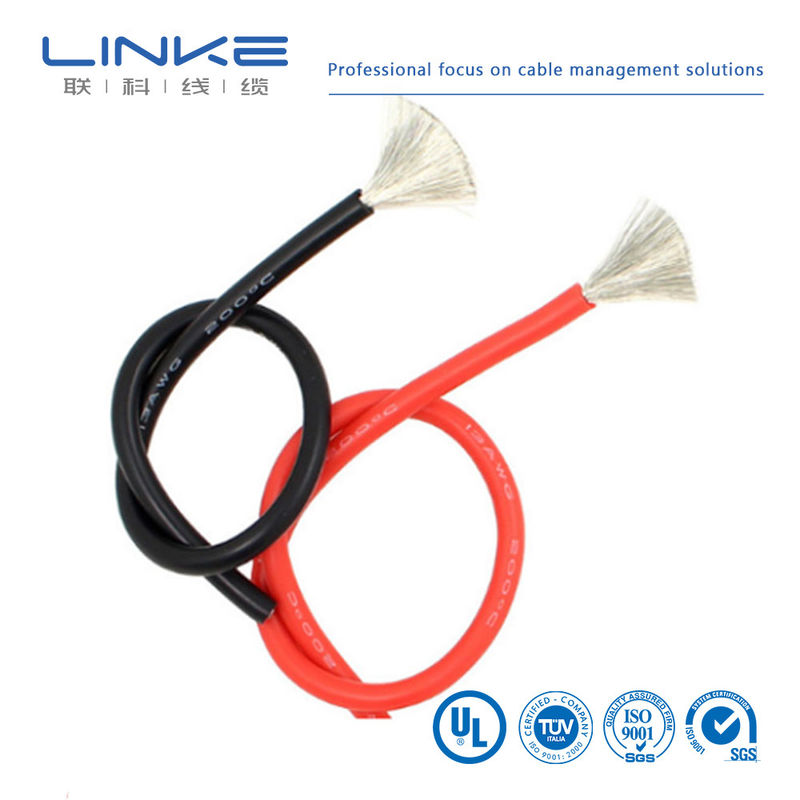

Tinned Copper Silicone Wire Cable

Ultra-flexible very high strand count soft silicone cable with high temperature resistance and 500V/600V voltage rating, available in gauges 6-14AWG.

Product Specifications

Conductor: Ultra flexible high strand count tinned copper for maximum flexibility
Insulation: Silicone
Temperature Range: -60°C to 200°C (-76°F to 392°F)
Voltage Rating: 600 VAC
Compliances: Designed to meet UL VW-1 Vertical Wire Flame Test, RoHS Compliant

Applications

Battery Cable, Power Cable, Robotics, RC, Hobby, Automotive, Speakers, anywhere extra flexibility or high temperature rated is necessary.

Technical Specifications Table

Gauge (AWG)	Number of Strands	Gauge of Strands	Insulation Thickness	Finished Wire Diameter
06	3200	40 AWG (0.08MM)	.065" (1.65mm)	.334" (8.5mm)
08	1650	40 AWG (0.08MM)	.059" (1.50mm)	.236" (6.0mm)
10	1050	40 AWG (0.08MM)	.051" (1.30mm)	.213" (5.4mm)
12	680	40 AWG (0.08MM)	.041" (1.05mm)	.177" (4.5mm)
14	400	40 AWG (0.08MM)	.033" (0.83mm)	.138" (3.5mm)

Product Images

Frequently Asked Questions

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name and even customize the quality card to promote your company.
