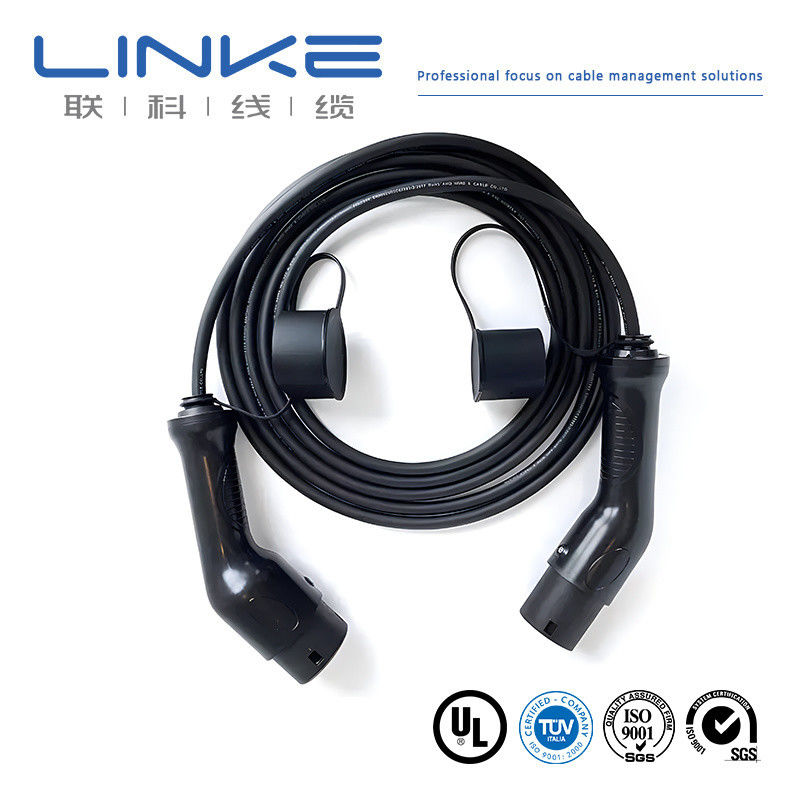

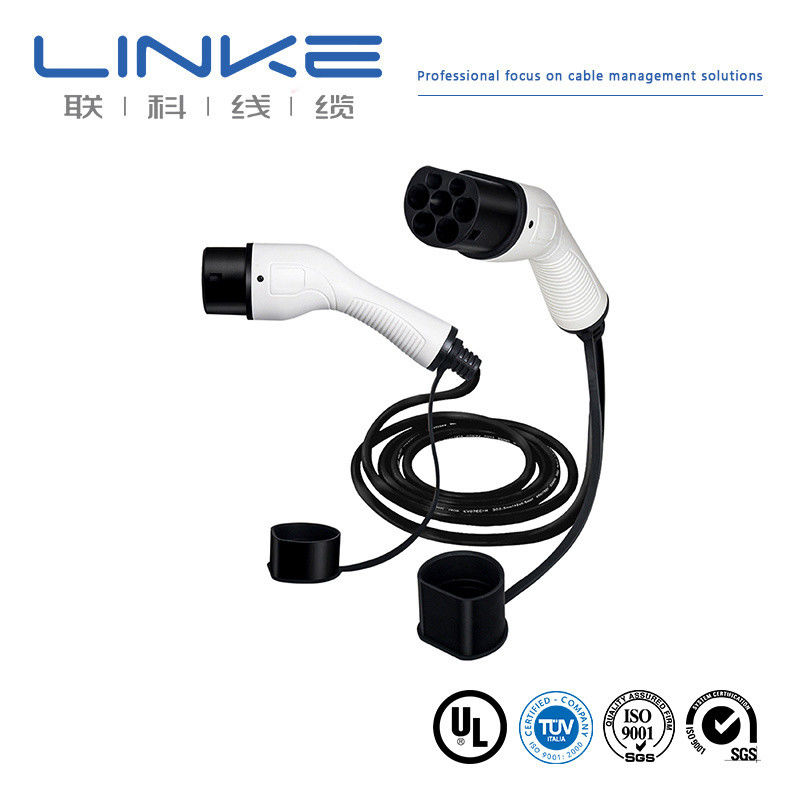

IEC 62196-2 Plug EV Charging Cable with CE TUV Certificate and Bare Copper Conductor for Slow EV Charging Station

Slow EV Charging Station Cable

TUV EV Charging Station Cable

IEC 62196-2 Plug EV Charger Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-EV55

Charge Method:

Quick Charge

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Conductor:

Bare Copper

Structure:

3034/0.20

Jacket:

Silicone

Use:

Charging

After-Sales Service:

1 Year

Type:

Slow EV Charging Station

Warranty:

1year

Transport Package:

Roll

Specification:

Trademark:

LINKE

Origin:

China

HS Code:

94054090

Supply Ability:

100000000

Package Size:

60.00cm * 55.00cm * 50.00cm

Package Gross Weight:

30.000kg

Number Of Charging Interfaces:

One Pile With Multiple Charges

Location:

Private Use

Installation:

Wall Mounted

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Package:

By Roll

Core:

Multiple

Lead Time:

7-15days

Highlight:

Slow EV Charging Station Cable

TUV EV Charging Station Cable

IEC 62196-2 Plug EV Charger Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

预付款+发货付尾款

Supply Ability

50000m/day

Tinned Wire Automotive Primary Copper Wire Electric Wire Cable Copper core soft sheath

Get Best Price

Video

EV HV Cable High Voltage Unshielded Wire with 1500V High Temperature XLPE Insulation for Construction

Get Best Price

Video

Flexible Fire Proof RVV Cable with Tinned Copper Core for Customizable EV HV Power Applications

Get Best Price

Video

IEC 62196-2 Plug EV Charging Cable with CE TUV Certificate and Bare Copper Conductor for Slow EV Charging Station

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

IEC 62196-2 Plug Slow EV Charging Station Cable

Professional EV charging cable with CE TUV Certificate for reliable slow charging applications

Product Images

Technical Specifications

Cable Construction

Specification	Details
Cable Name	EV Cable
Cable Specification	2C80mm²+1C25mm²+2C4mm²+(3C0.75mm²)(P2)+(7C*0.75mm²) RoHS Compliant

Conductor Details

Item	Material	Size	O.D. (Ref.)
A: 2C*80mm²	Bared copper stranded	2580/0.20 ±0.008mm	12.40±0.25mm
B: 1C*25mm²	Bared copper stranded	798/0.20 ±0.008mm	7.00±0.20mm
C: 1C*4mm²	Bared copper stranded	224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar	2.70±0.15mm
D: (3C*0.75mm²)(P2)	Bared copper stranded	40/0.15±0.008mm+10/0.19mmTinsel+200DKevlar	1.40±0.10mm
E: (7C*0.75mm²)	Bared copper stranded	40/0.15±0.008mm+10/0.19mmTinsel+200D Kevlar	1.40±0.10mm

Insulation Properties

Component	Material	Min. Average Thickness	Min. Thickness at Any Point	O.D.
Insulation	Thermoplastic (EF2585,85±3A)	1.60mm	1.34mm	15.60±0.40mm
In-Jacket	TPE	0.60mm	0.42mm	7.20±0.25mm / 9.70±0.25mm

Cabling Construction

Component	Details
Filler	Strengthed PP rope
Material	Non-woven (≥25% overlapping)
Assembly	2C80mm²+1C25mm²+2C4mm²+(3C0.75mm²)(P2)+(7C*0.75mm²)

Jacket Specifications

Parameter	Value
Material	TPU
Min. Average Thickness	2.80mm
Min. Thickness at Any Point	2.28mm
O.D.	38.00+0.6/-1.00mm

Electrical Characteristics

Parameter	Value
Rated Voltage	DC 1000V
Rated Temperature	Jacket: -40~90ºC Insulation: -40~125ºC
Max. Conductor Resistance (20ºC)	A: 0.242Ω/km B: 0.78Ω/km C: 4.95Ω/km D&E: 26Ω/km
Insulation Voltage Withstand	AC 2.5kV/5min, leakage current ≤5mA
Completed Cable Voltage Withstand	AC 3.5kV/15min, leakage current ≤5mA
Min. Insulation Resistance (20ºC)	500MΩ.km

Physical Properties

Property	Value
Tensile Strength	≥20MPa
Elongation	≥300%
Aged Condition	110±1ºC*168h
Percent of Original Tensile Strength	≤±30%
Percent of Original Elongation	≤±30%
Flame Test	GB/T 18380.12-2008
Low-temperature Impact Test	-40ºC*16H, No crack
Min. Bend Radius	6*OD
Abrasion Resistance	≥2000 times

Additional Product Images

IEC 62196-2 Plug EV Charging Cable with CE TUV Certificate and Bare Copper Conductor for Slow EV Charging Station

Brand	LINKE	Cross Section (mm²)	0.01-500mm²
Wire Gauge (AWG)	[e.g., 24AWG, 28AWG]	Conductor	Tinned Copper /bare copper, based on client's requirements
Insulation material	PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other	Jacket Material	[PVC/PU/Rubber/Braid/etc.]
Certifications	RoHS/REACH/UL/CE/IP68/etc	Custom Length	[e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type	[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.]	Shielding	[Shielded/Unshielded/Braid Shield]
Impedance	[e.g., 75Ω (for coaxial cables)]	Printing/Logo	[Text/Label/Logo, max. 20 characters]
Bend Radius	[e.g., ≥5× cable diameter]	Current Rating	[e.g., 5A]
Voltage Rating	[e.g., 30V AC/DC]	Connector Material	[Gold-plated/Nickel-plated/Brass/etc.]
Connectors	[e.g., USB Type-C, 3.5mm Jack, RJ45]	Jacket	XLPE or PE or PVC RUBBER
Delivery Time	7-14 days after confirming the order	Colors	[Black/White/Red/Custom Pantone/etc.]
temperature	Minus-70℃to 350℃(-70℃ ~ 350℃)	Package	Roll/box/plate/Custom
Supporting Services	custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

IEC 62196-2 Plug EV Charging Cable with CE TUV Certificate and Bare Copper Conductor for Slow EV Charging Station

Key Features

Conductor: Flexible bare annealed copper wire
Insulation: High-quality silicone material
Available in Black, Orange, Red, Yellow, or Blue jacket colors
Single & double insulated options available
SQ MM sizes (European style): 4 sq mm to 240 sq mm
AWG sizes (North American style): 0AWG-10AWG
Wide temperature range: -60°C to 200°C
Low viscosity appearance for easy handling

Certifications & Standards

Our Quality Certifications

UL Standards: UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269
Additional UL Certifications: UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587, UL2835, UL20276, UL20549, UL21198, UL2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949 Quality Management Systems
CNR - Appliance Wiring Material Certification
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105ºC, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80ºC, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name, and we even custom the quality card to promote your company.
