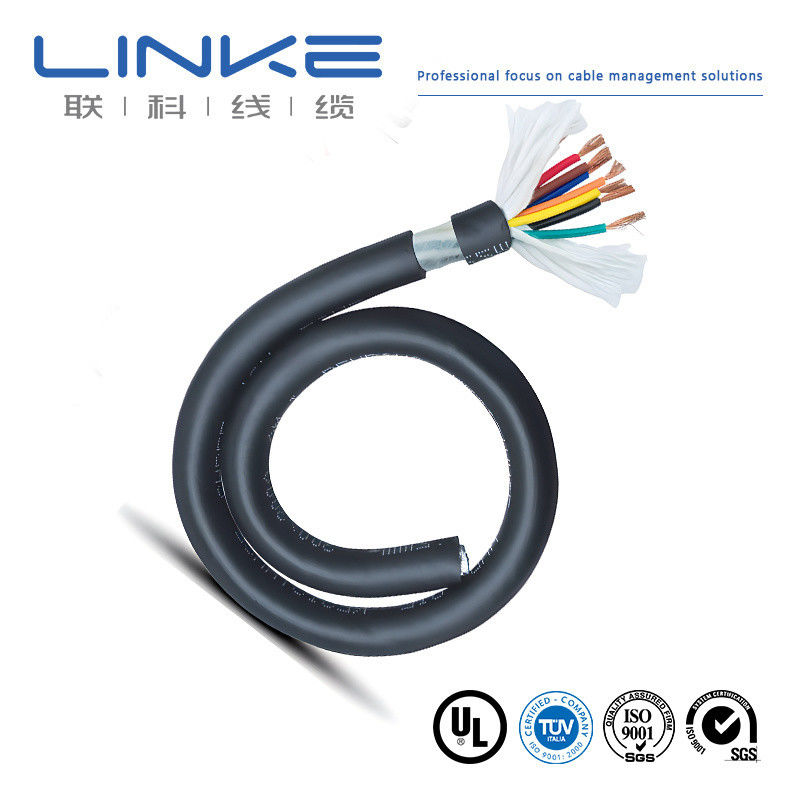

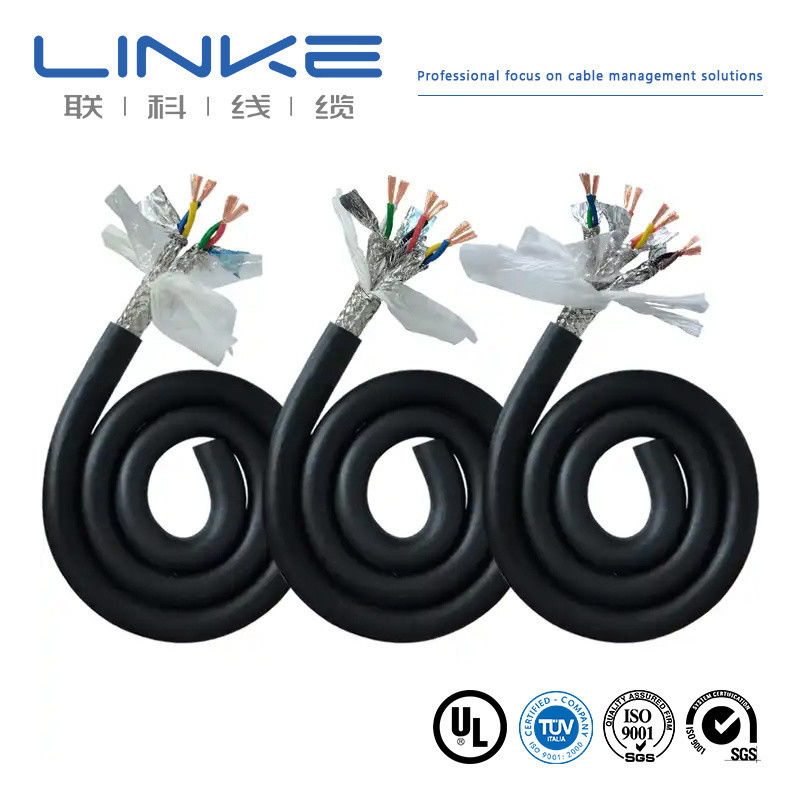

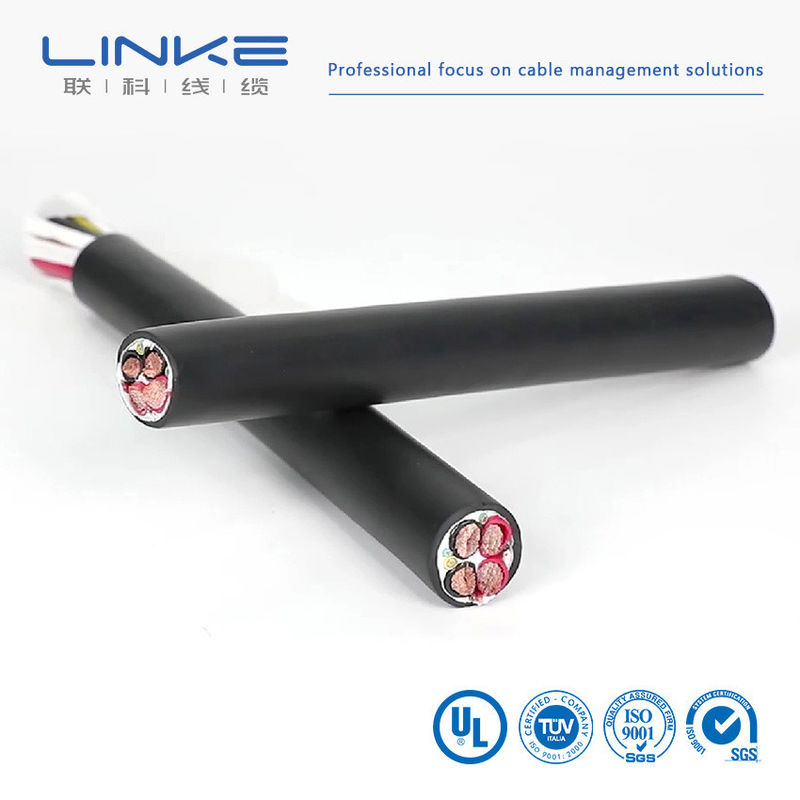

UL62893 ISO9001 Certified 3*14AWG+1*18AWG EV Charging Cable for Electric Vehicles with Fast Charging

UL62893 ISO9001 Certified 314AWG+118AWG EV Charging Cable for Electric Vehicles with Fast Charging

16A Type2 EV Charging Cable

32A Electric Vehicle Charging Cable

5meter Electric Vehicle Charging Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

Charger Cable

Color:

Black

Cable Length:

5meter Or Custom

Name:

Charging Cable

Copper:

Tinned Copper

Core:

Multiple

Jacket 1:

TPU

Jacket 2:

XLPE

Transport Package:

Roll

Specification:

800 Roll

Trademark:

LINKE

Origin:

China

HS Code:

94054090

Supply Ability:

100000000

Package Size:

850.00cm * 850.00cm * 580.00cm

Package Gross Weight:

210.000kg

Lead Time:

7-15days

Rated Current:

32A

Phase:

Three Phase

IP Grade:

IP65

Samples:

US$ 400/Piece 1 Piece(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Package:

By Roll

Highlight:

16A Type2 EV Charging Cable

32A Electric Vehicle Charging Cable

5meter Electric Vehicle Charging Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

High-Density High-Conductivity UL2464 UL Electrical Wire for EV Charger Cable and 160 Core Applications

Get Best Price

Video

32A Rated Current IP65 Protection Grade Silicone Jacket EV Charger Cable for Electric Vehicles

Get Best Price

Video

V0 Grade Thermoplastic Shell EV car charging cable With Copper Alloy Terminal

Get Best Price

Video

High Current Rating Flexible Construction EV Charger Cable with Customizable Materials for Electric Vehicles

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

UL 600V 16AMP 3*14AWG+1*18AWG AC EV Wire EV Charging Cable

Product Description

This DC 350 Ampere fast Electric Vehicle charging cable is designed for high-performance charging applications with superior safety and durability features.

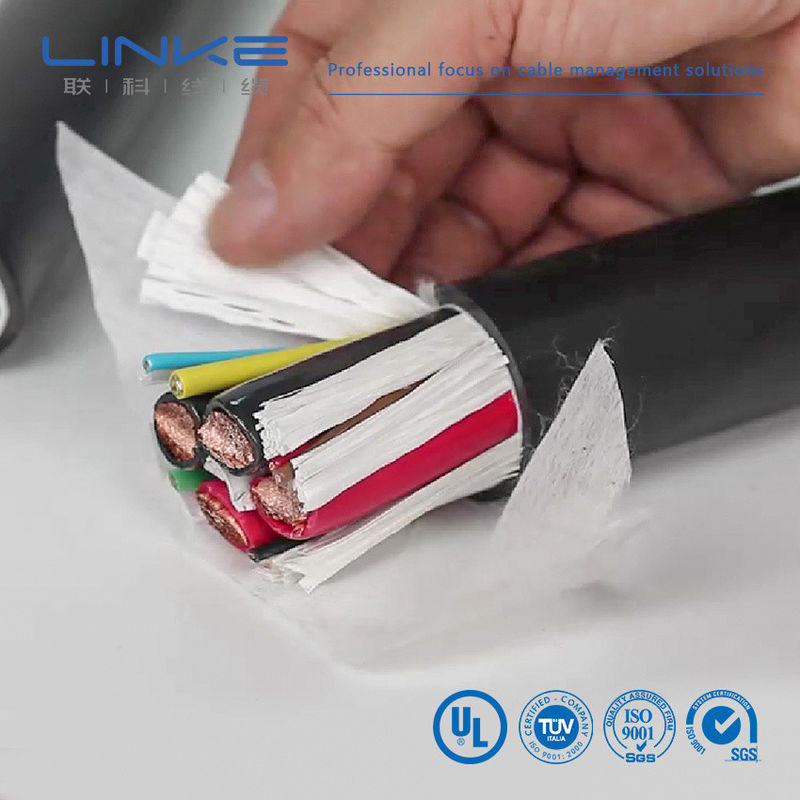

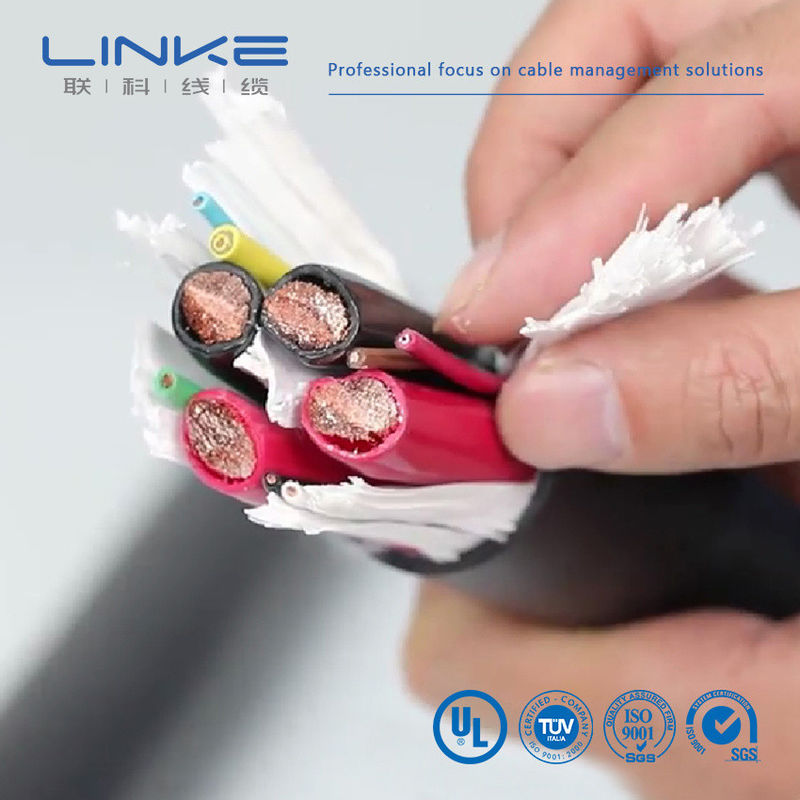

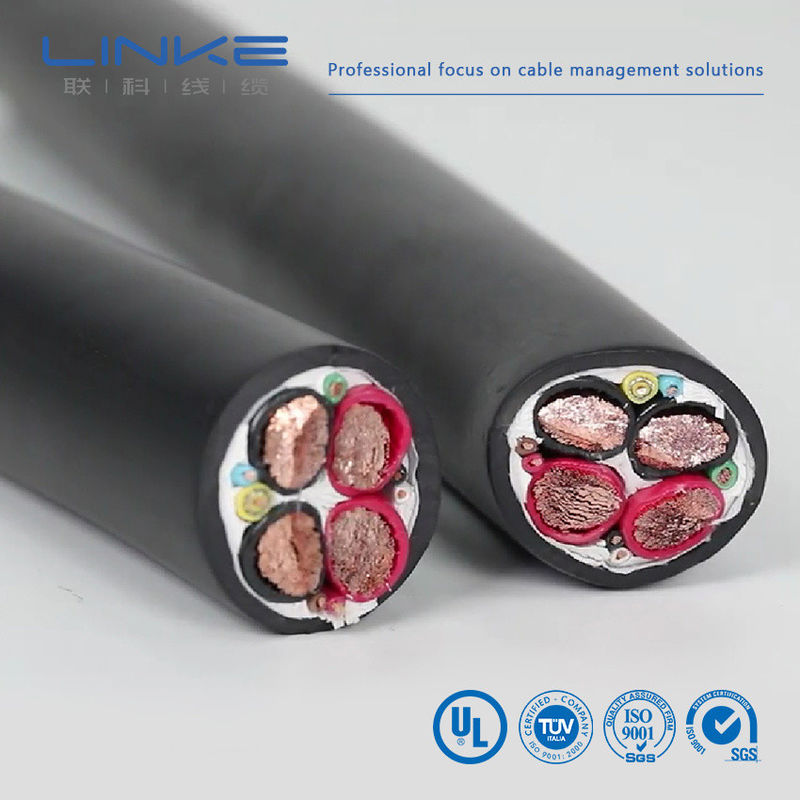

Cable Construction

4 power cables for maximum current delivery
1 green ground cable for safety
1 yellow coaxial wire for signal integrity
1 blue control cable for system management
2 pairs of signal wires for communication

Key Features

Excellent insulation performance meeting strict safety standards
Flame retardant, oil resistant, and aging resistant construction
Flexible design for easy installation and handling
UL certified for the American market
High output current capacity for fast charging

Technical Specifications

Electrical Characteristics	Physical Properties	Testing Standards
Rated voltage: DC 1000V	Tensile strength: ≥20MPa	High temperature pressure test: ≤50%
Rated temperature: Jacket -40~90ºC Insulation -40~125ºC	Elongation: ≥300%	Heat shock test: No crack
Max. conductor resistance (20ºC): A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km	Aged condition: 110±1ºC×168h	Compatibility test: GB/T 33594
Insulation Voltage withstand (Core A &B,10m): AC 2.5kV	Percent of original tensile strength: ≤±30% Percent of original elongation: ≤±30%	Flame test: GB/T 18380.12-2008
		Crush resistance test: GB/T 33594 Curved around test: GB/T 33594

Minimum Bend Radius: 6×OD

Outer Diameter: 35mm

Sheath Material: TPE

Brand	LINKE	Cross Section (mm²)	0.01-500mm²
Wire Gauge (AWG)	[e.g., 24AWG, 28AWG]	Conductor	Tinned Copper /bare copper, based on client's requirements
Insulation material	PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other	Jacket Material	[PVC/PU/Rubber/Braid/etc.]
Certifications	RoHS/REACH/UL/CE/IP68/etc	Custom Length	[e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type	[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.]	Shielding	[Shielded/Unshielded/Braid Shield]
Impedance	[e.g., 75Ω (for coaxial cables)]	Printing/Logo	[Text/Label/Logo, max. 20 characters]
Bend Radius	[e.g., ≥5× cable diameter]	Current Rating	[e.g., 5A]
Voltage Rating	[e.g., 30V AC/DC]	Connector Material	[Gold-plated/Nickel-plated/Brass/etc.]
Connectors	[e.g., USB Type-C, 3.5mm Jack, RJ45]	Jacket	XLPE or PE or PVC RUBBER
Delivery Time	7-14 days after confirming the order	Colors	[Black/White/Red/Custom Pantone/etc.]
temperature	Minus-70℃to 350℃(-70℃ ~ 350℃)	Package	Roll/box/plate/Custom
Supporting Services	multicolumn {3}{l}{custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

Independent Laboratory • Complete Testing Equipment • Full Quality Control

We test every product by strict standards to ensure superior quality and reliable performance.

No.	Test Item	Test Condition	Test Requirement	Test Data	Result
1	Structure Inspection	1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness	Comply with wire size table	Refer to test record	Pass
2	Thermal Shock	Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample	No cracks on the sample surface	No cracks	Pass
3	Heat Deformation	1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position	1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50%	Refer to test record	Pass
4	FT2	Apply a standard flame at a height of 125mm once	1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials	Refer to test record	Pass
5	Aging	1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength	1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging	Refer to test record	Pass
6	Cold Bend	Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box	No cracks on the sample surface	No cracks	Pass
7	Conductor Resistance	Measure resistance of one-meter core conductor with DC resistance meter	At 20℃, resistance of 8AWG ≤ 2.23Ω/km	Refer to test record	Pass
