16A 32A Type 2 Electric Vehicle Charging Cable With 5meter Or Custom Length

16A 32A Type 2 Electric Vehicle Charging Cable With 5meter Or Custom Length

16A Type2 EV Charging Cable

32A Electric Vehicle Charging Cable

5meter Electric Vehicle Charging Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C,UL,TPU,UL758,ROHS,REACH,CE,ISO9001-2015,ISO13485,IATF16949

Contact Us
Request A Quote
Product Details
Model NO.:
Charger Cable
Color:
Black
Cable Length:
5meter Or Custom
Name:
Charging Cable
Copper:
Tinned Copper
Core:
Multiple
Jacket 1:
TPU
Jacket 2:
XLPE
Transport Package:
Roll
Specification:
800 Roll
Trademark:
LINKE
Origin:
China
HS Code:
94054090
Supply Ability:
100000000
Package Size:
850.00cm * 850.00cm * 580.00cm
Package Gross Weight:
210.000kg
Lead Time:
10 Days (1 - 1000 Meters) To Be Negotiated ( > 1000 Meters)
Rated Current:
32A
Phase:
Three Phase
IP Grade:
IP65
Samples:
US$ 400/Piece 1 Piece(Min.Order) |
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
 :
Initial Payment Full Payment
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

16A Type2 EV Charging Cable

,

32A Electric Vehicle Charging Cable

,

5meter Electric Vehicle Charging Cable

Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Negotiable
Packaging Details
According to requirement
Delivery Time
7-15 days
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
50000m/day
Product Description

16A 32A Type 2 Electric Vehicle Charging Cable With TUV UL And Black Color Package Size



16A 32A Type 2  Electric Vehicle EV Charging Cable with TUV&UL

Product Description



16A 32A Type 2 Electric Vehicle EV Charging Cable with TUV&UL
Usage  gauge DC Charing  line Cable: 350A  1/0AWG x 4C  + 18AWG (CP:shielding)1C+ 14AWG×1C + 18AWG x 2P+18AWG x 1C  OD=35mm TPE Sheath

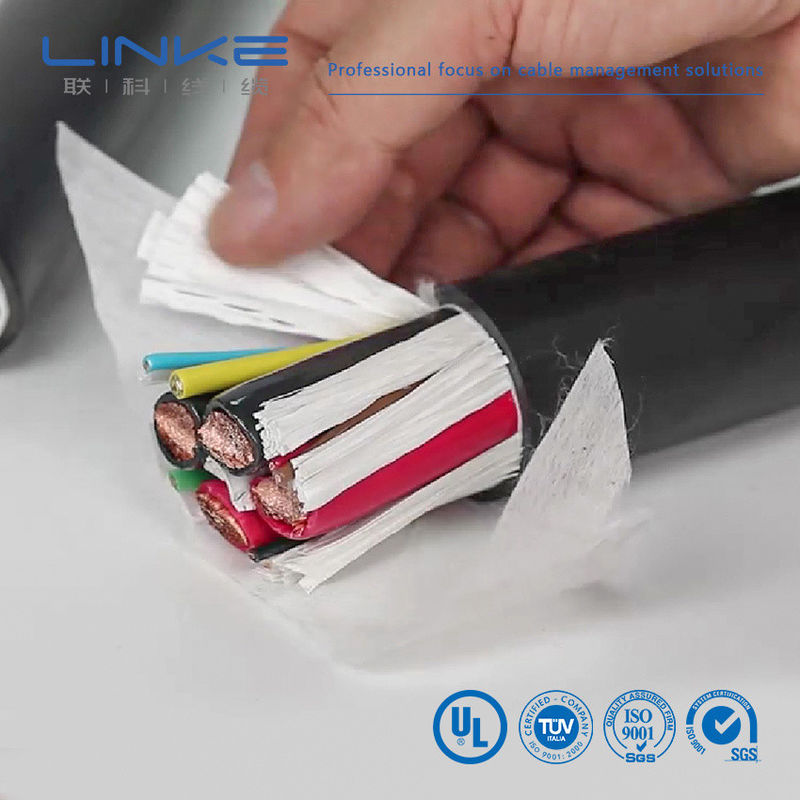

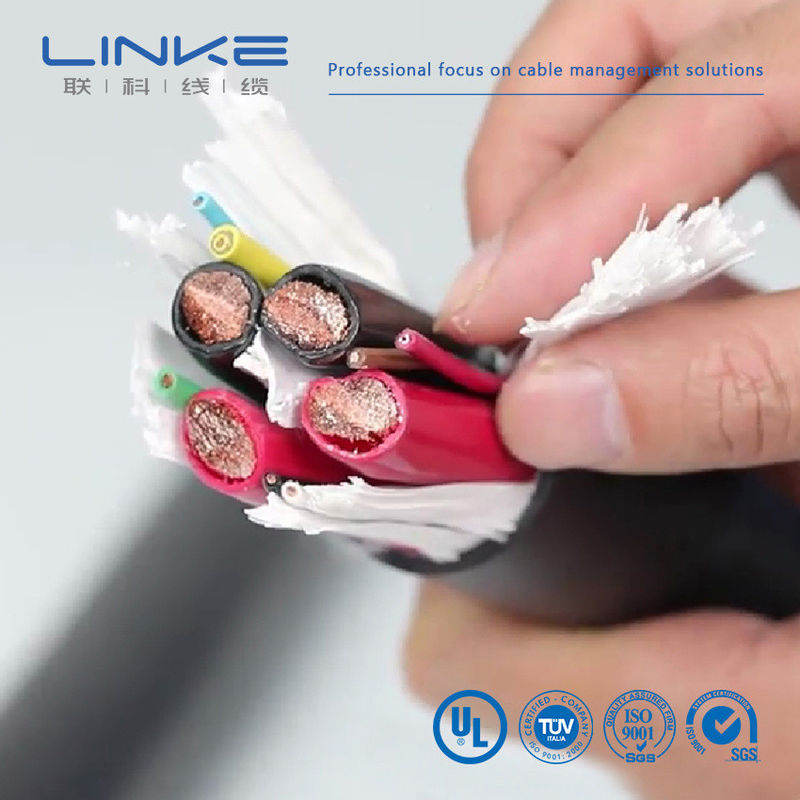

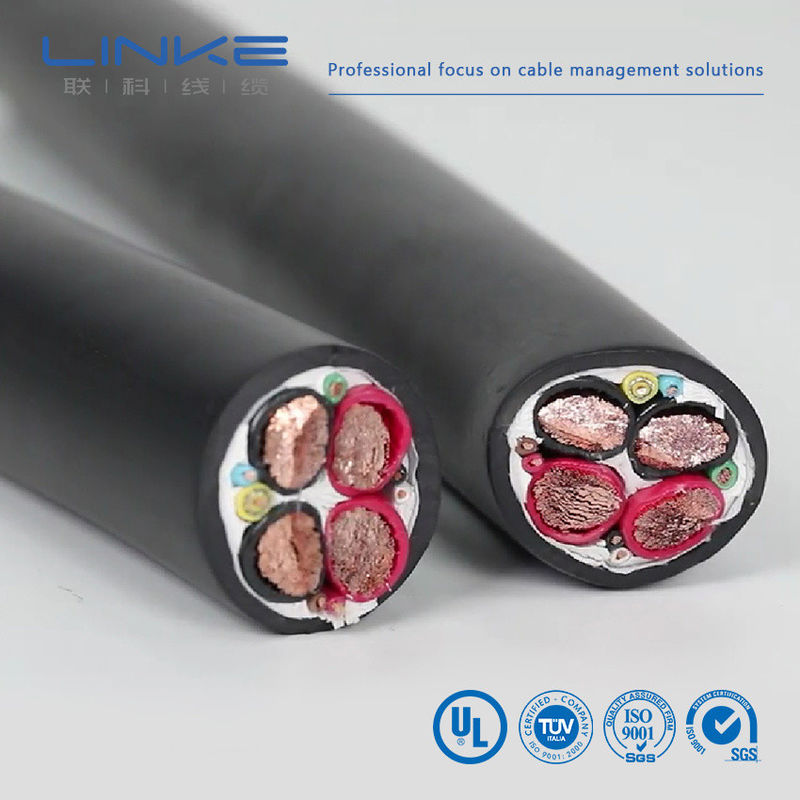

This is a DC 350 Ampere fast Electric Vehicle charging Cable.It is composed of 4 power cables,one green ground cable, one yellow coaxial wire, one blue control cable, 2 pairs of signal wire.And cable has good insulation performance,which can meet the requirements of standard flame retardant, oil resistance, aging resistance and easy to bend.Also In line with the standards of UL,it's export to the American market, with large output current, large power and fast charging speed advantages.

Product Parameters
ELECTRICAL CHARACTERISTICS PHYSICAL PROPERTIES
Rated voltage:DC 1000V Tensile strength:≥20MPa High temperature pressure test:≤50%
Rated temperature:Jacket  -40~90ºC Elongation:≥300% Heat shock test:No  crack
                                 Insulation  -40~125ºC Aged condition:110±1ºC×168h Compatibility test:GB/T 33594
Max. conductor resistance(20ºC): Percent of original tensile strength:≤±30% Crush resistance test:GB/T 33594
A:0.242Ω/km  B:0.78Ω/km  C:4.95Ω/km   D&E:26Ω/km Percent of original elongation:≤±30% Curved around the test:GB/T 33594
Insulation  Voltage withstand(Core A&B,10m): Flame  test:GB/T 18380.12-2008 Min.  Bend  radius:6*OD
AC 2.5kV/5min,leakage current ≤5mA Artificial weathering test:GB/T 33594 Abrasion resistance:≥2000times
Completed cable  Voltage withstand(Core A  to A&B,10m): Low-temperature impact test :-40ºC×16H,No  crack Resistance against chemicals:GB/T 33594
AC 3.5kV/15min,leakage current ≤5mA Chemical stress acidN-Oxal-acid alkaline solution, N-sodium hydroxide solution:GB/T 33594
Min. Insulation resistance(20ºC, Core A  to  A&B):500MΩ.km Vehicle rolling:Requirements and test methods should be consistent with GB/T 20234.1-2015 7.21





Structure
NO. conductor                 mm2 insulution 20ºC conductor resistance             (Ω/KM)
conductor                 mm2 Structure(N/mm)  Conductor DIA(mm) Conductor  Thickness (mm) MATERIAL insulution OD          (mm)
EV-YJ 1.5 48/0.20 1.60  copper  0.6 silicone 2.90±0.15 ≤12.7
EV-YJ 2.5 80/0.20 2.06  copper  0.7 silicone 3.50±0.15 ≤7.60
EV-YJ 128/0.20 2.62  copper  0.8 silicone 4.30±0.15 ≤4.71
EV-YJ 196/0.20 3.50  copper  0.8 silicone 5.10±0.20 ≤3.14
EV-YJ 10  322/0.20 4.50  copper  1.00  silicone 6.70±0.20 ≤1.82
EV-YJ 16  513/0.20 5.70  copper  1.10  silicone 8.00±0.30 ≤1.16
EV-YJ 25  798/0.20 7.10  copper  1.3 silicone 9.80±0.30 ≤0.743
EV-YJ 35  1121/0.20 8.50  copper  1.3 silicone 11.40±0.30 ≤0.527
EV-YJ 50  1596/0.20 10.10  copper  1.50  silicone 13.50±0.30 ≤0.368
EV-YJ 70  2242/0.20 12.10  copper  1.50  silicone 15.50±0.40 ≤0.259
EV-YJ 95  3034/0.20 14.10  copper  1.50  silicone 17.50±0.50 ≤0.196

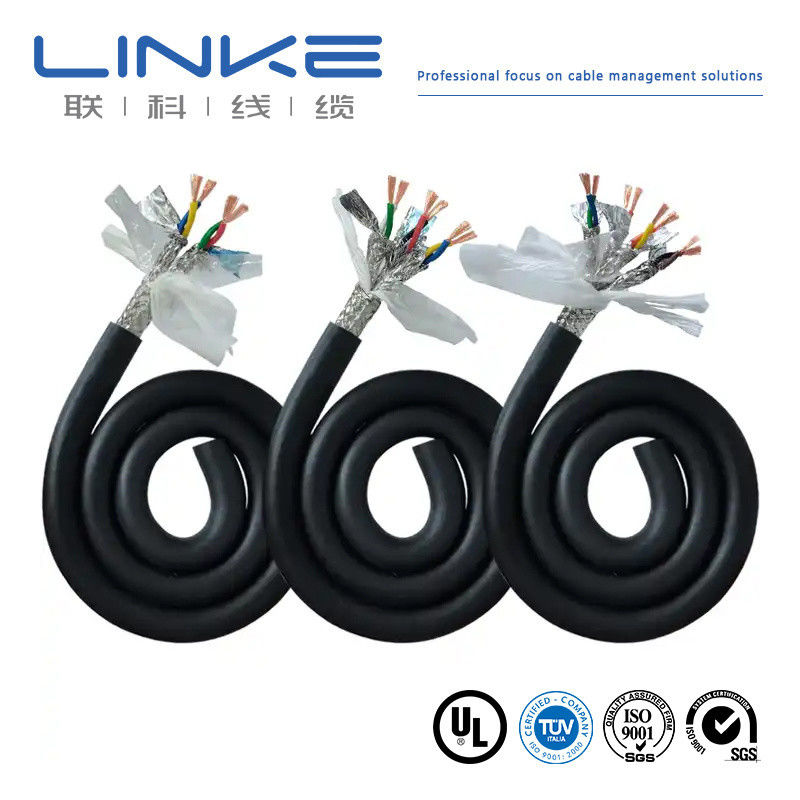

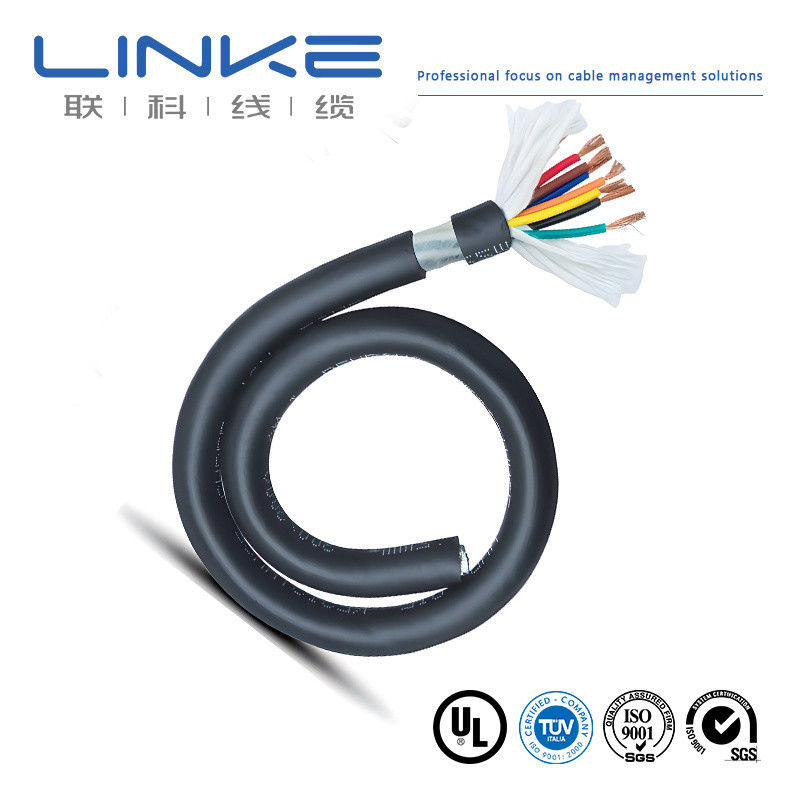

Detailed Photos



16A 32A Type 2 Electric Vehicle EV Charging Cable with TUV&UL

16A 32A Type 2 Electric Vehicle EV Charging Cable with TUV&UL

2,Low viscosity appearance
16A 32A Type 2 Electric Vehicle EV Charging Cable with TUV&UL
Company Profile

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and  improve the quality of one's life.


16A 32A Type 2 Electric Vehicle EV Charging Cable with TUV&UL


Exhibition:

16A 32A Type 2 Electric Vehicle EV Charging Cable with TUV&UL
16A 32A Type 2 Electric Vehicle EV Charging Cable with TUV&UL
16A 32A Type 2 Electric Vehicle EV Charging Cable with TUV&UL
Certifications


Our certification:
16A 32A Type 2 Electric Vehicle EV Charging Cable with TUV&UL
16A 32A Type 2 Electric Vehicle EV Charging Cable with TUV&UL
16A 32A Type 2 Electric Vehicle EV Charging Cable with TUV&UL



We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269

(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,UL2835,

UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664
ISO9001 and ISO13485,TS16949

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2

FAQ



1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.



4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.



5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
