Three Phase Fast Electric EV Charging Cable 350 Ampere 800 roll

350Ampere EV Charging Cable

800roll EV Charging Cable

TPU Jacket EV Charger Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

Fast Charging Cable

Color:

Black

Cable Length:

5meter Or Custom

Name:

Charging Cable

Copper:

Tinned Copper

Core:

Multiple

Jacket 1:

TPU

Jacket 2:

XLPE

Transport Package:

Roll

Specification:

800 Roll

Trademark:

LINKE

Origin:

China

HS Code:

94054090

Supply Ability:

100000000

Package Size:

850.00cm * 850.00cm * 580.00cm

Package Gross Weight:

211.000kg

Lead Time:

7-15days

Rated Current:

32A

Phase:

Three Phase

IP Grade:

IP65

Samples:

US$ 400/Piece 1 Piece(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Package:

By Roll

Highlight:

350Ampere EV Charging Cable

800roll EV Charging Cable

TPU Jacket EV Charger Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

safe Packaging

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

UL Certified Copper Core IP65 Rated EV Charging Cable for Electric Vehicles

Get Best Price

Video

Three Phase Fast Electric EV Charging Cable 350 Ampere 800 roll

Get Best Price

Video

16A 3G2.5mm²+2*0.5mm² Tinned Copper EV Charging Cable for Electric Vehicles

Get Best Price

Video

Flexible Shielded Silicone Wire EV Charger Cable with 1500V Rated Voltage for High Power Applications

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

Electric Vehicle Charging Cable

Product Description

Usage gauge DC Charing line Cable: 350A 1/0AWG x 4C + 18AWG (CP:shielding)1C+ 14AWG×1C + 18AWG x 2P+18AWG x 1C OD=35mm TPE Sheath

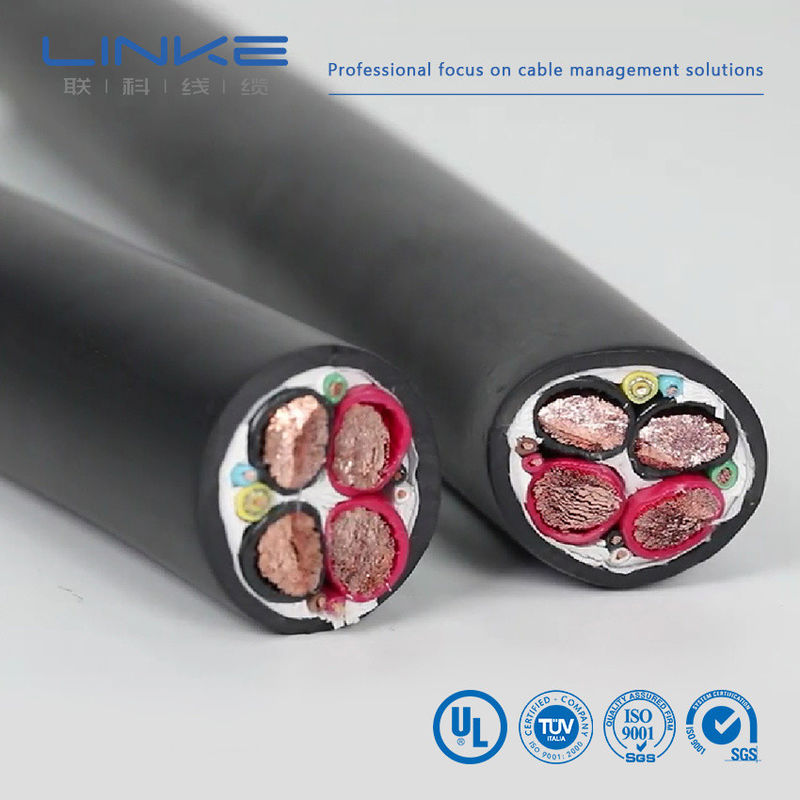

This is a DC 350 Ampere fast Electric Vehicle charging Cable.It is composed of 4 power cables,one green ground cable, one yellow coaxial wire, one blue control cable, 2 pairs of signal wire.And cable has good insulation performance,which can meet the requirements of standard flame retardant, oil resistance, aging resistance and easy to bend.Also In line with the standards of UL,it's export to the American market, with large output current, large power and fast charging speed advantages.

Construction:

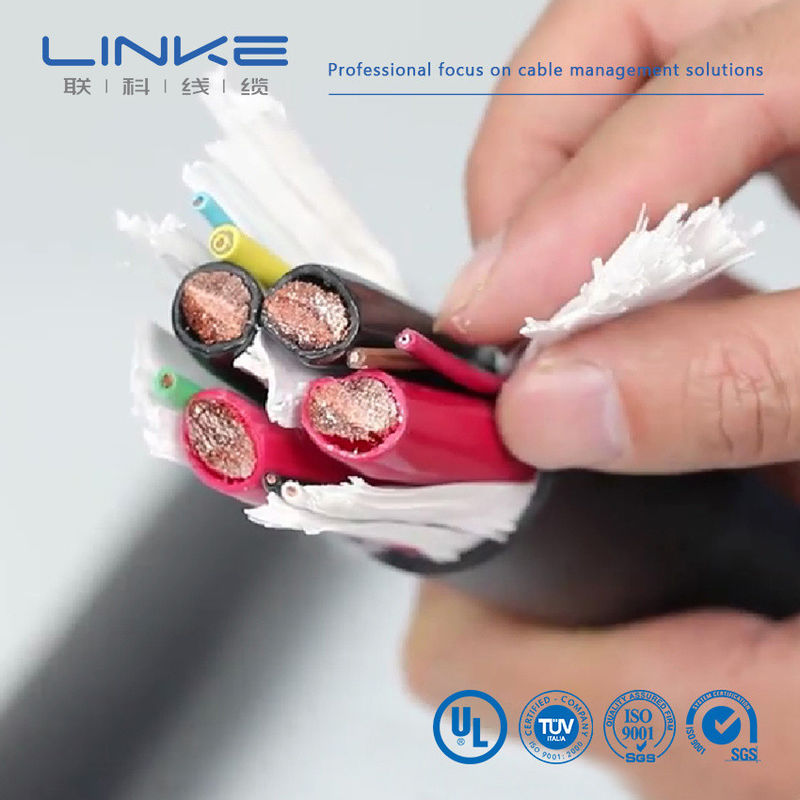

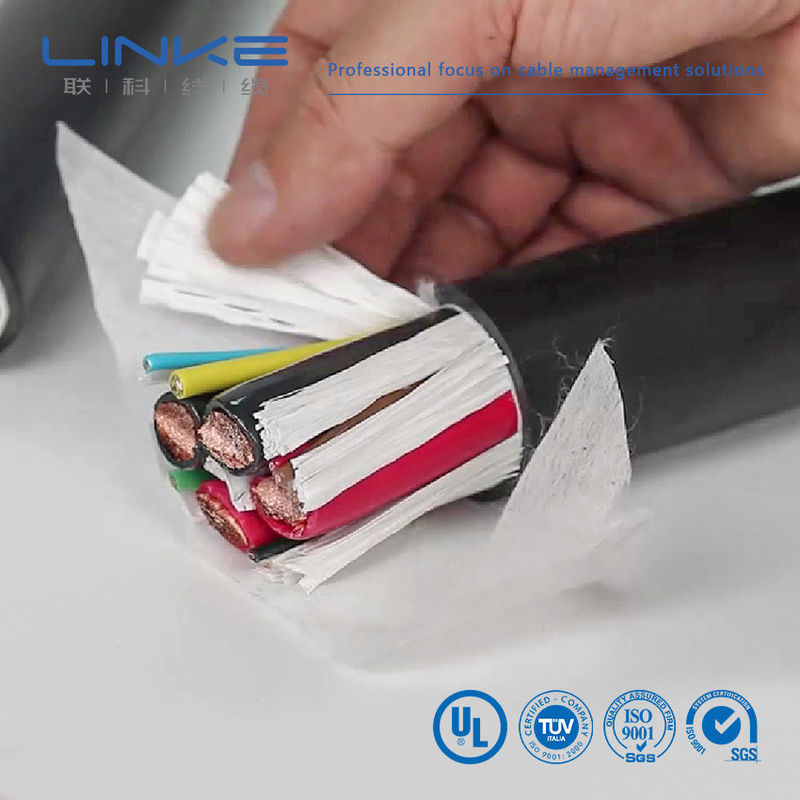

conductor+insulation+filler+sheath+non-woven

Characteristics:

This cable is used for charging equipment for electric vehicle and charging port, or for control systems of charging saturation, safety warning and other control signal transfer function of the vehicle charging and discharging.
Flex Resistance: it has a tendency to be uneasy to bend
Anti-EMI: anti electromagnetic interference
Zero Halogen: safe, halogen free
Oil Resistance: it can resist oil from staining or sticking to the device
Abrasion Resistance: the material of the product has a high hardness and is able to resist scratches from rough objects
Low-speed Charging: The impact on the battery is relatively small, but it is time consuming.
Temperature:-40℃~+90℃

Product Parameters

ELECTRICAL CHARACTERISTICS	PHYSICAL PROPERTIES
Rated voltage:DC 1000V	Tensile strength:≥20MPa	High temperature pressure test:≤50%
Rated temperature:Jacket -40~90ºC	Elongation:≥300%	Heat shock test:No crack
Insulation -40~125ºC	Aged condition:110±1ºC×168h	Compatibility test:GB/T 33594
Max. conductor resistance(20ºC):	Percent of original tensile strength:≤±30%	Crush resistance test:GB/T 33594
A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km	Percent of original elongation:≤±30%	Curved around the test:GB/T 33594
Insulation Voltage withstand(Core A&B,10m):	Flame test:GB/T 18380.12-2008	Min. Bend radius:6*OD
AC 2.5kV/5min,leakage current ≤5mA	Artificial weathering test:GB/T 33594	Abrasion resistance:≥2000times
Completed cable Voltage withstand(Core A to A&B,10m):	Low-temperature impact test:-40ºC×16H,No crack	Resistance against chemicals:GB/T 33594
AC 3.5kV/15min,leakage current ≤5mA	Chemical stress acid: N-Oxal-acid alkaline solution, N-sodium hydroxide solution:GB/T 33594
Min. Insulation resistance(20ºC, Core A to A&B):500MΩ.km	Vehicle rolling:Requirements and test methods should be consistent with GB/T 20234.1-2015 7.21

Structure
NO.	conductor mm2				insulution			20ºC conductor resistance (Ω/KM)
NO.	conductor mm2	Structure(N/mm)	Conductor DIA(mm)	Conductor	Thickness (mm)	MATERIAL	insulution OD (mm)	20ºC conductor resistance (Ω/KM)
EV-YJ	1.5	48/0.20	1.60	copper	0.6	silicone	2.90±0.15	≤12.7
EV-YJ	2.5	80/0.20	2.06	copper	0.7	silicone	3.50±0.15	≤7.60
EV-YJ	4	128/0.20	2.62	copper	0.8	silicone	4.30±0.15	≤4.71
EV-YJ	6	196/0.20	3.50	copper	0.8	silicone	5.10±0.20	≤3.14
EV-YJ	10	322/0.20	4.50	copper	1.00	silicone	6.70±0.20	≤1.82
EV-YJ	16	513/0.20	5.70	copper	1.10	silicone	8.00±0.30	≤1.16
EV-YJ	25	798/0.20	7.10	copper	1.3	silicone	9.80±0.30	≤0.743
EV-YJ	35	1121/0.20	8.50	copper	1.3	silicone	11.40±0.30	≤0.527
EV-YJ	50	1596/0.20	10.10	copper	1.50	silicone	13.50±0.30	≤0.368
EV-YJ	70	2242/0.20	12.10	copper	1.50	silicone	15.50±0.40	≤0.259
EV-YJ	95	3034/0.20	14.10	copper	1.50	silicone	17.50±0.50	≤0.196

Detailed Photos

2, Low viscosity appearance

Company Profile

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and improve the quality of one's life.

FAQ

Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in Shenzhen.
How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
