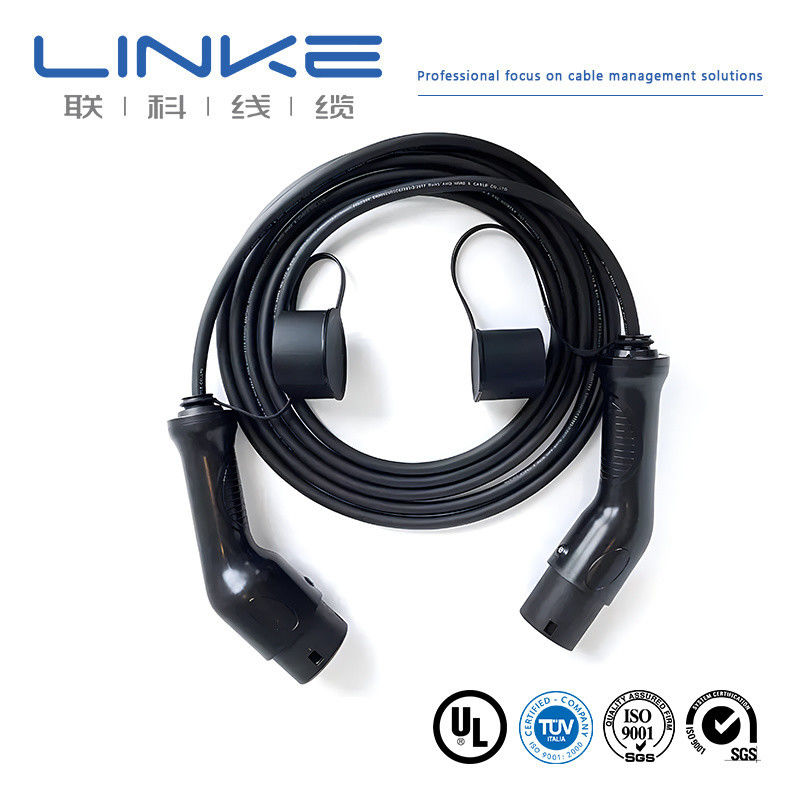

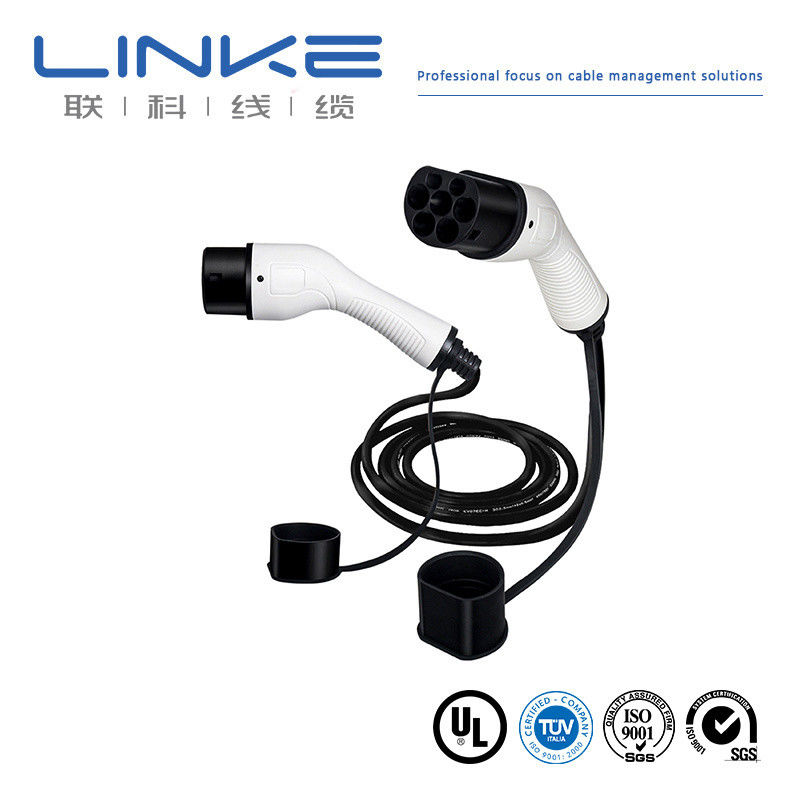

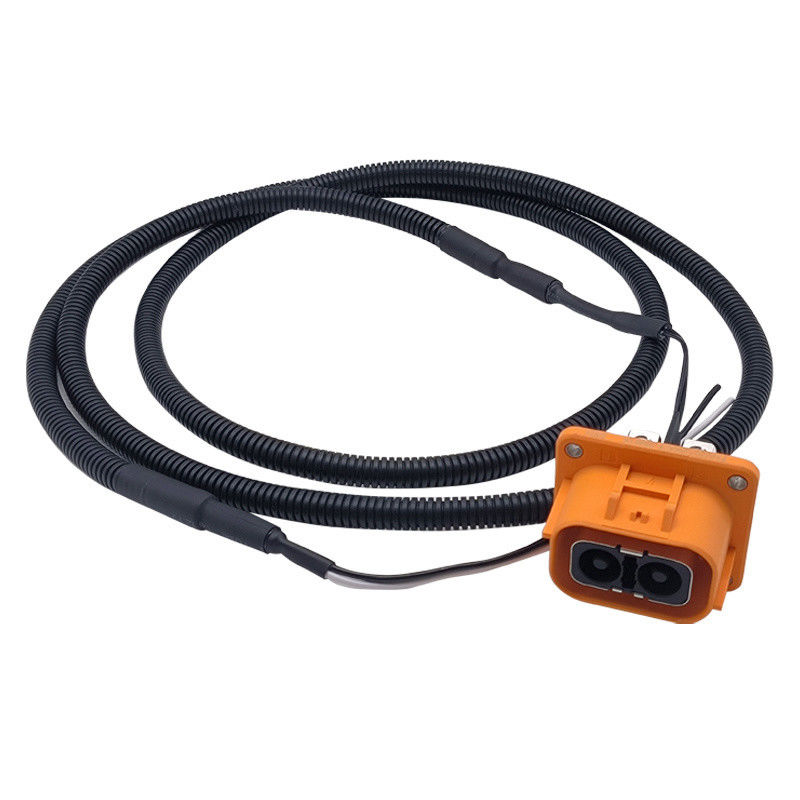

Custom 310S EV-PTC Power Solar Cable
High voltage electric wire for photovoltaic battery charging and new energy renewable wiring harness applications.
Product Specifications
| Cable Name |
EV Cable |
| Cable Specification |
2C×80mm²+1C×25mm²+2C×4mm²+(3C×0.75mm²)(P2)+(7C×0.75mm²) |
| Compliance |
RoHS Compliant |
Conductor Details
| Item |
Material |
Size |
O.D. (Ref.) |
| A: 2C×80mm² |
Bared copper stranded |
2580/0.20 ±0.008mm |
12.40±0.25mm |
| B: 1C×25mm² |
Bared copper stranded |
798/0.20 ±0.008mm |
7.00±0.20mm |
| C: 1C×4mm² |
Bared copper stranded |
224/0.15±0.008mm + 10/1#Tinsel+1000D Kevlar |
2.70±0.15mm |
| D: (3C×0.75mm²)(P2) |
Bared copper stranded |
40/0.15±0.008mm + 10/0.19mm Tinsel+200D Kevlar |
1.40±0.10mm |
| E: (7C×0.75mm²) |
Bared copper stranded |
40/0.15±0.008mm + 10/0.19mm Tinsel+200D Kevlar |
1.40±0.10mm |
Insulation Specifications
| Item |
Material |
Min. Average Thickness |
Min. Thickness at Any Point |
O.D. |
| A-E |
Thermoplastic (EF2585,85±3A) |
1.60mm - 0.50mm |
1.34mm - 0.35mm |
15.60±0.40mm - 2.50±0.10mm |
Electrical Characteristics
Rated voltage: DC 1000V
Rated temperature: Jacket -40~90°C, Insulation -40~125°C
Max. conductor resistance (20°C): A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km
Insulation Voltage withstand: AC 2.5kV/5min, leakage current ≤5mA
Completed cable Voltage withstand: AC 3.5kV/15min, leakage current ≤5mA
Min. Insulation resistance (20°C): 500MΩ.km
Physical Properties
Tensile strength: ≥20MPa
Elongation: ≥300%
High temperature pressure test: ≤50%
Heat shock test: No crack
Flame test: GB/T 18380.12-2008
Min. Bend radius: 6×OD
Abrasion resistance: ≥2000 times
Cable Construction Features
- Conductor: Flexible bare annealed copper wire
- Insulation: Silicone
- Color options: Black, Orange, Red, Yellow, Blue jacket
- Single & double insulated options available
- SQ MM sizes (European style): 4 sq mm to 240 sq mm
- AWG sizes (North American style): 0AWG-10AWG
- Wide temperature range: -60°C to 200°C
- Low viscosity appearance
Quality Certifications
UL1007
UL1185
UL1672
UL10070
UL10483
UL1015
UL1569
UL10012
UL10269
ISO9001
ISO13485
TS16949
CNR
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
Does your company accept OEM production?
Yes, we can print your company name and even customize the quality card to promote your company.
