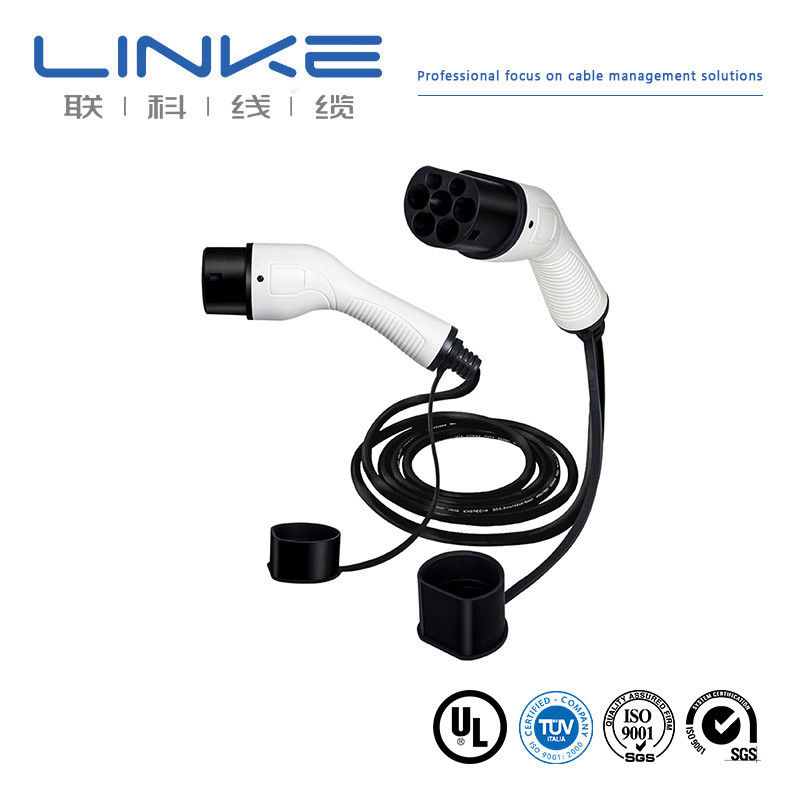

Premium High Voltage 380V EV Wire Harness with Bare Copper Conductor and Rubber Jacket for Electric Vehicles

2c*10AWG EV Charging Cable

3c*18AWG EV Charging Cable

5p EV Charging Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-EV105

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Conductor:

Bare Copper

Structure:

3034/0.20

Jacket:

Rubber

Use:

Charging

Type:

Slow EV Charging Station

Lead Time:

7-15days

Voltage:

380v

Color:

Black

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Package:

By Roll

Highlight:

2c*10AWG EV Charging Cable

3c*18AWG EV Charging Cable

5p EV Charging Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

Tinned Copper Conductor Elevator Cable with PVC Insulation and Customizable Jacket for Power and Control Applications

Get Best Price

Video

Round Wire Elevator Cable with Tinned Copper Conductor and PVC Insulation for Various Elevators

Get Best Price

Video

Insulated Customized Flexible Bus Bar Flat Copper Busbar for Battery with 1200A Capacity

Get Best Price

Video

1200A AMP Insulated Copper Bus Bar with Customizable Insulation and High Conductivity for Vacuum Electrical Appliances

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

Premium High Voltage EV Wire Harness for Electric Vehicle

Product Specifications

CABLE NAME	EV Cable
CABLE SPEC	2C×80mm²+1C×25mm²+2C×4mm²+(3C×0.75mm²)(P2)+(7C×0.75mm²) RoHS Compliant

Detailed Construction

Item	Conductor Material	Conductor Size	O.D.(Ref.)
A: 2C×80mm²	Bared copper stranded	2580/0.20 ±0.008mm	12.40±0.25mm
B: 1C×25mm²	Bared copper stranded	798/0.20 ±0.008mm	7.00±0.20mm
C: 1C×4mm²	Bared copper stranded	224/0.15±0.008mm+10/1#Tinsel+1000D Kevlar	2.70±0.15mm
D: (3C×0.75mm²)(P2)	Bared copper stranded	40/0.15±0.008mm+10/0.19mmTinsel+200DKevlar	1.40±0.10mm
E: (7C×0.75mm²)	Bared copper stranded	40/0.15±0.008mm+10/0.19mmTinsel+200D Kevlar	1.40±0.10mm

Insulation & Jacket Specifications

Component	Material	Min. Average Thickness	O.D.
Insulation	Thermoplastic (EF2585,85±3A)	1.60mm - 0.50mm	15.60±0.40mm - 2.50±0.10mm
In-Jacket	TPE	0.60mm	7.20±0.25mm - 9.70±0.25mm
Outer Jacket	TPU	2.80mm	38.00+0.6/-1.00mm

Electrical & Physical Properties

Electrical Characteristics	Physical Properties
Rated voltage: DC 1000V Rated temperature: Jacket -40~90ºC, Insulation -40~125ºC Max. conductor resistance (20ºC): A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km Insulation Voltage withstand: AC 2.5kV/5min, leakage current ≤5mA Completed cable Voltage withstand: AC 3.5kV/15min, leakage current ≤5mA Min. Insulation resistance: 500MΩ.km	Tensile strength: ≥20MPa Elongation: ≥300% Flame test: GB/T 18380.12-2008 High temperature pressure test: ≤50% Heat shock test: No crack Compatibility test: GB/T 33594 Crush resistance test: GB/T 33594 Min. Bend radius: 6OD Abrasion resistance:* ≥2000times

EV Cable Structure Reference

Type	Conductor mm²	Structure	Conductor Material	Insulation Thickness	Insulation Material	Insulation OD	20ºC Conductor Resistance
EV-YJ	1.5	48/0.20	copper	0.6	silicone	2.90±0.15	≤12.7
EV-YJ	2.5	80/0.20	copper	0.7	silicone	3.50±0.15	≤7.60
EV-YJ	4	128/0.20	copper	0.8	silicone	4.30±0.15	≤4.71
EV-YJ	6	196/0.20	copper	0.8	silicone	5.10±0.20	≤3.14
EV-YJ	10	322/0.20	copper	1.00	silicone	6.70±0.20	≤1.82
EV-YJ	16	513/0.20	copper	1.10	silicone	8.00±0.30	≤1.16
EV-YJ	25	798/0.20	copper	1.3	silicone	9.80±0.30	≤0.743
EV-YJ	35	1121/0.20	copper	1.3	silicone	11.40±0.30	≤0.527
EV-YJ	50	1596/0.20	copper	1.50	silicone	13.50±0.30	≤0.368
EV-YJ	70	2242/0.20	copper	1.50	silicone	15.50±0.40	≤0.259
EV-YJ	95	3034/0.20	copper	1.50	silicone	17.50±0.50	≤0.196

Key Features

Conductor: Flexible Bare annealed copper wire
Insulation: Silicone
Color Options: Black, Orange, Red, Yellow, Blue jacket
Insulation Types: Single & double insulated
SQ MM sizes (European style): 4 sq mm to 240 sq mm
AWG sizes (North American style): 0AWG-10AWG
Wide temperature range: -60°C to 200°C

Certifications & Quality Standards

UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517
UL2587, UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V
Extruded PVC Non-integral Jacketed Cable, rated 105ºC, 1000V
Extruded TPU Non-integral Jacketed Cable, rated 80ºC, 300V

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

4. Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

5. Does your company accept OEM production?

Yes, we can print your company name, and we even custom the quality card to promote your company.

For More Information, Please do feel free to contact us!
