Type 2 EV Charging Cable with Bare Copper Conductor and TPE Jacket for 7kw 11kw 22kw AC EV Chargers

5p EV Charging Eve Cable

32A EV Charging Eve Cable

2c*10AWG EV Charging Eve Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-EV102

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Conductor:

Bare Copper

Structure:

3034/0.20

Jacket:

TPE

Use:

Charging

Type:

Slow EV Charging Station

Package Size:

50.00cm * 50.00cm * 50.00cm

Voltage:

380v

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Package:

By Roll

Core:

Multiple

Lead Time:

7-15days

Highlight:

5p EV Charging Eve Cable

32A EV Charging Eve Cable

2c*10AWG EV Charging Eve Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Customized 1200A Flexible Busbar with 0.1mm Copper Foil for Substation Engineering

Get Best Price

Video

Tinned Copper Conductor Elevator Cable with PVC Insulation and Customizable Jacket for Power and Control Applications

Get Best Price

Video

Round Wire Elevator Cable with Tinned Copper Conductor and PVC Insulation for Various Elevators

Get Best Price

Video

Insulated Customized Flexible Bus Bar Flat Copper Busbar for Battery with 1200A Capacity

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

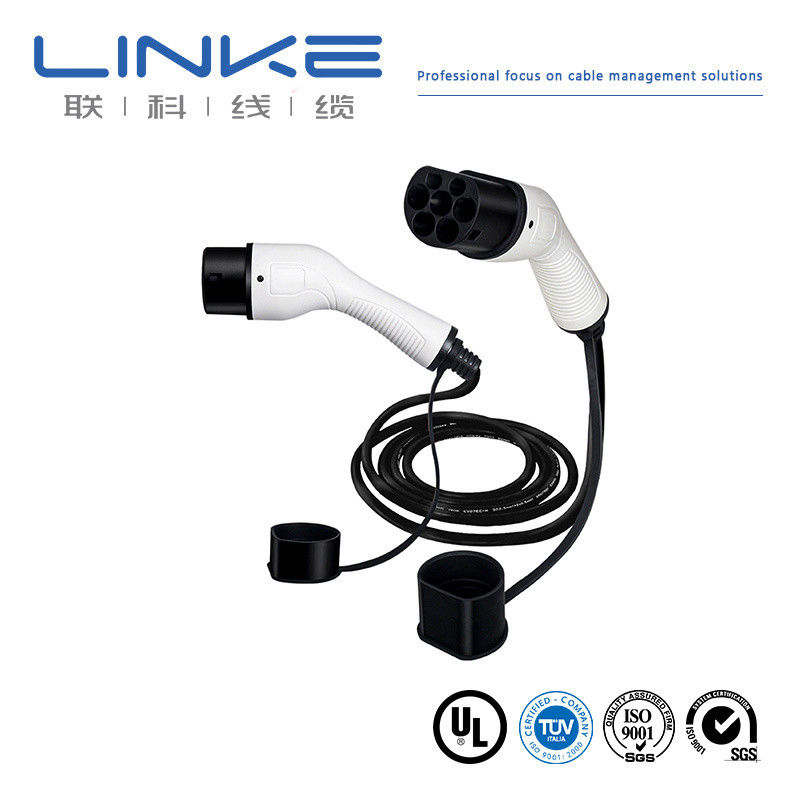

Type 2 to Type 2 EV Charging Cable

High-performance AC EV Charger cable available in 7kW, 11kW, and 22kW configurations with length options of 5m, 7m, and 10m.

Product Images

Type 2 EV Charging Cable with Bare Copper Conductor and TPE Jacket for 7kw 11kw 22kw AC EV Chargers

Brand	LINKE	Cross Section (mm²)	0.01-500mm²
Wire Gauge (AWG)	[e.g., 24AWG, 28AWG]	Conductor	Tinned Copper /bare copper, based on client's requirements
Insulation material	PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other	Jacket Material	[PVC/PU/Rubber/Braid/etc.]
Certifications	RoHS/REACH/UL/CE/IP68/etc	Custom Length	[e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type	[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.]	Shielding	[Shielded/Unshielded/Braid Shield]
Impedance	[e.g., 75Ω (for coaxial cables)]	Printing/Logo	[Text/Label/Logo, max. 20 characters]
Bend Radius	[e.g., ≥5× cable diameter]	Current Rating	[e.g., 5A]
Voltage Rating	[e.g., 30V AC/DC]	Connector Material	[Gold-plated/Nickel-plated/Brass/etc.]
Connectors	[e.g., USB Type-C, 3.5mm Jack, RJ45]	Jacket	XLPE or PE or PVC RUBBER
Delivery Time	7-14 days after confirming the order	Colors	[Black/White/Red/Custom Pantone/etc.]
temperature	Minus-70℃to 350℃(-70℃ ~ 350℃)	Package	Roll/box/plate/Custom
Supporting Services	custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

Technical Specifications

SPECIFICATION	CABLE NAME	EV Cable
CABLE SPEC	2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2 RoHS Compliant

Detailed Construction

Item	A: 2C×80mm2	B: 1C×25mm2	C: 1C×4mm2	D: (3C×0.75mm2)(P2)	E: (7C×0.75mm2)
CONDUCTOR
Material	Bared copper stranded
Size	2580/0.20 ±0.008mm	798/0.20 ±0.008mm	224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar	40/0.15±0.008mm+ 10/0.19mmTinsel+200DKevlar	40/0.15±0.008mm+ 10/0.19mmTinsel+200D Kevlar
O.D.(Ref.)	12.40±0.25mm	7.00±0.20mm	2.70±0.15mm	1.40±0.10mm	1.40±0.10mm

Electrical Characteristics

Rated voltage: DC 1000V
Rated temperature: Jacket -40~90ºC, Insulation -40~125ºC
Max. conductor resistance(20ºC):
A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km
Insulation Voltage withstand: AC 2.5kV/5min
Completed cable Voltage withstand: AC 3.5kV/15min
Min. Insulation resistance: 500MΩ.km

Physical Properties

Tensile strength: ≥20MPa
Elongation: ≥300%
Flame test: GB/T 18380.12-2008
Min. Bend radius: 6*OD
Abrasion resistance: ≥2000times
Low-temperature impact test: -40ºC×16H, No crack

Cable Structure Specifications

NO.	Conductor mm2	Insulation	20ºC Conductor Resistance (Ω/KM)
EV-YJ	1.5	48/0.20	≤12.7
EV-YJ	2.5	80/0.20	≤7.60
EV-YJ	4	128/0.20	≤4.71
EV-YJ	6	196/0.20	≤3.14
EV-YJ	10	322/0.20	≤1.82
EV-YJ	16	513/0.20	≤1.16
EV-YJ	25	798/0.20	≤0.743
EV-YJ	35	1121/0.20	≤0.527
EV-YJ	50	1596/0.20	≤0.368
EV-YJ	70	2242/0.20	≤0.259
EV-YJ	95	3034/0.20	≤0.196

Key Features

Conductor: Flexible Bare annealed copper wire
Insulation: Silicone material
Available in Black, Orange, Red, Yellow, or Blue jacket colors
Single & double insulated options
SQ MM sizes (European style): 4 sq mm to 240 sq mm
AWG sizes (North American style): 0AWG-10AWG
Wide temperature range: -60°C to 200°C
Low viscosity appearance for easy handling

Certifications & Standards

UL1007, UL1185, UL1672, UL10070, UL10483
UL1015, UL1569, UL10012, UL10269
UL2095, UL2129, UL2468, UL2586, UL2725
UL20233, UL20280, UL20963, UL2103, UL2463
UL2517, UL2587, UL2835, UL20276, UL20549
UL21198, 2104, UL2464, UL2576, UL2661
UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material

Frequently Asked Questions

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

5. Does your company accept OEM production?
Yes, we can print your company name and even customize the quality card to promote your company.
