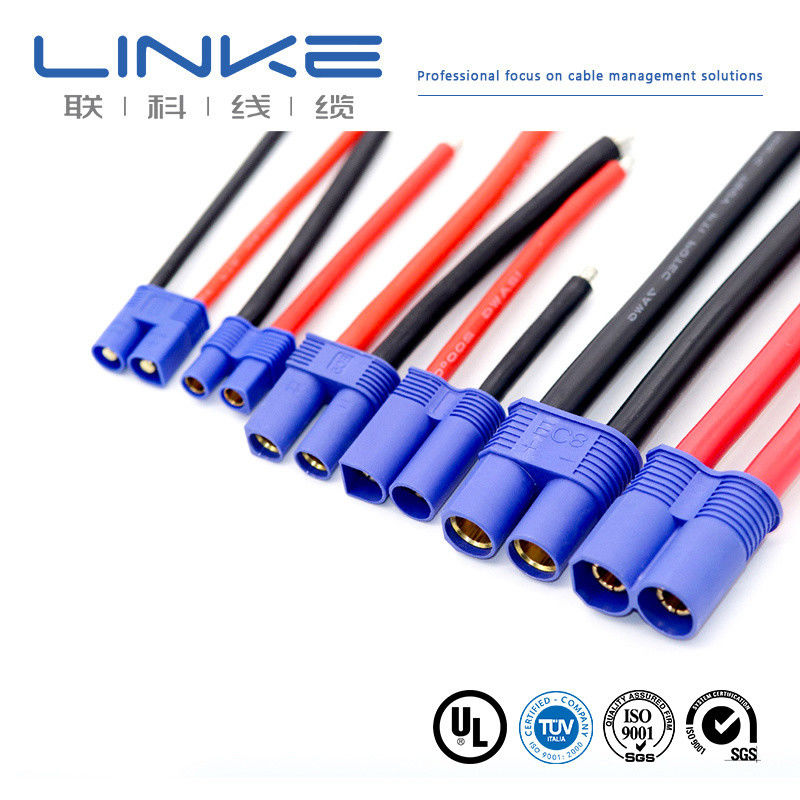

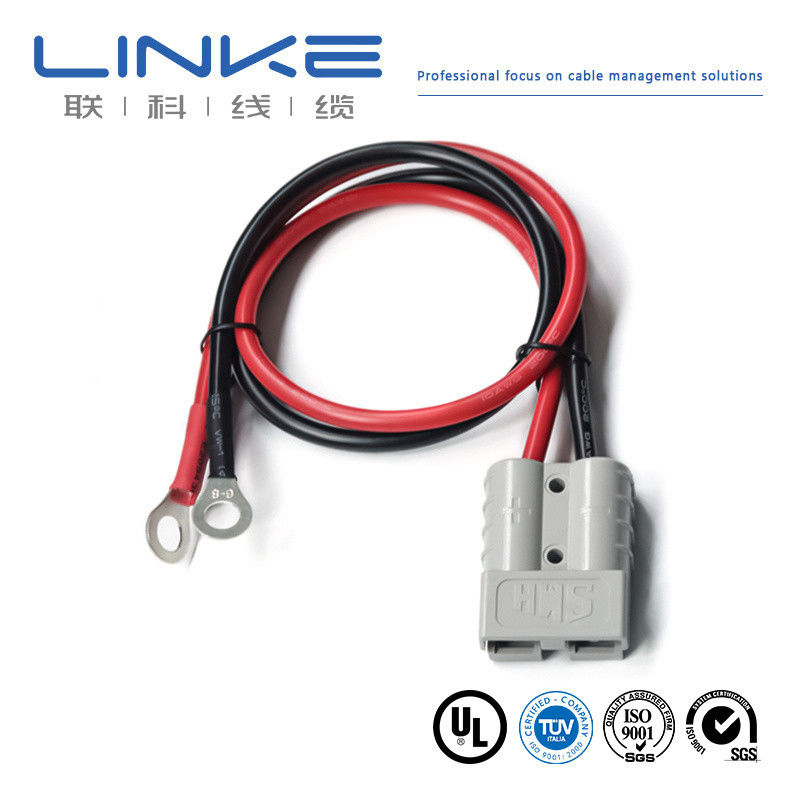

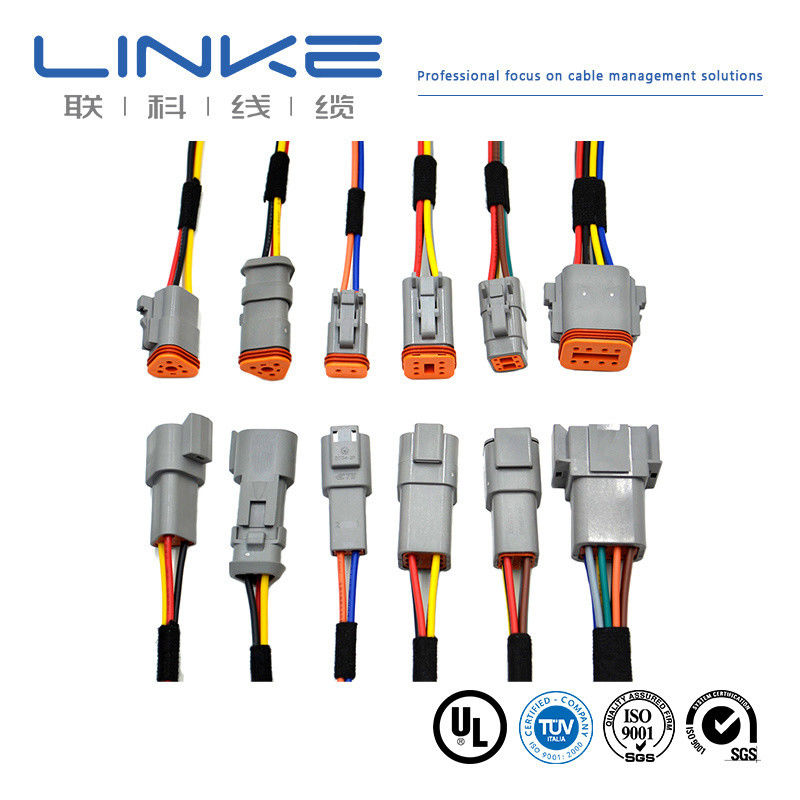

3034/0.20 Structure 380v UL 62 32A 5p 2c*10AWG 1c*10AWG 3c*18AWG EV Charging Evt Cable

3034/0.20 Structure 380v UL 62 32A 5p 2c10AWG 1c10AWG 3c*18AWG EV Charging Evt Cable

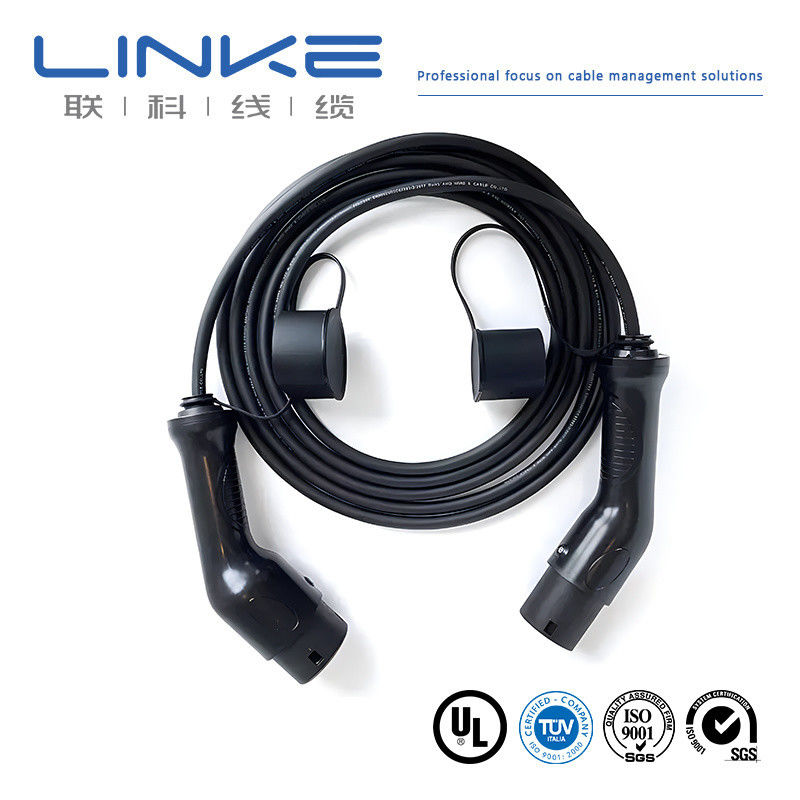

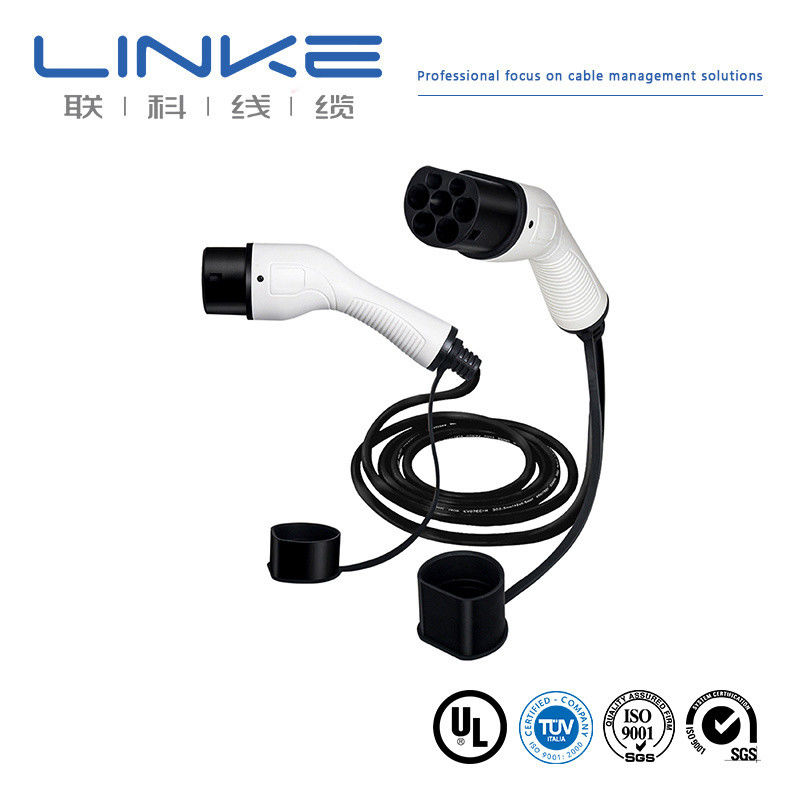

380v UL EV Charging Cable

32A EV Charging Cable

5p EV Charging Cable

Place of Origin:

China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

3034/0.20 Structure 380v UL 62 32A 5p 2c*10AWG 1c*10AWG 3c*18AWG EV Charging Evt Cable

Product Details

Conductor:

Bare Copper

Structure:

3034/0.20

Jacket:

PVC

Use:

Charging

IP Grade:

IP66

Color:

Black

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Colour:

Customize

Type:

Insulated

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Package:

By Roll

Core:

Multiple

Lead Time:

7-15days

Highlight:

380v UL EV Charging Cable

32A EV Charging Cable

5p EV Charging Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

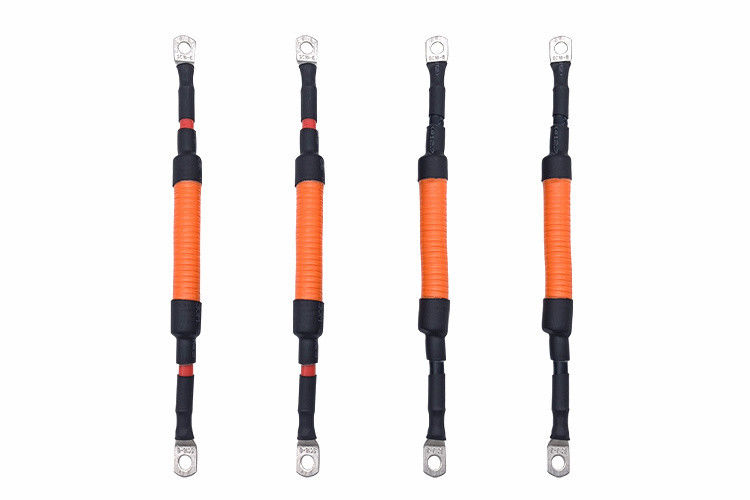

High Voltage Silicone Harness Wire With PVC Pipe Bandaging And Copper Core EV Charger Cable

Get Best Price

Video

TPE Sheathed Electric Vehicle Charging Cable UL Standard with SAE J1772 Type 1 Plug EV Charger Cable

Get Best Price

Video

Driving Copper Wire Cable Harness For Electric Hoist Handle Control Line New energy vehicle cable

Get Best Price

Video

EV High Voltage Battery Electric Vehicle Cable Customized With Tinned Copper

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

Good Quality UL 62 32A 5P 2C*10AWG+1C*10AWG+3C*18AWG EV Charging EVT Cable

SPECIFICATION		CABLE NAME	EV Cable
		CABLE SPEC	2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2)
		RoHS Compliant

Item		A : 2C×80mm2	B : 1C×25mm2	C : 1C×4mm2	D:(3C×0.75mm2)(P2)	E:(7C×0.75mm2)
CONDUCTOR	Material	Bared copper stranded
	Size	2580/0.20 ±0.008mm	798/0.20 ±0.008mm	224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar	40/0.15±0.008mm+ 10/0.19mmTinsel+200DKevlar	40/0.15±0.008mm+ 10/0.19mmTinsel+200D Kevlar
	O.D.(Ref.)	12.40±0.25mm	7.00±0.20mm	2.70±0.15mm	1.40±0.10mm	1.40±0.10mm
INSULATION	Material	Thermoplastic(EF2585,85±3A)
	Min. average thickness	1.60mm	1.20mm	1.00mm	0.50mm	0.50mm
	Min.thickness at any point	1.34mm	0.98mm	0.80mm	0.35mm	0.35mm
	O.D.	15.60±0.40mm	9.60±0.30mm	4.70±0.20mm	2.50±0.10mm	2.50±0.10mm
CABLING-1	Filler	/			Cotton	Cotton
	Material	/			AL-mylar(facing out)	Non-woven
BRAID	Material	/			Tinned copper	/
	Size	/			0.12mm,≥60%	/
In-JACKET	Material	/			TPE	TPE
	Min. average thickness	/			0.60mm	0.60mm
	Min.thickness at any point	/			0.42mm	0.42mm
	O.D.	/			7.20±0.25mm	9.70±0.25mm
CABLING	Filler	Strengthed PP rope
	Material	Non-woven(≥25% overlapping)
	Assembly	2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2)
JACKET	Material	TPU
	Min. average thickness	2.80mm
	Min.thickness at any point	2.28mm
	O.D.	38.00+0.6/-1.00mm

ELECTRICAL CHARACTERISTICS	PHYSICAL PROPERTIES
Rated voltage:DC 1000V	Tensile strength:≥20MPa	High temperature pressure test:≤50%
Rated temperature:Jacket -40~90ºC	Elongation:≥300%	Heat shock test:No crack
Insulation -40~125ºC	Aged condition:110±1ºC×168h	Compatibility test:GB/T 33594
Max. conductor resistance(20ºC):	Percent of original tensile strength:≤±30%	Crush resistance test:GB/T 33594
A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km	Percent of original elongation:≤±30%	Curved around the test:GB/T 33594
Insulation Voltage withstand(Core A&B,10m):	Flame test:GB/T 18380.12-2008	Min. Bend radius:6*OD
AC 2.5kV/5min,leakage current ≤5mA	Artificial weathering test:GB/T 33594	Abrasion resistance:≥2000times
Completed cable Voltage withstand(Core A to A&B,10m):	Low-temperature impact test :-40ºC×16H,No crack	Resistance against chemicals:GB/T 33594
AC 3.5kV/15min,leakage current ≤5mA	Chemical stress acid: N-Oxal-acid alkaline solution, N-sodium hydroxide solution:GB/T 33594
Min. Insulation resistance(20ºC, Core A to A&B):500MΩ.km	Vehicle rolling:Requirements and test methods should be consistent with GB/T 20234.1-2015 7.21

Structure
NO.	conductor mm2				insulution			20ºC conductor resistance (Ω/KM)
NO.	conductor mm2	Structure(N/mm)	Conductor DIA(mm)	Conductor	Thickness (mm)	MATERIAL	insulution OD (mm)	20ºC conductor resistance (Ω/KM)
EV-YJ	1.5	48/0.20	1.60	copper	0.6	silicone	2.90±0.15	≤12.7
EV-YJ	2.5	80/0.20	2.06	copper	0.7	silicone	3.50±0.15	≤7.60
EV-YJ	4	128/0.20	2.62	copper	0.8	silicone	4.30±0.15	≤4.71
EV-YJ	6	196/0.20	3.50	copper	0.8	silicone	5.10±0.20	≤3.14
EV-YJ	10	322/0.20	4.50	copper	1.00	silicone	6.70±0.20	≤1.82
EV-YJ	16	513/0.20	5.70	copper	1.10	silicone	8.00±0.30	≤1.16
EV-YJ	25	798/0.20	7.10	copper	1.3	silicone	9.80±0.30	≤0.743
EV-YJ	35	1121/0.20	8.50	copper	1.3	silicone	11.40±0.30	≤0.527
EV-YJ	50	1596/0.20	10.10	copper	1.50	silicone	13.50±0.30	≤0.368
EV-YJ	70	2242/0.20	12.10	copper	1.50	silicone	15.50±0.40	≤0.259
EV-YJ	95	3034/0.20	14.10	copper	1.50	silicone	17.50±0.50	≤0.196

Conductor : Flexible Bare annealed copper wire
Insulation:Silicone
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
SQ MM sizes (European style) :4 sq mm to 240 sq mm
AWG sizes (North American style) :0AWG-10AWG,
Wide temperature range: -60°C to 200°C

2,Low viscosity appearance
