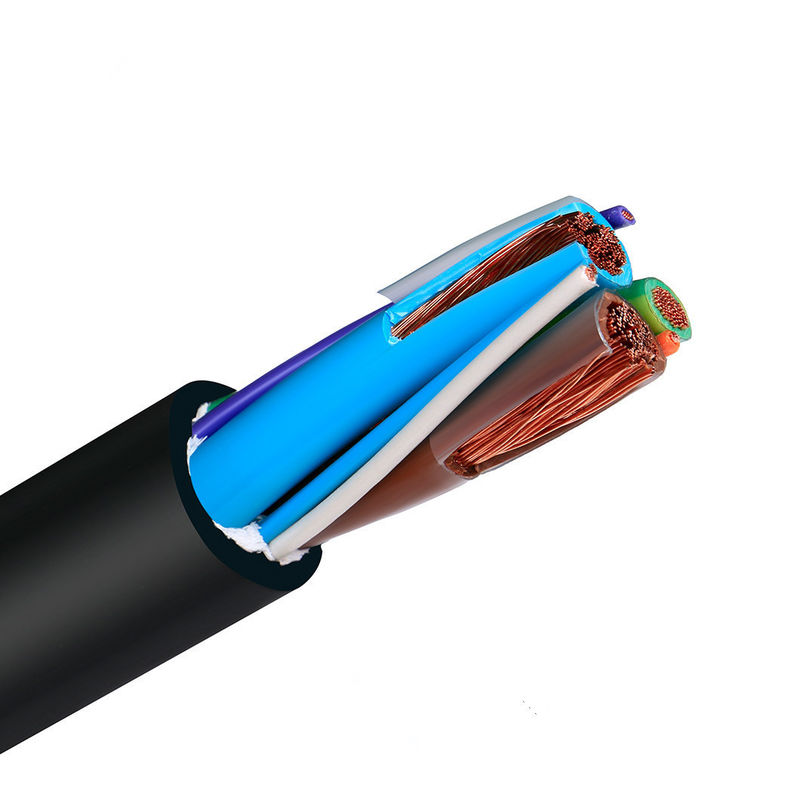

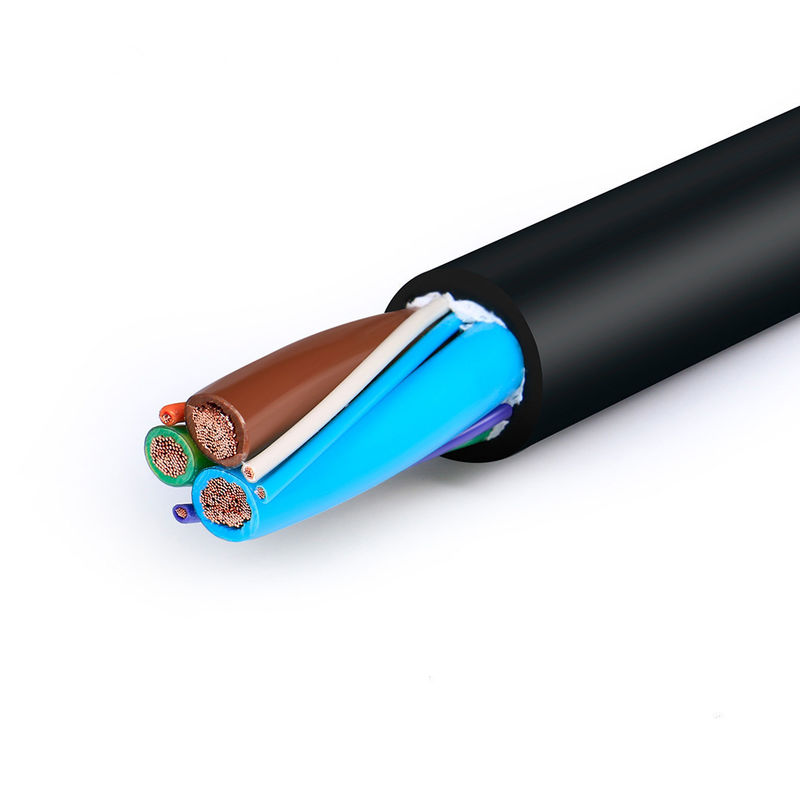

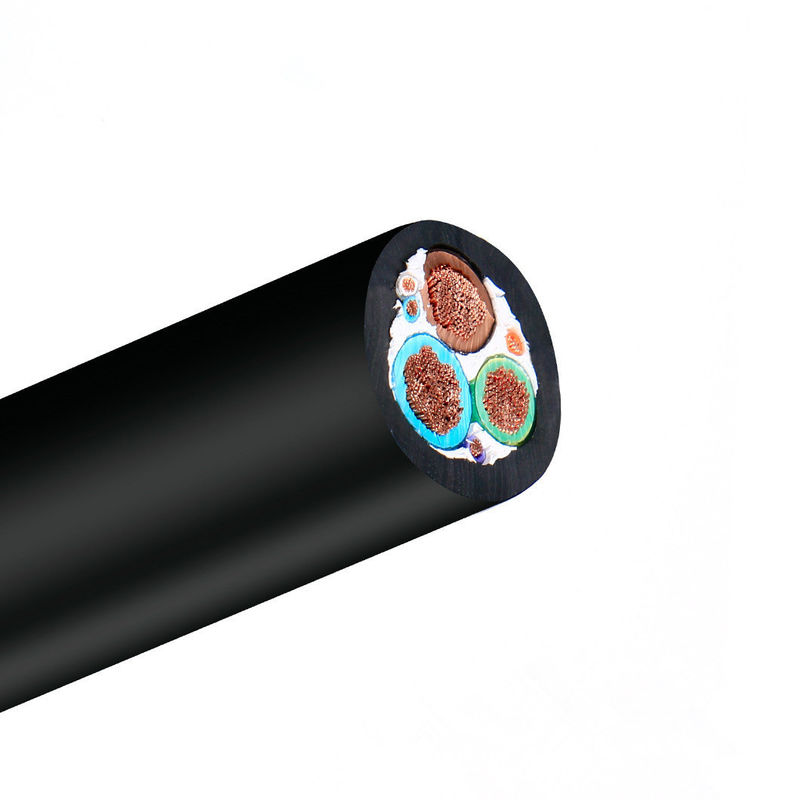

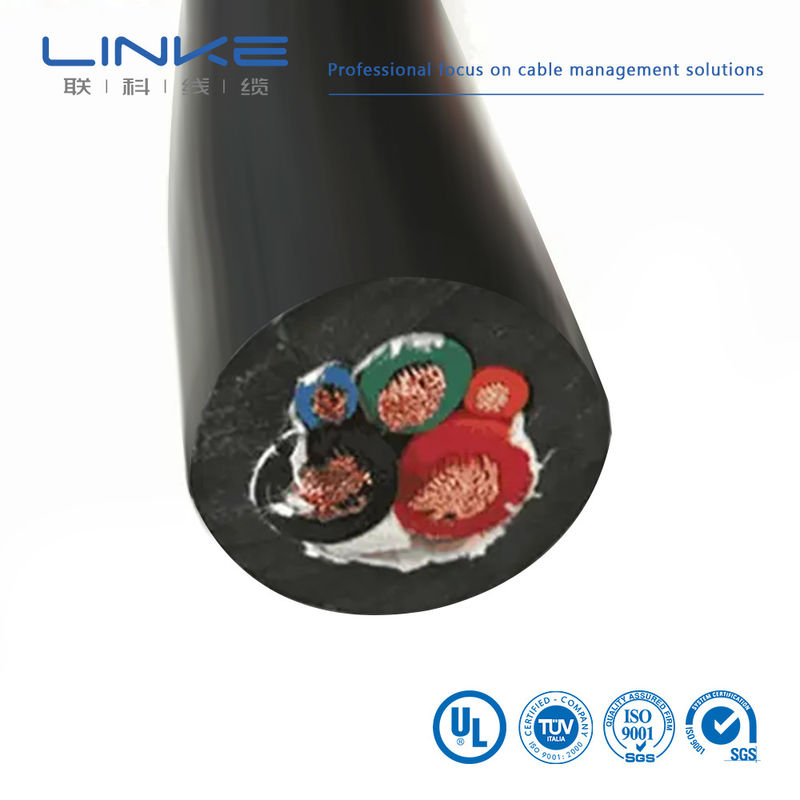

3.6kW 16A 3G2.5mm²+2*0.5mm² EV Wire AC EV Charging Cable

3.6kW 16A 3G2.5mm²+2*0.5mm² EV Wire AC EV Charging Cable

Tinned Copper Core EV Cable

IP65 EV Charger Cable

Underground EV Charger Cable 300V

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C,UL,TPU,UL758,ROHS,REACH,CE,ISO9001-2015,ISO13485,IATF16949

Contact Us
Request A Quote
Product Details
Model NO.:
LK-279
Insulation Material:
XLPE
Sheath Material:
XLPE
Material Shape:
Round Wire
Wire Core Material:
Tinned Wire
Model:
Lk-279
Brand:
Linke
Name:
EV Charging Cable
Copper:
Tinned Copper
Core:
Multiple
Jacket:
XLPE
Transport Package:
Roll
Trademark:
LINKE
Origin:
China
HS Code:
94054090
Supply Ability:
100000000
Package Size:
85.00cm * 85.00cm * 68.00cm
Package Gross Weight:
200.000kg
Application:
Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car
Voltage:
Low And Medium Voltage Cable
Current:
300V
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
 Payment:
Initial Payment Full Payment
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

Tinned Copper Core EV Cable

,

IP65 EV Charger Cable

,

Underground EV Charger Cable 300V

Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Negotiable
Packaging Details
Safe Packaging
Delivery Time
7-15 days
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
50000m/day
Product Description

Supply EV Charging Cable Tinned Copper Material and 30-Day Return Policy

Factory Supply High Quality EV Charging Cable

3.6kW 16A 3G2.5mm²+2*0.5mm² EV Wire AC EV Charging Cable

Short Description:

Electrical Performance
1. Rated current: 16Amp
2. Operating voltage: 250V AC
3. Insulation resisitance:>1000MΩ
4. Therminal temperature rise:<50K
5. Withstand voltage:2000V
6. Working temperature: -30°C ~+50°C
7. IEC 62196-2 EV Charger Cable

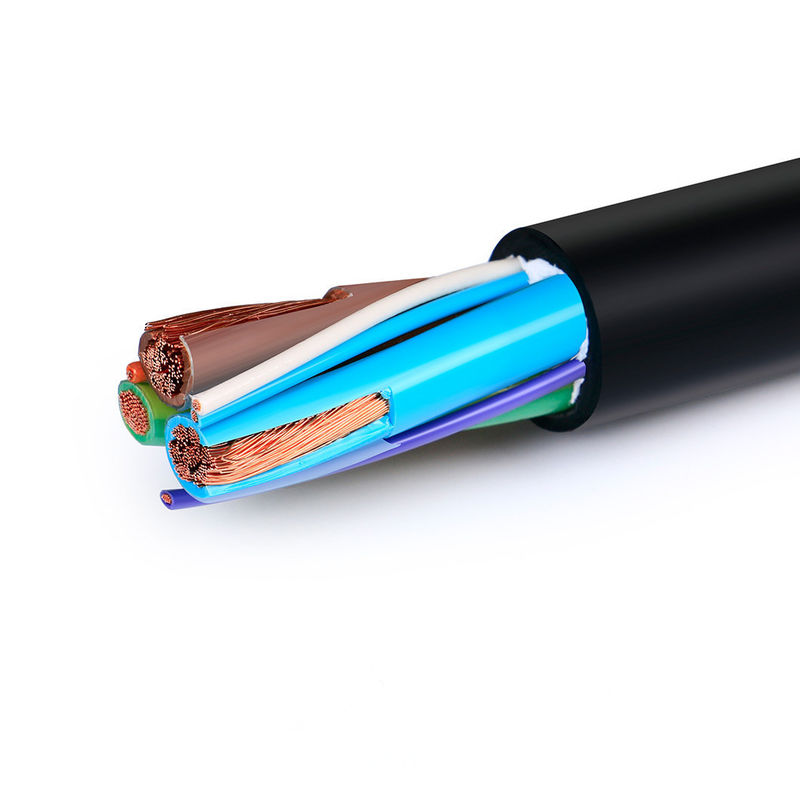

3.6kW 16A 3G2.5mm²+2*0.5mm² EV Wire AC EV Charging Cable 0

3G2.5mm²+2*0.5mm² EV Wire AC EV Cable Leads

Parameters

● Model: 16A wire for EV charging
● SPEC: 3*2.5mm²+2*0.5mm²
● Reference Standard: TUV 2PfG 1908
● Reted current: 16A
● Working voltage: 450/750V AC
● Bebding Radius: ≥ 8D
● Retarding Test: IEC60332-1
● Smoke Density: IEC61034, EN50268-2
● Stewed acid gas release quantity: IEC670754-1, EN50267-2-1
● Heat, cold, wear-resisting to ozone ultraviolet light
● Working temperature: -45°C ~+ 125°C
● CE, TUV, UL approved

16A Single Phase Charging Wire for EV (Electric Vehicle) ● EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; EV Cable.

16A Single Phase Charging Wire for EV (Electric Vehicle)

● EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; Cable sheath is made from high-performance TPE, which possess characteristic as weatherability, high&low temperature resistance, rub resistance, etc.

● This cable is soft, elastic, flex index and won’t harden in low temperature. Our company have passed TUV 2PFG 1908 certification.

Physical Properties 物理性能
Conductor (导 体) Conductor Size/导体尺寸   EV07EE-H 3G2.5+2X0.5mm2
Construction Item   2.5mm2 0.5mm2
Construction/构造 mm 140/0.15±0.008 28/0.15±0.008
Material/材质 Bare Copper Wire
O.D/绞合外径 mm 2.40 0.91
Insulation (绝 缘) Material/材质 mm TPE
Avg.Thickness/标准厚度 mm 0.90 0.60
Min.Thickness/最小厚度 mm 0.71 0.45
Insulation O.D/线径 4.2±0.15mm 2.2±0.15mm
Color/颜色   Brown, Blue, Yellow/Green Black,Green
Coverage   % Non-woven fabric,100% Coverage wit!, 25% Overlapping
Jacket (护 套) Material/材质 TPE
Avg.Thickness/标准厚度 mm 1.70
Min.Thick/最小厚度 mm 1.50
Cable O.D/成品线径 mm 12.2±0.2mm
Color/颜色 Orange or Black
Marking (印字)
Electric Characters 电气性能
Reference Standard V TüV 2 PfG 1908/05.12
Rated Voltage/额定电压: V AC 450/750V
Temperature Rating/温度等级: -40℃ ~ +125℃
Max.Conductor Resistance at 20℃ /导体电阻: Ω/KM 2.5mm2 ≤7.98 Ω/KM & 0.5mm2 ≤39.0 Ω/KM Max at 20℃
Reference Current/参考电流 A 16A
Cold Bend Test/冷弯测试: ‘-40±2′C x 4H No Breakdown
Tensile Strength /抗张强度: N/mm2 Insulation≥10N/mm2 ,Sheath≥10N/mm2
Flame test/阻燃性 IEC 60332-1
Heat ,Cold,Wear,UV Resistance,Waterproof and Higher the mechanical strength
Factory Supply High Quality EV Charging Cable



LINKE UL CERTIFICATION

Factory Supply High Quality EV Charging Cable

Single-conductor, thermoplastic insulation
1007 1330 1333 1591 1723 10064 10369
1015 1331 1569 1592 1901 10070 10483
1185 1332 1577 1672 10012 10269
Multiple-conductor, thermoplastic insulation
2095 2129 2468 2586 2725 20233 20280 20963
2103 2463 2517 2587 2835 20276 20549 21198
2104 2464 2576 2661 2919 20279 20886 21664
Single-conductor, thermoset insulation
3075 3173 3320 3386 3530 3689 30005
3123 3212 3321 3398 3577 3702
3132 3266 3331 3512 3644 3817
3135 3271 3385 3529 3674 3886



Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and  improve the quality of one's life.


Factory Supply High Quality EV Charging Cable


FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.



4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.



5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
