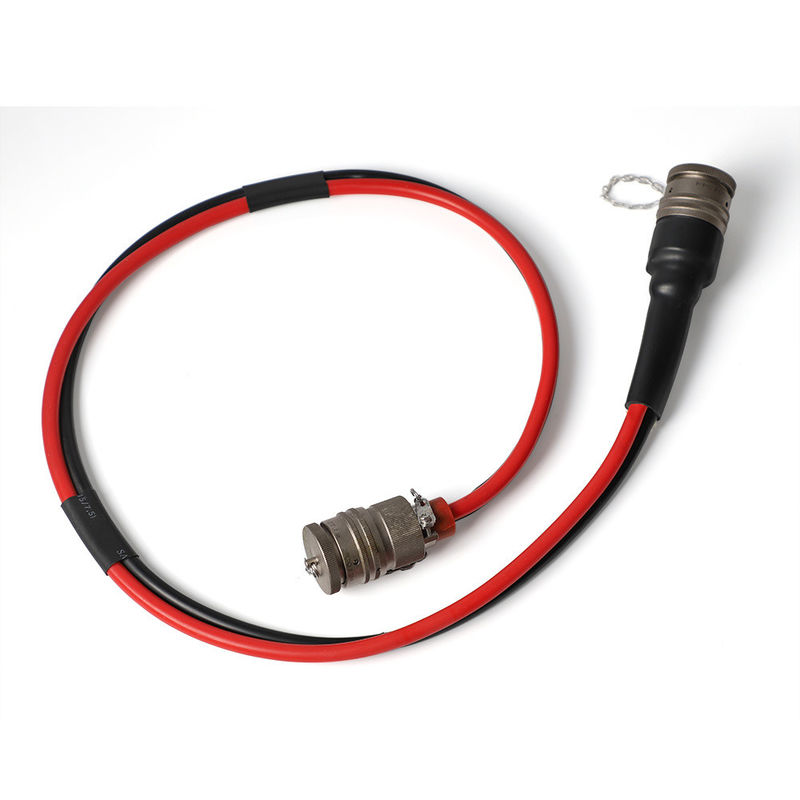

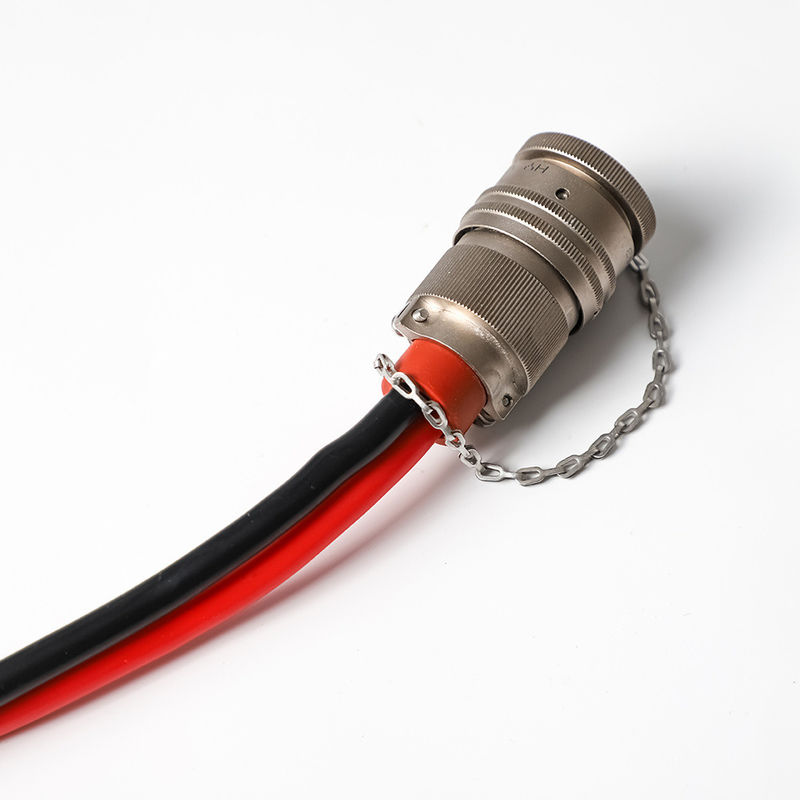

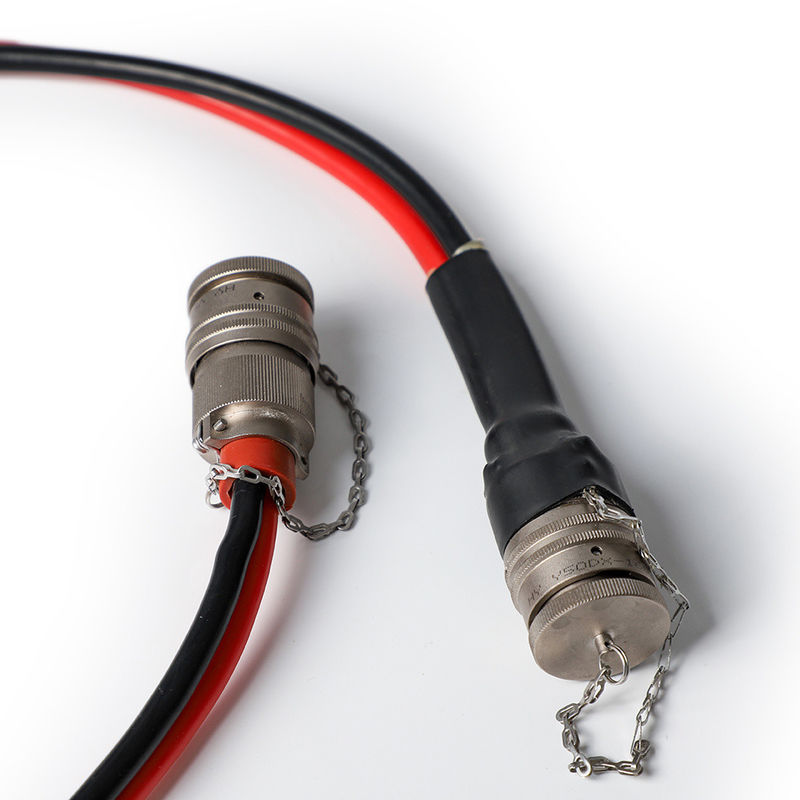

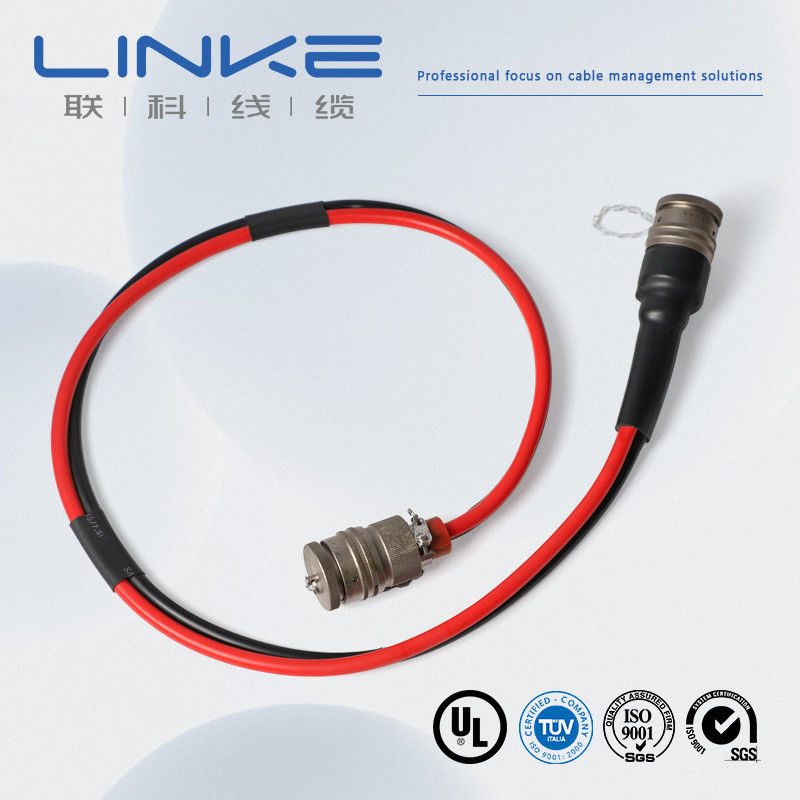

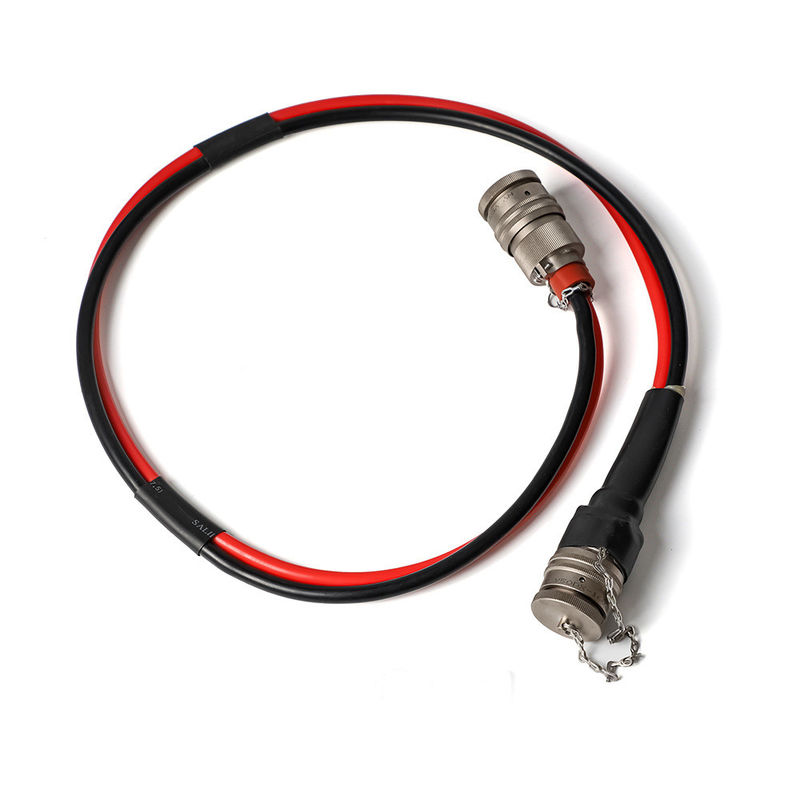

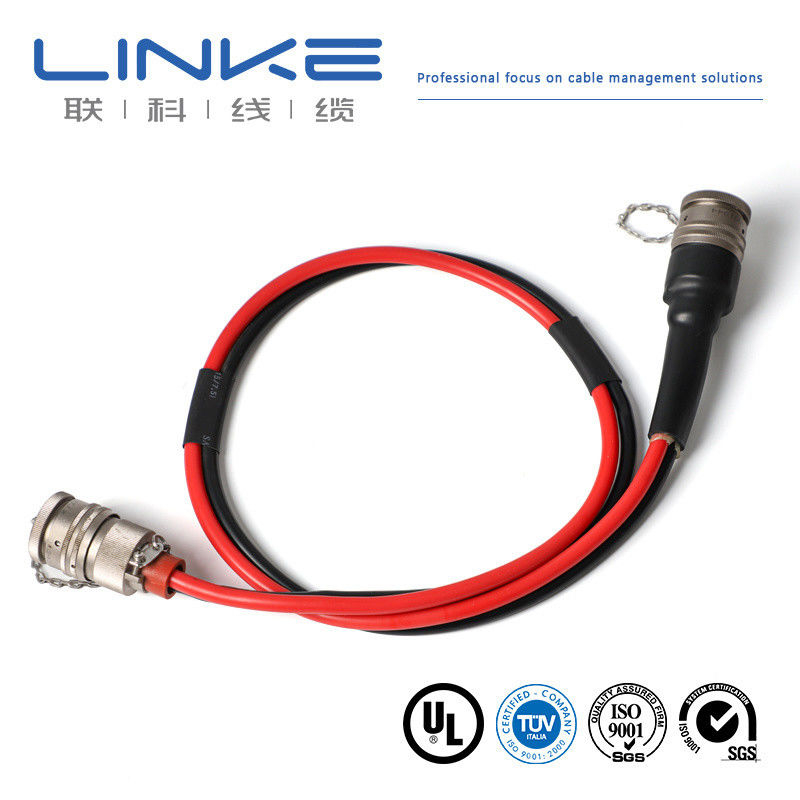

EV Flexible Cable with IEC 62196-2 and SAE J1772 Plug Types 1200A Silicone Jacket Battery Wiring Harness

1500V Battery Wiring Harness

Silicone Jacket Battery Wiring Harness

UL Certification Battery Wiring Harness

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-EV14

AMP:

1200A

Color:

Customized

Customized:

Customized

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Conductor:

Bare Copper

Structure:

3034/0.20

Jacket:

Silicone

Use:

Charging

Transport Package:

Roll

Specification:

Trademark:

LINKE

Origin:

China

HS Code:

94054090

Supply Ability:

100000000

Package Size:

60.00cm * 55.00cm * 50.00cm

Package Gross Weight:

118.000kg

After-sales Service:

1year

Warranty:

1year

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Package:

By Roll

Core:

Multiple

Lead Time:

7-15days

Highlight:

1500V Battery Wiring Harness

Silicone Jacket Battery Wiring Harness

UL Certification Battery Wiring Harness

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

UL 600V 16AMP 314AWG+118AWG AC EV Wire EV Charging Cable

Get Best Price

Video

UL2464 Multi-Core Power Wire with 300V Rated Voltage 80ºC Temperature Rating and Tinned Copper Conductor for Industrial Control

Get Best Price

Video

UL Aprroved PVC XLPE Insulated Multi Conductor Flexible Power Wire Electric Cable

Get Best Price

Automotive Industrial Wire Cable Harness OEM ODM Auto Molex Jst Connector Plug EV Charger Cable

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

Silicone Jacket EV Flexible Cable 1500V Battery Wiring Harness with UL Certification

Product Specifications

CABLE NAME	EV Cable
CABLE SPEC	2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2) RoHS Compliant

Detailed Construction

Item	Conductor Material	Size	O.D.(Ref.)
A : 2C×80mm2	Bared copper stranded	2580/0.20 ±0.008mm	12.40±0.25mm
B : 1C×25mm2	Bared copper stranded	798/0.20 ±0.008mm	7.00±0.20mm
C : 1C×4mm2	Bared copper stranded	224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar	2.70±0.15mm

Insulation Details

Material	Min. average thickness	Min.thickness at any point	O.D.
Thermoplastic(EF2585,85±3A)	1.60mm	1.34mm	15.60±0.40mm

Electrical Characteristics

Property	Value
Rated voltage	DC 1000V
Rated temperature	Jacket -40~90ºC, Insulation -40~125ºC
Max. conductor resistance(20ºC)	A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km

Manufacturer Information

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China with over 10 years of experience in R&D, production and marketing of wire and cable. We specialize in:

EV charging cable
Medical cable
Silicone cable
Automotive cable
Custom cable solutions

Our Certifications

UL1007
UL1185
UL1672
UL10070
UL10483
UL1015
UL1569
UL10012
UL10269
ISO9001
ISO13485
TS16949

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
