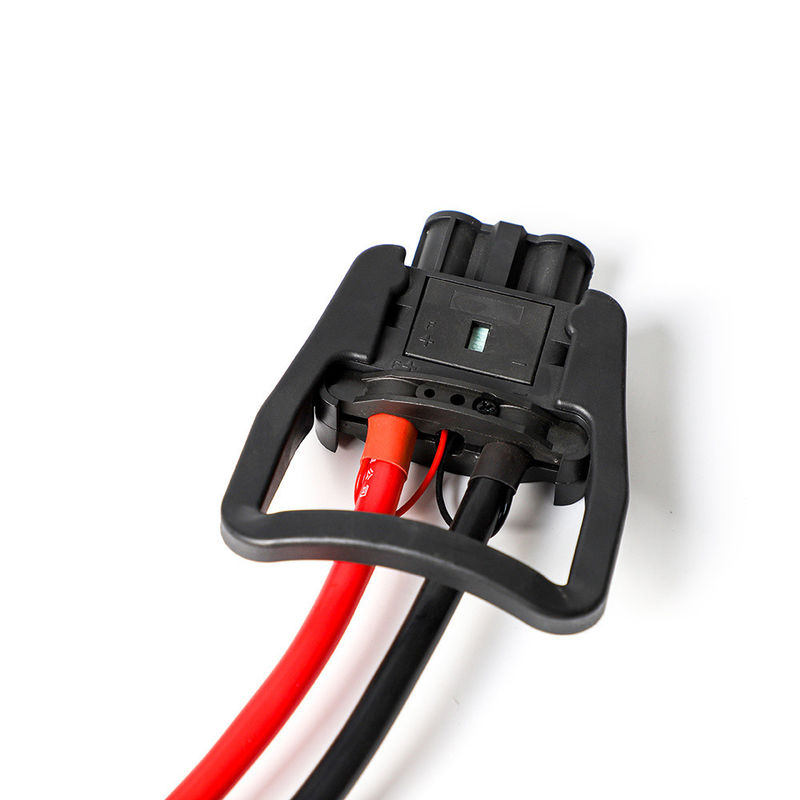

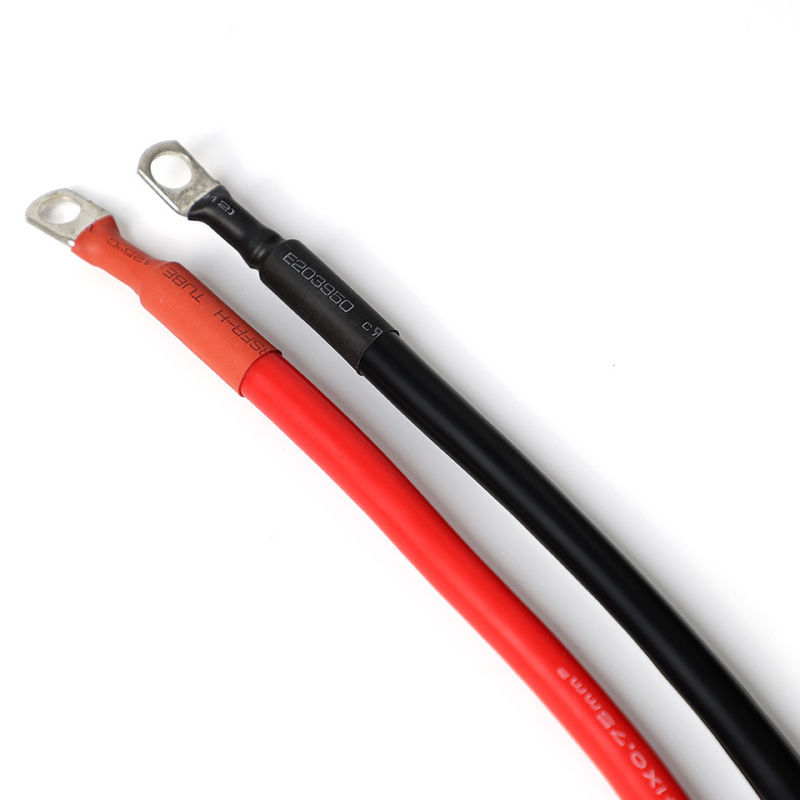

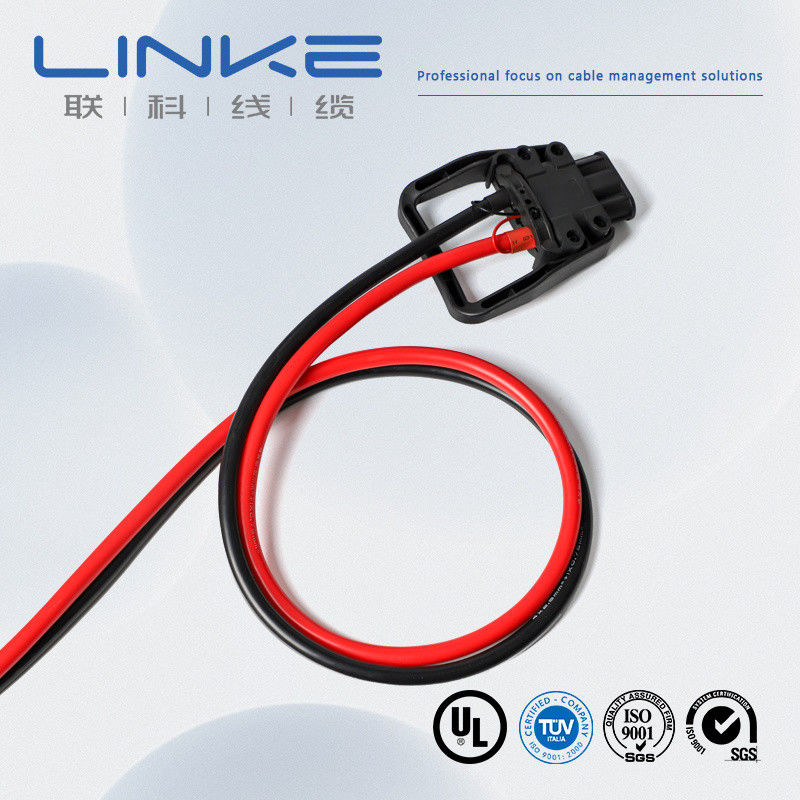

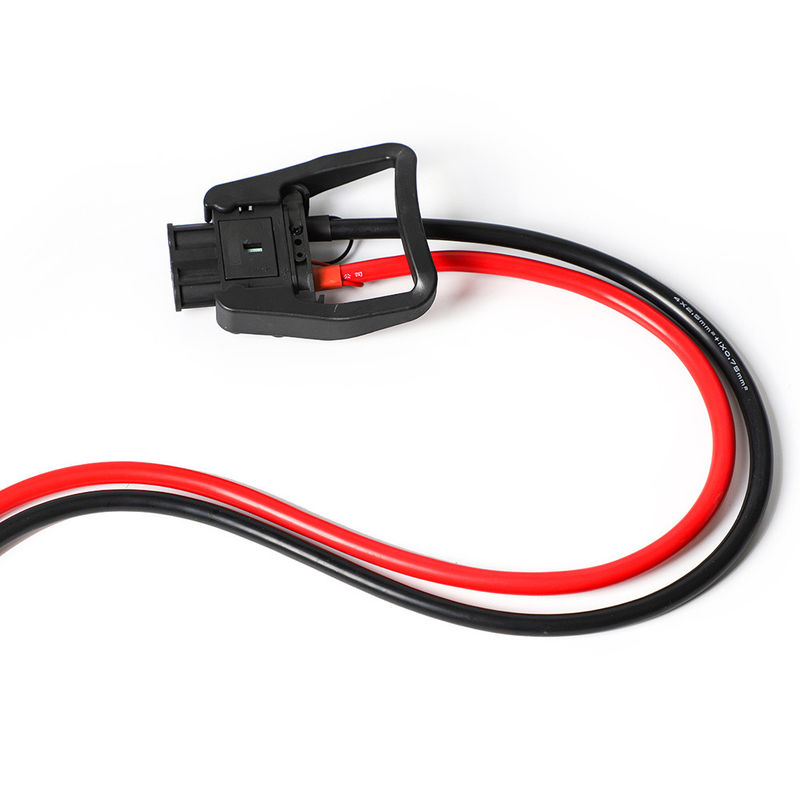

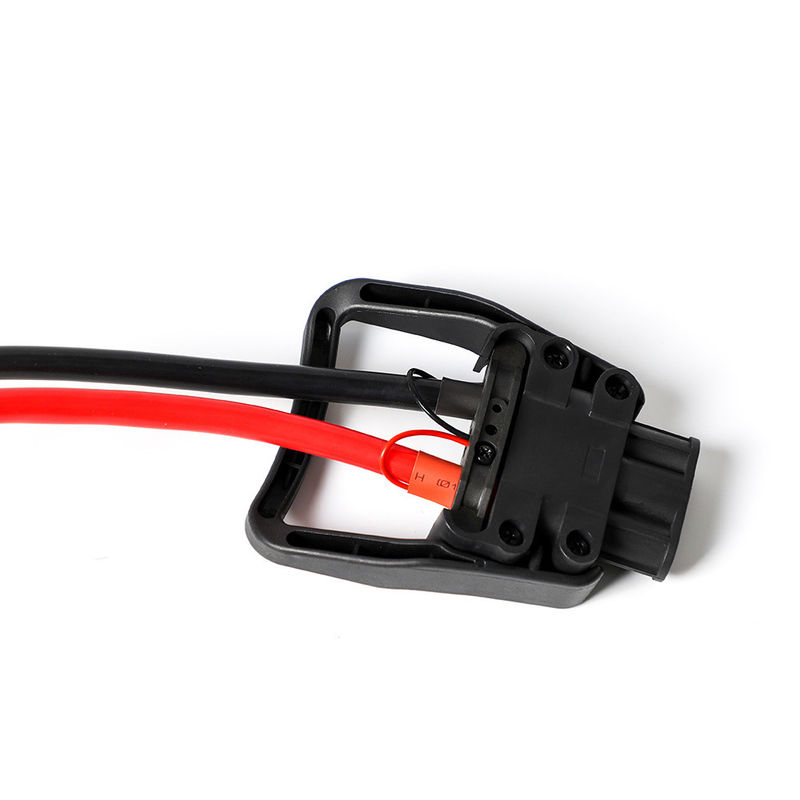

1200A Customized Silicone Jacket EV Charger Cable for Electric Vehicle Charging

Long Lasting EV Charger Cable

Direct Sale EV Charger Cable

Automotive Wiring Harness EV Charger Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-EV12

AMP:

1200A

Color:

Customized

Customized:

Customized

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Conductor:

Bare Copper

Structure:

3034/0.20

Jacket:

Silicone

Use:

Charging

Transport Package:

Roll

Specification:

95MM2

Trademark:

LINKE

Origin:

China

HS Code:

94054090

Supply Ability:

100000000

Package Size:

60.00cm * 55.00cm * 50.00cm

Package Gross Weight:

118.000kg

After-sales Service:

1year

Warranty:

1year

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Package:

By Roll

Core:

Multiple

Lead Time:

7-15days

Highlight:

Long Lasting EV Charger Cable

Direct Sale EV Charger Cable

Automotive Wiring Harness EV Charger Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

Customizable Insulation EV Charging Cable with Wide Temperature Range and Multiple Certifications for Industrial Use

Get Best Price

Video

32A 7kw 16A EV Charger Cable Electric Vehicle Charging Cable with TPE Jacket and Customizable Length

Get Best Price

Video

Silicone Jacket EV Charging Cable with Bare Copper Conductor and 5M Length for Fast Charging

Get Best Price

Video

1200A AMP Silicone Jacket EV Charging Cable with Customized Plug Type for Electric Vehicle Charging Assembly

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

OEM ODM Power Engine Wiring Harness for Automotive Vehicles

Product Specifications

Specification	Cable Name	EV Cable
Cable Spec	2C80mm²+1C25mm²+2C4mm²+(3C0.75mm²)(P2)+(7C*0.75mm²)
RoHS Compliant	Yes

Cable Components

Item	Description
A	2C*80mm²
B	1C*25mm²
C	1C*4mm²
D	(3C*0.75mm²)(P2)
E	(7C*0.75mm²)

Conductor Specifications

Component	Material	Size	O.D. (Ref.)
A	Bared copper stranded	2580/0.20 ±0.008mm	12.40±0.25mm
B	Bared copper stranded	798/0.20 ±0.008mm	7.00±0.20mm
C	Bared copper stranded	224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar	2.70±0.15mm
D	Bared copper stranded	40/0.15±0.008mm+10/0.19mmTinsel+200DKevlar	1.40±0.10mm
E	Bared copper stranded	40/0.15±0.008mm+10/0.19mmTinsel+200D Kevlar	1.40±0.10mm

Insulation Properties

Parameter	Material	Min. Average Thickness	Min. Thickness at Any Point	O.D.
All Components	Thermoplastic (EF2585,85±3A)	1.60mm - 0.50mm	1.34mm - 0.35mm	15.60±0.40mm - 2.50±0.10mm

Electrical Characteristics

Parameter	Value
Rated Voltage	DC 1000V
Rated Temperature	Jacket: -40~90ºC, Insulation: -40~125ºC
Max. Conductor Resistance (20ºC)	A: 0.242Ω/km, B: 0.78Ω/km, C: 4.95Ω/km, D&E: 26Ω/km
Insulation Voltage Withstand	AC 2.5kV/5min, leakage current ≤5mA
Completed Cable Voltage Withstand	AC 3.5kV/15min, leakage current ≤5mA
Min. Insulation Resistance (20ºC)	500MΩ.km

Physical Properties

Property	Value
Tensile Strength	≥20MPa
Elongation	≥300%
Min. Bend Radius	6*OD
Abrasion Resistance	≥2000 times

Cable Structure Reference

Type	Conductor mm²	Structure	Conductor Material	Insulation Material	Insulation OD (mm)	20ºC Conductor Resistance (Ω/KM)
EV-YJ	1.5	48/0.20	Copper	Silicone	2.90±0.15	≤12.7
EV-YJ	2.5	80/0.20	Copper	Silicone	3.50±0.15	≤7.60
EV-YJ	4	128/0.20	Copper	Silicone	4.30±0.15	≤4.71
EV-YJ	6	196/0.20	Copper	Silicone	5.10±0.20	≤3.14
EV-YJ	10	322/0.20	Copper	Silicone	6.70±0.20	≤1.82

1200A Customized Silicone Jacket EV Charger Cable for Electric Vehicle Charging

Brand	LINKE	Cross Section (mm²)	0.01-500mm²
Wire Gauge (AWG)	[e.g., 24AWG, 28AWG]	Conductor	Tinned Copper /bare copper, based on client's requirements
Insulation material	PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other	Jacket Material	[PVC/PU/Rubber/Braid/etc.]
Certifications	RoHS/REACH/UL/CE/IP68/etc	Custom Length	[e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type	[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.]	Shielding	[Shielded/Unshielded/Braid Shield]
Impedance	[e.g., 75Ω (for coaxial cables)]	Printing/Logo	[Text/Label/Logo, max. 20 characters]
Bend Radius	[e.g., ≥5* cable diameter]	Current Rating	[e.g., 5A]
Voltage Rating	[e.g., 30V AC/DC]	Connector Material	[Gold-plated/Nickel-plated/Brass/etc.]
Connectors	[e.g., USB Type-C, 3.5mm Jack, RJ45]	Jacket	XLPE or PE or PVC RUBBER
Delivery Time	7-14 days after confirming the order	Colors	[Black/White/Red/Custom Pantone/etc.]
temperature	Minus-70℃to 350℃(-70℃ ~ 350℃)	Package	Roll/box/plate/Custom
Supporting Services	custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

1200A Customized Silicone Jacket EV Charger Cable for Electric Vehicle Charging

Key Features

Conductor: Flexible bare annealed copper wire
Insulation: High-quality silicone
Color options: Black, Orange, Red, Yellow, Blue jacket
Single & double insulated options available
SQ MM sizes (European style): 4 sq mm to 240 sq mm
AWG sizes (North American style): 0AWG-10AWG
Wide temperature range: -60°C to 200°C
Low viscosity appearance for easy installation

Quality Certifications

Our products meet the following international standards:
UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587
UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
ISO9001 and ISO13485, TS16949
CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name, and we even customize the quality card to promote your company.
