Silicone Jacket EV Charging Cable with Bare Copper Conductor and 5M Length for Fast Charging

Automobile Wire Charging Harness

Hv Wiring Harness

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

LK-EVC02

Jacket:

Silicone

Use:

Charging

After-sales Service:

1 Year

Type:

Fast EV Charging Station

Warranty:

1year

Transport Package:

Roll

Specification:

Trademark:

LINKE

Origin:

China

HS Code:

94054090

Supply Ability:

100000000

Package Size:

60.00cm * 50.00cm * 50.00cm

Package Gross Weight:

30.000kg

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Conductor:

Bare Copper

Structure:

3034/0.20

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Package:

By Roll

Core:

Multiple

Lead Time:

7-15days

Highlight:

Automobile Wire Charging Harness

Hv Wiring Harness

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

Customizable Insulation EV Charging Cable with Wide Temperature Range and Multiple Certifications for Industrial Use

Get Best Price

Video

32A 7kw 16A EV Charger Cable Electric Vehicle Charging Cable with TPE Jacket and Customizable Length

Get Best Price

Video

Silicone Jacket EV Charging Cable with Bare Copper Conductor and 5M Length for Fast Charging

Get Best Price

Video

High Quality EV Charger Cable with Copper Wire Core and Wide Temperature Range for Automotive Applications

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

US Super Soft Automobile Wire Charging Energy Logistics Vehicle HV Wiring Harness

High-performance wiring harness designed for electric vehicle charging systems and logistics vehicles, featuring superior flexibility and durability.

Product Specifications

Cable Configuration

2C×80mm² + 1C×25mm² + 2C×4mm² + (3C×0.75mm²)(P2) + (7C×0.75mm²)

RoHS Compliant

Conductor Details

Item	Material	Size	O.D. (Ref.)
A: 2C×80mm²	Bared copper stranded	2580/0.20 ±0.008mm	12.40±0.25mm
B: 1C×25mm²	Bared copper stranded	798/0.20 ±0.008mm	7.00±0.20mm
C: 1C×4mm²	Bared copper stranded	224/0.15±0.008mm + 10/1#Tinsel+1000D Kevlar	2.70±0.15mm
D: (3C×0.75mm²)(P2)	Bared copper stranded	40/0.15±0.008mm + 10/0.19mm Tinsel + 200D Kevlar	1.40±0.10mm
E: (7C×0.75mm²)	Bared copper stranded	40/0.15±0.008mm + 10/0.19mm Tinsel + 200D Kevlar	1.40±0.10mm

Insulation Specifications

Material	Min. Average Thickness	Min. Thickness at Any Point	O.D.
Thermoplastic (EF2585, 85±3A)	1.60mm	1.34mm	15.60±0.40mm

Electrical Characteristics

Electrical Properties

Rated voltage: DC 1000V
Rated temperature: Jacket -40~90°C, Insulation -40~125°C
Max. conductor resistance (20°C): A:0.242Ω/km, B:0.78Ω/km, C:4.95Ω/km, D&E:26Ω/km
Insulation voltage withstand (Core A & B, 10m): AC 2.5kV/5min, leakage current ≤5mA
Completed cable voltage withstand (Core A to A & B, 10m): AC 3.5kV/15min, leakage current ≤5mA
Min. insulation resistance (20°C, Core A to A&B): 500MΩ.km

Physical Properties

Tensile strength: ≥20MPa
Elongation: ≥300%
High temperature pressure test: ≤50%
Heat shock test: No crack
Compatibility test: GB/T 33594
Flame test: GB/T 18380.12-2008
Min. bend radius: 6×OD
Abrasion resistance: ≥2000 times

Product Features

Conductor: Flexible bare annealed copper wire
Insulation: Silicone
Available in Black, Orange, Red, or Yellow Blue jacket
Single & double insulated options
SQ MM sizes (European style): 4 sq mm to 240 sq mm
AWG sizes (North American style): 0AWG-10AWG
Wide temperature range: -60°C to 200°C
Low viscosity appearance

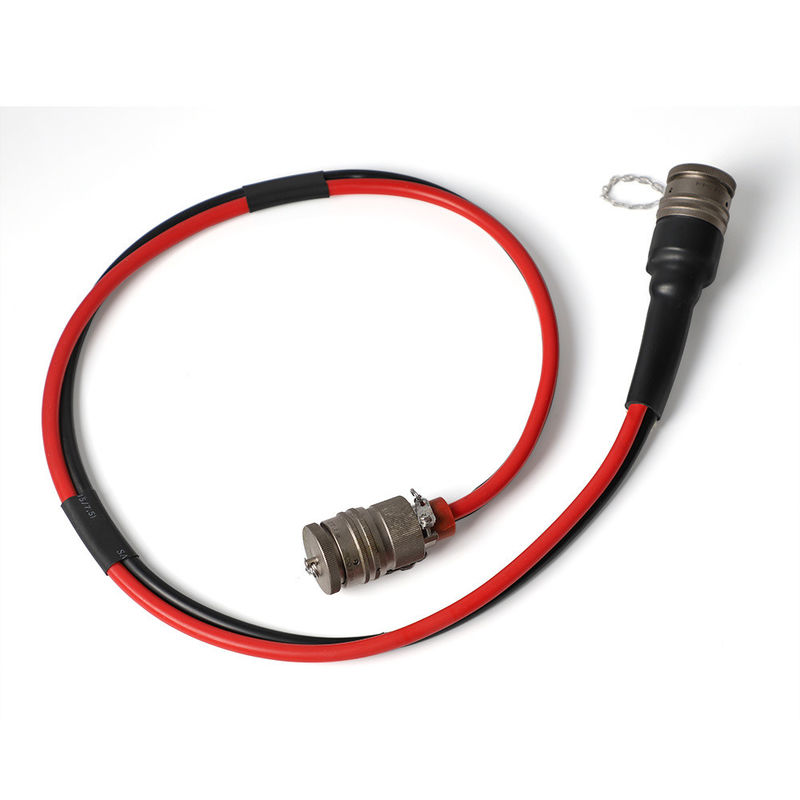

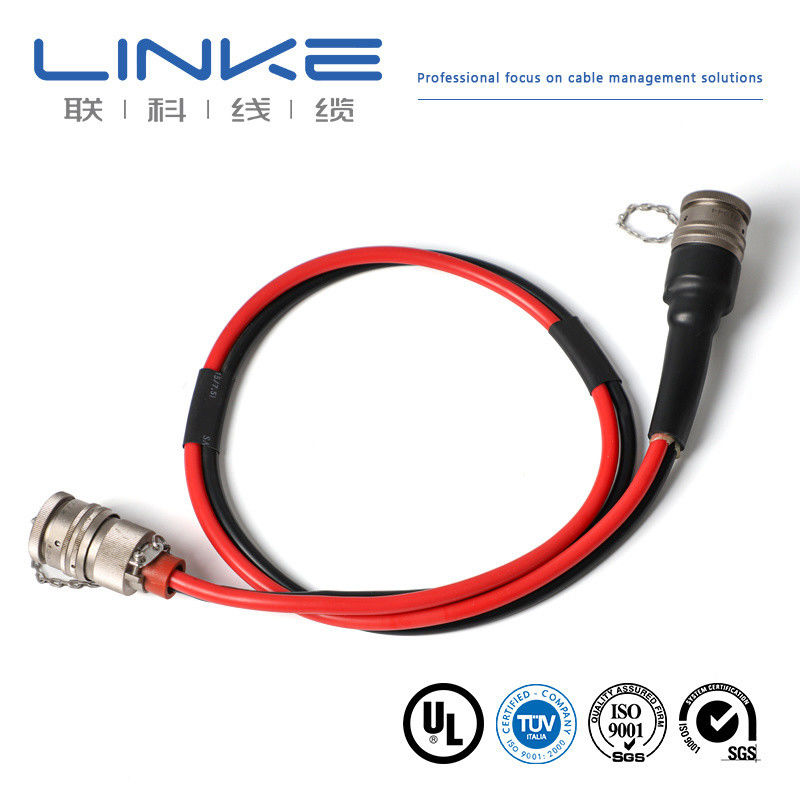

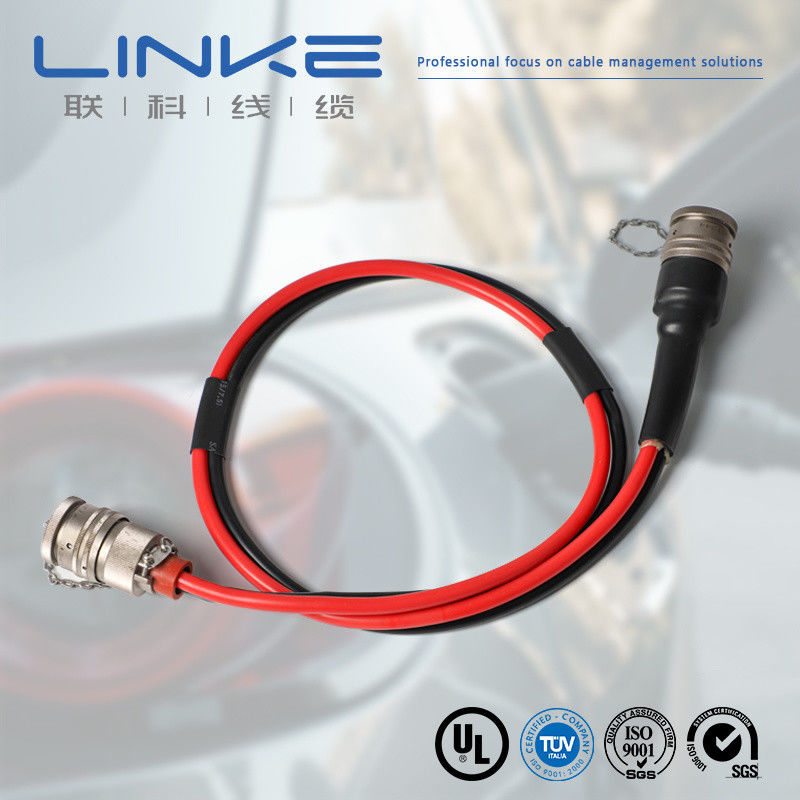

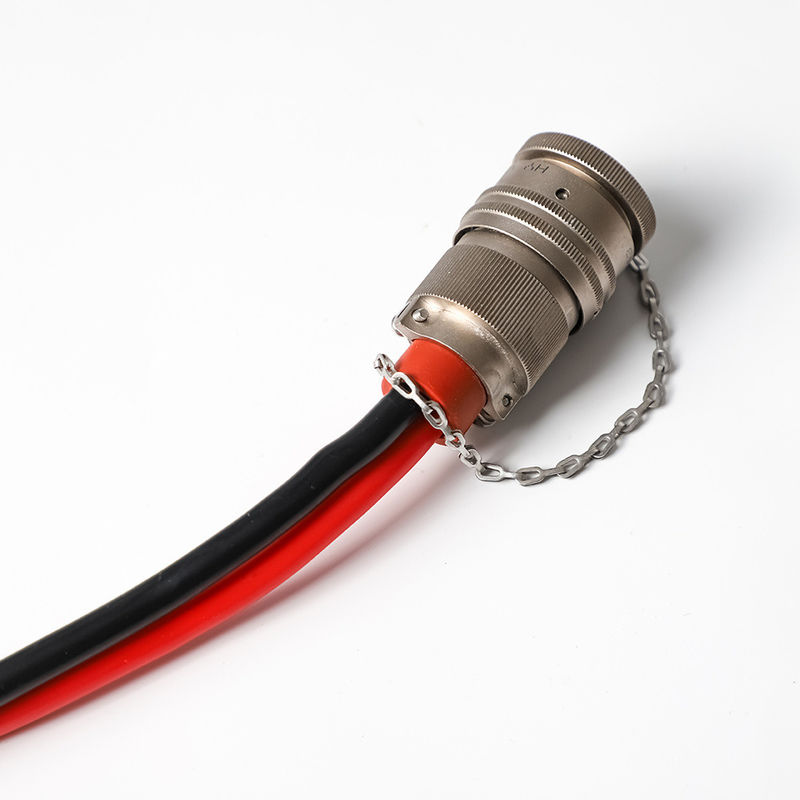

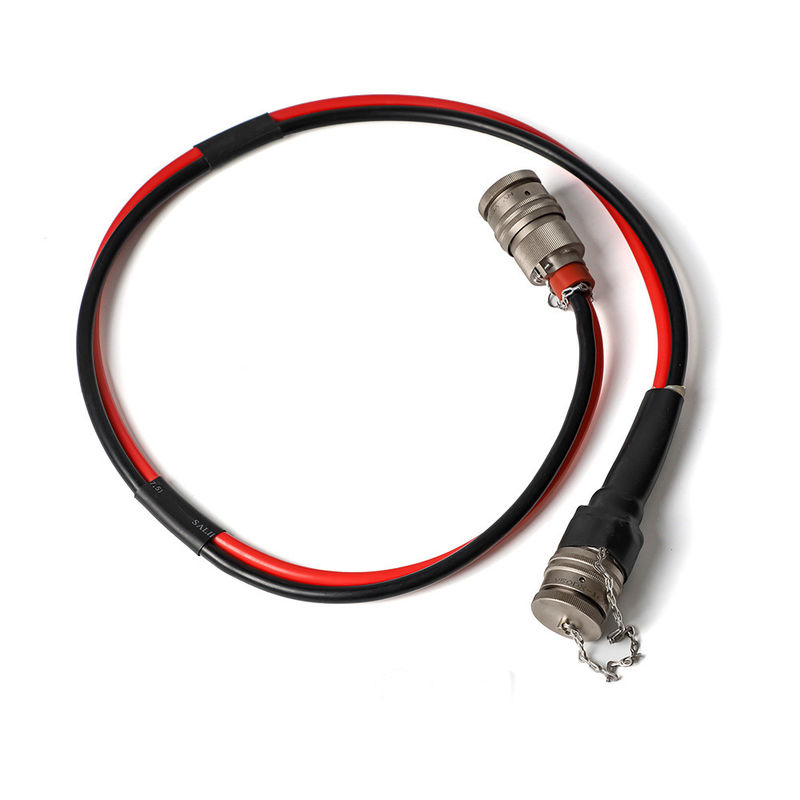

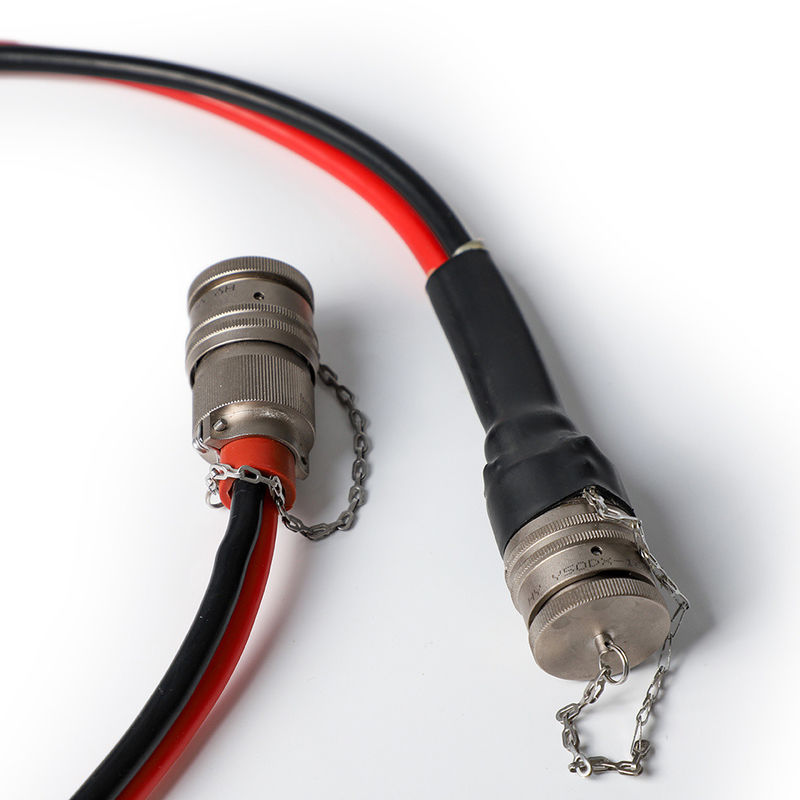

Product Images

Certifications

CNR - Appliance Wiring Material
Extruded PVC Insulated Single, rated 105°C, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name, and we even customize the quality card to promote your company.
