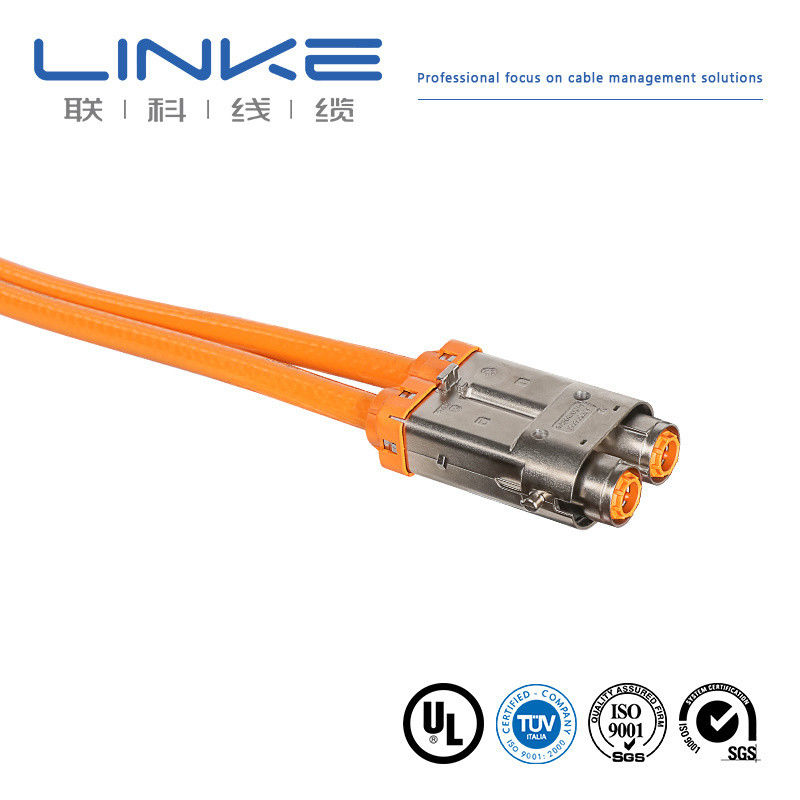

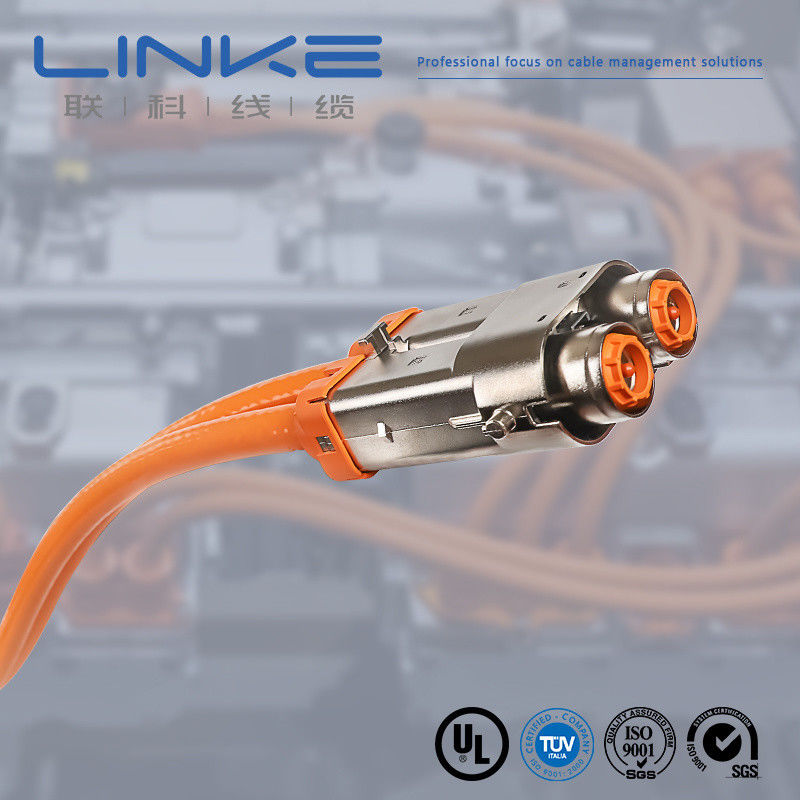

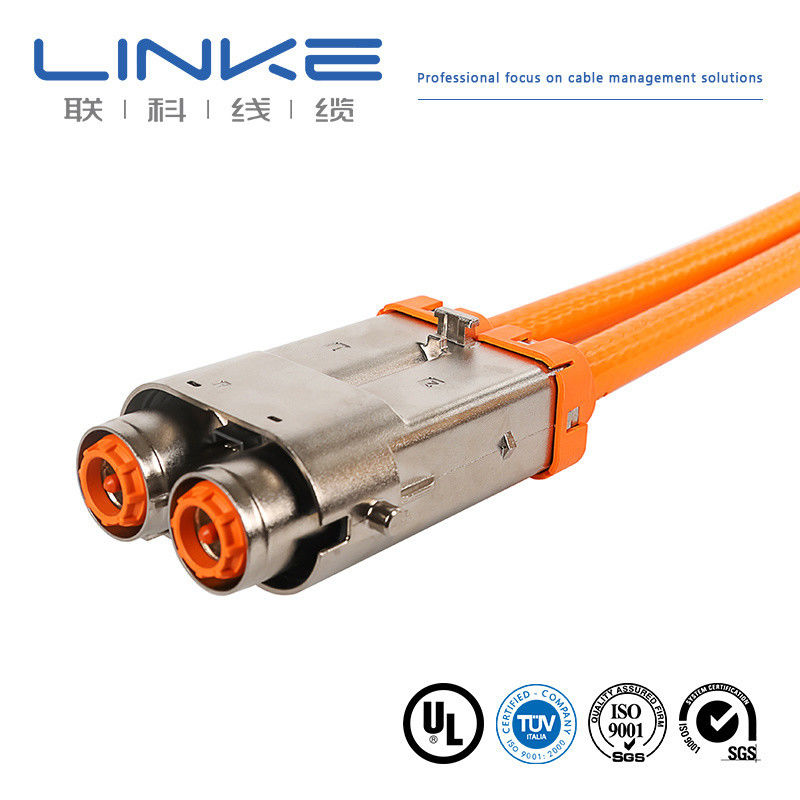

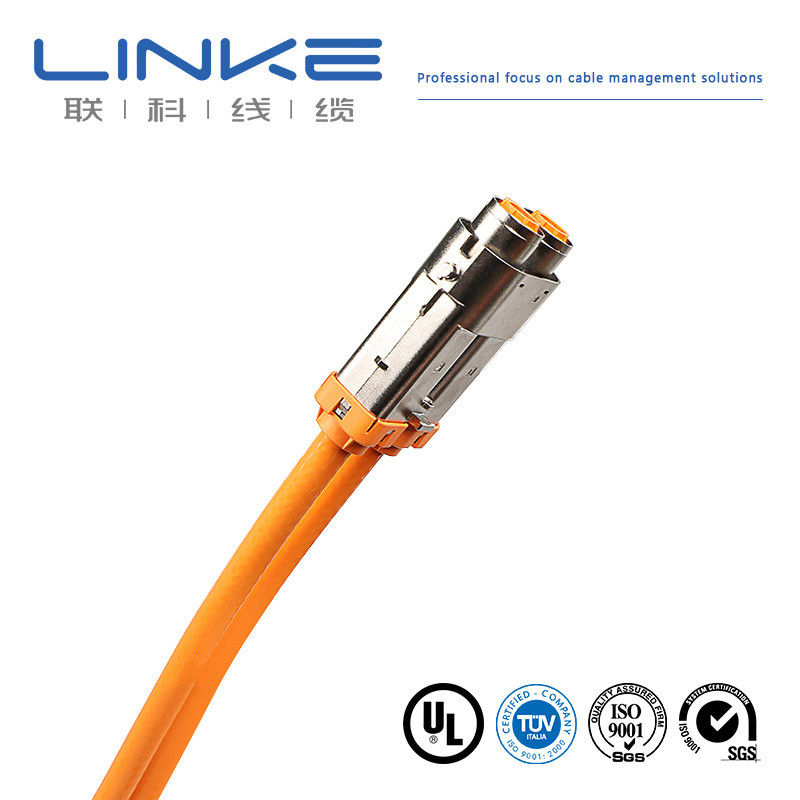

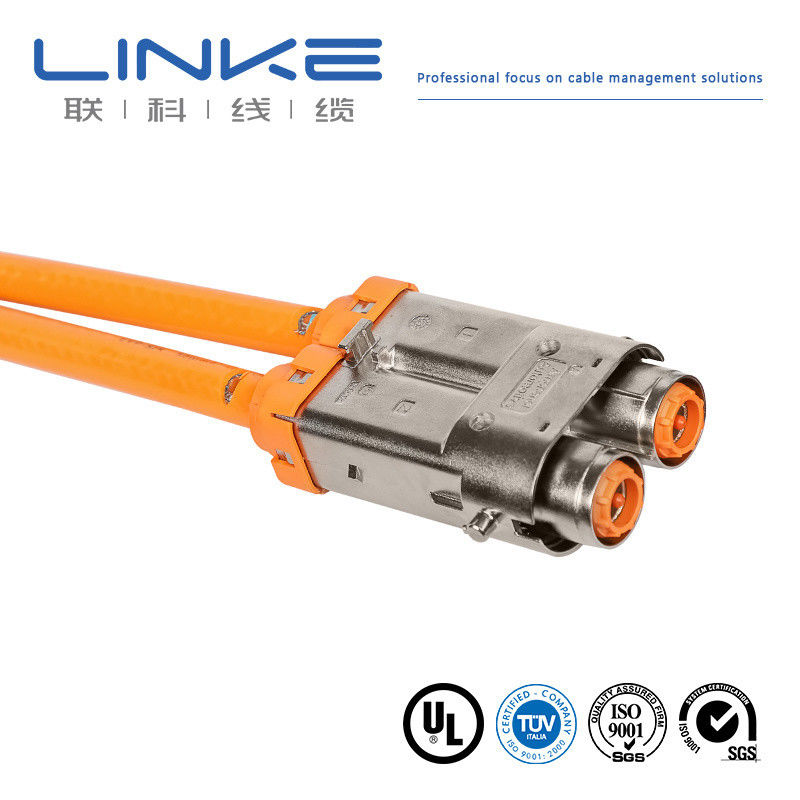

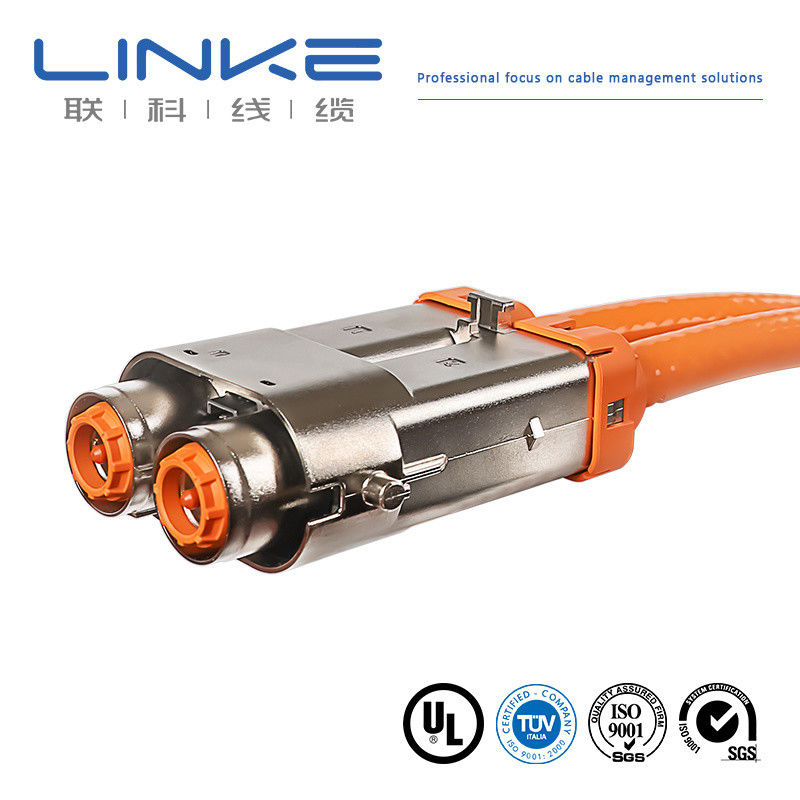

EV High Voltage System Charging Pile Cable Wiring Harness with Bare Copper Conductor

Bare Copper Conductor Charging Pile Cable

High Voltage System Charging Pile Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

EV High Voltage System Charging Pile Cable Wiring Harness with Bare Copper Conductor

Product Details

Model NO.:

LK-EVC01

Charge Method:

Quick Charge

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Conductor:

Bare Copper

Jacket:

Silicone

Use:

Charging

Type:

Slow EV Charging Station

Lead Time:

7-15days

Number Of Charging Interfaces:

One Pile With Multiple Charges

Location:

Public Use

Installation:

Floor Type

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Type:

Insulated

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Package:

By Roll

Core:

Multiple

Highlight:

Bare Copper Conductor Charging Pile Cable

High Voltage System Charging Pile Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

High Voltage Silicone Harness Wire With PVC Pipe Bandaging And Copper Core EV Charger Cable

Get Best Price

Video

TPE Sheathed Electric Vehicle Charging Cable UL Standard with SAE J1772 Type 1 Plug EV Charger Cable

Get Best Price

Video

Driving Copper Wire Cable Harness For Electric Hoist Handle Control Line New energy vehicle cable

Get Best Price

Video

EV High Voltage Battery Electric Vehicle Cable Customized With Tinned Copper

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

Factory direct sale EV High Voltage System Charging Pile Cable Wiring Harness

ELECTRICAL CHARACTERISTICS	PHYSICAL PROPERTIES
Rated voltage:DC 1000V	Tensile strength:≥20MPa	High temperature pressure test:≤50%
Rated temperature:Jacket -40~90ºC	Elongation:≥300%	Heat shock test:No crack
Insulation -40~125ºC	Aged condition:110±1ºC×168h	Compatibility test:GB/T 33594
Max. conductor resistance(20ºC):	Percent of original tensile strength:≤±30%	Crush resistance test:GB/T 33594
A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km	Percent of original elongation:≤±30%	Curved around the test:GB/T 33594
Insulation Voltage withstand(Core A&B,10m):	Flame test:GB/T 18380.12-2008	Min. Bend radius:6*OD
AC 2.5kV/5min,leakage current ≤5mA	Artificial weathering test:GB/T 33594	Abrasion resistance:≥2000times
Completed cable Voltage withstand(Core A to A&B,10m):	Low-temperature impact test :-40ºC×16H,No crack	Resistance against chemicals:GB/T 33594
AC 3.5kV/15min,leakage current ≤5mA	Chemical stress acid: N-Oxal-acid alkaline solution, N-sodium hydroxide solution:GB/T 33594
Min. Insulation resistance(20ºC, Core A to A&B):500MΩ.km	Vehicle rolling:Requirements and test methods should be consistent with GB/T 20234.1-2015 7.21

Structure
NO.	conductor mm2				insulution			20ºC conductor resistance (Ω/KM)
NO.	conductor mm2	Structure(N/mm)	Conductor DIA(mm)	Conductor	Thickness (mm)	MATERIAL	insulution OD (mm)	20ºC conductor resistance (Ω/KM)
EV-YJ	1.5	48/0.20	1.60	copper	0.6	silicone	2.90±0.15	≤12.7
EV-YJ	2.5	80/0.20	2.06	copper	0.7	silicone	3.50±0.15	≤7.60
EV-YJ	4	128/0.20	2.62	copper	0.8	silicone	4.30±0.15	≤4.71
EV-YJ	6	196/0.20	3.50	copper	0.8	silicone	5.10±0.20	≤3.14
EV-YJ	10	322/0.20	4.50	copper	1.00	silicone	6.70±0.20	≤1.82
EV-YJ	16	513/0.20	5.70	copper	1.10	silicone	8.00±0.30	≤1.16
EV-YJ	25	798/0.20	7.10	copper	1.3	silicone	9.80±0.30	≤0.743
EV-YJ	35	1121/0.20	8.50	copper	1.3	silicone	11.40±0.30	≤0.527
EV-YJ	50	1596/0.20	10.10	copper	1.50	silicone	13.50±0.30	≤0.368
EV-YJ	70	2242/0.20	12.10	copper	1.50	silicone	15.50±0.40	≤0.259
EV-YJ	95	3034/0.20	14.10	copper	1.50	silicone	17.50±0.50	≤0.196

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China.

In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of

wire and cable. Linke provide various cables&custom cable solutions for all over the world.

We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable,

towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and improve the quality of one's life.
EV High Voltage System Charging Pile Cable Wiring Harness with Bare Copper Conductor 4

We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269

(Single conductor,thermoplastic insulation)

UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,

UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664

ISO9001 and ISO13485,TS16949

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
EV High Voltage System Charging Pile Cable Wiring Harness with Bare Copper Conductor 6

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.

For More Information, Please do feel free to contact us!
