1200A AMP Flexible Copper Busbar

Custom Flexible Flat Copper Busbar

Battery Copper Busbar

30.000kg Package Gross Weight Copper Busbar

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

Copper Busbar

AMP:

1200A

Color:

Customized

Plug Type:

IEC 62196-2 (Type 2), SAE J1772 Type 1

Certification:

UL;ISO9001;ISO13485;IATF16949;TPU

Samples:

US$ 1000/PCS 1 PCS(Min.Order) |

Customization:

Available

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Type:

Insulated

Package:

By Roll

Core:

Multiple

Lead Time:

7-15days

Highlight:

Custom Flexible Flat Copper Busbar

Battery Copper Busbar

30.000kg Package Gross Weight Copper Busbar

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

105 Degree AC 300/500V H05bz5-F / H07bz5-F EV Charger Cable with Silicone Jacket and 16A Rated Current

Get Best Price

XLPE Insulated High Temperature 1200c Thermocouple Aerial Bundle Cable

Get Best Price

Industrial Range FEP Wire Tinned Copper Cable for Home Appliance Heater Lighting Industrial control line

Get Best Price

Customized Slow EV Charging Station Auto Electronics Car Charger

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

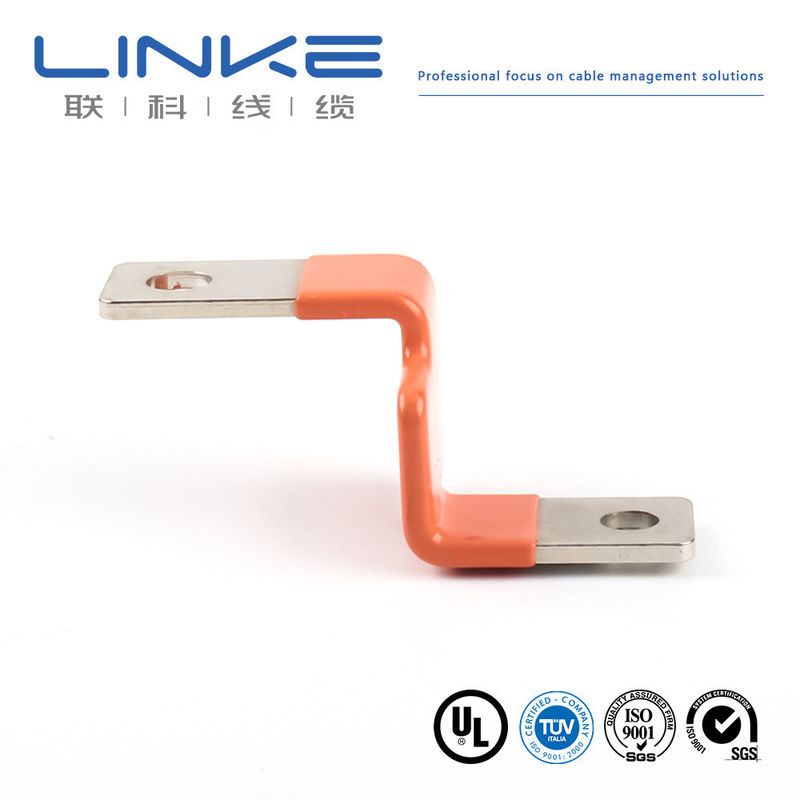

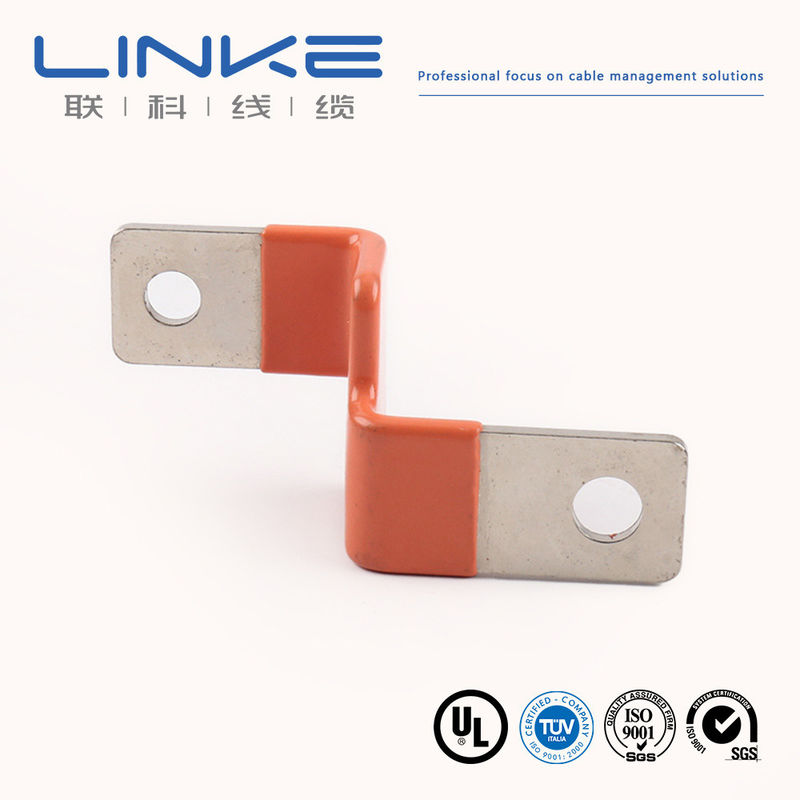

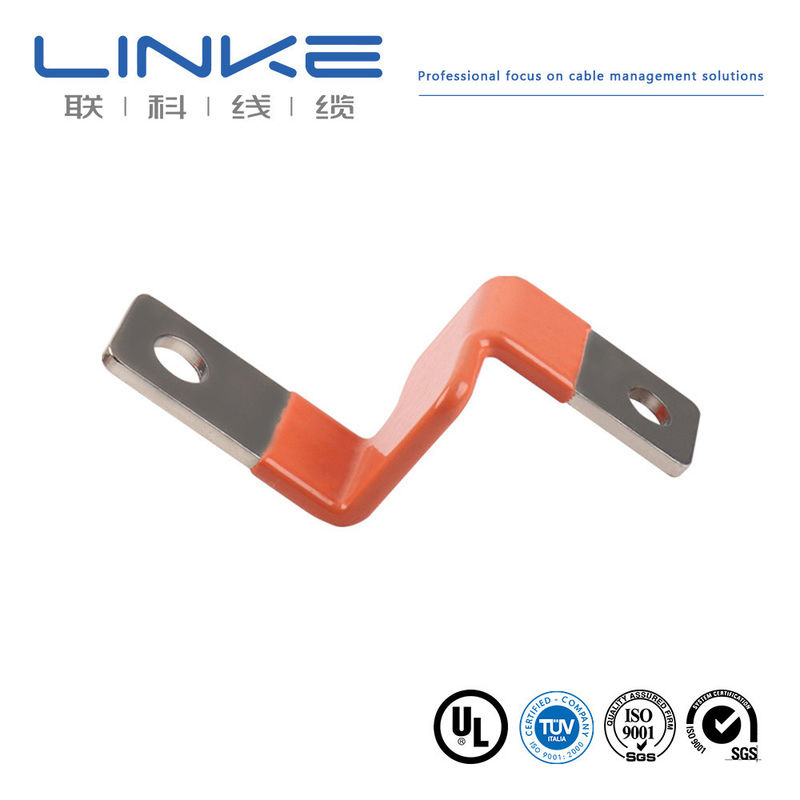

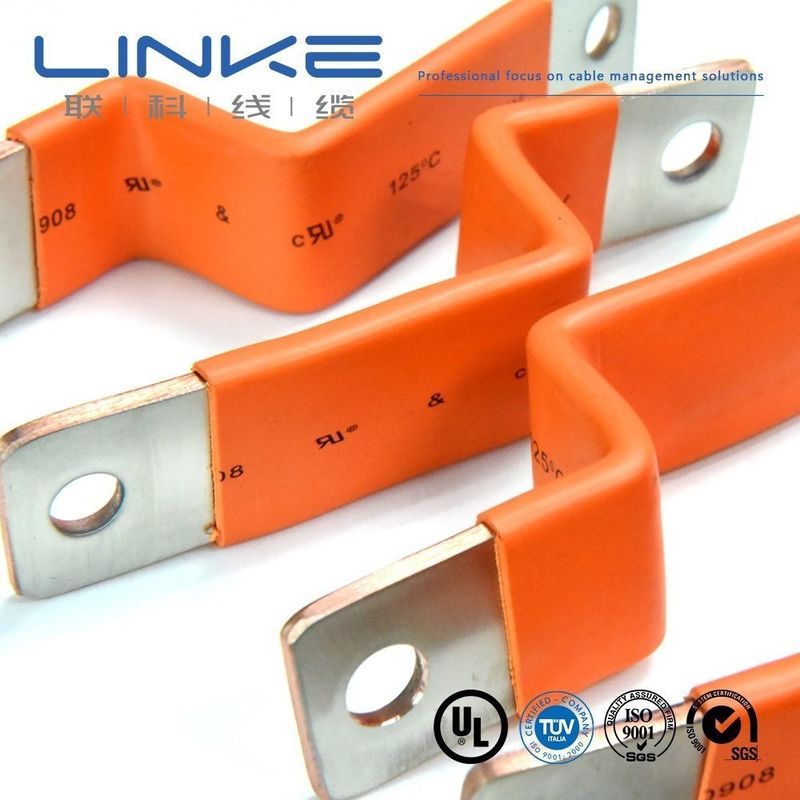

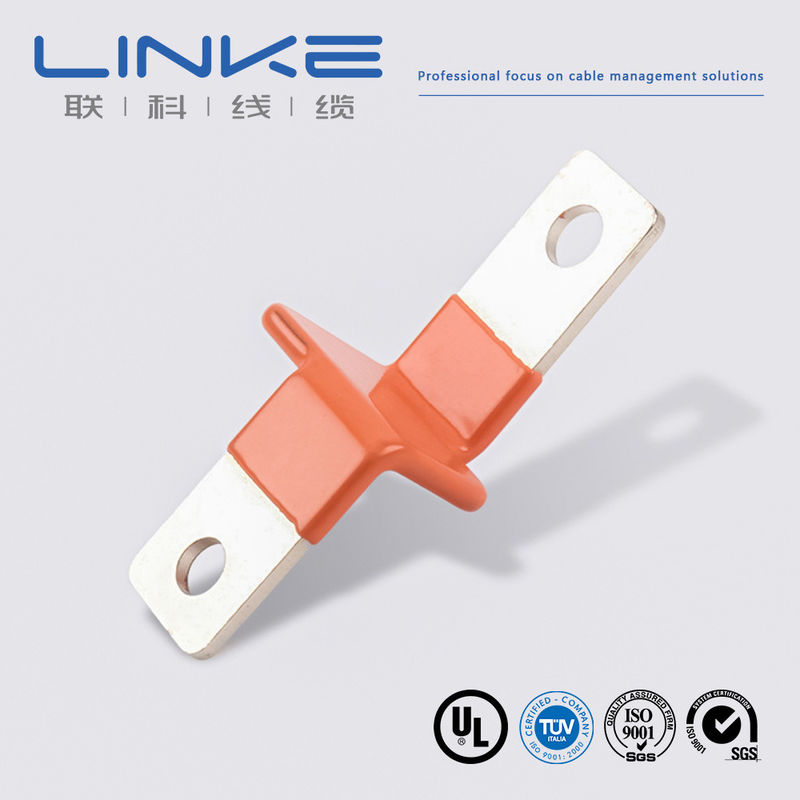

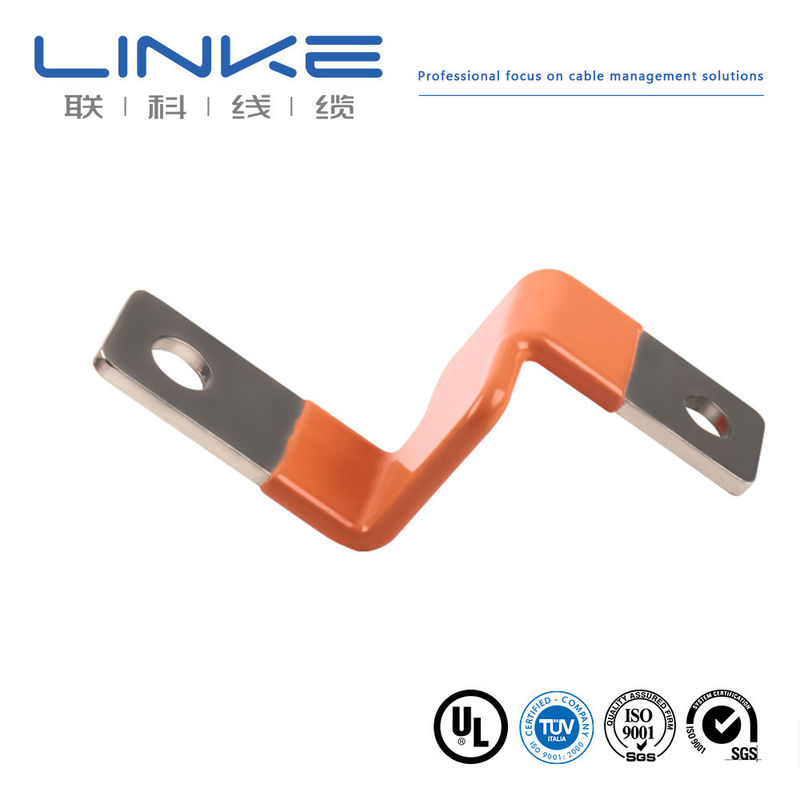

Insulated Custom Flexible Flat Copper Busbar for Battery EV Charger Cable

Premium Flexible Copper Busbar for New Energy Vehicle Applications

Our insulated custom flexible flat copper busbar is engineered for battery and EV charger cable applications. The product features 99.9% pure copper content through brazed copper foil construction, delivering excellent conductivity with minimal impurities. The laminated design provides increased current-carrying surface area.

Product Specifications

Material Standard	GB: T2 Copper with Min. 99.9% DIN: E-Cu58 (Number: 2.0065) EN: Cu-ETP (Number: CW004A) ISO: Cu-ETP UNS: C11000 JIS: C1100 BS: C101 Other materials available upon request
Key Parameters	Resistance: 0.00001Ω Conductivity: 57% Copper Foil Thickness: 0.1/0.2/0.3/0.5/1.0mm (customizable) Operating Temperature: -45°C to +150°C Copper Foil Tensile Strength: ≥500N
Insulation Properties	Material: PVC Dipping Coating (excellent performance) Performance: Superior to PE heat shrink tubes Flame Retardant: UL94-V-0 standard (customizable) Leakage Testing: 3500VDC/30s (1.5mm) - 0.025 MA; 5000VAC/30-60s (1.8-2.0mm) - 0.065 MA
Surface Treatment	Plating Options: Nickel, tin, or silver Plating Thickness: 3μm to 12μm (standard) Salt Spray Resistance: Nickel withstands 240 hours in neutral environment

Performance Testing

Bending Test: 10,000 cycles at 15° angle without breakage
Temperature Rise Testing: Custom reports available based on cross-sectional area
Quality Standards: IATF 16949 automotive industry compliant
Certifications: ROHS, REACH eco-friendly compliant

Product Variations

PVC Insulated Option

Conductor: Flexible bare annealed copper wire
Insulation: Copper with PVC coating
Color Options: Black, Orange, Red, Yellow, Blue
Size Customization: European (SQ MM) or North American (AWG) standards

Silicone Insulated Option

Conductor: Flexible bare annealed copper wire
Insulation: High-grade silicone
Temperature Range: -60°C to 200°C
Size Range: 4 sq mm to 240 sq mm (European) or 0AWG-10AWG (North American)

About Linke Cable Technology Co., Ltd

As a leading Chinese cable manufacturer with over 10 years of experience, we specialize in R&D, production, and marketing of high-quality cables. Our expertise includes EV charging cables, medical cables, silicone cables, and automotive cables. We maintain certifications including ISO9001, ISO13485, and TS16949.

Frequently Asked Questions

1. Are you a manufacturer or trading company?

We are a professional manufacturer with complete control over production. Visitors are welcome - we provide pickup service in Shenzhen.

2. How can I get a sample to test your quality?

Samples are free for evaluation, with new clients responsible for courier costs.

3. What's your Minimum Order Quantity?

Standard MOQ is 100m. For heavy cables, we recommend larger quantities for cost-effective shipping, preferably via sea freight.

4. Can I get a discount?

Discounts are available based on order quantity. Contact us for customized pricing.

5. Does your company accept OEM production?

Yes, we offer complete OEM services including company branding and customized quality cards.
