K B R S Type Thermocouple Compensation Lead Wire Cable for Industry Industry Standard

K B R S Type Thermocouple Compensation Lead Wire Cable for Industry Industry Standard

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C,UL,TPU,UL758,ROHS,REACH,CE,ISO9001-2015,ISO13485,IATF16949

Contact Us
Request A Quote
Product Details
Model NO.:
Thermocouple Wire
Plug Type:
IEC 62196-2 (Type 2), SAE J1772 Type 1
Transport Package:
Roll
Trademark:
LINKE
Origin:
China
HS Code:
94054090
Supply Ability:
100000000
After-sales Service:
1year
Warranty:
1year
Certification:
RoHS, TUV, CE, ISO
AMP:
1200A
Color:
Customized
Customized:
Customized
Samples:
US$ 1000/PCS 1 PCS(Min.Order) | Request Sampl
Customization:
Available | Customized Request
Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
Negotiable
Packaging Details
According to requirement
Delivery Time
7-15天
Payment Terms
Advance 30% deposit and ship after receiving 70% final payment
Supply Ability
50000m/day
Product Description

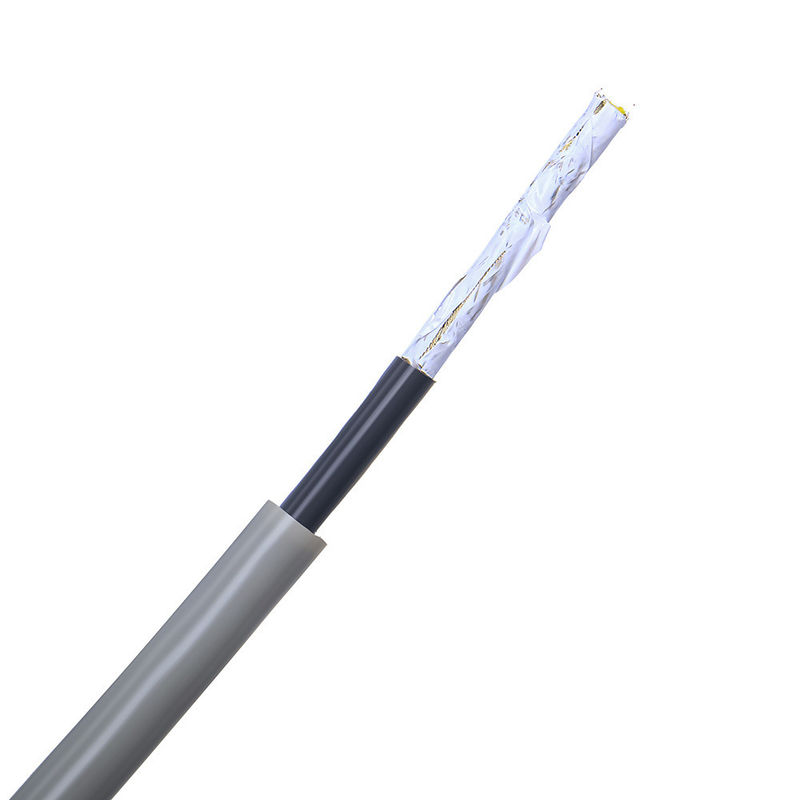

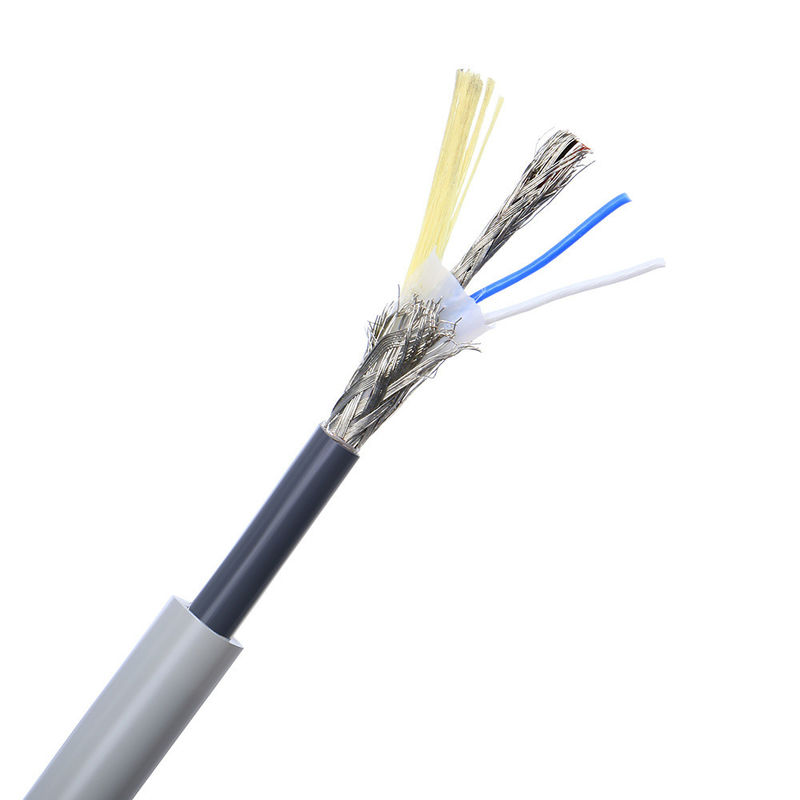

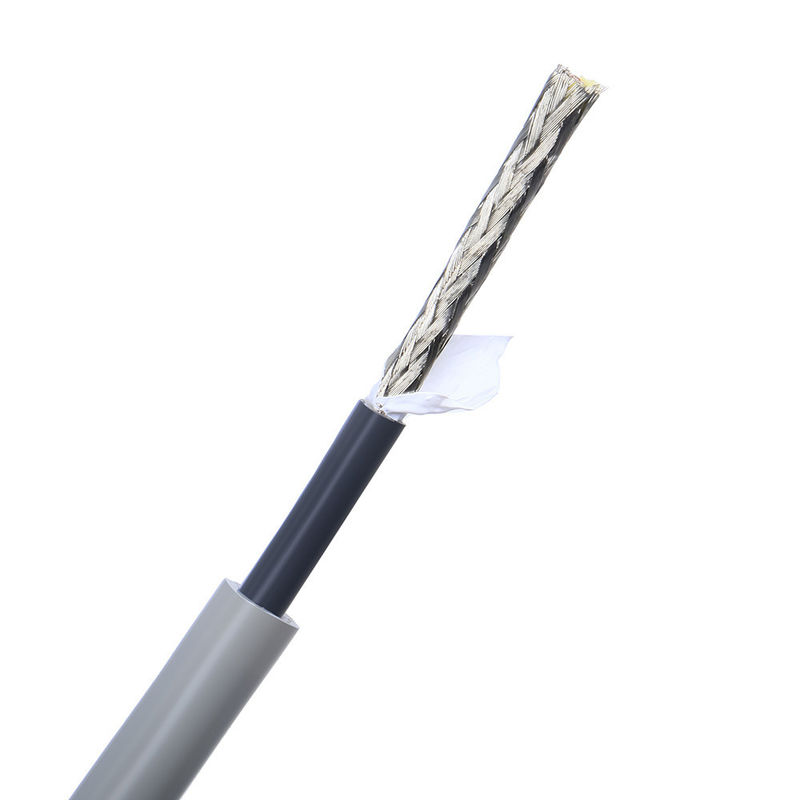

16 AWG 1 PAIR THERMOCOUPLE SOLID KX PVC FOIL SHIELD PVC JACKET POWER LIMITED TRAY CABLE INSTRUMENT TRAY CABLE



 he thermocouple compensation cables can also be termed as instrumentation cables, since they are used for

process temperature measurement. The construction is similar to pair instrumentation cable but the conductor

material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers

for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension

cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to

have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.
Our mill mainly manufacture type KX,,EX,JX,TX,SC/RC,KCA,KCB  compensating wire for thermocouple, and they

are used in temperature measurement instruments and cables. Our thermocouple compensating products are all

made abiding by GB/T 4990-2010 'Alloy wires of extension and compensating cables for thermocouples'

(Chinese National Standard), and also IEC584-3 'Thermocouple part 3-compensating wire' (International standard).
The representing of the comp. wire: thermocouple code+C/X , e.g. SC, KX
X:  Short for extension, means that the compensation wire's alloy is as the same as the the alloy of the thermocouple
C:  Short for compensation, means that the compensation wire's alloy has similar characters with the thermocouple's alloy in a certain temperature range.

Thermocouple Code Comp. Type Comp. Wire Name Positive Negative
Name Code Name Code
S SC copper-constantan 0.6 copper SPC constantan 0.6 SNC
R RC copper-constantan 0.6 copper RPC constantan 0.6 RNC
K KCA Iron-constantan22 Iron KPCA constantan22 KNCA
K KCB copper-constantan 40 copper KPCB constantan 40 KNCB
K KX Chromel10-NiSi3 Chromel10 KPX NiSi3 KNX
N NC Iron-constantan 18 Iron NPC constantan 18 NNC
N NX NiCr14Si-NiSi4Mg NiCr14Si NPX NiSi4Mg NNX
E EX NiCr10-Constantan45 NiCr10 EPX Constantan45 ENX
J JX Iron-constantan 45 Iron JPX constantan 45 JNX
T TX copper-constantan 45  copper TPX constantan 45  TNX

1. Chemical Composition

Material Chemical composition (%)
Ni Cr Si Mn Al
KP(Chromel) 90 10
KN(Alumel) 95   1-2 0.5-1.5 1-1.5

2. Physical properties and Mechnical properties

Material

Density(g/cm3)

Melting point(ºC)

Tensile Strength(Mpa)

Volume resistivity(μΩ.cm)

Elongation rate (%)

KP(Chromel) 8.5 1427 >490 70.6(20ºC) >10
KN(Alumel) 8.6 1399 >390 29.4(20ºC) >15

3. EMF Value range at different temperature

Material EMF value Vs Pt(μV)
100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
KP(Chromel) 2816~2896 5938~6018 9298~9378 12729~12821 16156~16266 19532~19676
KN(Alumel) 1218~1262 2140~2180 2849~2893 3600~3644 4403~4463 5271~5331

EMF value Vs Pt(μV)
700ºC 800ºC 900ºC 1000ºC 1100ºC
22845~22999 26064~26246 29223~29411 32313~32525 35336~35548
6167~6247 7080~7160 7959~8059 8807~8907 9617~9737



Type K Extension Cable Chromel / Alumel Material FEP insulation

Specifications

1.Style:Extension Wire


2.Thermocouple copper wire


Thermocouple copper wire Classification


1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple

type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.


2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating

cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

Thermocouple variety and index


Thermocouple Variety and Index

Variety

Type

Measurement Range(°C)

NiCr-NiSi

K

-200-1300

NiCr-CuNi

E

-200-900

Fe-CuNi

J

-40-750

Cu-CuNi

T

-200-350

NiCrSi-NiSi

N

-200-1300
NiCr-AuFe0.07 NiCr-AuFe0.07
-270-0


3 . Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire

 Dimensions / Tolerance mm ) : 4.0+-0.25

Color code & initial calibration tolerances for thermocouple wire:

Thermocouple Type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor
Jacket Temperature Range Standard
Limits
Special
Limits
CHROMEL(+) vs.
ALUMEL(-)
K Yellow/Red Brown -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C
± 2%
±2.2°C
±2.2°C
± .75%
±1.1°C
± .4%


Color Code & Initial Calibration Tolerance for Extension Wire:

Extension type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor
Jacket Temperature Range Standard
Limits
Special
Limits
Iron (+) vs. Constantan(-) JX White/Red Black 0°C to +200°C ±2.2°C ±1.1°C
CHROMEL (+) vs. ALUMEL (-) KX Yellow/Red Yellow 0°C to +200°C ±2.2°C ±1.1°C
Copper(+) vs. Constantan(-) TX Blue/Red Blue -60°C to +100°C ±1.1°C ± .5°C
CHROMEL(+) vs. Constantan(-) EX Purple/Red Purple 0°C to +200°C ±1.7°C ±1.1°C


PVC-PVC Physical Properties:

Characteristics Insulation Jacket
Abrasion Resistance Good Good
Cut Through Resistance Good Good
Moisture Resistance Excellent Excellent
Solder Iron Resistance Poor Poor
Service Temperature

105ºC continuous

150ºC single

105ºC continuous

150ºC single

Flame Test Self-extinguishing Self-extinguishing


K B R S Type Thermocouple Compensation Lead Wire Cable for Industry
Conductor : Flexible Bare annealed copper wire
Insulation:Silicone
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
SQ MM sizes (European style) :4 sq mm to 240 sq mm
AWG sizes (North American style) :0AWG-10AWG,
Wide temperature range: -60°C to 200°C


2,Low viscosity appearance
K B R S Type Thermocouple Compensation Lead Wire Cable for Industry
Conductor : Flexible Bare annealed copper wire
Insulation:Silicone
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
SQ MM sizes (European style) :4 sq mm to 240 sq mm
AWG sizes (North American style) :0AWG-10AWG,
Wide temperature range: -60°C to 200°C


Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years,

Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom

cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable,

braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach

to develop better cables for customers and  improve the quality of one's life.
K B R S Type Thermocouple Compensation Lead Wire Cable for IndustryK B R S Type Thermocouple Compensation Lead Wire Cable for IndustryK B R S Type Thermocouple Compensation Lead Wire Cable for IndustryK B R S Type Thermocouple Compensation Lead Wire Cable for IndustryK B R S Type Thermocouple Compensation Lead Wire Cable for Industry

Our certification:

We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,

UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664

ISO9001 and ISO13485,TS16949

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2
K B R S Type Thermocouple Compensation Lead Wire Cable for IndustryK B R S Type Thermocouple Compensation Lead Wire Cable for IndustryK B R S Type Thermocouple Compensation Lead Wire Cable for IndustryK B R S Type Thermocouple Compensation Lead Wire Cable for Industry

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.



4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.



5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
