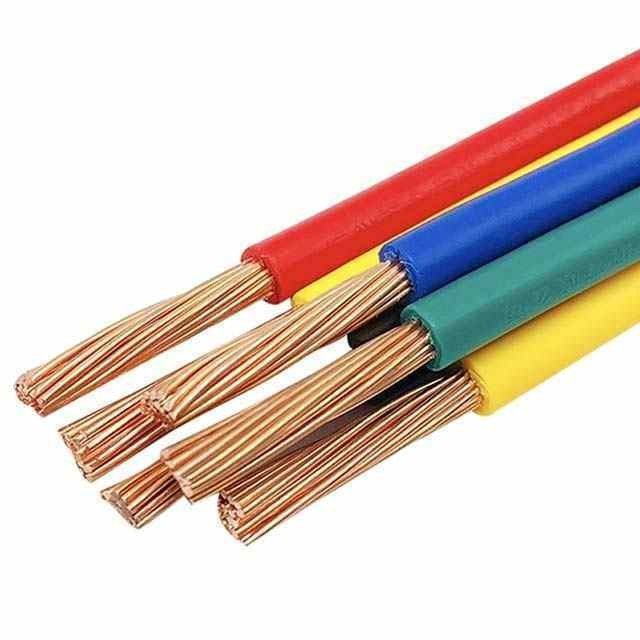

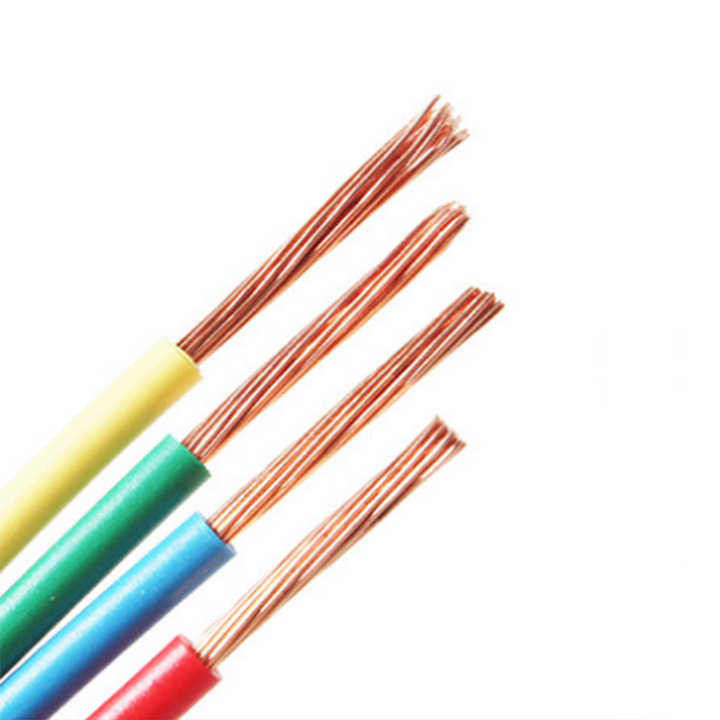

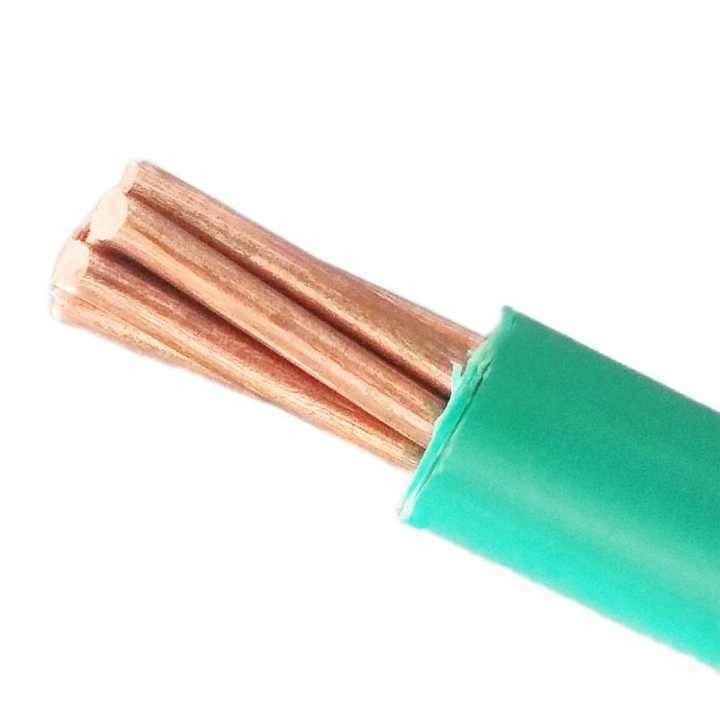

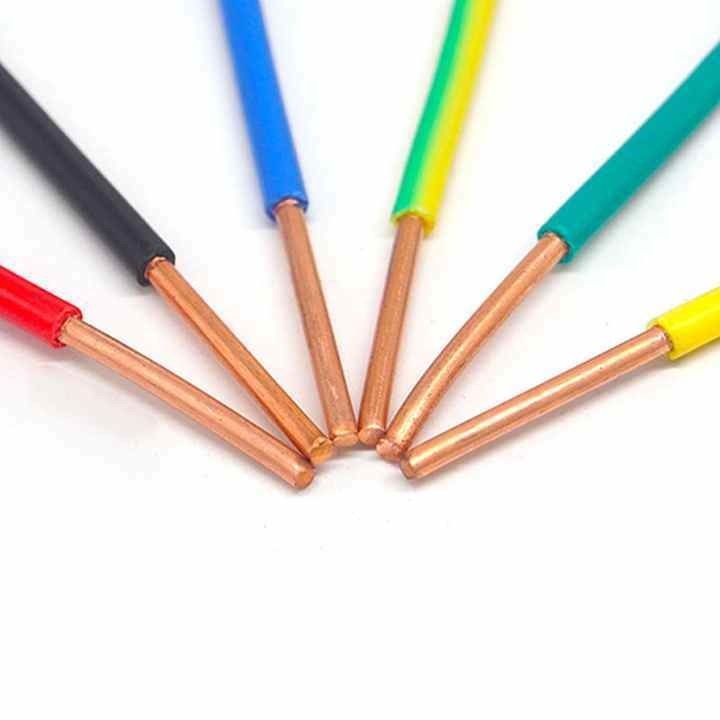

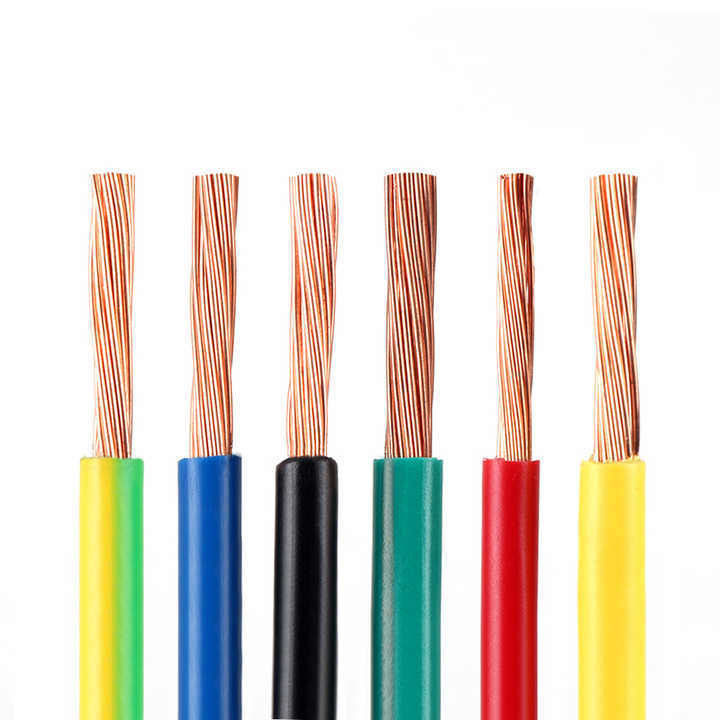

LK-604 Direct Supply 2.5mm Single Core Tinned Copper Electrical Wire with 300-600V Rated Voltage PVC Insulated Copper Cable

Electrical Wire Cable 2.5mm

PVC Insulated Electrical Wire Cable

PVC Insulated Copper Electrical Wire Cable

Place of Origin:

Guangdong, China

Brand Name:

linkecable

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Sheath Material:

PVC

Insulation Material:

PVC

Wire Core Material:

Tinned Wire

Conductor Material:

Copper/Tinned Copper

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Highlight:

Electrical Wire Cable 2.5mm

PVC Insulated Electrical Wire Cable

PVC Insulated Copper Electrical Wire Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

UL1330 600V Rated 200°C High Temperature FEP Insulated Cable with Standard for Industrial and Household Use

Get Best Price

Video

26AWG UL2733 Robot Cable PVC Copper Thinned Electrical Wire Cable for Heating and Underground Applications

Get Best Price

Video

UL2464 Shielded Control Cable 300V Multi-Core Electric Cable for Industrial Applications

Get Best Price

Video

Awm 1185 Tinned Stranded 18AWG 20AWG Single Core Shielded Wire UL1185 Shielded Signal Cable

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

Style/size 线材规格AWG	Conductor 导体		Insulation绝缘			Max.Conductor DCResistance at20℃导体电阻 Ω/KM	包裝 (Packing)
Style/size 线材规格AWG	Construct to n 结构规格	OD (REF)	Average Thickness 平均厚度 mm	Min. Thickness 最小厚度 mm	OD 外径 mm		米/卷 Mt/coils
18	41/0.16±0.008	1.18	0.76	0.69	2.75±0.1	23.2	305
16	26/0.254±0.008	1.5	0.76	0.69	3.05±0.15	14.6	305
14	41/0.254±0.008	1.88	0.76	0.69	3.45±0.15	8.96	305
12	65/0.254±0.008	2.36	0.76	0.69	4.0±0.15	5.64	100
10	105/0.254±0.008	3.0	0.76	0.69	4.6±0.20	3.546	100
8	168/0.254±0.008	4.1	1.14	1.02	6.5±0.30	2.23	100
6	266/0.254±0.008	5.1	1.52	1.37	8.5±0.40	1.403	100
5	329/0.254±0.008	5.7	1.52	1.37	9.1±0.40	1.113	100
4	420/0.254±0.008	6.5	1.52	1.37	9.85±0.40	0.882	100
2	665/0.254±0.008	8.1	1.52	1.37	11.6±0.50	0.5548	100
1	836/0.254±0.008	9.2	2.03	1.83	13.5±0.60	0.4398	100

This electrical wire cable features low viscosity appearance and is designed for reliable performance in various electrical applications.

Product Standards

Control cables are manufactured according to GB9330-1988 standard, with capability to produce according to other international standards upon request.

Application Scope

Suitable for electrical control equipment and instrument wiring, monitoring and controlling return circuits, electrical protection and measurement in power distribution units with rated voltage up to 450/750V AC.

LK-604 Direct Supply 2.5mm Single Core Tinned Copper Electrical Wire with 300-600V Rated Voltage PVC Insulated Copper Cable

Brand	LINKE	Cross Section (mm²)	0.01-500mm²
Wire Gauge (AWG)	[e.g., 24AWG, 28AWG]	Conductor	Tinned Copper /bare copper, based on client's requirements
Insulation material	PVC/TPU/Silicone rubber/PE/PP/XLPE/Nylon/other	Jacket Material	[PVC/PU/Rubber/Braid/etc.]
Certifications	RoHS/REACH/UL/CE/IP68/etc	Custom Length	[e.g., 1m, 3ft, 5m ±5% tolerance]
Cable Type	[Medical/Power/Audio/Coaxial/Electrical/Automotive/Energy storage//etc.]	Shielding	[Shielded/Unshielded/Braid Shield]
Impedance	[e.g., 75Ω (for coaxial cables)]	Printing/Logo	[Text/Label/Logo, max. 20 characters]
Bend Radius	[e.g., ≥5× cable diameter]	Current Rating	[e.g., 5A]
Voltage Rating	[e.g., 30V AC/DC]	Connector Material	[Gold-plated/Nickel-plated/Brass/etc.]
Connectors	[e.g., USB Type-C, 3.5mm Jack, RJ45]	Jacket	XLPE or PE or PVC RUBBER
Delivery Time	7-14 days after confirming the order	Colors	[Black/White/Red/Custom Pantone/etc.]
temperature	Minus-70℃to 350℃(-70℃ ~ 350℃)	Package	Roll/box/plate/Custom
Supporting Services	custom cable, end to end solutions, including precise cutting, crimping and installation of lugs (specify material,e.g.,copper/nickel plated)

LK-604 Direct Supply 2.5mm Single Core Tinned Copper Electrical Wire with 300-600V Rated Voltage PVC Insulated Copper Cable

Certifications & Quality Standards

UL1007, UL1185, UL1672, UL10070

UL10483, UL1015, UL1569, UL10012

UL10269 (Single conductor, thermoplastic insulation)

UL2095, UL2129, UL2468, UL2586

UL2725, UL20233, UL20280, UL20963

UL2103, UL2463, UL2517, UL2587

UL2835, UL20276, UL20549, UL21198

UL2104, UL2464, UL2576, UL2661

UL2919, UL20279, UL20886, UL21664

ISO9001, ISO13485, TS16949

CNR - Appliance Wiring Material

Extruded PVC Insulated Single, rated 105ºC, 1000V

Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V

Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer, controlling your order from beginning to end. We welcome visits and provide pickup service in Shenzhen.

How can I get a sample to test your quality?

Samples are free for customers. New clients are expected to pay for courier costs.

What's your Minimum Order Quantity?

Normally 100m. Due to the cable's weight, we recommend ordering suitable quantities to avoid high freight costs. Sea transportation is the best option.

Can I get a discount?

Discounts depend on order quantity. We can offer discounts and cover freight costs for substantial orders. Please contact us for details.

Does your company accept OEM production?

Yes, we can print your company name and customize quality cards to promote your brand.
