TUV Certified 450/750V EV Charging Cable with Tinned Copper Conductor for AC Charging

Communication charging cable

Charging pile connection cable

Electric vehicle charging cable

Place of Origin:

Guangdong, China

Brand Name:

linkecable

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Current:

DC & AC

Conductor Material:

Copper/Tinned Copper

Conductor Type:

Twisted Wire

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Type:

Insulated

Package:

By Roll

Highlight:

Communication charging cable

Charging pile connection cable

Electric vehicle charging cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

Safe Packaging

Delivery Time

7-15 days

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

TUV Certified 450/750V EV Charging Cable with Tinned Copper Conductor for AC Charging

Get Best Price

Video

600V 16AMP Copper Core EV Charging Cable AC EV Wire for Fast Charging

Get Best Price

Video

UL Certified Fire Retardent Power Cable with Tinned Copper Core for Industrial and Underground Applications

Get Best Price

Video

TUV Certified 450/750V EV Charging Cable with Oxygen-Free Copper for Industrial and Construction Use

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

H07bz5-F 3G2.5mm²+2*0.5mm² 450/750V TUV Certified AC EV Charging Cable

Cable Structure Overview

Construction Specifications

Unit A

Core	2C
Conductor	Tinned Copper
AWG	8
Construction (N/mm)	168/0.254±0.008
Insulation	PVC
Average thickness (mm)	0.76
Minimum thickness (mm)	0.69
Insulation diameter (mm)	5.70±0.20

Unit B

Core	6C
Conductor	Tinned Copper
AWG	20
Construction (N/mm)	26/0.16±0.008
Insulation	PVC
Average thickness (mm)	0.38
Minimum thickness (mm)	0.33
Insulation diameter (mm)	1.75±0.10

Cabling Components

Filler	PP rope
Separator	Non-woven Paper
Overlap	≥25%
Jacket	TPE
Average thickness (mm)	1.60
Minimum thickness (mm)	1.40
Overall diameter (mm)	15.0±0.40

Color Specifications

Unit A: 1. Black 2. Red

Unit B: 3. Blue 4. White 5. Gray 6. Brown 7. Purple 8. Yellow

Jacket color: Orange

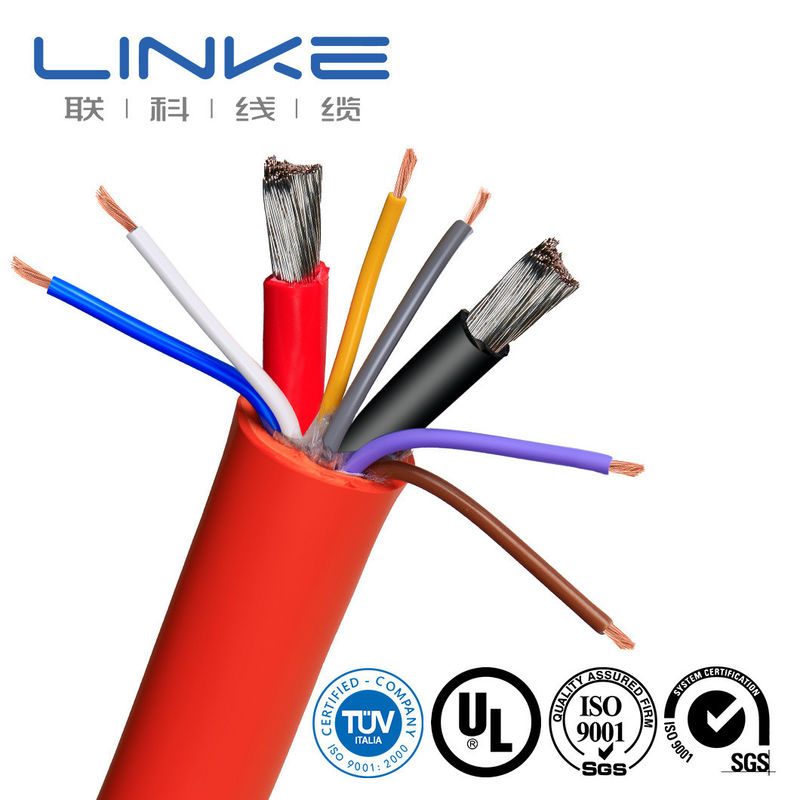

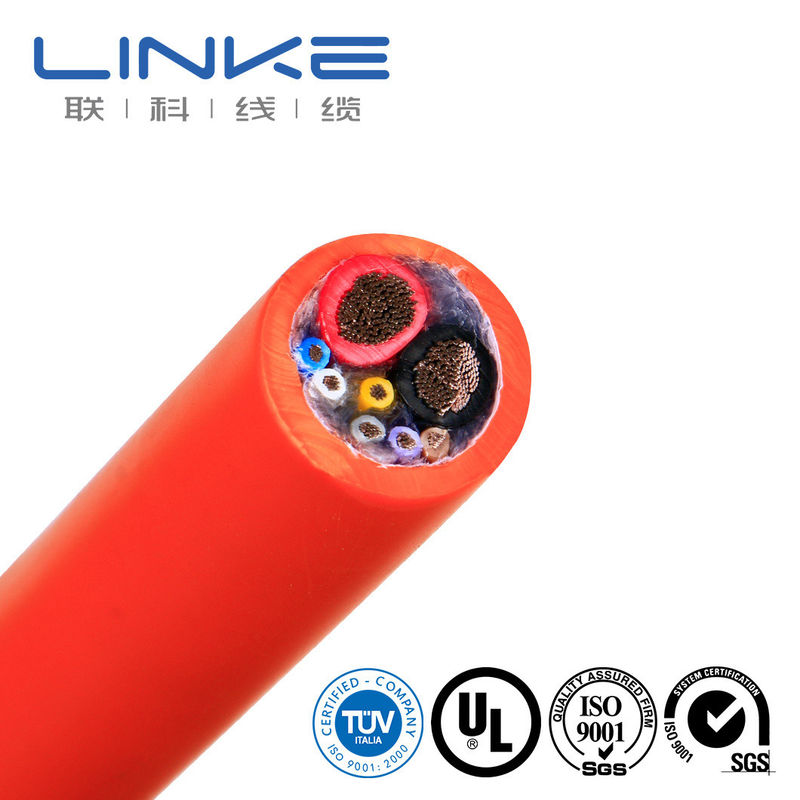

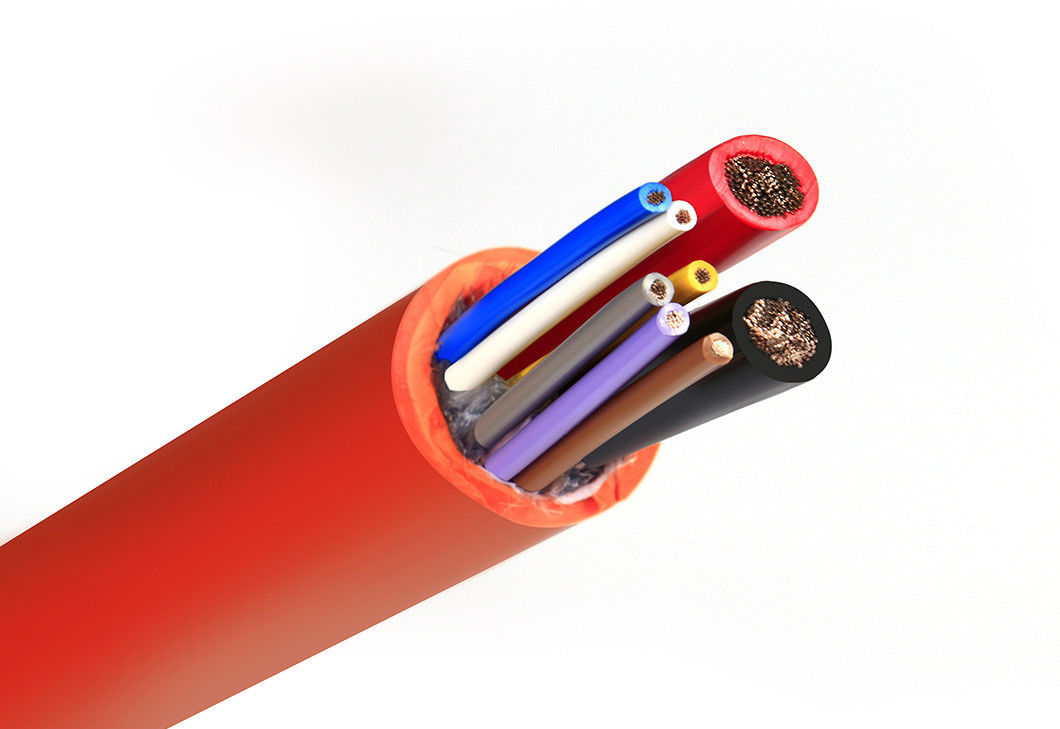

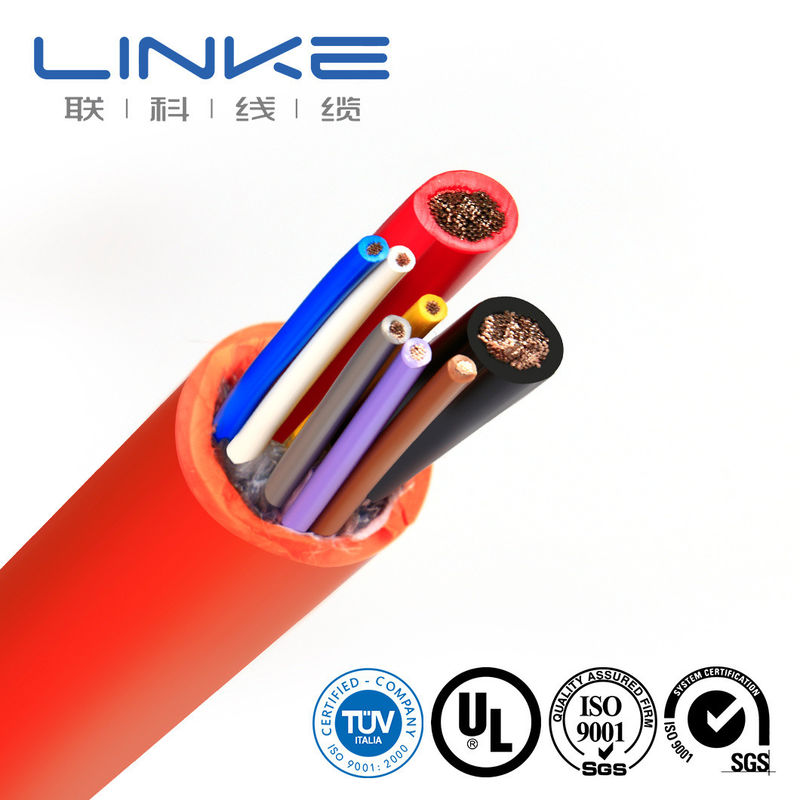

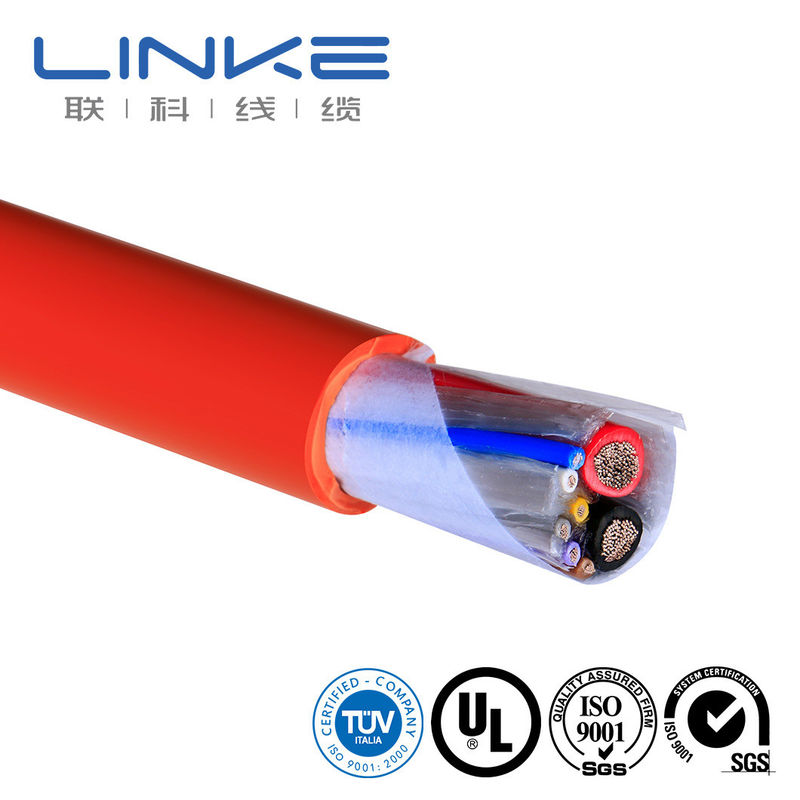

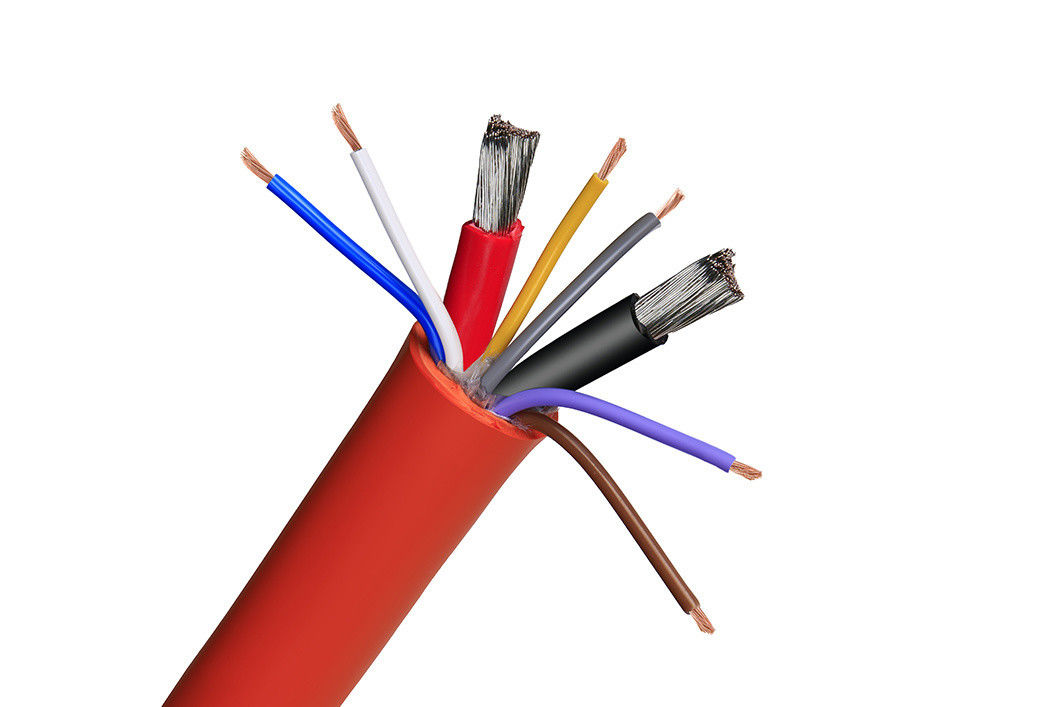

Product Images

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name, and we even customize the quality card to promote your company.
