UL2651 Shielded Flat Ribbon Cable with TPU Insulation and Copper Conductor for Flame Retardant Applications

UL2651 Audio Ribbon Cable

TPU Insulation Audio Ribbon Cable

Shielded UL2651 Cable

Place of Origin:

Guangdong, China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Model NO.:

SHIELD FLAT CABLE

Conductor Material:

Copper

Sheath Material:

PVC

Insulation Material:

TPU

Material Shape:

Flat Wire

Range Of Application:

Flame Retardant

Certification1:

Production:

Manufacture

Voltage:

Low Voltage

Transport Package:

Carton

Type:

Insulated

Conductor Type:

Twisted Wire

Application:

Overhead, Heating, Underground

Customization:

Available

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Core:

Multiple

Conductor Material:

Copper/Tinned Copper

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Highlight:

UL2651 Audio Ribbon Cable

TPU Insulation Audio Ribbon Cable

Shielded UL2651 Cable

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15 days

Supply Ability

50000m/day

Rainbow Color Flat Ribbon Cable with 2.54mm Pitch and Tinned Wire Core for IDC Connector Applications

Get Best Price

Video

PVC Sheath Tinned Copper Core 300V Rated Flat Cable for Automotive and Industrial Applications

Get Best Price

Video

50 Core 28AWG Flat Cable with PVC Pipe Bandaging and SATA/SATA Interface UL Electrical Wire

Get Best Price

Video

UL2651 28AWG 1.27mm Pitch Rainbow Ribbon Harness Flat Cable for Industrial Applications

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

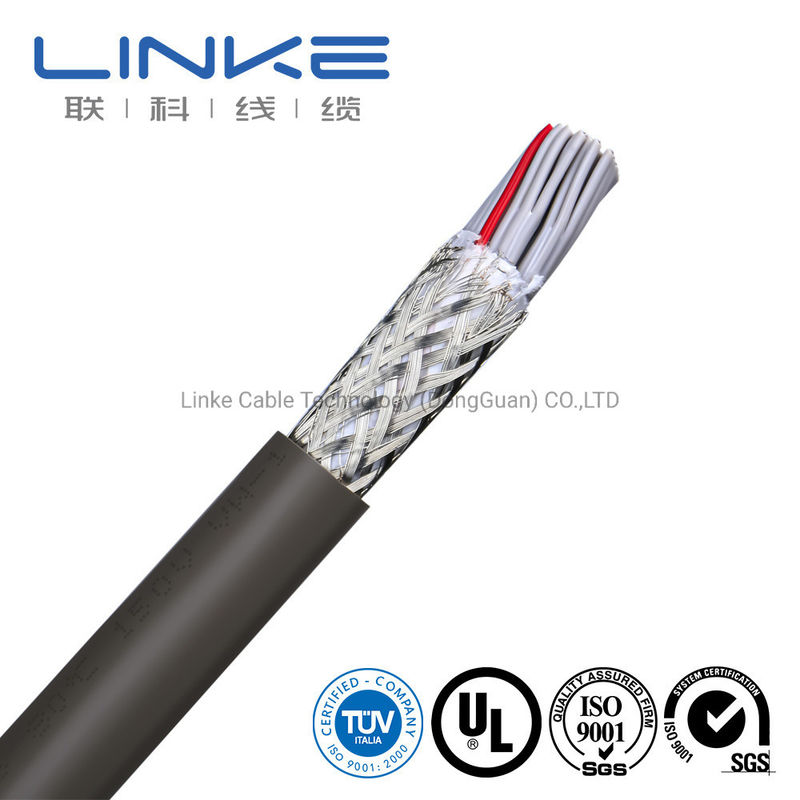

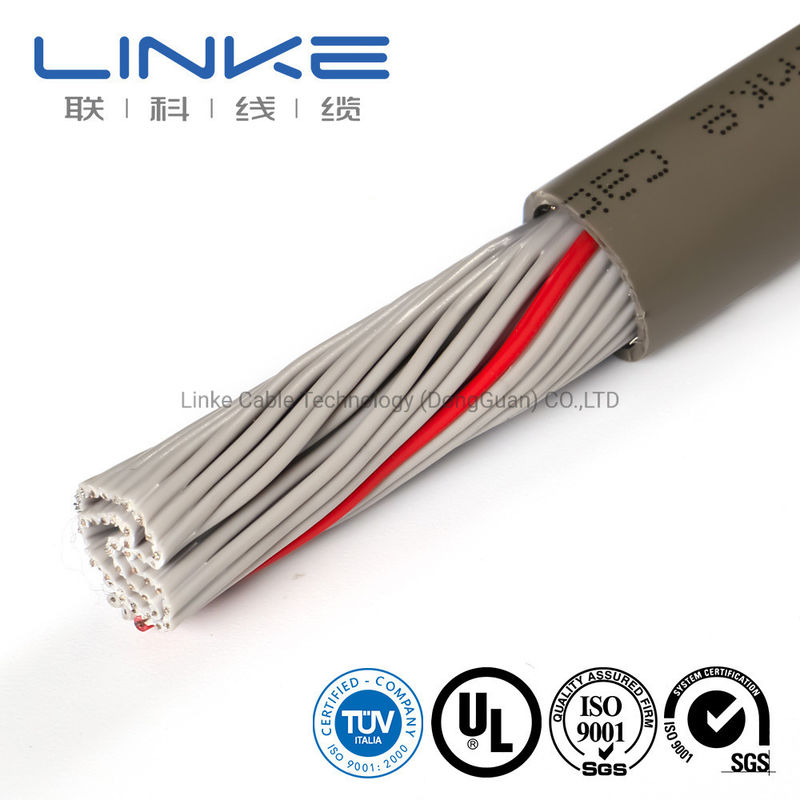

Flat Data Signal Video Audio Ribbon Cable UL2651 Shielded with TPU Insulation

This shielded flat ribbon cable meets UL2651 specifications and features TPU insulation, designed for reliable data, signal, video, and audio transmission in demanding industrial applications.

Technical Specifications

UL Specification	Maximum Use Temperature	Maximum Operating Voltage	Number of Conductors	Conductor	Thickness (mm±0.05)	Width (Wmm±0.2)
2651	105ºC	300V	8	28 AWG 7/0.127	0.90	10.16
			9	28 AWG 7/0.127	0.90	11.43
			10	28 AWG 7/0.127	0.90	12.70
			12	28 AWG 7/0.127	0.90	15.24
			14	28 AWG 7/0.127	0.90	17.78
			16	28 AWG 7/0.127	0.90	20.32
			20	28 AWG 7/0.127	0.90	25.40
			26	28 AWG 7/0.127	0.90	33.02
			30	28 AWG 7/0.127	0.90	38.10
			34	28 AWG 7/0.127	0.90	43.18
			40	28 AWG 7/0.127	0.90	50.80
			50	28 AWG 7/0.127	0.90	63.50
			60	28 AWG 7/0.127	0.90	76.20
			64	28 AWG 7/0.127	0.90	81.28

Quality Certifications

ISO9001 and ISO13485, TS16949 certified
CNR - Appliance Wiring Material certification
Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Extruded PVC Non-integral Jacketed Cable, rated 105ºC, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Extruded TPU Non-integral Jacketed Cable, rated 80ºC, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name, and we even custom the quality card to promote your company.
