FEP Insulation UL1577 Electric Power Cable 600V For Household Appliance
600V FEP Insulation UL1577 Electric Power Cable for household appliance customization, suitable for high-temperature environments up to 200℃. Ideal for various applications including household appliances, business office machinery, steel, metallurgy, petroleum, chemical industries, building lighting, instrumentation, sensors, signal transmission, automatic control, and medical electronics.
Key Features

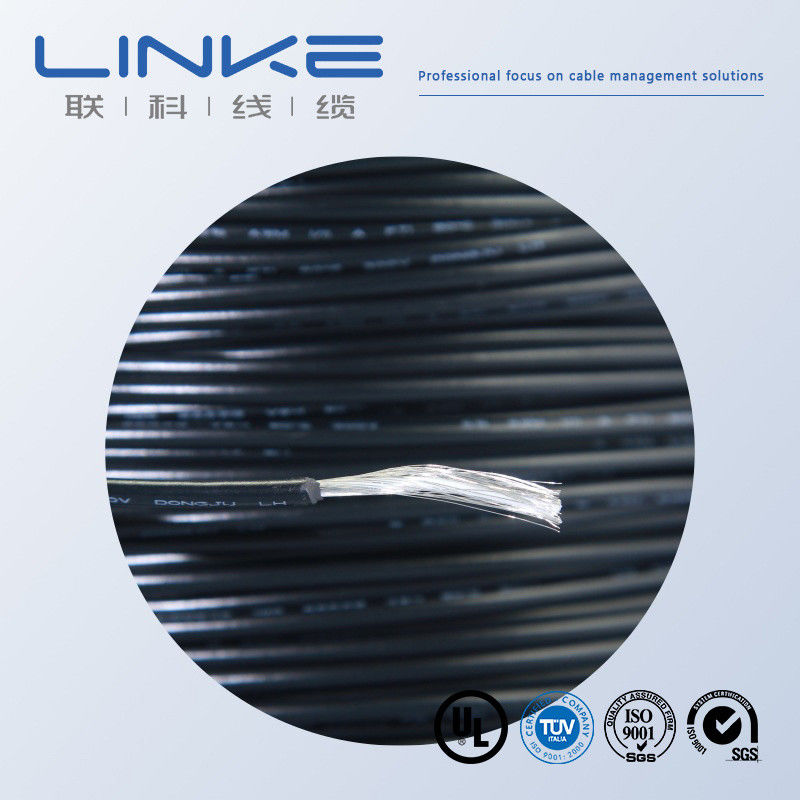

- Conductor: Flexible bare annealed copper wire
- Insulation: PVC, TPU, XLPE, or SILICONE options available

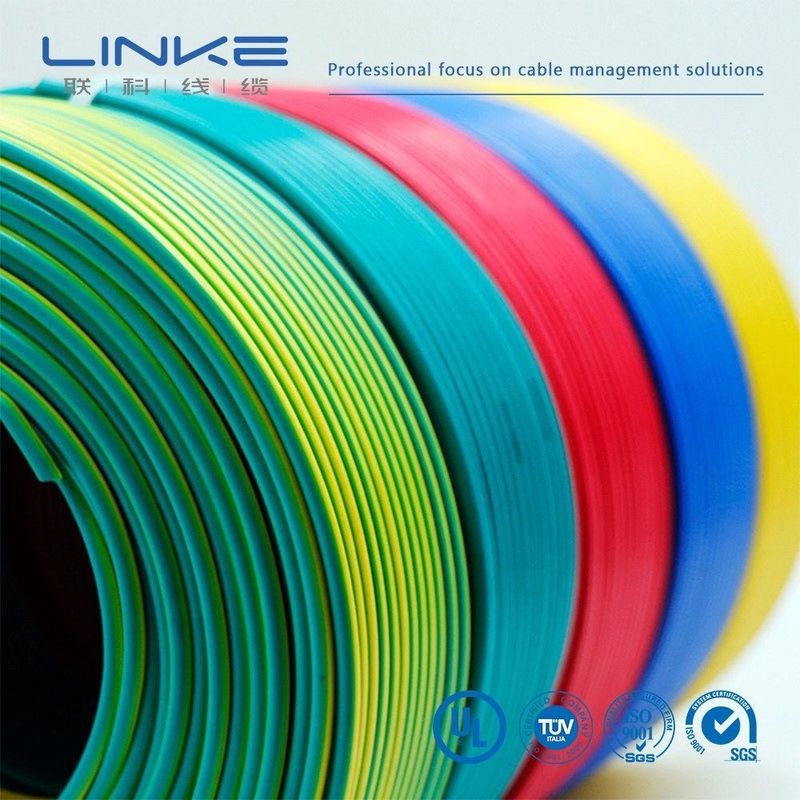

- Color options: Black, Orange, Red, Yellow, Blue jacket - single or double insulated
- SQ MM sizes (European style): 0.1-100SQ
- AWG sizes (North American style): 1AWG-30AWG
- Wide temperature range: -60°C to 200°C
Product Specifications
UL Style Number: 1577
Rated Temperature: 200℃
Standard: UL758/UL1581
Applications
Widely used in home appliances, lighting, heaters, motors & generators, UAVs, robots, and industrial power applications.
Marking: E364879 AWM 1577 **AWG VW-1 200℃ C AWM I A 200℃ FT1 Linke Cable
Note: Wire specifications can be customized
Technical Specifications
| Conductor Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
Max. Conductor Resistance (Ω/KM) Bare copper |
Max. Conductor Resistance (Ω/KM) Tinned copper |
| 32 | 7/0.08 | 0.24 | 0.30 | 0.85±0.05 | 563.5 | 588.9 |
| 30 | 7/0.10 | 0.30 | 0.30 | 0.90±0.05 | 354 | 381 |
| 28 | 7/0.127 | 0.38 | 0.30 | 1.00±0.05 | 223 | 239 |
| 26 | 7/0.16 | 0.48 | 0.30 | 1.10±0.05 | 140 | 150 |
| 24 | 7/0.20 | 0.60 | 0.30 | 1.20±0.10 | 87.6 | 94.2 |
| 22 | 7/0.254 | 0.78 | 0.30 | 1.40±0.10 | 55.4 | 59.4 |
| 20 | 26/0.16 | 0.94 | 0.30 | 1.55±0.10 | 34.6 | 36.7 |
| 18 | 41/0.16 | 1.18 | 0.30 | 1.90±0.10 | 21.8 | 23.2 |
| 16 | 26/0.254 | 1.49 | 0.30 | 2.20±0.10 | 13.7 | 14.6 |

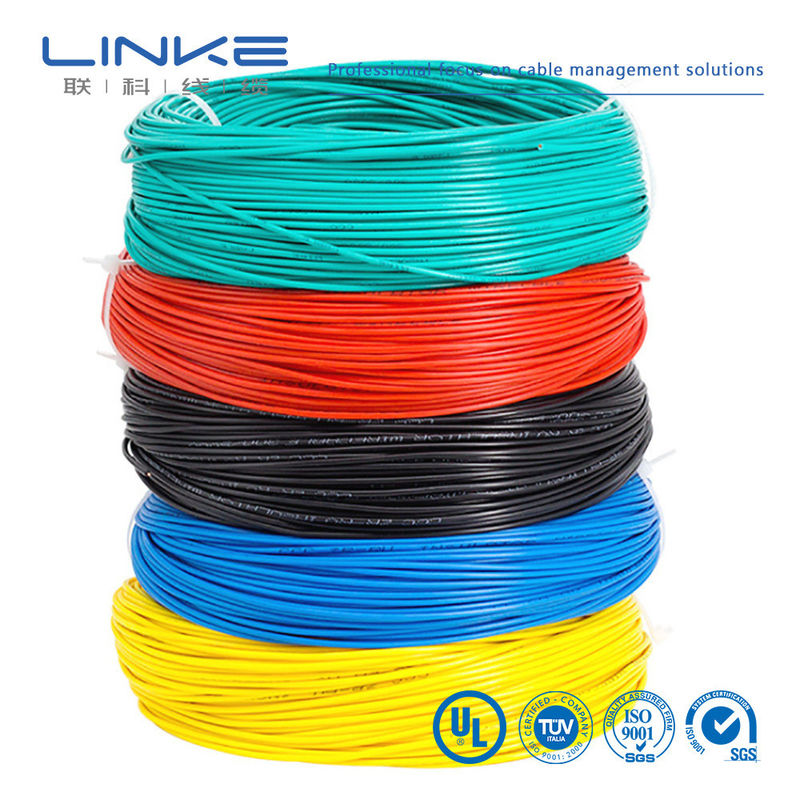

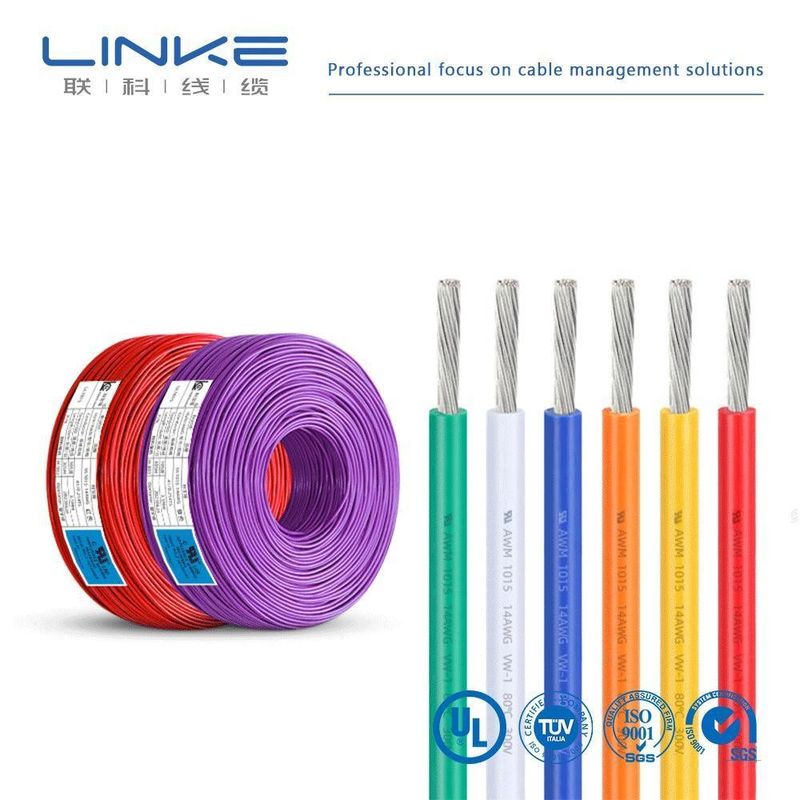

Available Colors: Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Yellow/Green, Transparent
Certifications
Single-conductor, thermoplastic insulation
1007
1330
1333
1591
1723
10064
10369
1015
1331
1569
1592
1901
10070
10483
1185
1332
1577
1672
10012
10269
Multiple-conductor, thermoplastic insulation
2095
2129
2468
2586
2725
20233
20280
20963
2103
2463
2517
2587
2661
2835
20276
20549
20886
21198
2104
2464
2576
2661
2919
20279
20549
21664
Single-conductor, thermoset insulation
3075
3173
3320
3386
3530
3689
30005
3123
3212
3321
3398
3577
3702
3132
3266
3331
3512
3644
3817
3135
3271
3385
3529
3674
3886
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
5. Does your company accept OEM production?
Yes, we can print your company name, and we even customize the quality card to promote your company.
