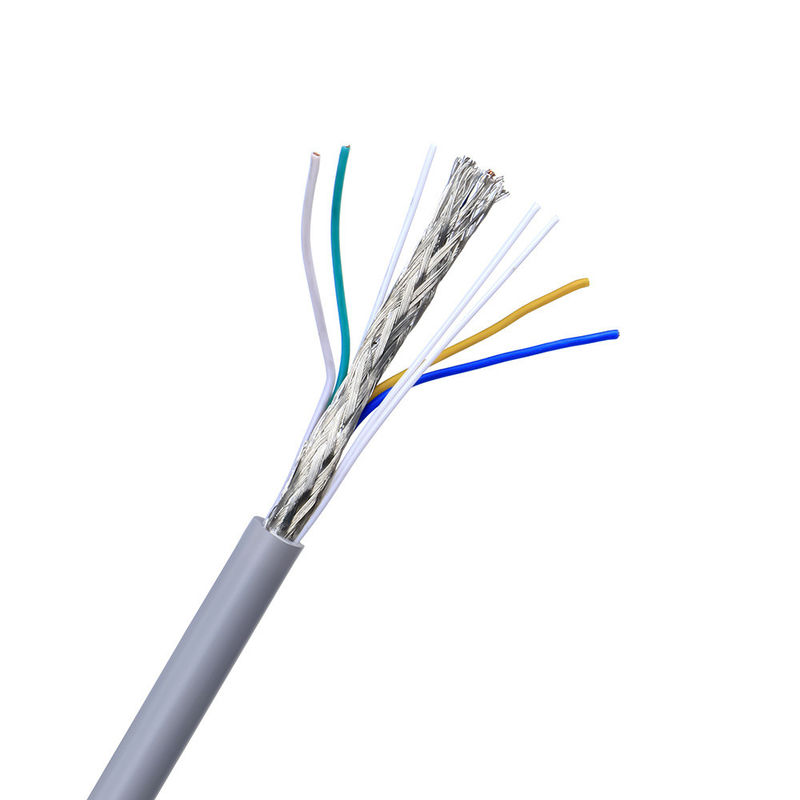

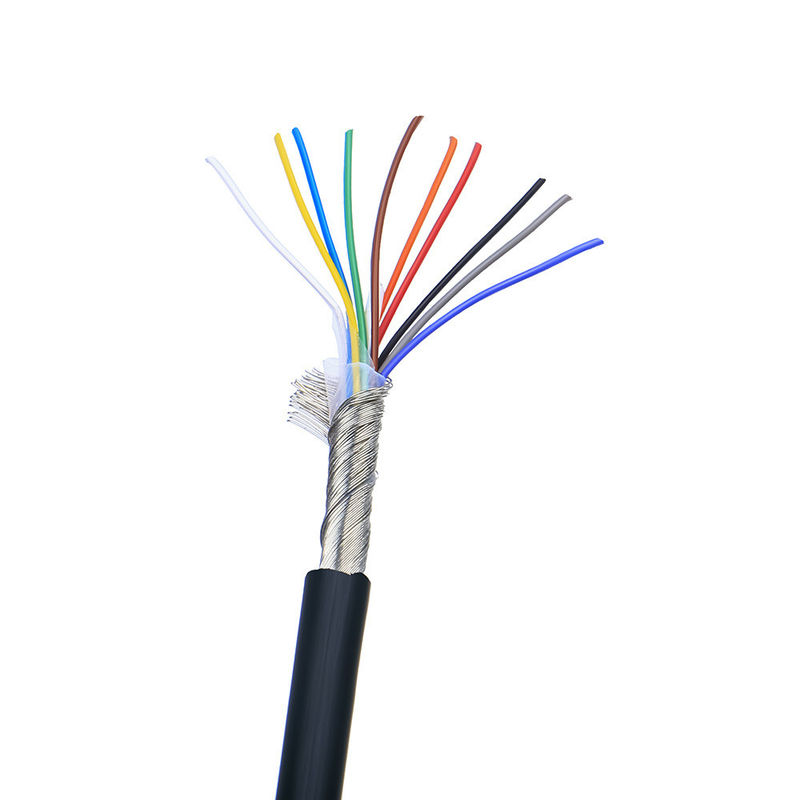

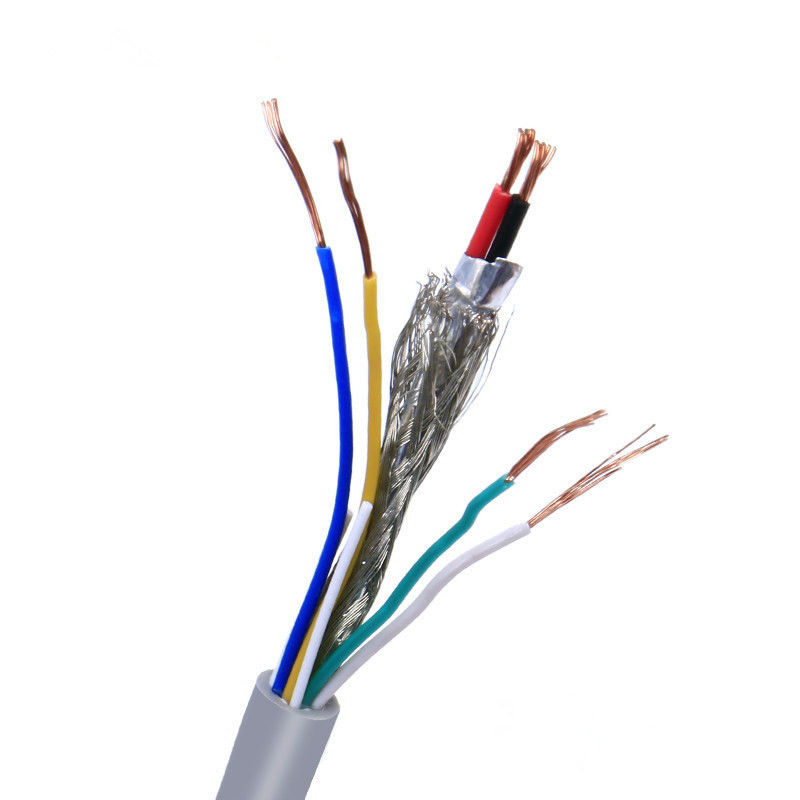

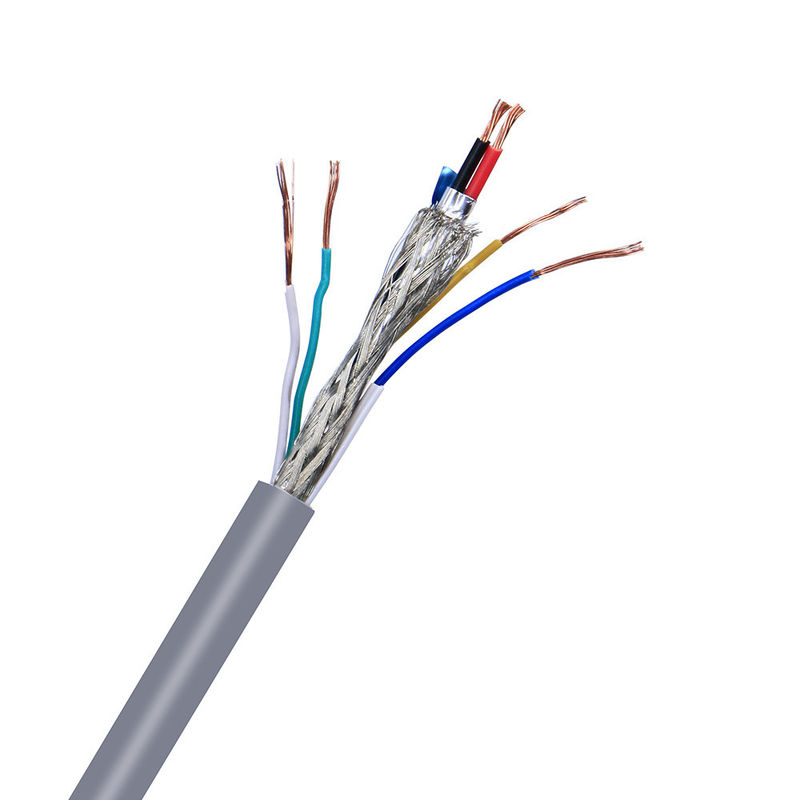

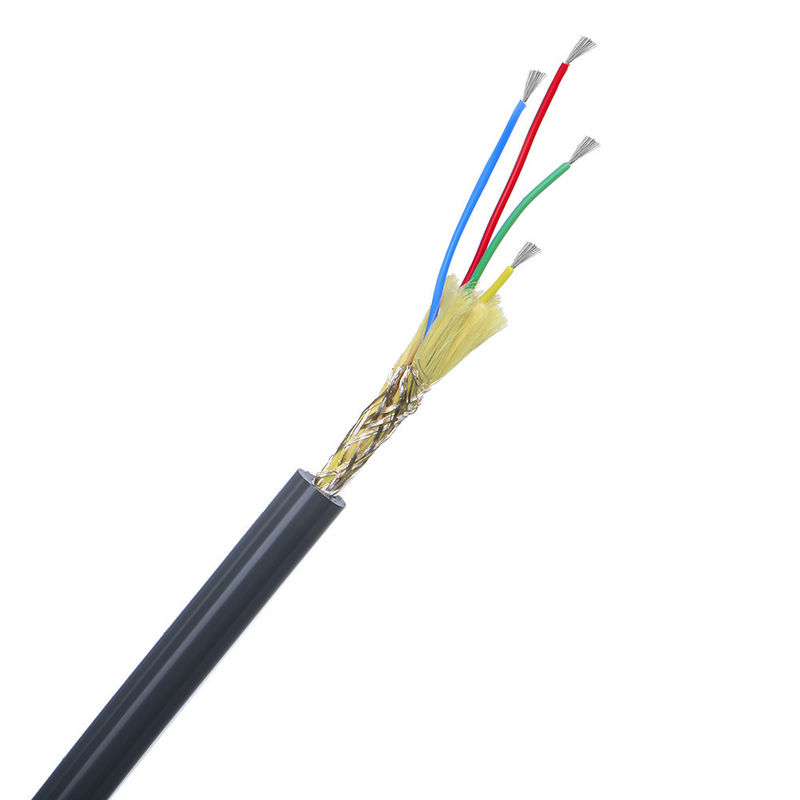

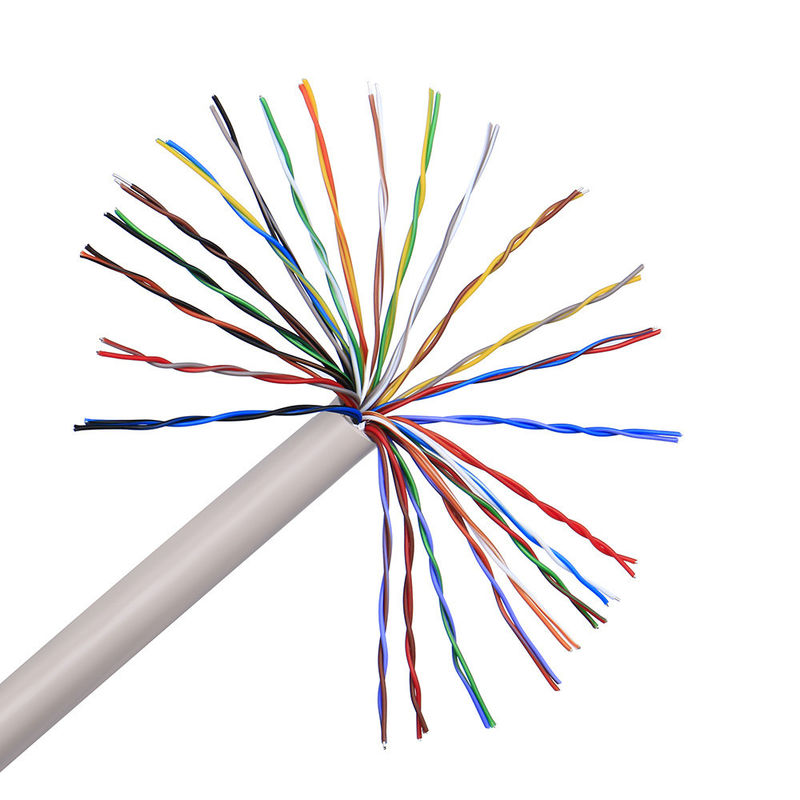

Multi Core UL2464 Twisted Pair Shielded Control Cable
Designed for low and medium voltage applications in sound broadcast, audio, instrumentation, and computer systems.
Technical Specifications
Rated Temperature: 80°C
Rated Voltage: 300V
Conductor: Solid or stranded, tinned or bare copper
Insulation: PVC
Shielding: Tinned or bare stranded copper wire overall braided shield with more than 80% coverage
Jacket: PVC
Flame Rating: Passes UL VW-1 FT1 vertical flame test
Construction: Uniform insulation thickness for easy stripping and cutting
UL Certification Standards
| 1007 | 1330 | 1333 | 1591 | 1723 | 10064 | 10369 |
| 1015 | 1331 | 1569 | 1592 | 1901 | 10070 | 10483 |
| 1185 | 1332 | 1577 | 1672 | 10012 | 10269 |
| 2095 | 2129 | 2468 | 2586 | 2725 | 20233 | 20280 | 20963 |
| 2103 | 2463 | 2517 | 2587 | 2835 | 20276 | 20549 | 21198 |
| 2104 | 2464 | 2576 | 2661 | 2919 | 20279 | 20886 | 21664 |
| 3075 | 3173 | 3320 | 3386 | 3530 | 3689 | 30005 |
| 3123 | 3212 | 3321 | 3398 | 3577 | 3702 |
| 3132 | 3266 | 3331 | 3512 | 3644 | 3817 |
| 3135 | 3271 | 3385 | 3529 | 3674 | 3886 |
Quality Certifications
UL Standards: UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269 (Single conductor, thermoplastic insulation)
UL Standards: UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463, UL2517, UL2587, UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661, UL2919, UL20279, UL20886, UL21664
Quality Management: ISO9001, ISO13485, TS16949
CNR Standards: Appliance Wiring Material, Extruded PVC Insulated Single, rated 105°C, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
Additional Certifications: Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Additional Certifications: Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We control your order from beginning to end. Welcome to visit us - we'll provide transportation from Shenzhen.
How can I get a sample to test your quality?
Samples are free for evaluation. New clients are expected to pay for courier costs.
What's your Minimum Order Quantity?
Normally 100 meters. Due to cable weight, we recommend ordering suitable quantities to avoid high freight costs. Sea transportation is the most economical option.
Can I get a discount?
Discounts are available based on order quantity. We can offer pricing advantages and freight support. Please contact us for details.
Does your company accept OEM production?
Yes, we offer OEM services including printing your company name and custom quality cards to promote your brand.
