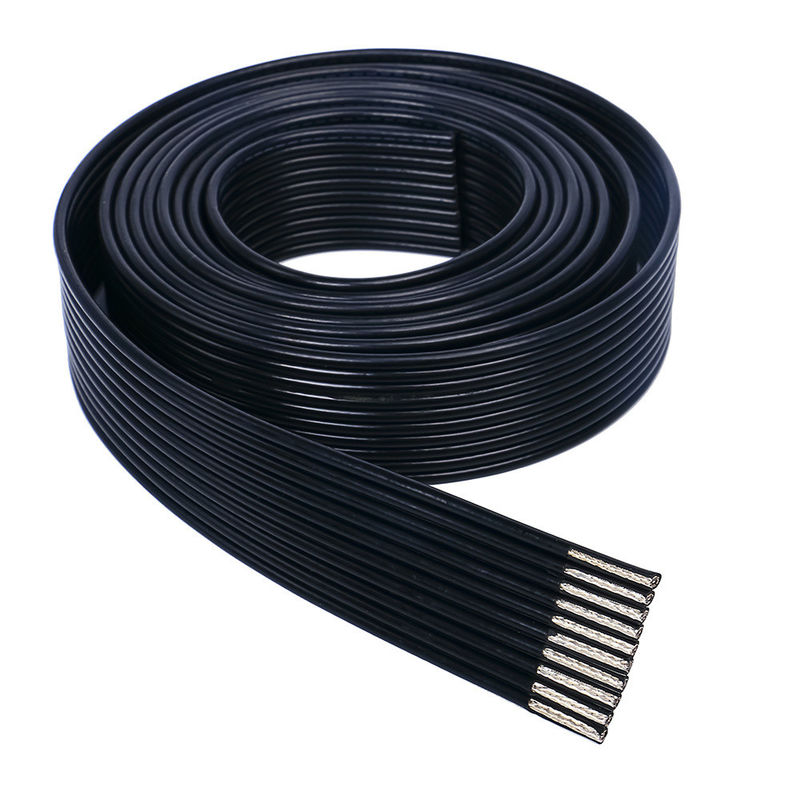

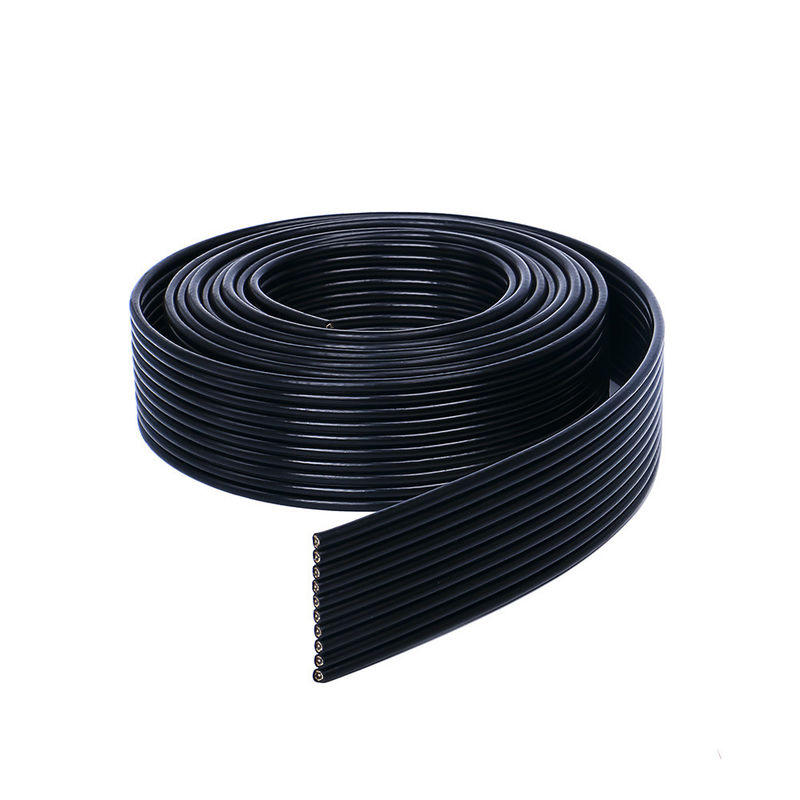

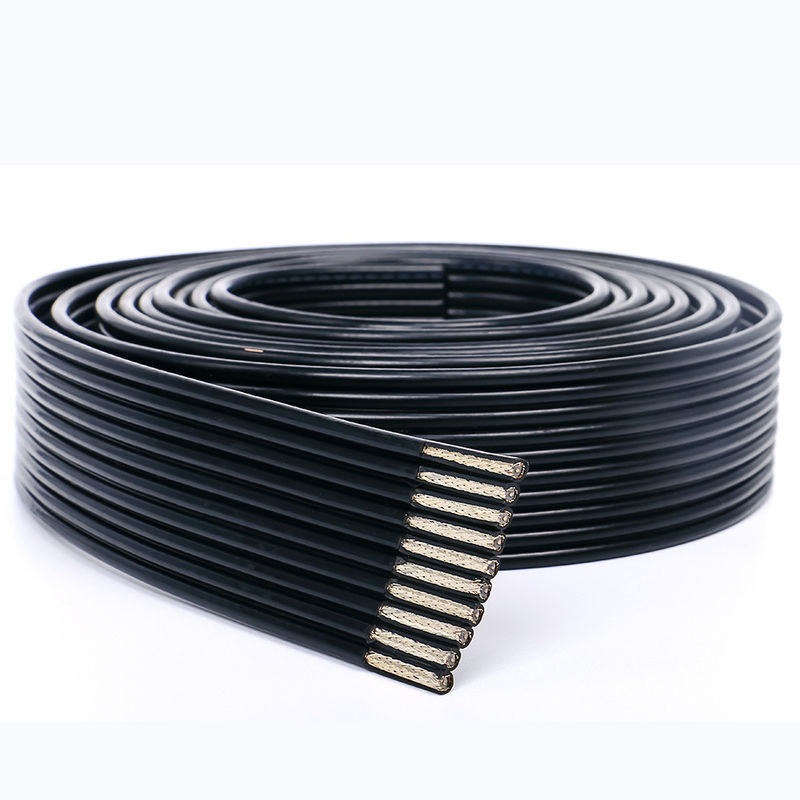

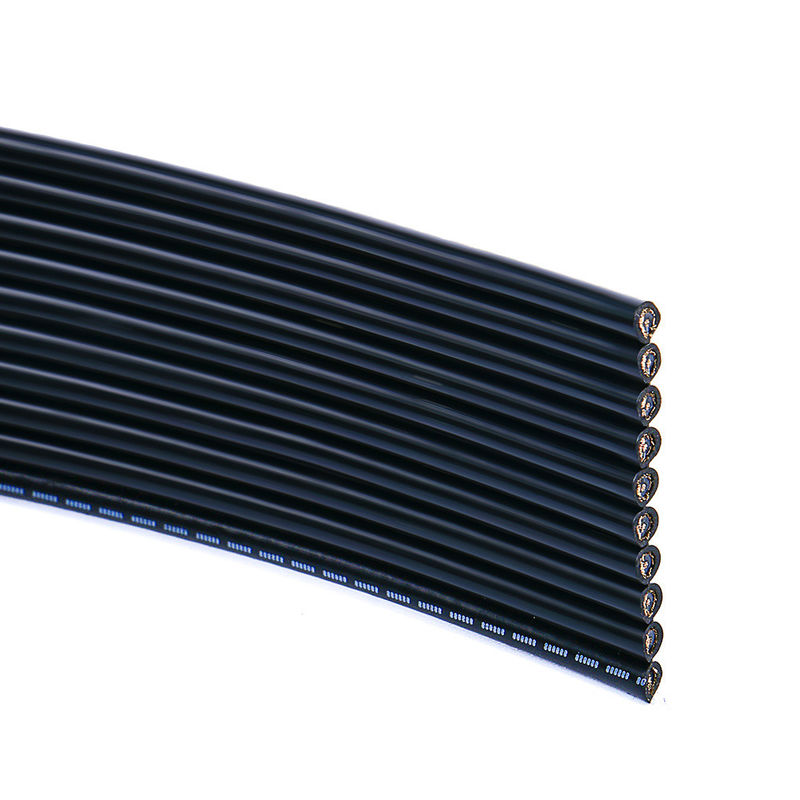

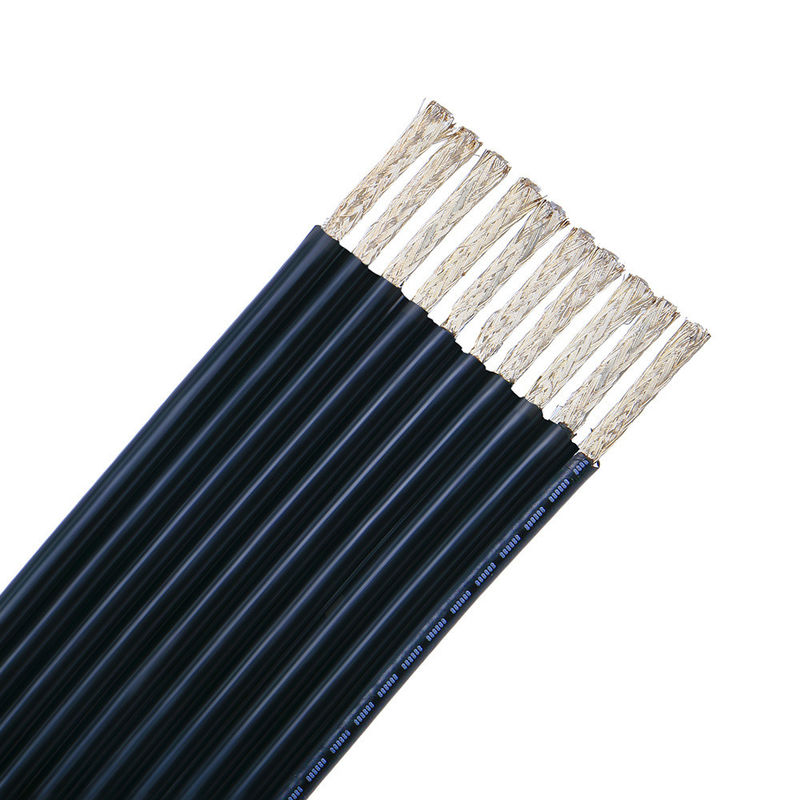

Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper and PVC Jacket for Custom Applications

PVC Jacket Flat Ribbon Cable

Tinned Copper Flat Ribbon Cable

Customized Shielded UL Electrical Wire

Place of Origin:

China

Brand Name:

Linke

Certification:

3C，UL，TPU，UL758，ROHS，REACH，CE，ISO9001-2015，ISO13485，IATF16949

Request A Quote

Product Details

Conductor Material:

Copper/Tinned Copper

Exterior Material:

Customize：PVC、PE、LSFOH、silicone Rubber

Insulating Materials:

Customize:PVC、PE 、XLPE、EPR、SIR

Specifications:

0.1-450mm²

Rated Voltage:

300-600V

Rated Temperature:

-60± 200℃

Colour:

Customize

Package:

By Roll

Lead Time:

7-15days

Highlight:

PVC Jacket Flat Ribbon Cable

Tinned Copper Flat Ribbon Cable

Customized Shielded UL Electrical Wire

Payment & Shipping Terms

Minimum Order Quantity

1000m

Price

Negotiable

Packaging Details

According to requirement

Delivery Time

7-15day

Payment Terms

Advance 30% deposit and ship after receiving 70% final payment

Supply Ability

50000m/day

US Currency Gxl Low-Voltage Basic Cable for Automotive and Motorcycle Shipping Cost

Get Best Price

Video

8AWG 10AWG 12AWG 14AWG 16AWG 18AWG Electrical Lead Cable UL Listed with PVC Insulated

Get Best Price

UL Approved PVC Insulated Electrical Cable Power Cable 1000V Lead Wire for Industrial

Get Best Price

TXL Cable with Tinned Copper Conductor UL Certified 300V Rated for Automotive Applications

Get Best Price

86-0769-81776230

86-18665106395

sales@linkecable.com

Contact Now

Product Description

Medical Biocompatible Flat Ribbon Cable with Shielded Tinned Copper PVC Jacket

High-performance flat ribbon cable designed for medical applications requiring biocompatibility and reliable electrical performance in demanding environments.

Product Specifications

Model Type	PH, XH, VH, IDC compatible
Application Scope	Various electronic and electrical products
Terminal Type	Crimping
Interface Type	AC/DC
Shape	Bar shaped
Production Process	Crimping
Characteristics	Moisture proof
Contact Material	Environmentally friendly oxygen free tin plated copper
Insulator Material	Environmentally friendly oxygen free tin plated copper
Number of Cores	Customized by customer
Customized Needle Count	Customized by customer
Line Length	Customized by customer (mm)

Technical Parameters

Rated Current	1.0A~7.0A
Voltage Resistance Value	500~1000
Insulation Resistance	1000MΩ
Contact Resistance	30MΩ Max
Working Temperature	-40℃~+200℃

Material Composition

Contact Material	Environmentally friendly silicone rubber
Parallel Wiring	PVC

High Temperature Cable Specifications

Product Categories	High temperature cable series
Temperature Rating	200℃
Rated Voltage	300V
Test Voltage	2000V
Insulation Material	Silicone Rubber
Conductor Material	Tinned copper/Silver-plated copper/Enameled copper
Application	Internal connections of electronic and electrical equipment

Detailed Cable Specifications

Conductor	Insulation	Electric	Package
Cross-sectional area	Structure	Diameter	Thickness	Diameter	Conductor resistance	Allowable current	Meter/roll
0.15*2C	7*0.15	0.46	0.60	1.70*3.40	127.10	1.88	305
0.20*2C	7*0.20	0.61	0.60	1.80*3.60	95.58	2.51	305
0.30*2C	7*0.25	0.76	0.60	2.00*4.00	59.40	4.04	305
0.50*2C	16*0.20	0.92	0.60	2.15*4.30	35.91	6.68	305
0.75*2C	24*0.20	1.13	0.60	2.35*4.70	23.93	10.03	305
1.00*2C	32*0.20	1.30	0.60	2.50*5.00	17.89	13.42	305
0.50*3C	16*0.20	0.92	0.60	2.15*6.50	35.91	6.68	305
0.75*3C	24*0.20	1.13	0.60	2.35*7.00	23.93	10.03	305
1.00*3C	32*0.20	1.30	0.60	2.50*7.50	17.89	13.42	305

Flat cable is a type of electrical wire or cable that has a flat and wide shape, as opposed to traditional round wires or cables. It consists of multiple conductors arranged side by side, with a thin sheet-like insulating material maintaining the relative position and spacing between the conductors. Common insulating materials used for flat cables include polyimide and PVC. Flat cables typically have a higher density and greater flexibility, making them widely used in electronic devices, computers, communication equipment, and automation systems. Their flat design allows for neater wiring, easy installation, and maintenance.

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.

How can I get a sample to test your quality?

The samples are free for you. New clients are expected to pay for the courier cost.

What's your Minimum Order Quantity?

Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.

Can I get a discount?

It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.

Does your company accept OEM production?

Yes, we can print your company name, and we even custom the quality card to promote your company.
